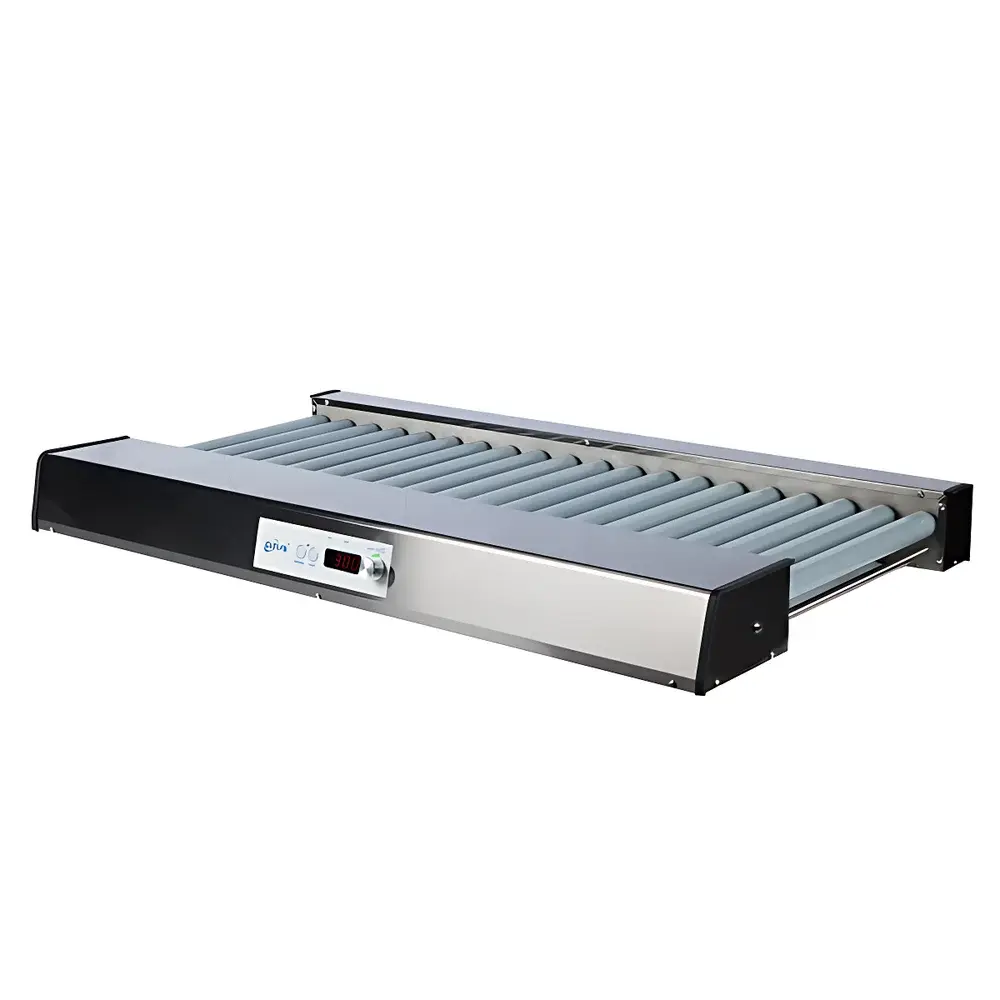

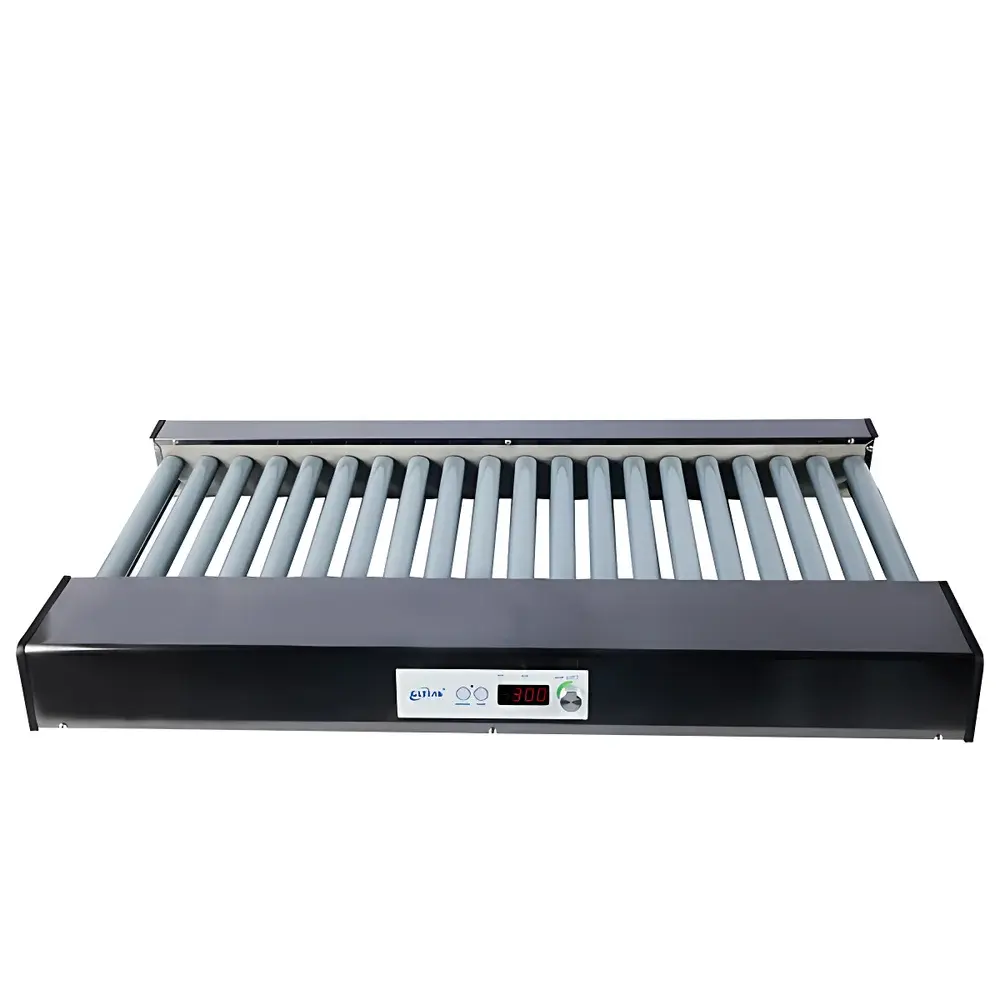

GLTlab TR20-1000 Digital Orbital Roller Mixer

Overview

The GLTlab TR20-1000 is a high-capacity, digitally controlled orbital roller mixer engineered for consistent, low-shear homogenization of viscous and sediment-prone liquid formulations across industrial R&D and production environments. Unlike vortex or orbital shakers, this system employs precisely synchronized rotational motion along inclined axes—mimicking the gentle yet effective tumbling action of laboratory-scale roller bottles—scaled for reproducible batch processing. Its core principle relies on gravity-assisted, continuous axial rolling to promote uniform particle dispersion, interfacial wetting, and polymer relaxation without introducing air entrapment or thermal degradation. Designed for long-duration, unattended operation, the TR20-1000 supports time-critical maturation processes such as paint resin crosslinking, pigment deagglomeration, and emulsion stabilization—where dwell time, directional alternation, and mechanical consistency directly impact final rheological and optical performance.

Key Features

• 20 independently mounted stainless-steel rollers (Ø30 mm × 340 mm), spaced at 20 mm intervals to accommodate vials, tubes, bottles, and custom containers from 15 mL to 5 L in volume
• Digital LED interface with programmable parameters: rotation speed (RPM range configurable per application), forward/reverse direction sequence, reversal interval (1–15 minutes), and total run time (up to 200 hours)
• Robust 304 stainless-steel frame and roller housing ensure corrosion resistance, structural rigidity, and compliance with ISO 8573-1 cleanroom-compatible surface finish standards
• Programmable bidirectional rotation mitigates sediment stratification and promotes isotropic mixing in high-viscosity systems (e.g., acrylic dispersions, ceramic slips, cosmetic bases)
• Integrated overload protection and thermal cut-off safeguard motor integrity during extended operation under full 15 kg load capacity
• Modular design supports factory customization—including roller angle adjustment (±5° to ±15°), non-standard roller lengths, and integration-ready I/O ports for PLC or SCADA linkage

Sample Compatibility & Compliance

The TR20-1000 accommodates heterogeneous sample formats including glass and PET roller bottles, HDPE carboys, stainless-steel canisters, and custom-lined vessels. It is routinely deployed in ISO 9001-certified coating manufacturing facilities where ASTM D1210 (Hegman grind gauge validation), ASTM D2243 (latex coalescence testing), and ISO 15184 (paint film hardness development) protocols require controlled, low-turbulence conditioning prior to analysis. In food-grade applications, equipment surfaces meet FDA 21 CFR 177.2400 criteria for repeated contact with aqueous and lipid-based matrices. Optional documentation packages include Factory Acceptance Test (FAT) reports, material traceability certificates (EN 10204 3.1), and IQ/OQ protocol templates aligned with GMP Annex 15 requirements.

Software & Data Management

While the TR20-1000 operates via embedded microcontroller firmware (no external PC dependency), it supports optional RS-485 Modbus RTU communication for integration into centralized MES or LIMS platforms. Logged operational parameters—including cumulative runtime, cycle count, direction change timestamps, and fault codes—are stored in non-volatile memory with timestamped audit trails. When paired with GLTlab’s optional DataBridge Module (sold separately), users gain CSV export capability, trend visualization dashboards, and electronic signature support compliant with 21 CFR Part 11 for regulated environments requiring ALCOA+ data integrity principles.

Applications

• Coatings & Paints: Accelerated pigment wetting, solvent-borne alkyd resin maturation, waterborne acrylic coalescence, and anti-settling additive activation
• Cosmetics: Homogenization of anhydrous ointments, silicone emulsions, and suspension-based sunscreens without phase separation
• Food & Beverage: Hydration of hydrocolloids (e.g., xanthan, carrageenan), yeast propagation media conditioning, and flavor oil dispersion in dairy analogs
• Ceramics & Advanced Materials: Slurry deagglomeration for tape casting, graphite electrode paste homogenization, and battery slurry pre-conditioning prior to coating
• Pharmaceutical Intermediates: Solvent exchange steps in API crystallization workflows and excipient dispersion in semi-solid dosage forms

FAQ

What is the maximum recommended viscosity range for stable operation?
The TR20-1000 is optimized for Newtonian and mildly shear-thinning fluids up to ~50,000 mPa·s at 25°C; higher viscosities may require reduced roller loading or extended cycle times to maintain torque stability.
Can the unit be validated for GMP manufacturing use?
Yes—GLTlab provides IQ/OQ documentation templates, calibration guidance for timer and direction logic, and material certification dossiers required for equipment qualification in pharmaceutical and medical device manufacturing.
Is remote monitoring supported out-of-the-box?
No native Ethernet or Wi-Fi interface is included; however, RS-485 connectivity enables third-party SCADA integration using standard Modbus register mapping (available upon request).
What safety certifications does the TR20-1000 hold?
It complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions), carries CE marking per Machinery Directive 2006/42/EC, and meets IP20 ingress protection rating for indoor industrial use.
Are replacement rollers and drive belts available as spare parts?
Yes—GLTlab maintains a 5-year spare parts inventory for all TR-series components, including precision-ground stainless rollers, tension-adjustable polyurethane drive belts, and encoder modules.
