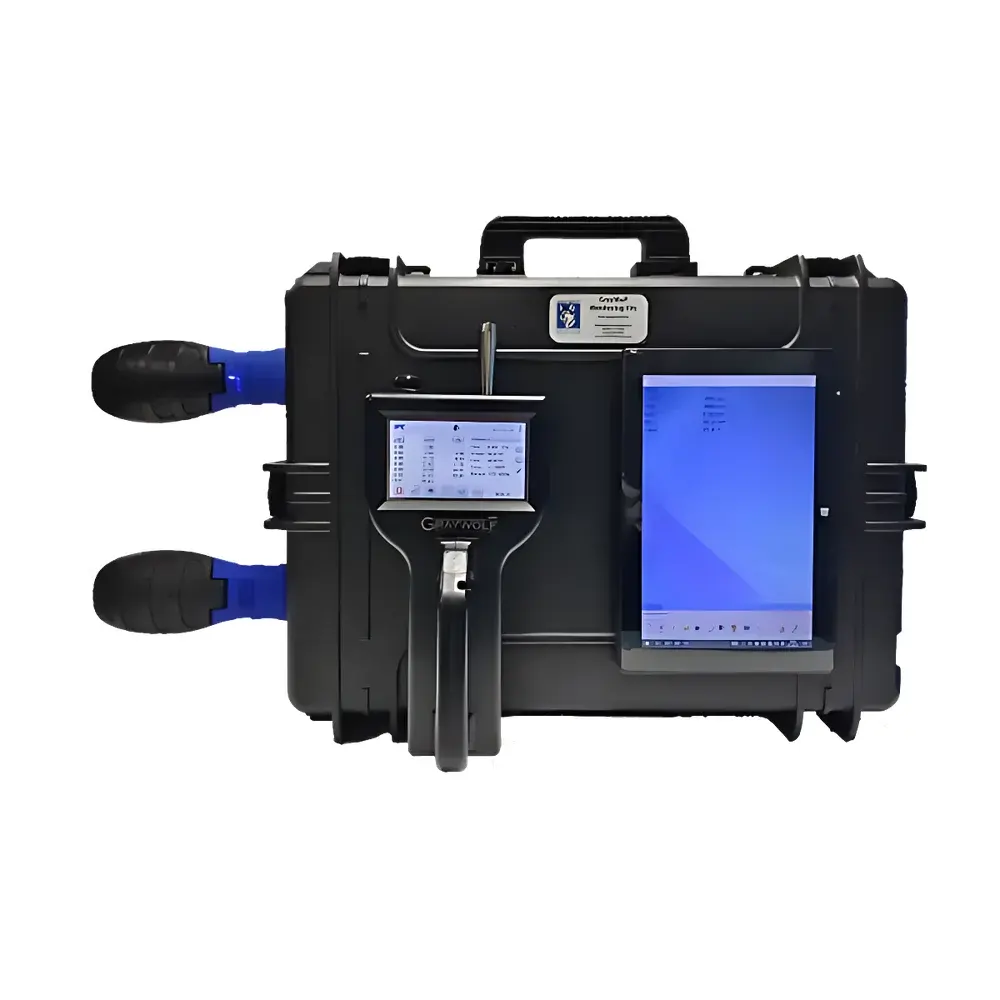

Graywolf AdvancedSense XM Portable Multi-Parameter Air Quality Monitoring System
| Brand | Graywolf |
|---|---|
| Model | AdvancedSense XM |
| Origin | Beijing, China |
| Instrument Type | Portable |
| Detection Principle | Electrochemical Sensing (for gases), Laser Scattering (for PM), Hot-Wire & Pitot Tube (for airflow), Capacitive/Thermal (for RH/T), Piezoresistive (for pressure) |
| Gas Parameters | TVOC, HCHO, CO₂, SO₂, O₃, NO₂, O₂, NO, NH₃, CO, Cl₂, H₂S, H₂, HCN, F₂, HCl, PH₃, HF, AsH₃, C₂H₄O, SiH₄, ClO₂, COCl₂, B₂H₆ |
| Particle Parameters | PM₂.₅, PM₁₀, TSP (0.3–25 µm, 6 customizable size channels) |
| Airflow Parameters | Hot-wire & Pitot tube anemometry, volumetric flow (m³/min), fresh air rate, duct & grille velocity/flow |
| Environmental Parameters | Barometric pressure, differential pressure, temperature (ambient, surface, liquid, penetration via thermocouple), relative humidity, wet-bulb, specific humidity, absolute humidity |
| Units | ppm, ppb, µg/m³, mg/m³, % vol, particles/L, m/s, m³/min, kPa, °C/°F, % RH |
| Operating System | Embedded Wolf OS v4.x |
| Data Logging | Internal SD card (up to 128 GB), real-time timestamped storage with audit trail |
| Software | WolfSense Desktop v5.2 (Windows/macOS), compliant with FDA 21 CFR Part 11 for electronic records & signatures (audit trail enabled) |
| Compliance | Meets ISO 17025 calibration traceability requirements |
Overview
The Graywolf AdvancedSense XM Portable Multi-Parameter Air Quality Monitoring System is an engineered platform for field-deployable, regulatory-grade environmental assessment. Built upon Graywolf’s proven electrochemical gas sensing architecture and integrated multi-sensor fusion design, the system applies standardized physical measurement principles—including amperometric and metal-oxide semiconductor electrochemistry for toxic and combustible gases, laser diffraction and Mie scattering for particulate mass and number concentration, constant-temperature anemometry for low-velocity airflow, and piezoresistive transduction for differential pressure—across a unified embedded computing core. Unlike single-parameter handhelds, the AdvancedSense XM functions as a modular measurement node capable of simultaneous acquisition across ≥24 gas species, six-channel aerosol sizing, thermal-hygrometric profiling, and dynamic ventilation characterization. Its primary operational scope spans indoor air quality (IAQ) commissioning, occupational exposure assessment (per OSHA PELs and ACGIH TLVs), post-remediation verification, HVAC performance validation, and ambient micro-environmental mapping. The system is designed for use in laboratories, cleanrooms, schools, hospitals, industrial facilities, and field deployment scenarios including vehicle-mounted mobile surveys and UAV-integrated aerial monitoring.
Key Features
- Modular sensor architecture: Single Wolf OS–powered host accepts interchangeable probe modules—no firmware reflash required when adding or swapping sensors.
- Real-time multi-parameter synchronization: All analog and digital inputs are time-aligned to ±10 ms, enabling cross-correlation analysis (e.g., CO₂–ventilation rate–PM₂.₅ co-variation).
- Low-noise analog front-end: 24-bit sigma-delta ADCs with programmable gain amplification ensure sub-ppb detection limits for electrochemical sensors and <0.1 µg/m³ resolution for PM mass channels.
- Embedded annotation engine: On-device capture of voice memos, geotagged photos, sketch overlays, event markers, and synchronized video clips—all embedded directly into the binary data file (.wsd format) with SHA-256 checksum integrity.
- Dual-mode operation: Functions as a standalone field instrument with 7-inch capacitive touchscreen interface, or as a USB-connected peripheral to Windows/macOS laptops running WolfSense Desktop.
- Configurable alarm logic: Independent high/low warning and alarm thresholds per parameter, with hysteresis control, audible/visual alerts, and optional relay output for external actuation (e.g., HVAC shutdown).
- Calibration traceability: Each sensor module includes NIST-traceable calibration certificate; onboard zero/span verification routines support daily field checks per ISO 17025 clause 7.7.
Sample Compatibility & Compliance
The AdvancedSense XM is validated for gaseous and particulate sampling in non-explosive, non-condensing environments (IP54 enclosure rating). Gas sensors operate within –10 °C to +50 °C and 15–90% RH (non-condensing); optical particle counters require <80% RH to prevent hygroscopic growth artifacts. All electrochemical cells comply with EN 45544-1:2017 for workplace gas detection, while PM modules meet ISO 29463-3:2017 classification accuracy for 0.3–10 µm particles. The system supports full audit trail generation—including user login/logout, parameter changes, calibration events, and annotation timestamps—as required under FDA 21 CFR Part 11 and EU Annex 11 for computerized systems in regulated environments. Data export formats include CSV, XLSX, PDF reports, and XML metadata-compliant archives for LIMS integration.
Software & Data Management
WolfSense Desktop v5.2 provides laboratory-grade post-processing: time-series interpolation, moving-average smoothing, percentile statistics (e.g., 95th-percentile CO exposure), IAQ index calculation (per ASHRAE Standard 62.1), and custom report templates aligned with EPA IAQ Tools for Schools or WHO Indoor Air Quality Guidelines. Raw files retain full sensor metadata (serial numbers, calibration dates, firmware versions) and support digital signature verification. The software enforces role-based access control (RBAC), automatic backup to network drives, and encrypted local storage. Audit logs record all user actions with immutable timestamps, satisfying GLP documentation requirements for environmental health studies.
Applications
- Indoor air quality baseline assessments prior to occupancy in commercial buildings and healthcare facilities.
- Occupational hygiene surveys for compliance with OSHA 1910.1200 (Hazard Communication) and EU Directive 2004/37/EC (carcinogens/mutagens).
- Post-mitigation verification following mold remediation, fire damage restoration, or VOC off-gassing events.
- HVAC balancing and duct leakage quantification using simultaneous static pressure, airflow, and CO₂ decay rate measurements.

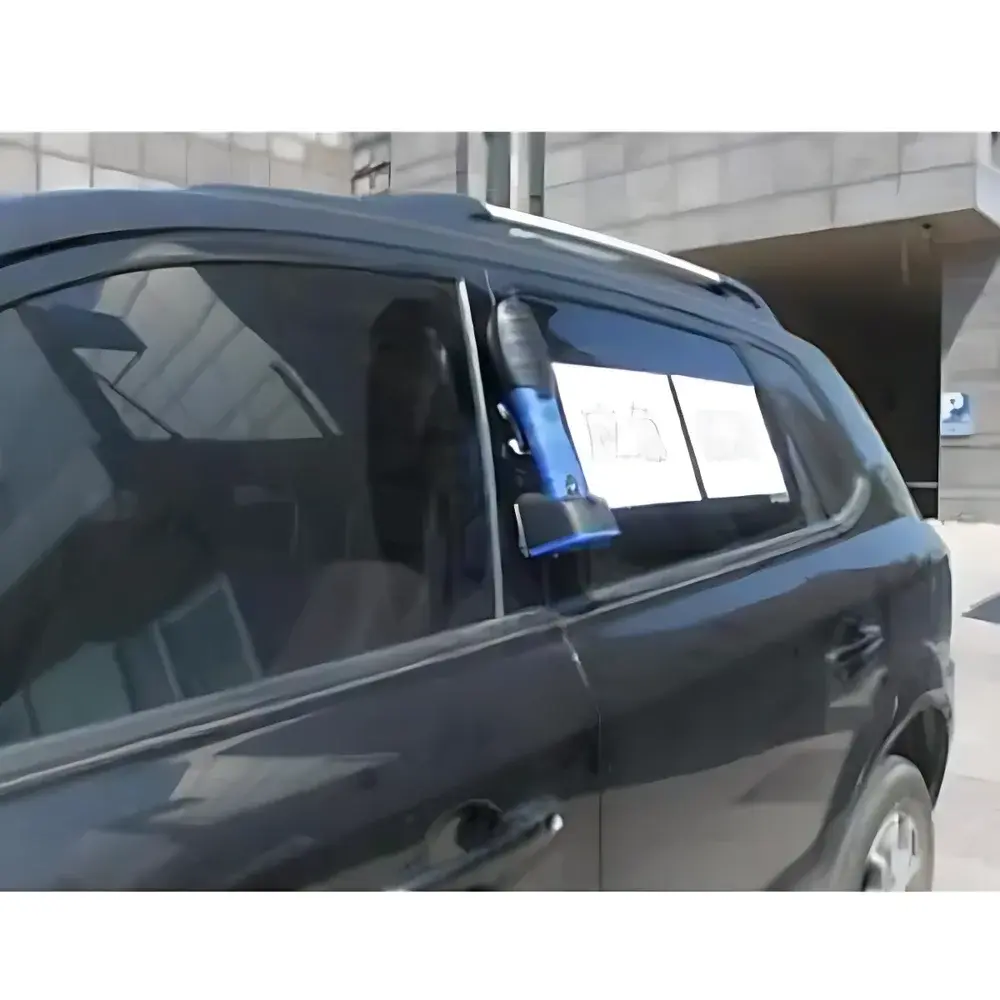

- Mobile source impact studies via vehicle-mounted deployments along traffic corridors or near industrial fence lines.
- Academic research on aerosol dynamics, gas-phase reaction kinetics, and human exposure microenvironments.
FAQ
Does the AdvancedSense XM support remote data transmission?
Yes—optional 4G LTE or Wi-Fi modules enable secure TLS 1.2–encrypted telemetry to cloud dashboards or on-premise servers. Data payloads include full sensor metadata and digital signatures.
Can I perform quantitative calibration in the field without sending the unit to a service center?
Yes—each sensor module supports user-initiated span calibration using certified gas standards; zero calibration is performed automatically on startup or via manual trigger.
Is WolfSense Desktop compatible with LIMS or enterprise EHS platforms?
Yes—it exports ASTM E1461-compliant XML and HL7-compatible CSV, and includes RESTful API documentation for custom middleware integration.
What is the battery life under continuous logging mode?
Up to 12 hours with all sensors active and display on; extends to 24+ hours with display off and periodic sampling intervals.
How does the system handle cross-sensitivity between gases like NO₂ and O₃?
Electrochemical sensors incorporate proprietary filter membranes and temperature-compensated algorithms to minimize interference; correction coefficients are applied in real time per manufacturer validation reports.
