The Great Wall GR-10Ex Variable-Frequency Speed-Controlled Double-Jacketed Glass Reactor

Overview

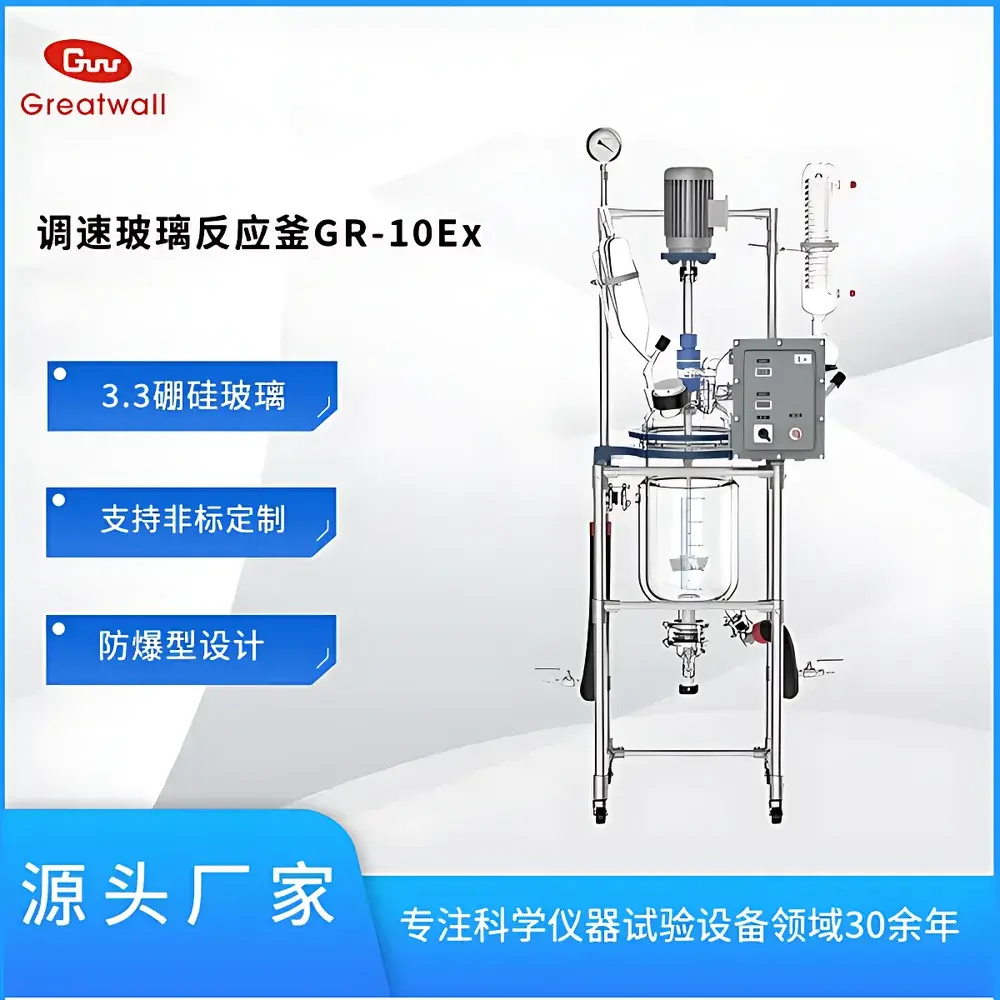

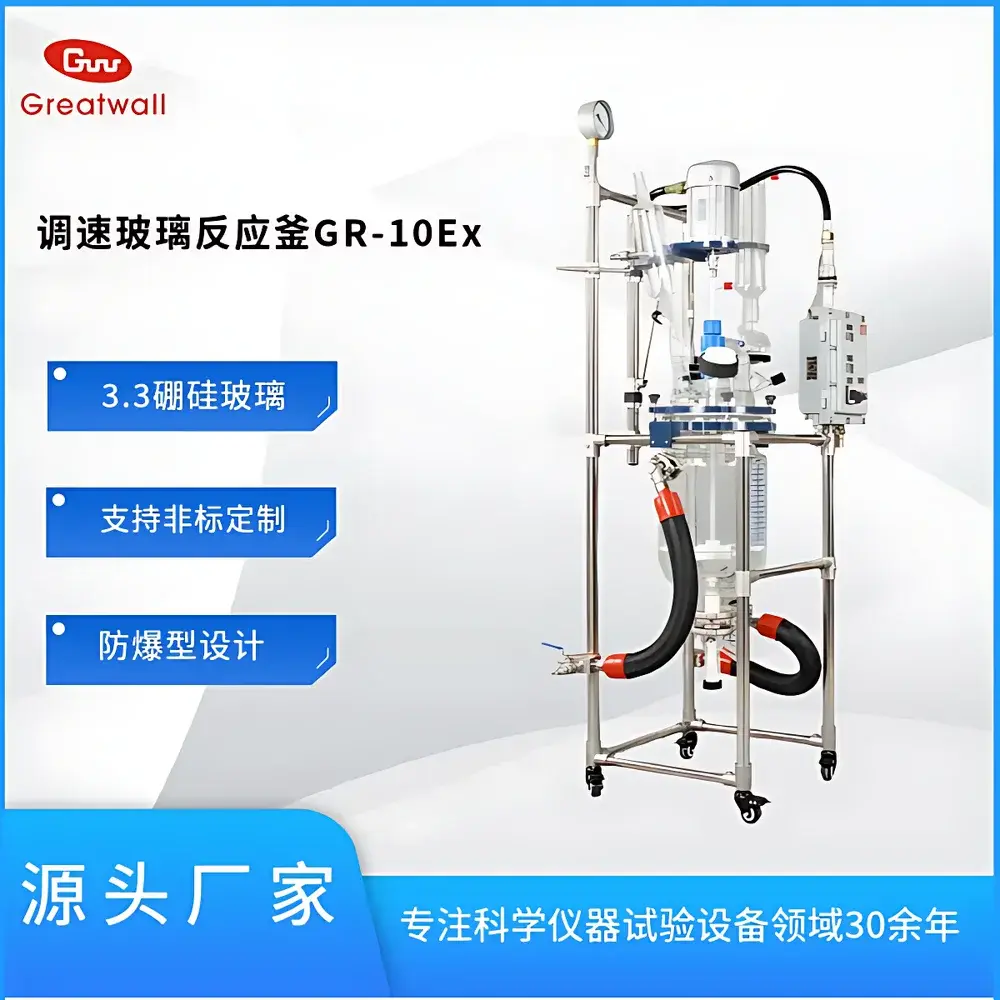

The Great Wall GR-10Ex is a precision-engineered double-jacketed glass reactor designed for controlled synthesis, reaction monitoring, and process development in research laboratories, pilot-scale facilities, and GMP-compliant production environments. Built on the Couette flow principle and integrated thermal management architecture, it enables simultaneous vacuum operation, precise temperature regulation (via jacketed heat transfer), and variable-speed mechanical agitation — all within a fully transparent borosilicate glass 3.3 vessel. Its modular design supports integration with external chiller/heater units, vacuum systems, condensers, and feed modules, making it suitable for reflux, distillation, crystallization, hydrogenation, polymerization, and solvent-free reactions. The reactor complies with fundamental safety and material compatibility requirements for Class I, Division 2 hazardous locations per IEC 60079-0 and EN 60079-1, validated by its Exdb II BT4 Gb certification.

Key Features

• Double-jacketed borosilicate glass 3.3 vessel (10 L working volume) with high chemical inertness, low thermal expansion (3.3 × 10⁻⁶ K⁻¹), and optical clarity for real-time visual process observation;
• Integrated variable-frequency drive (VFD) motor control enabling continuous stirring speed adjustment from 50 to 500 rpm with ±1 rpm digital resolution and stable torque delivery across load variations;
• Explosion-proof隔爆型 three-phase induction motor (180 W) certified to Exdb II BT4 Gb, suitable for use with flammable solvents and reactive atmospheres;
• PTFE-clad 06Cr19Ni10 (AISI 304) stirring shaft and four-blade inclined turbine impeller, ensuring corrosion resistance, mechanical strength, and minimal metal ion leaching;
• Vacuum-rated mechanical seal with graphite/PTFE stationary and rotating faces, rated for continuous operation under -0.1 MPa gauge pressure;
• Stainless steel (06Cr19Ni10) and powder-coated aluminum alloy frame with locking casters for stable positioning and safe relocation;
• Thermally insulated jacket inlet/outlet ports using 35# stainless steel flexible hoses to eliminate stress-induced cracking at glass-metal interfaces;
• Digital PT100 temperature sensor (±0.1 °C accuracy) and LED speed display integrated into the control panel for traceable operational parameters.

Sample Compatibility & Compliance

The GR-10Ex accommodates a broad spectrum of sample types — including corrosive reagents (e.g., concentrated acids, alkalis), moisture-sensitive organometallics, viscous polymer precursors, and thermally labile biologics — without risk of catalytic surface interaction or contamination. All wetted parts are constructed from ASTM E438 Type I, Class A borosilicate glass 3.3, conforming to ISO 3585 and DIN 7080 specifications. The reactor meets essential requirements of ISO 14001 (environmental management), ISO 9001 (quality system), and supports GLP/GMP documentation workflows through parameter logging capability. While not inherently 21 CFR Part 11 compliant, its analog/digital interface allows integration with validated data acquisition systems supporting electronic signatures and audit trails.

Software & Data Management

The GR-10Ex operates as a standalone hardware platform with local digital readouts for speed and temperature. It does not include embedded firmware or proprietary software; however, its analog 0–10 V or 4–20 mA output signals (optional upgrade) enable connection to third-party SCADA systems, PLCs, or LabVIEW-based controllers for automated protocol execution and long-term parameter trending. Users may configure time-stamped log files via external DAQ modules compliant with ASTM E2500-13 (verification of computerized systems) and ICH Q7 Annex 11 (computerized system validation in pharmaceutical manufacturing).

Applications

• Synthesis of fine chemicals and active pharmaceutical ingredients (APIs) under controlled exothermic or cryogenic conditions;
• Pilot-scale optimization of heterogeneous catalysis, esterification, amidation, and Grignard reactions;
• Process analytical technology (PAT) development requiring in-situ visual confirmation of phase separation, precipitation onset, or emulsion stability;
• Material science studies involving sol-gel transitions, nanoparticle nucleation, and controlled polymer chain growth;
• Teaching laboratory demonstrations of thermodynamic equilibria, reaction kinetics, and mass/heat transfer principles;
• Environmental testing of degradation pathways for emerging contaminants under simulated daylight or UV exposure (when paired with optional quartz viewport or external irradiation source).

FAQ

What is the maximum allowable jacket pressure during heating/cooling cycles?
The夹套 (jacket) is rated for a maximum working pressure of ≤0.03 MPa (30 kPa) — consistent with ASME B31.5 refrigeration piping guidelines for low-pressure thermal fluid systems.
Can the reactor be operated under full vacuum while stirring at 500 rpm?
Yes. The vacuum mechanical seal and reinforced 215 mm法兰 (flange) assembly maintain integrity down to -0.1 MPa absolute pressure at all specified speeds, provided proper torque sequencing and PTFE gasket conditioning protocols are followed.
Is the PTFE-coated stirring shaft resistant to hydrofluoric acid (HF)?
No. While PTFE exhibits excellent resistance to most mineral and organic acids, it is chemically degraded by anhydrous HF and molten alkali metals. For HF applications, alternative fluoropolymer-lined alloys or quartz-shaft configurations must be specified.
Does the unit include a built-in cooling/heating circulator?

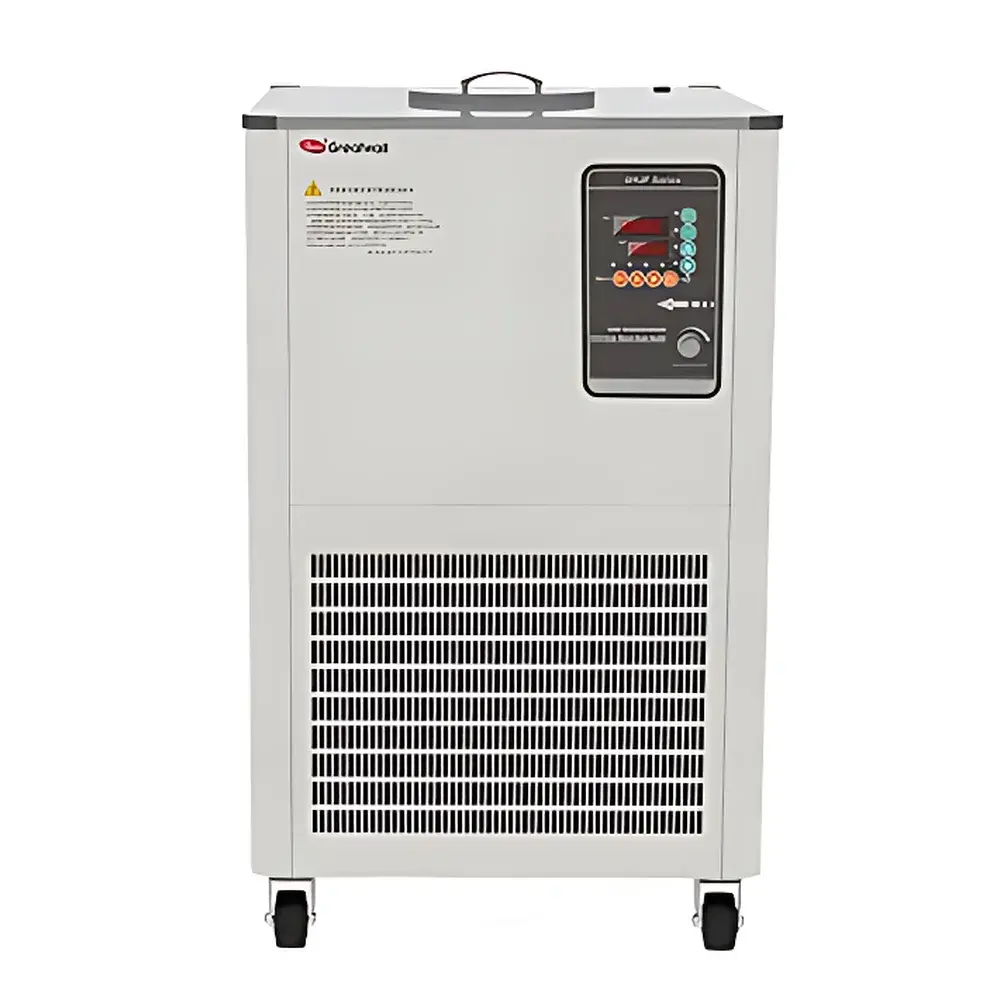

No. The GR-10Ex is a reactor core only. External circulation units — such as low-temperature chillers (-80 °C), high-temperature oil baths (up to 200 °C), or dual-mode heating/cooling systems — must be connected via the standardized 35# jacket ports.
What maintenance intervals are recommended for the mechanical seal and motor bearings?
Under continuous operation, inspect the mechanical seal every 500 operating hours and replace the PTFE/graphite components every 2,000 hours. Motor bearing lubrication is factory-sealed and requires no scheduled maintenance within the first 10,000 hours of service life.
