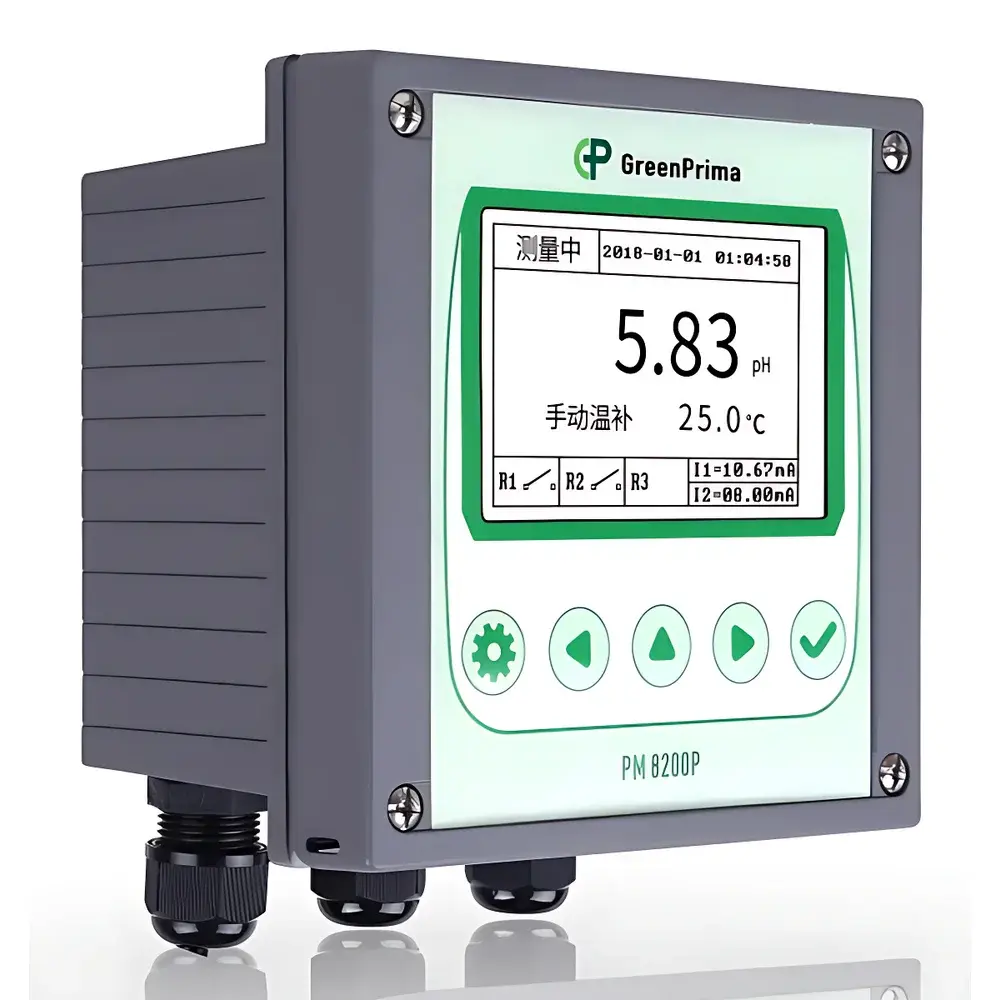

GreenPrima PM 8200P Online pH/ORP Analyzer

Overview

The GreenPrima PM 8200P Online pH/ORP Analyzer is a robust, industrial-grade process monitoring instrument engineered for continuous, high-stability measurement of hydrogen ion activity (pH) and oxidation-reduction potential (ORP) in aqueous streams. Based on potentiometric principle using glass electrode (pH) and platinum or redox-sensitive metal electrodes (ORP), the analyzer delivers traceable, repeatable electrochemical readings under dynamic flow conditions. Its design emphasizes long-term drift resistance, thermal stability, and immunity to electromagnetic interference—critical for wastewater treatment plants, chemical dosing stations, cooling tower control loops, and pharmaceutical water systems where regulatory compliance and operational continuity are non-negotiable. The integrated PT1000 temperature sensor enables precise automatic temperature compensation (ATC) across −10 to 130 °C, ensuring thermodynamic consistency per NIST-traceable calibration protocols.

Key Features

• Industrial-grade hardware architecture: All critical components—including analog front-end ICs, microcontroller unit, and signal conditioning circuitry—are sourced from Tier-1 international suppliers and assembled via automated surface-mount technology (SMT) for enhanced thermal cycling endurance and solder joint reliability.
• IP65-rated sealed enclosure: Fully gasketed polycarbonate housing with UV-stabilized coating resists ingress of dust, moisture, and corrosive vapors—validated for outdoor mounting and high-humidity zones without auxiliary enclosures.
• Graphical backlit LCD interface: 128 × 64 pixel display with adjustable contrast and auto-dimming (3-minute timeout) supports simultaneous visualization of real-time pH/ORP values, compensated temperature, relay status, time stamp, and diagnostic flags.
• Dual independent 4–20 mA outputs: Each channel is galvanically isolated, programmable for pH, ORP, temperature, or derived control signals (e.g., deviation alarms), with full-scale accuracy better than 0.1% and load capability up to 500 Ω.
• MODBUS RTU over RS485: Standard-compliant serial interface enables seamless integration into DCS, SCADA, and PLC networks; supports multi-drop topology (up to 32 nodes) with configurable baud rates (1200–115200 bps) and parity settings.
• Configurable multifunction relay: Single-pole double-throw (SPDT) output supports user-defined logic—e.g., periodic electrode cleaning activation, out-of-range threshold alerts, or sensor failure indication—with adjustable delay and hysteresis.
• Embedded data historian: Onboard flash memory retains 600,000 timestamped records (pH, ORP, temp, relay state) with chronological search, export-ready CSV formatting, and retention policies aligned with ISO 17025 audit requirements.

Sample Compatibility & Compliance

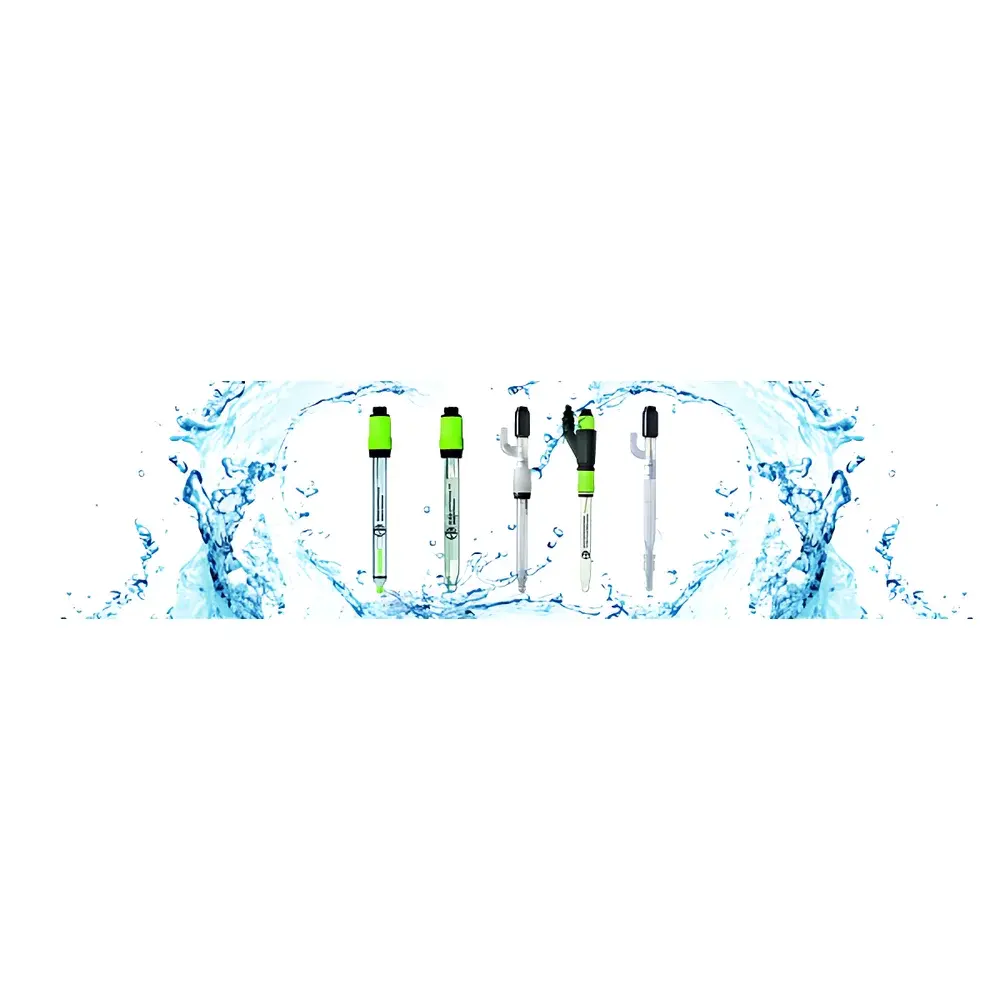

The PM 8200P is compatible with GreenPrima’s Bsens series electrodes—including the Bsens 120T (pH) and Bsens 210 (ORP)—designed for fouling resistance in suspended-solids-laden effluents and chloride-rich brines. Electrode selection follows ASTM D1293 (pH of water) and ASTM D3222 (ORP measurement in natural waters) guidelines. The analyzer’s firmware implements two-point pH calibration with slope/midpoint verification, adhering to USP and EP 2.2.3 standards for pharmaceutical water quality assurance. Its electrical safety conforms to IEC 61010-1 (Measurement Category II, Pollution Degree 2), while EMC performance meets EN 61326-1 for industrial environments.

Software & Data Management

No proprietary PC software is required for basic operation; configuration is performed locally via intuitive bilingual (English/Chinese) menu navigation. For centralized deployment, GreenPrima provides a Windows-based configuration utility supporting batch parameter upload/download, firmware updates, and historian data extraction. All calibration events, relay activations, and error logs are time-stamped with millisecond precision and retain full audit trail integrity—enabling compliance with FDA 21 CFR Part 11 when used with validated IT infrastructure. Data export supports GLP/GMP documentation workflows through CSV or direct ODBC connectivity.

Applications

• Wastewater treatment: Real-time pH control in neutralization basins, influent monitoring, and effluent compliance reporting per EPA 40 CFR Part 136.
• Power plant chemistry: Feedwater and condensate pH/ORP surveillance in steam cycle systems to prevent corrosion and ensure ASME PTC 19.11 conformance.
• Food & beverage processing: Sanitizing rinse validation (e.g., chlorine dioxide ORP thresholds), CIP solution monitoring, and product contact water quality assurance.
• Chemical manufacturing: Batch reaction endpoint detection, acid/base addition control, and scrubber liquor management.
• Pharmaceutical purified water (PW) and water-for-injection (WFI) distribution loops per EU GMP Annex 1 and USP .

FAQ

What electrode types are certified for use with the PM 8200P?

GreenPrima Bsens 120T (pH) and Bsens 210 (ORP) electrodes are factory-matched and characterized for optimal response time and zero drift. Other third-party electrodes may be used if they comply with DIN 19263 or ISO 15739 pinout and output impedance specifications.
Does the PM 8200P support automatic calibration?

No—calibration requires manual immersion of the electrode in standard buffer solutions (e.g., pH 4.01, 7.00, 10.01) and execution of two-point slope calibration via the front panel. Auto-calibration is not implemented due to regulatory constraints on unattended verification in GxP environments.
Can the 4–20 mA outputs be assigned to different parameters simultaneously?

Yes—one channel can transmit pH value while the other transmits ORP or temperature, each independently scaled and offset-adjusted via the configuration menu.
Is the internal data logger accessible remotely?

Local USB or RS485 access is required for data retrieval; no built-in Ethernet or cloud connectivity is provided. Remote historian access must be enabled via external gateway or SCADA integration.
What maintenance intervals are recommended for field operation?

Electrode inspection every 30 days in aggressive media; full recalibration every 90 days or after mechanical shock; membrane electrolyte refill (for gel-filled electrodes) every 6 months; annual verification of current loop accuracy per ISO/IEC 17025 procedures.
