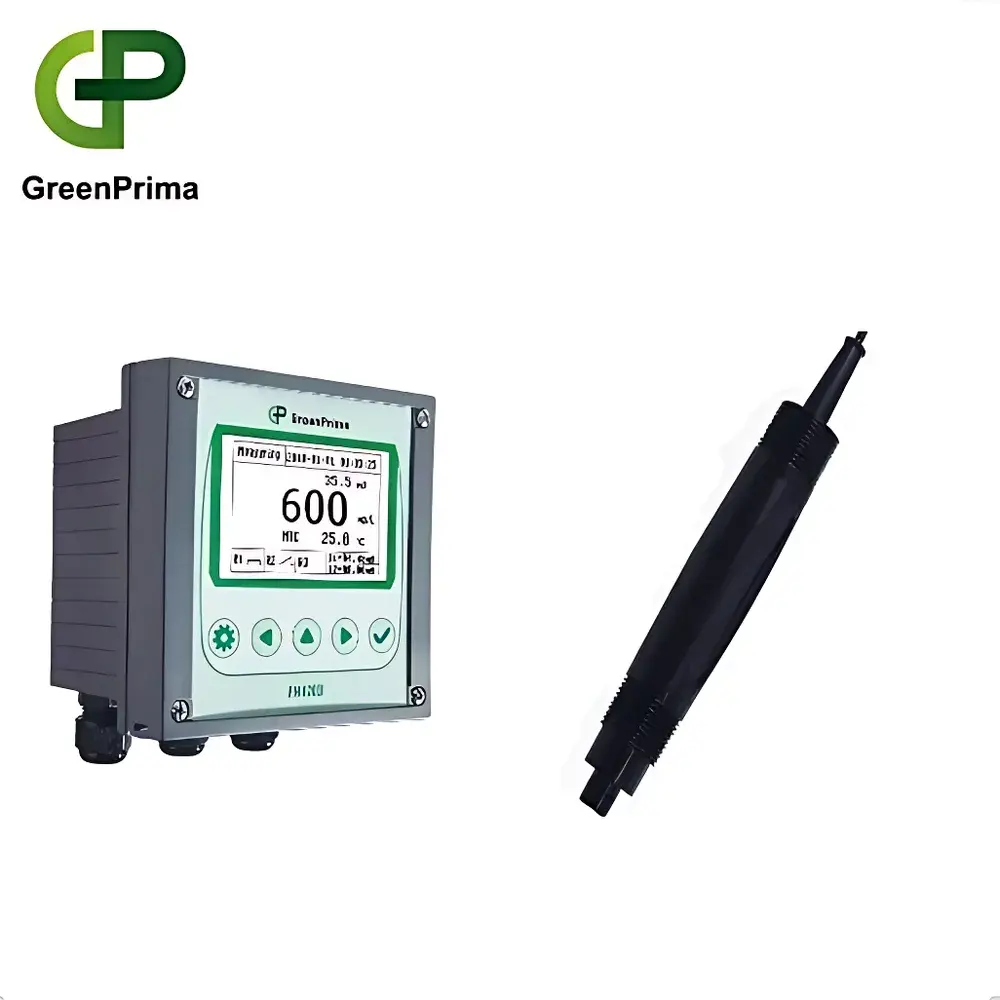

GreenPrima PM8200I-F Fluoride Ion Online Analyzer

Overview

The GreenPrima PM8200I-F Fluoride Ion Online Analyzer is a robust, industrial-grade electrochemical sensor system engineered for continuous, real-time monitoring of fluoride ion concentration in aqueous streams. It operates on the principle of potentiometric measurement using a solid-state, ion-selective electrode (ISE) — specifically optimized for high-selectivity detection of F⁻ in complex matrices. Unlike optical or colorimetric methods, this ISE-based approach delivers stable, interference-resistant output under varying pH and ionic strength conditions typical of municipal water distribution systems, semiconductor process effluents, solar cell manufacturing rinse waters, and electroplating wastewater. The analyzer integrates seamlessly into existing SCADA or DCS infrastructures via standard analog and digital protocols, supporting unattended operation in demanding environmental and industrial compliance settings.

Key Features

• IP65-rated fully sealed, corrosion-resistant enclosure with dual gasketed front panel — suitable for indoor and outdoor wall-, pipe-, or panel-mount installation
• Backlit high-contrast dot-matrix LCD display showing real-time F⁻ concentration (mg/L), temperature (°C), relay status, and system diagnostics
• Dual isolated 4–20 mA current outputs configurable for fluoride concentration and temperature — compliant with IEC 61000-6-2/4 EMC standards and calibrated to ±0.1% FS
• RS485 Modbus RTU interface as standard; optional HART protocol support for legacy system integration
• Programmable cleaning cycle (0.1–1000 h interval; 1–1000 s duration) to maintain electrode surface integrity in high-fouling applications
• Two independent programmable alarm relays (5 A / 250 VAC / 30 VDC) with adjustable hysteresis, supporting fail-safe shutdown or pump activation
• Multi-level password protection (calibration lock: 1100; configuration lock: 1200) preventing unauthorized parameter modification
• Auto- and manual temperature compensation using NTC10K or PT1000 sensors across –10 to +130 °C range

Sample Compatibility & Compliance

The PM8200I-F is validated for use with potable water, secondary-treated wastewater, cooling tower blowdown, and industrial process streams containing fluorosilicic acid, sodium fluoride, or HF-derived residues. Its PPS-bodied Bsens710 sensor exhibits minimal cross-sensitivity to chloride (<0.1% relative error at [Cl⁻]/[F⁻] = 1000:1) and negligible response to nitrate, sulfate, or phosphate ions under ISO 10523 and ASTM D3869 guidelines. The system meets CE marking requirements per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). While not certified for drinking water compliance per NSF/ANSI 61, it is routinely deployed upstream of regulatory endpoints where GLP-aligned calibration records and audit-ready data logs are maintained per internal QA procedures.

Software & Data Management

No proprietary PC software is required for basic operation; all configuration and calibration are performed locally via the front-panel interface. However, the Modbus RTU register map supports integration with third-party historian platforms (e.g., Ignition, Siemens Desigo, or Wonderware) for long-term trend analysis, alarm logging, and electronic record retention. All calibration events — including date/time stamp, standard concentrations used, slope/mV offset values, and operator ID — are stored internally with non-volatile memory retention exceeding 10 years. Optional firmware updates preserve backward compatibility and may introduce enhanced diagnostic flags aligned with ISO/IEC 17025 traceability frameworks.

Applications

• Monitoring fluoride dosing in municipal water fluoridation plants to ensure compliance with WHO guidance values (0.5–1.5 mg/L)
• Real-time control of HF neutralization in semiconductor fab wastewater treatment lines
• Process optimization in photovoltaic wafer texturing baths where residual F⁻ affects etch uniformity
• Leachate monitoring at landfills receiving fluorinated waste streams
• Quality assurance in aluminum anodizing and titanium pickling rinse tanks

FAQ

What is the recommended calibration frequency for the Bsens710 fluoride electrode?

Calibration should be performed at least once per week in stable applications; daily in high-fouling or variable-pH environments. A two-point calibration (e.g., 1 mg/L and 100 mg/L F⁻ standards) is required to validate slope and offset.
Can the PM8200I-F measure fluoride in seawater or brine?

Not recommended without dilution and ionic strength adjustment — elevated chloride and sodium concentrations cause measurable activity coefficient deviation and require matrix-matched standards per ISO 15192.
Is temperature compensation automatic during measurement?

Yes — the system continuously reads temperature from the integrated NTC10K sensor and applies the extended Debye-Hückel correction algorithm to reported F⁻ values.
Does the analyzer support FDA 21 CFR Part 11-compliant data handling?

No — it lacks electronic signature capability and audit-trail encryption. For regulated pharmaceutical or biotech applications, external data acquisition systems with Part 11 validation must be employed.
What maintenance is required beyond electrode calibration?

Annual verification of relay contact resistance, inspection of cable gland integrity, and replacement of the O-ring seal every 24 months — documented in accordance with ISO 5725-2 precision criteria.
