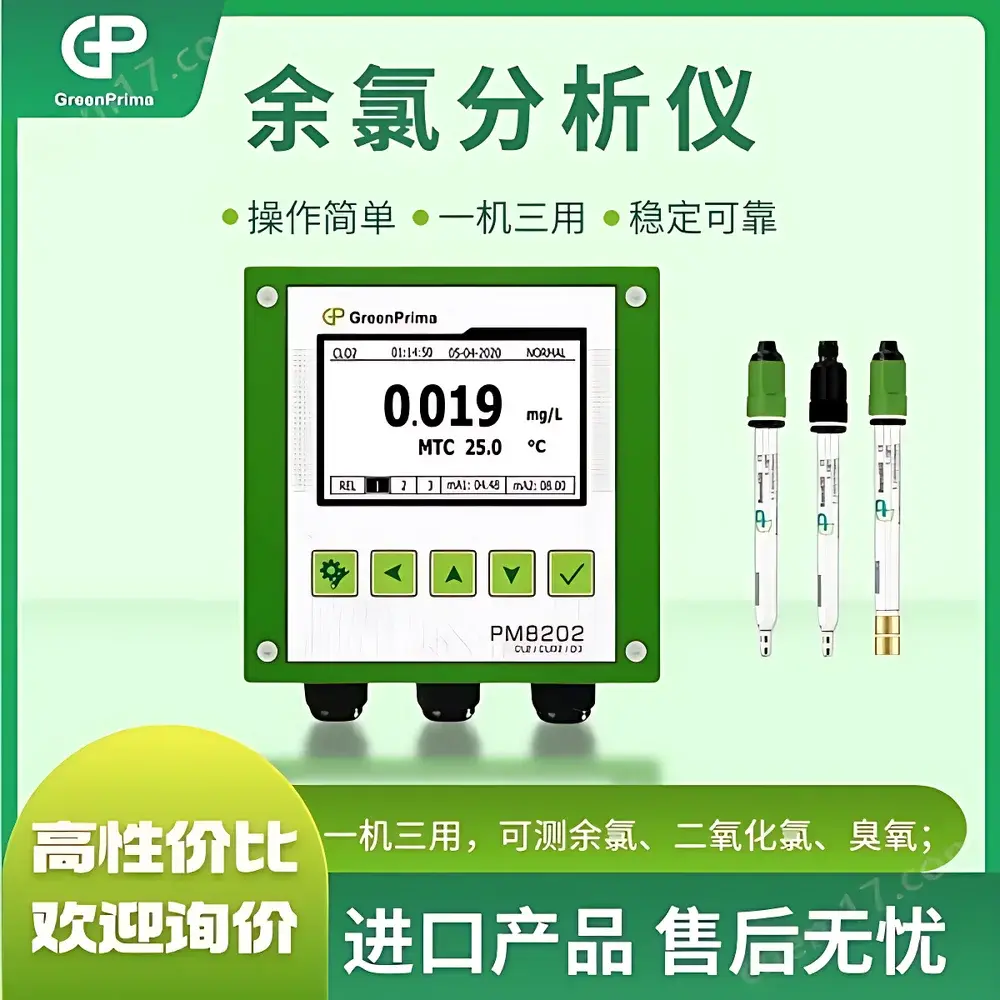

GreenPrima PM8202CL Residual Chlorine and Chlorine Dioxide Analyzer

Overview

The GreenPrima PM8202CL is an online amperometric residual chlorine and chlorine dioxide analyzer engineered for continuous, reagent-free monitoring of disinfectant residuals in potable water, wastewater, and industrial process streams. It operates on the principle of constant-voltage amperometry—applying a stable polarization potential across a dual-platinum (Bsens650) or gold (Bsens660) working electrode pair immersed in a precisely regulated flow cell (BAF615 constant-flow module). This electrochemical configuration enables selective detection of free chlorine (HOCl/OCl⁻), total chlorine, chlorine dioxide (ClO₂), and ozone (O₃) without chemical reagents or membrane-based electrolyte systems. Unlike colorimetric or DPD-based methods, the PM8202CL eliminates sample pretreatment, calibration drift from reagent degradation, and maintenance associated with membrane replacement or electrolyte refilling—making it suitable for unattended operation in municipal water distribution, hospital effluent treatment, secondary water supply systems, and pharmaceutical process water loops.

Key Features

• Reagent-free, membrane-free amperometric sensing using dual-platinum or gold electrodes for long-term stability and low maintenance
• Triple-analyte capability: simultaneous or configurable measurement of residual chlorine, chlorine dioxide, and ozone
• Integrated BAF615 constant-flow cell ensures laminar, pressure-independent sample delivery—critical for reproducible current response
• Full temperature compensation (–10 to 130 °C) with NTC10K or PT1000 probe support, enabling accurate measurements across cold groundwater and hot distribution loops
• Graphical backlit LCD with bilingual (English/Chinese) interface, intuitive menu navigation, and password-protected configuration access
• Dual isolated 4–20 mA analog outputs assignable to measured parameter and temperature; RS485 Modbus RTU for SCADA integration
• Two programmable relay outputs for high/low alarms with adjustable hysteresis and contact rating up to 5 A @ 250 VAC
• Automated cleaning control: user-defined cleaning frequency (0.1–1000 hours) and duration (1–1000 seconds) to mitigate fouling in turbid or organic-rich waters
• Robust IP65-rated enclosure with multiple mounting options (wall, panel, or direct pipe insertion) for flexible deployment in indoor and outdoor environments
• Onboard data logging capacity of 600,000 timestamped records with time-stamped event logging for audit-ready traceability

Sample Compatibility & Compliance

The PM8202CL is validated for use with potable water, treated wastewater, cooling tower makeup, pharmaceutical purified water (PW), and clean steam condensate. Its amperometric design demonstrates minimal interference from common ions (e.g., nitrate, sulfate, chloride ≤ 5,000 mg/L), turbidity (< 100 NTU), and pH (4.0–8.5) under standard operating conditions. The instrument complies with ISO 7888 (water quality — determination of residual chlorine), ASTM D1253 (standard test method for residual chlorine in water), and supports GLP/GMP data integrity requirements through secure user access control, immutable event logs, and time-stamped calibration history. While not FDA 21 CFR Part 11–certified out-of-the-box, its audit trail architecture—including operator ID tagging, change logs, and output verification—facilitates validation in regulated environments when deployed with appropriate procedural controls.

Software & Data Management

Data acquisition and configuration are managed via the front-panel interface or remotely via Modbus RTU over RS485. All operational parameters—including measurement range, temperature compensation mode, alarm thresholds, relay logic, and cleaning schedules—are fully programmable. The internal non-volatile memory retains calibration coefficients, system settings, and measurement history even during power loss. Timestamped records include measured value, temperature, sensor status flags (e.g., low flow, electrode saturation), and diagnostic codes—enabling root-cause analysis during QA investigations. Export of logged data requires external retrieval via serial polling or integration into third-party SCADA/Historian platforms using standard Modbus register mapping (available in technical documentation).

Applications

• Municipal drinking water treatment: real-time monitoring at chlorination points, clearwells, and distribution system entry points
• Hospital wastewater disinfection: verification of ClO₂ or ozone residual prior to discharge compliance with local environmental permits
• Secondary water supply systems (e.g., rooftop tanks, booster stations): ensuring minimum 0.05 ppm free chlorine throughout recirculating loops
• Pharmaceutical water systems: continuous surveillance of PW and WFI distribution loops per USP and EU Annex 1 guidance
• Food & beverage process water: validation of sanitizer concentration in CIP rinse cycles and final rinse lines
• Cooling water treatment: correlation of oxidant residual with microbiological control and corrosion inhibitor performance

FAQ

What electrochemical principle does the PM8202CL employ?
It uses constant-voltage amperometry with a dual-electrode configuration to generate diffusion-controlled current proportional to oxidant concentration.

Can the same sensor measure chlorine, chlorine dioxide, and ozone simultaneously?
No—measurement modes are mutually exclusive and require manual or automated configuration switching based on application requirements and electrode type.

Is temperature compensation automatic or manual?
Both options are supported: automatic compensation using integrated NTC10K or PT1000 sensors, or manual offset entry for fixed-temperature applications.

Does the analyzer require periodic calibration verification?
Yes—while drift is minimal, daily or weekly verification against a certified DPD standard or electrochemical check standard is recommended per ISO/IEC 17025 quality management practices.

What is the expected service life of the Bsens650 and Bsens660 electrodes?
Under typical municipal water conditions (pH 6.5–7.8, < 1 NTU turbidity), electrode lifespan exceeds 24 months; performance should be verified quarterly via response time and zero-current baseline checks.
