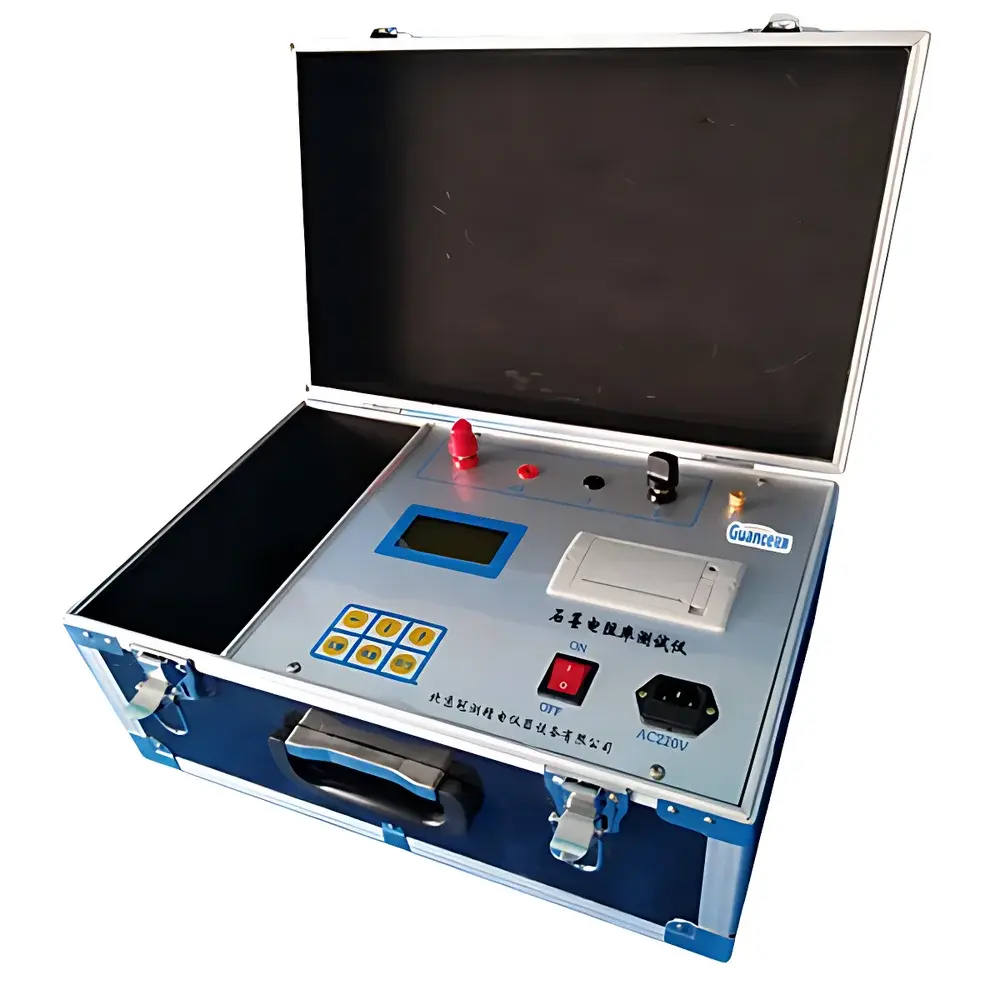

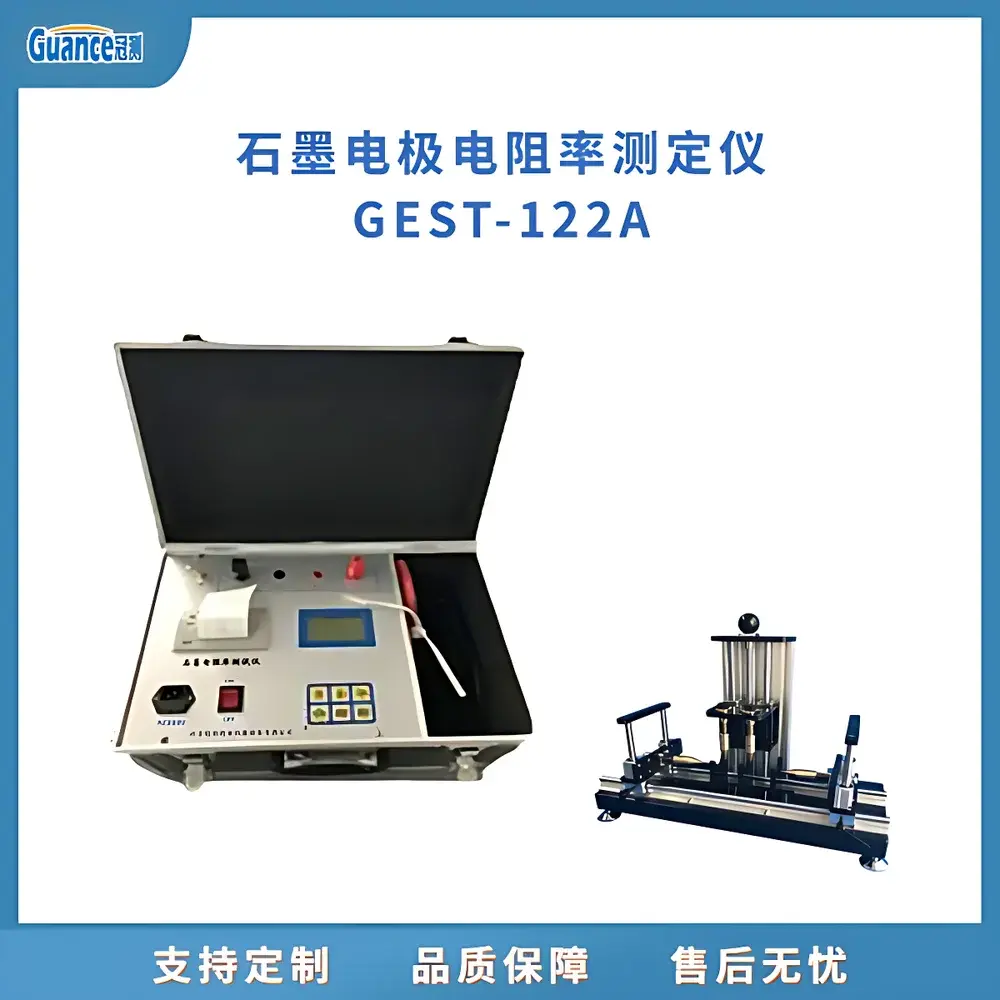

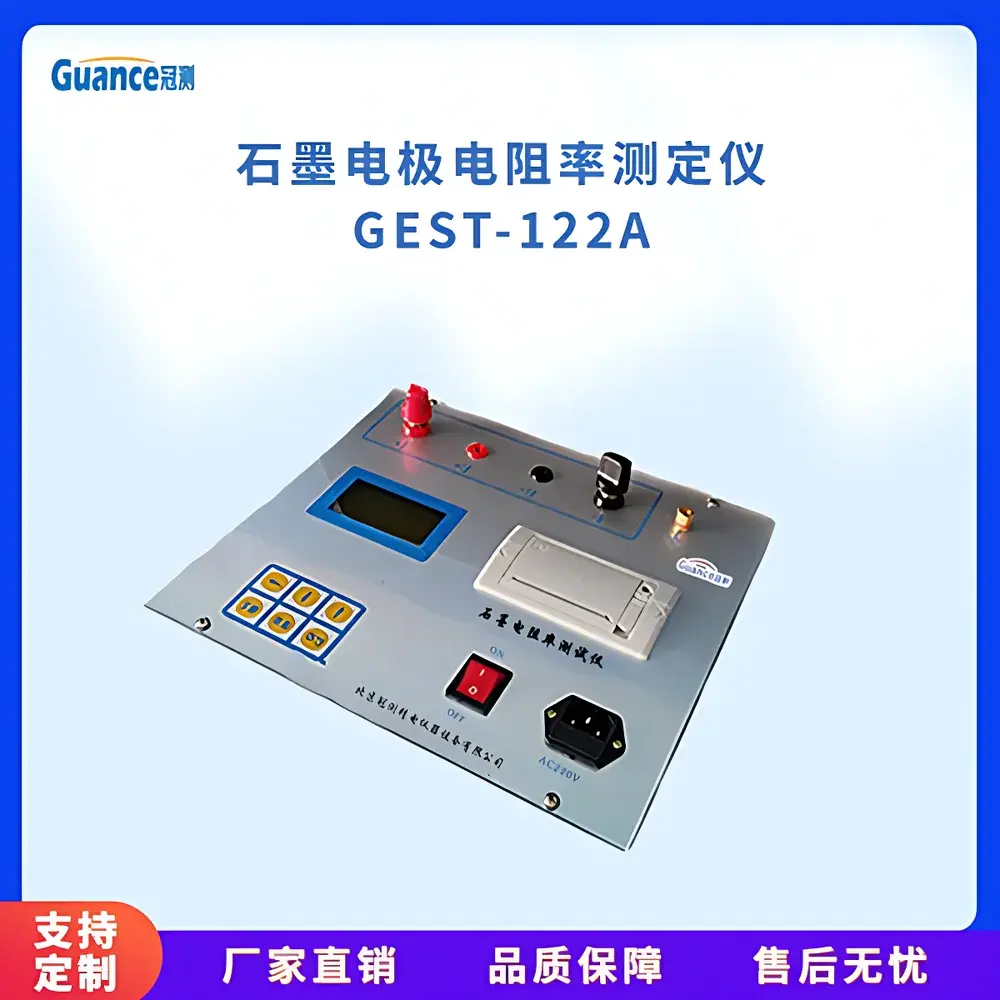

GuanCe GEST-122A Portable Graphite Electrode Resistivity Tester
| Brand | GuanCe |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | GEST-122A..1 |
| Output Current | 35 A |
| Resistance Measurement Range | 0.2 µΩ to 200 mΩ |
| Resolution | 0.1 µΩ |
| Accuracy Class | 0.5 |
| Operating Temperature | −10 °C to +50 °C |
| Operating Humidity | 0–80 % RH (non-condensing) |
| Power Supply | AC 220 V ±10 %, 50 Hz ±1 Hz |
| Weight | 4 kg |
Overview
The GuanCe GEST-122A Portable Graphite Electrode Resistivity Tester is a micro-ohmmeter engineered for precise, field-deployable direct-current (DC) four-terminal resistance and volume resistivity measurement of graphite electrodes used in electric arc furnaces, silicon metal production, and ferroalloy manufacturing. Based on the Kelvin (four-wire) measurement principle, the instrument eliminates lead and contact resistance errors by applying a regulated 35 A DC test current while simultaneously sensing voltage drop across the sample via dedicated potential probes. This architecture ensures high reproducibility and traceable compliance with standardized resistivity determination protocols defined in GB/T 24525–2009 (Carbonaceous Materials – Determination of Electrical Resistivity), GB/T 24521–2009 (Coke – Determination of Electrical Resistivity), and YB/T 120–1997 (Carbon Materials – Method for Determination of Electrical Resistivity). Designed for metrological rigor in both laboratory and on-site quality control environments, the GEST-122A delivers stable, low-noise measurements across its full range — from 0.2 µΩ to 200 mΩ — with a resolution of 0.1 µΩ and certified accuracy conforming to IEC 60584-2 Class 0.5 instrumentation standards.
Key Features
- High-current DC excitation source (35 A constant current output) optimized for low-resistance graphite specimens with typical cross-sectional areas ≥ 100 mm²

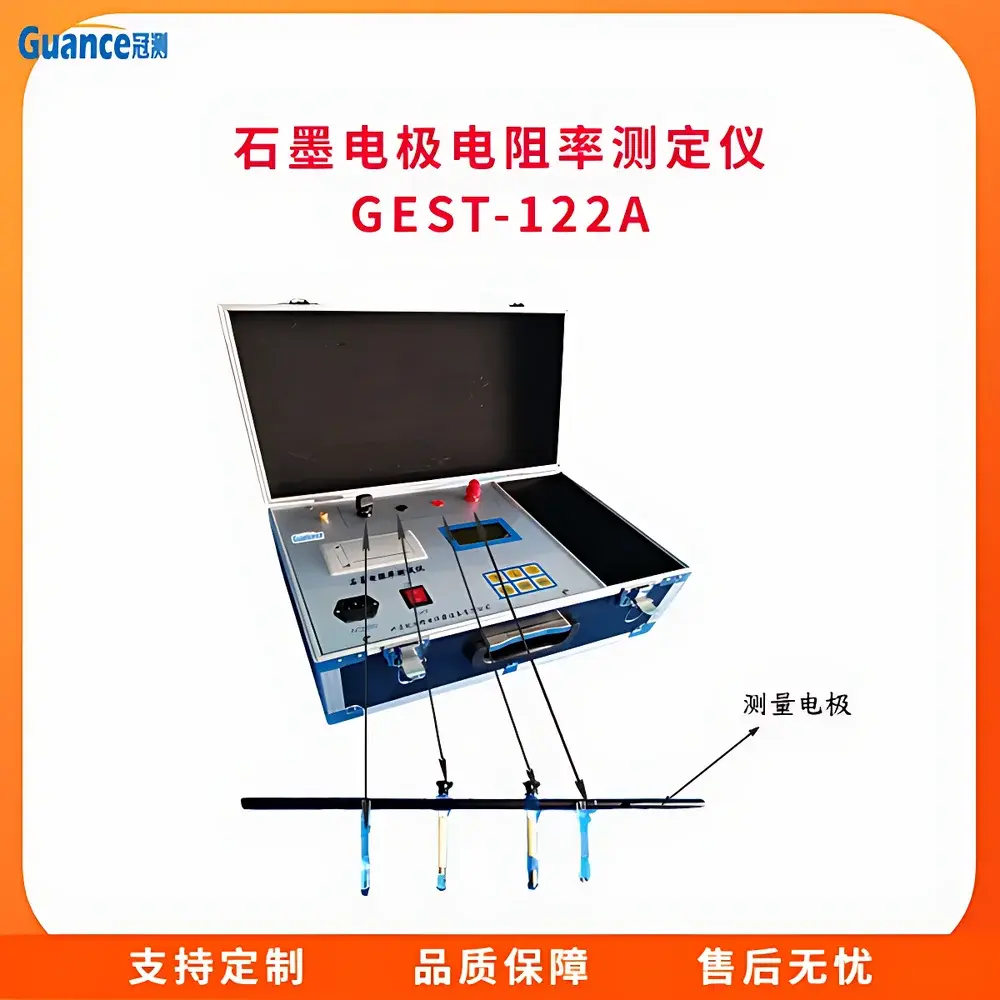

- Four-terminal (Kelvin) measurement configuration with isolated current and potential circuits to eliminate parasitic contact and wiring resistance effects
- Embedded microcontroller-based control system enabling automated zero calibration, auto-ranging, and real-time digital display of resistance in µΩ/mΩ units
- Robust portable enclosure (4 kg total mass) with IP54-rated housing for dust and splash resistance during plant-floor or warehouse deployment
- Thermal drift compensation algorithm active across the full operating temperature range (−10 °C to +50 °C)
- Compliance-ready design supporting manual documentation of test conditions, operator ID, sample ID, and environmental parameters per GLP audit requirements
Sample Compatibility & Compliance
The GEST-122A is validated for use with cylindrical or rectangular graphite electrode segments meeting dimensional specifications outlined in GB/T 24525–2009 (minimum length 100 mm, diameter ≥ 50 mm; or equivalent cross-section ≥ 2000 mm²). It supports both bare and surface-ground electrode samples, provided contact surfaces are clean, oxide-free, and parallel. The instrument satisfies national standard requirements for measurement uncertainty budgeting in carbon material certification workflows. While not FDA 21 CFR Part 11–compliant out-of-the-box (as it lacks electronic signature and audit trail functionality), its analog/digital hybrid architecture permits integration into validated QC systems when paired with external data loggers and SOP-controlled operation procedures aligned with ISO/IEC 17025:2017 clause 7.7 (ensuring result validity).
Software & Data Management
The GEST-122A operates as a standalone hardware meter without embedded PC connectivity or proprietary software. All measurement data are displayed numerically on a high-contrast LCD screen and must be manually recorded or transcribed into LIMS or Excel-based reporting templates. For laboratories requiring traceable digital records, optional RS-232 or USB-to-serial adapters may be interfaced to capture real-time readings using third-party terminal emulators (e.g., Tera Term, PuTTY) or custom Python/Python-based acquisition scripts. No firmware updates or cloud synchronization capabilities are supported; calibration constants are stored in non-volatile memory and require physical recalibration at accredited metrology labs every 12 months or after 500 operational cycles.
Applications
- Quality assurance of graphite electrodes prior to furnace installation in steelmaking and ferrosilicon production
- In-process verification of sintering uniformity and density consistency in carbon anode manufacturing
- Comparative analysis of raw material batches (petroleum coke, pitch coke, synthetic graphite) during electrode paste formulation
- Root-cause investigation of premature electrode fracture or excessive power consumption in EAF operations
- Technical due diligence during procurement audits and supplier qualification programs
- Academic research on structure–conductivity relationships in polycrystalline graphitic carbons
FAQ
Does the GEST-122A support automatic temperature compensation for resistivity calculations?
No — temperature correction must be applied manually using measured sample surface temperature and the known temperature coefficient of resistivity (TCR) for the specific graphite grade.
Can this instrument measure resistivity of graphite powder or granules?
No — it is designed exclusively for solid, macroscopic electrode specimens with defined geometry and low-contact-resistance interfaces.
Is calibration certificate included with shipment?
A factory calibration report (traceable to CNAS-accredited reference standards) is provided; formal ISO/IEC 17025 calibration must be arranged separately.
What safety protections are built into the 35 A current source?
The unit includes over-current shutdown, open-circuit detection, and thermal cutoff at >65 °C internal temperature.
Is the GEST-122A suitable for use in explosive atmospheres?
No — it is not ATEX, IECEx, or UL HazLoc certified and must be operated only in non-classified industrial zones.
