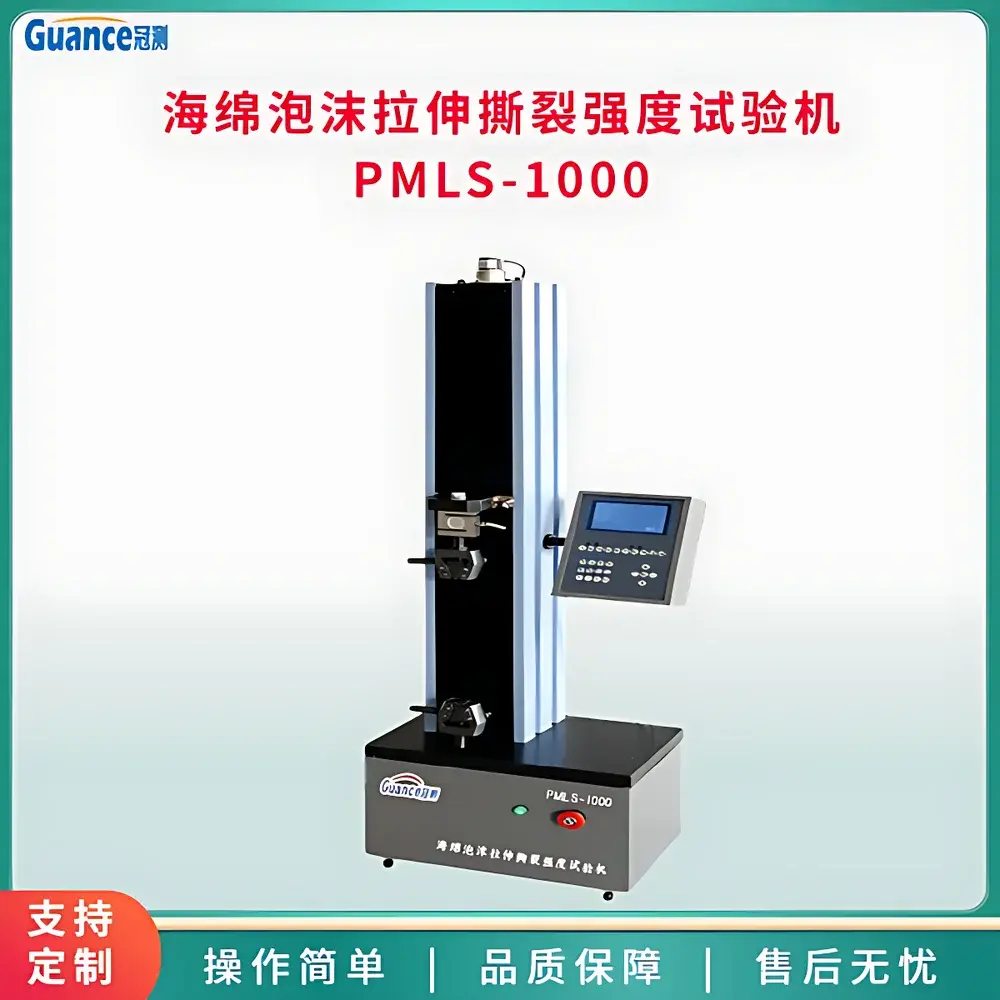

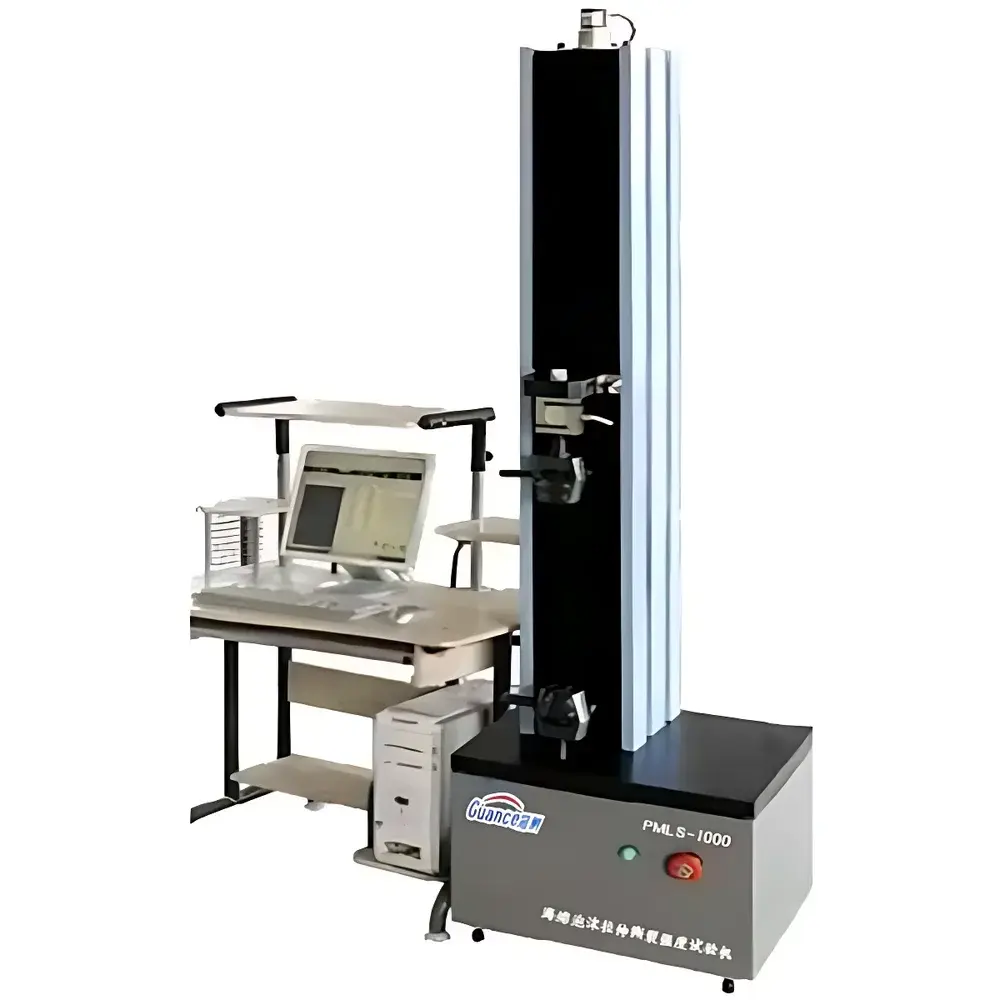

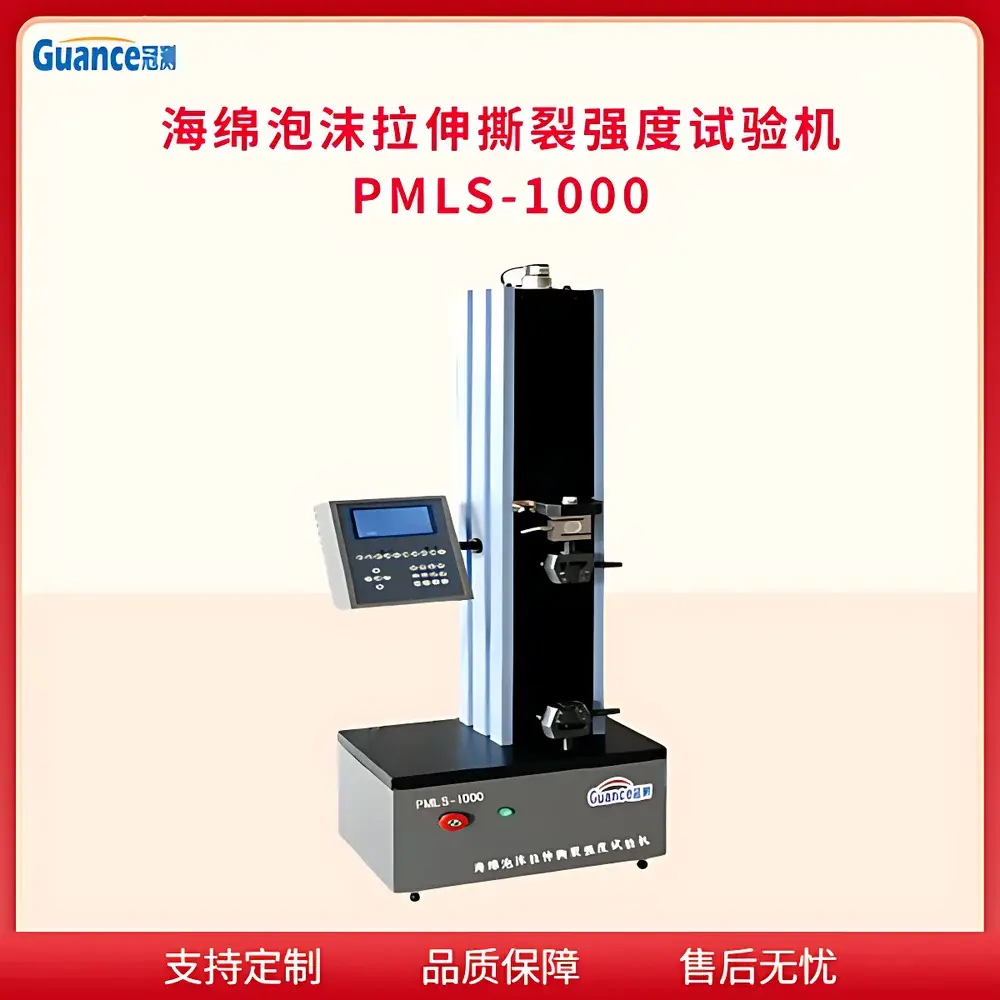

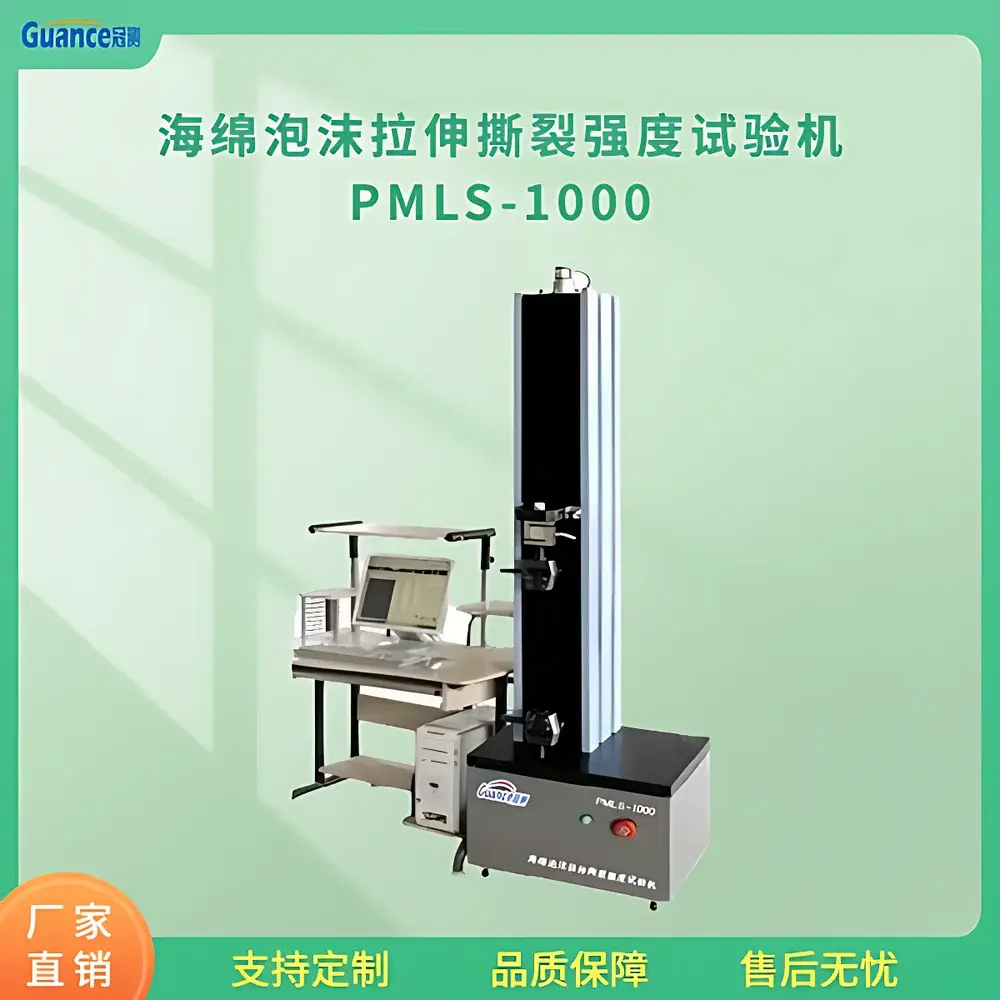

GuanCe Instruments PMLS-1000 Intelligent Foam Tear Strength Tester
| Brand | GuanCe Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Regional Category | Domestic (PRC) |
| Model | PMLS-1000 |
| Price | USD 2,800 (FOB Beijing) |
Overview
The GuanCe Instruments PMLS-1000 Intelligent Foam Tear Strength Tester is a precision-engineered mechanical testing system designed specifically for the quantitative evaluation of tear resistance, tensile strength, and elongation at break in flexible polymeric foam materials—particularly soft sponge, polyurethane (PU), ethylene-vinyl acetate (EVA), and other open- or closed-cell elastomeric foams used in packaging, automotive seating, medical cushioning, and furniture applications. Based on the fundamental principles of uniaxial tensile loading under controlled displacement rate, the instrument applies calibrated force via a high-resolution electromechanical actuation system while continuously monitoring load and deformation in real time. Its architecture conforms to internationally recognized test methodologies—including ISO 1798:1997 (Flexible cellular polymeric materials — Determination of tensile strength and elongation at break), GB/T 10808–2006 (Tear strength of polymeric porous elastic materials), and GB/T 6344–2008 (Determination of tensile strength and elongation at break for soft cellular polymeric materials)—ensuring data compatibility with global quality assurance frameworks.
Key Features
- Single-column, rigid frame construction with optimized load path geometry for minimal deflection and high axial alignment fidelity
- Full-digital servo-controlled AC motor drive system coupled with arc-synchronous belt reduction and precision ground ball screw assembly for smooth, low-backlash loading
- High-accuracy load cell with ±1% full-scale accuracy and integrated temperature compensation for stable signal integrity across ambient lab conditions (10–35°C)
- Adjustable crosshead speed range: 0.05 mm/min to 300 mm/min, with programmable three-speed switching during active testing to accelerate pre-load, yield, and failure-phase acquisition
- Real-time dynamic display on 7-inch industrial-grade TFT LCD touchscreen interface showing simultaneous plots of force (N), displacement (mm), strain rate (%/min), peak load, and stress–strain curve
- Automatic return-to-origin function post-test, mechanical and software-based dual-limit protection, and overload cutoff at 103–105% of full-scale capacity
- Integrated thermal-printer module compliant with ESC/POS protocol for immediate hardcopy output of test parameters, results, and timestamped curves
Sample Compatibility & Compliance
The PMLS-1000 accommodates standard dumbbell-shaped, straight-edge, or trouser-tear specimens per ISO 1798, ASTM D3574 (Section 5), and GB/T 10808. Specimen thickness range: 10–50 mm; width tolerance: ±0.2 mm; minimum gauge length: 25 mm. Fixture options include pneumatic clamp sets (optional), self-aligning wedge grips, and custom foam-specific jaw inserts to minimize slippage and edge damage. All test protocols are traceable to national metrological standards maintained by the China National Institute of Metrology (CNIM). The system supports audit-ready documentation workflows aligned with GLP and ISO/IEC 17025 laboratory accreditation requirements, including user access logs, parameter change history, and electronic signature fields for operator validation.
Software & Data Management
The embedded control firmware provides deterministic real-time sampling at ≥100 Hz, storing raw force/displacement data points with 16-bit resolution. Export formats include CSV (comma-separated values) and XLSX for downstream statistical analysis in JMP, Minitab, or Python-based QA pipelines. Optional PC-based software (GuanCe TestSuite v3.2) enables batch report generation, multi-curve overlay comparison, Weibull distribution fitting for tear strength variability, and automated pass/fail flagging against configurable specification limits (e.g., min. 2.5 N/mm for Class A packaging foam per ISTA 3A). Audit trail functionality complies with FDA 21 CFR Part 11 requirements when paired with network authentication and role-based permissions.
Applications
- Quality conformance testing of molded PU foam inserts used in e-commerce protective packaging
- R&D evaluation of crosslink density effects on tear propagation in viscoelastic elastomer blends
- Batch release verification for medical-grade silicone foam gaskets (ISO 10993-5 cytotoxicity support)
- Comparative analysis of aging-induced embrittlement in recycled EPS foam after UV/thermal exposure
- Supplier qualification audits requiring documented tear resistance reproducibility (RSD ≤ 3.5% across n=10 replicates)
FAQ
What international standards does the PMLS-1000 directly support?
It is configured to execute test sequences compliant with ISO 1798:1997, GB/T 10808–2006, GB/T 6344–2008, and ASTM D3574–17 (Method B – Tear Strength).
Can the system be integrated into a LIMS environment?
Yes—via RS-232 or optional Ethernet interface, using ASCII command protocol or OPC UA middleware for bidirectional data exchange.
Is calibration certification included with delivery?
Each unit ships with a factory-issued calibration certificate traceable to CNIM standards; ISO/IEC 17025-accredited third-party calibration services are available upon request.
What maintenance intervals are recommended for long-term accuracy?
Load cell zero-point verification every 90 days; annual full-system recalibration including encoder linearity check and screw backlash assessment.
Does the instrument meet CE or UKCA marking requirements?
The PMLS-1000 meets EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU; CE marking is applied for EU-market configurations with 230 VAC/50 Hz power supply and EN 61000-6-2/6-3 compliance documentation.
