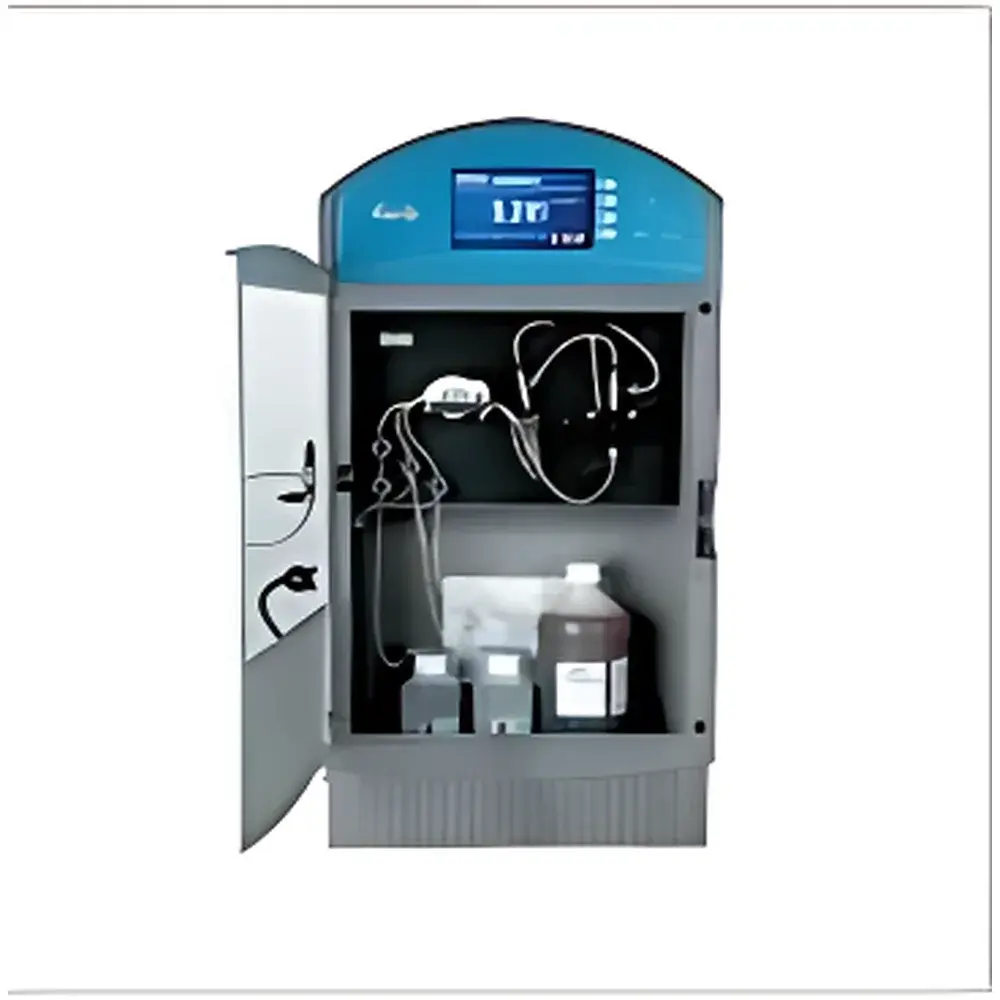

HACH Amtax™ Compact Online Ammonia Nitrogen Analyzer

Overview

The HACH Amtax™ Compact Online Ammonia Nitrogen Analyzer is an industrial-grade, fully automated instrument engineered for continuous, unattended monitoring of ammonia nitrogen (NH₄–N) in municipal wastewater treatment plants, industrial effluent streams, and surface water influent applications. It operates on a validated gas-phase separation principle coupled with stable colorimetric detection — a method aligned with EPA Method 350.1 and ISO 7150-1 for ammonia determination. Unlike conventional photometric analyzers susceptible to turbidity and colored matrix interference, the Amtax™ Compact employs an innovative membrane-based gas transfer step: after alkaline distillation in the reaction chamber, liberated ammonia vapor diffuses across a hydrophobic membrane into a buffered indicator solution housed in a dedicated optical cell. This phase separation eliminates spectral interference from suspended solids, humic substances, and dye contaminants commonly found in raw sewage and process water. The resulting color change is quantified via a temperature-stabilized LED photometer operating at 660 nm, ensuring high reproducibility under fluctuating ambient conditions.

Key Features

• Fully autonomous operation: Capable of uninterrupted measurement for ≥30 days without manual intervention, supported by integrated reagent reservoirs, waste collection, and scheduled maintenance cycles.
• Dual-sample channel architecture: Enables sequential analysis of two independent process streams (e.g., influent and effluent) using a single analyzer platform — reducing capital expenditure and footprint requirements.
• Self-maintaining fluidics system: Includes automatic line purging, valve actuation diagnostics, syringe pump calibration verification, and periodic air-bubble injection to prevent biofilm accumulation in tubing and reaction chambers.
• Robust gas-phase transfer module: Utilizes a chemically inert, PTFE-coated diffusion membrane that ensures selective NH₃ transport while rejecting interfering volatile compounds (e.g., amines, sulfides) under typical pH and temperature operating windows.
• Configurable cycle timing: Measurement interval adjustable between 13 and 120 minutes to match process dynamics — optimized for both rapid control loops and long-term trend analysis.

Sample Compatibility & Compliance

The Amtax™ Compact is designed for direct integration into existing SCADA and DCS environments. It complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emission) standards, and meets IP65 enclosure rating for outdoor cabinet installation. Its analytical methodology satisfies regulatory acceptance criteria outlined in US EPA Region 9 Wastewater Methods Manual and EU Water Framework Directive (2000/60/EC) Annex V for priority hazardous substance monitoring. When configured with audit-trail-enabled firmware and time-stamped data logging, the system supports GLP/GMP-aligned operational qualification (OQ) and can be validated per FDA 21 CFR Part 11 requirements when paired with compliant data acquisition software.

Software & Data Management

Instrument configuration, calibration history, alarm logs, and diagnostic reports are managed via HACH’s IntelliLink™ web-based interface (accessible through standard HTTPS). All measurement events — including zero checks, span validations, cleaning cycles, and reagent level alerts — are timestamped and stored locally with ≥6 months of rolling data retention. Raw absorbance values, calculated NH₄–N concentrations, and QC flag indicators (e.g., “Low Signal”, “Membrane Fault”, “Reagent Depletion”) are exportable in CSV or XML format. Optional integration with HACH PlantVision™ enables predictive maintenance scheduling based on historical valve wear metrics and photometer drift trends.

Applications

• Real-time ammonia monitoring at activated sludge bioreactor inlets and effluents for DO and carbon dosing control.
• Compliance reporting for discharge permits requiring hourly or sub-hourly NH₄–N concentration records.
• Early-warning detection of nitrification failure or upstream process upsets in municipal wastewater networks.
• Industrial pretreatment verification for food processing, pharmaceutical, and chemical manufacturing facilities subject to local sewer authority limits.
• Research-grade longitudinal studies of nitrogen speciation in constructed wetlands and receiving waters.

FAQ

What sample matrices is the Amtax™ Compact validated for?
It is validated for municipal wastewater (primary, secondary, and tertiary effluents), industrial process water with TSS ≤ 200 mg/L, and surface water with low organic load. High-fat or high-sulfide samples require optional pre-filtration or UV digestion modules.
Does it require daily operator attention?
No — routine maintenance intervals are set at 30-day intervals for reagent replacement and quarterly for membrane inspection. All critical diagnostics are reported via digital outputs and web interface.
Can it be calibrated remotely?
Yes — multi-point calibrations (zero and span) can be initiated via web interface or Modbus command; calibration standards are delivered automatically using the same precision metering system as sample introduction.
Is the analyzer compatible with third-party SCADA systems?
Yes — native Modbus RTU over RS485 and PROFIBUS DP protocols ensure seamless integration with Siemens Desigo, Honeywell Experion, and Schneider EcoStruxure platforms without middleware.
How is data integrity ensured during power interruption?
Internal non-volatile memory retains all configuration parameters, calibration coefficients, and recent measurement history. Upon restart, the system performs self-diagnostic checks before resuming scheduled analysis cycles.
