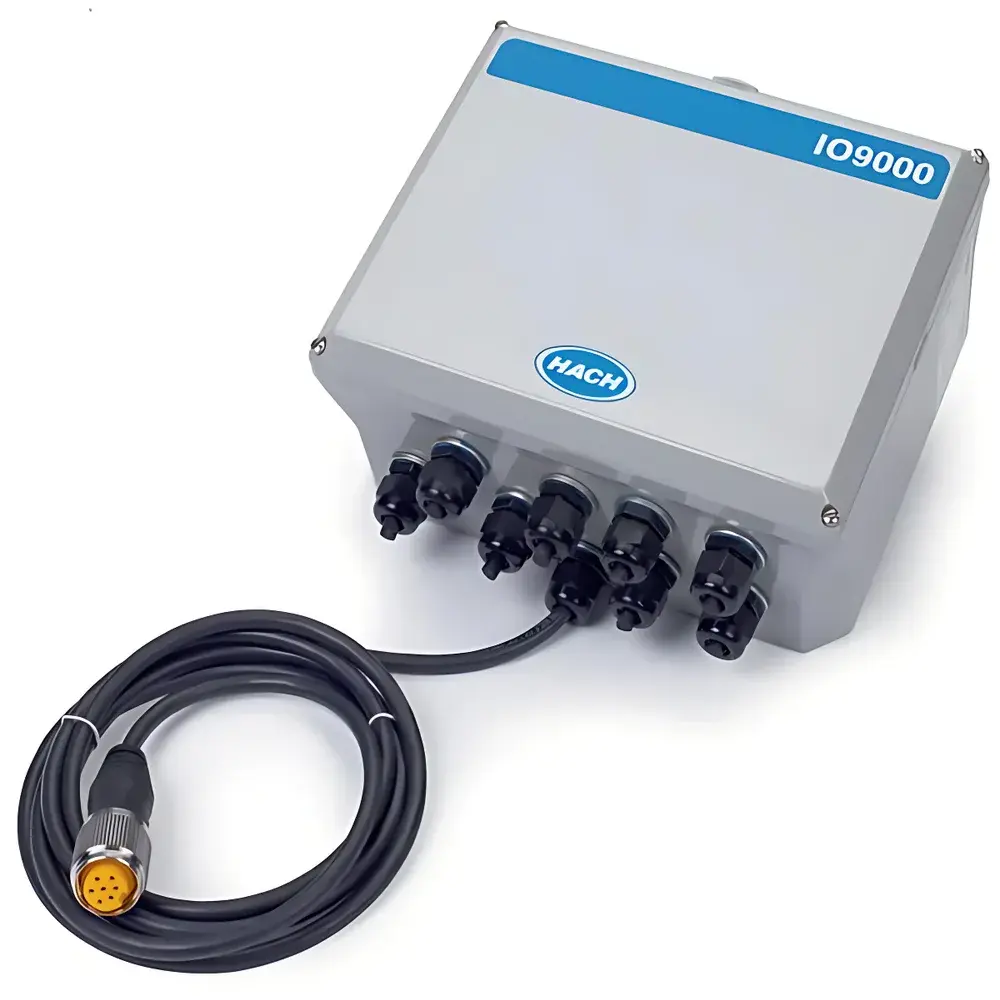

HACH AS950 with IO9000 Input/Output Expansion Module

Overview

The HACH AS950 with IO9000 Input/Output Expansion Module is an industrial-grade interface solution engineered to extend the control and monitoring capabilities of the AS950 programmable water sampler within automated environmental monitoring systems. Designed for integration into SCADA, DCS, and PLC-based infrastructure, the IO9000 module transforms the AS950 from a standalone sampling platform into a fully interoperable node in distributed water quality data acquisition networks. Its architecture supports bidirectional signal conditioning—accepting analog process variables (e.g., level, flow, pH) from third-party sensors via isolated 0/4–20 mA inputs, while simultaneously delivering time-synchronized analog outputs, discrete event signals, and high-power relay actuation to external control devices. The module operates on the principle of deterministic I/O mapping: each input channel is assigned a user-configurable engineering unit and alarm threshold; each output channel is bound to a defined system event (e.g., “Sample Initiated”, “Bottle Full”, “Pump Fault”) or continuous process variable. This enables precise, traceable, and auditable event-driven sampling logic compliant with EPA Method 1664, ISO 5667-10, and ASTM D3370 protocols.

Key Features

• Two scalable configurations: IO9001 (single SPDT high-voltage relay) for basic alarm indication and local actuation; IO9004 (four SPDT relays + four low-voltage digital outputs + three 0/4–20 mA analog outputs + two 0/4–20 mA analog inputs) for full-system integration.
• Field-programmable analog I/O with 0.3–0.5% FSR accuracy across –10 to +50 °C operating range, supporting loop-powered and self-powered 4–20 mA topologies.
• NEMA 4X / IP66-rated polycarbonate enclosure (UL94 VO), stainless steel hardware, and sealed cable entries accommodating 0.170–0.450″ diameter cables—certified for outdoor deployment in harsh wastewater, stormwater, and drinking water facilities.
• Deterministic digital input triggering: four opto-isolated channels accepting 0–25 V_peak signals with programmable threshold referencing, enabling direct PLC-initiated sampling commands or SCADA-based start/stop sequencing.
• Full electrical isolation between analog inputs, analog outputs, digital I/O, and relay circuits—minimizing ground-loop interference and ensuring signal integrity in electrically noisy environments.
• Integrated mounting bracket, terminal block wiring, and 2.74 m factory-terminated cable—designed for rapid field commissioning without custom fabrication.

Sample Compatibility & Compliance

The IO9000 module does not perform analytical measurements but serves as a certified interface enabler for the AS950 sampler’s compliance with regulatory data integrity requirements. When deployed with AS950 firmware v3.2+, it supports audit-trail-enabled configuration logging per FDA 21 CFR Part 11 Annex 11 guidelines. All analog input/output scaling, relay assignment, and digital trigger logic are stored in non-volatile memory with timestamped change history accessible via HACH’s System Manager software. The module’s cETLus listing confirms conformity with UL 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and CAN/CSA-C22.2 No. 61010-1. Its operational specifications align with IEC 61326-1 (EMC for measurement and control equipment) and meet the environmental robustness criteria specified in ISO 9001:2015 Clause 8.5.5 for monitoring and measuring resource control.

Software & Data Management

Configuration and diagnostics are managed exclusively through HACH System Manager v5.0+—a Windows-based engineering tool that provides hierarchical access control (Admin, Technician, Operator roles), encrypted project file storage, and exportable I/O mapping reports in PDF and CSV formats. Each analog channel supports two-point linear calibration using user-supplied reference values, with calibration coefficients stored alongside date/time stamps and operator IDs. Event-triggered outputs generate time-stamped log entries synchronized to the AS950’s internal real-time clock (RTC), which maintains ±2 sec/month accuracy across the full temperature range. All I/O status changes—including relay state transitions, analog value breaches, and digital input assertions—are logged with millisecond resolution and can be exported for third-party historian ingestion (e.g., OSIsoft PI, Ignition SCADA). No cloud connectivity or remote firmware updates are supported; all configuration changes require physical USB connection and local authentication.

Applications

• Wastewater treatment plants: Relay-controlled diversion valve actuation during combined sewer overflow (CSO) events, synchronized with flow meter analog inputs and turbidity-triggered sampling.
• Drinking water distribution networks: Integration of pressure transducer analog inputs to initiate sampling at transient pressure drop events, with 4–20 mA outputs feeding municipal SCADA systems.
• Regulatory compliance monitoring: Automated grab sampling triggered by exceedance of EPA-defined pH or conductivity thresholds from third-party analyzers, with digital outputs signaling sample completion to lab information management systems (LIMS).
• Industrial pretreatment facilities: Coordination of AS950 sampling cycles with PLC-controlled batch discharge sequences using dry-contact digital inputs and high-voltage relay feedback to motorized sampling manifolds.
• Remote watershed stations: Long-term unattended operation powered by solar-charged batteries, leveraging low-power analog inputs and fail-safe relay de-energization on power loss.

FAQ

Can the IO9000 module operate independently of the AS950 sampler?
No. The IO9000 is a dedicated expansion module requiring physical and electrical integration with the AS950 controller. It has no onboard processor, memory, or user interface outside the AS950 ecosystem.
Is HART protocol supported on the analog inputs or outputs?
No. The IO9000 implements only standard 0/4–20 mA current-loop signaling with fixed-range scaling. HART communication requires external signal converters not supplied or validated by HACH.
What is the maximum cable length for analog signals without signal degradation?
For 4–20 mA loops, HACH recommends ≤300 m total loop length (including supply wiring) when using 18 AWG twisted-pair shielded cable and maintaining load impedance ≤500 Ω. Longer runs require site-specific noise analysis and may necessitate signal repeaters.
Does the module support Modbus RTU or other fieldbus protocols?
No. Communication occurs exclusively via hardwired I/O signals. Protocol translation must be implemented externally using a gateway device compatible with the AS950’s RS-232/RS-485 serial interface.
How is calibration traceability maintained for analog channels?
Calibration is performed using certified reference sources traceable to NIST standards. All calibration parameters—including zero/span values, date, technician ID, and reference instrument ID—are embedded in the AS950’s configuration file and exported with audit logs upon request.
