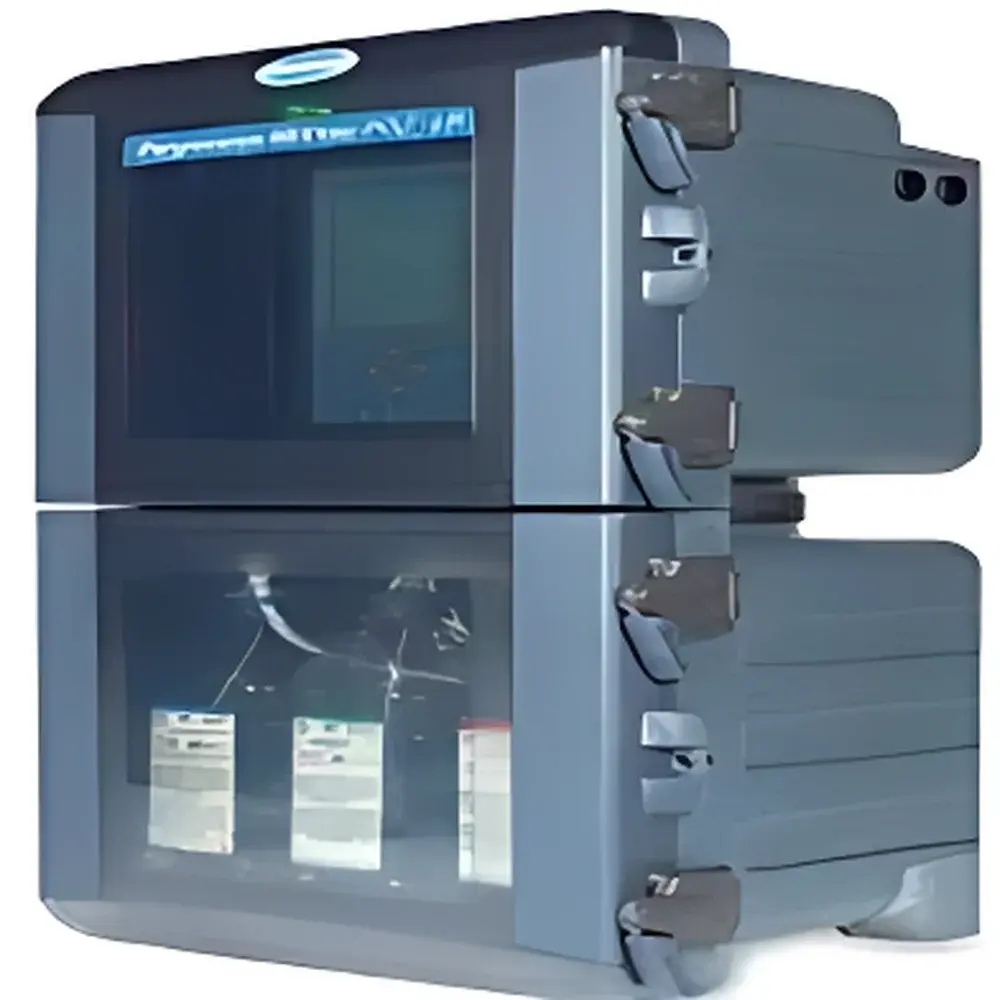

Hach Polymetron 9611sc Online Phosphate Analyzer
| Brand | Hach |
|---|---|
| Origin | USA |
| Manufacturer | Hach Company |
| Product Type | Imported |
| Model | Polymetron 9611sc |
| Instrument Category | Online Analyzer |
| Measurement Principle | Ascorbic Acid Colorimetry (low range) / Vanadomolybdophosphoric Acid Colorimetry (high range) |
| Wavelength | 880 nm (low range), 480 nm (high range) |
| Range | Low: 4–5,000 µg/L PO₄ |
| High | 200–50,000 µg/L PO₄ |
| Accuracy | ±4 µg/L or ±4% (low), ±500 µg/L or ±5% (high) |
| LOD | 4 µg/L (low), 200 µg/L (high) |
| Repeatability | ±1% (low), ±5% (high) |
| Response Time | 9 min (at 25 °C) |
| Reagent Consumption | 2 L per reagent per 90 days |
| Cycle Interval | 15 min |
| Operating Temp | 5–45 °C |
| Sample Temp | 5–50 °C |
| Sample Flow Rate | 55–300 mL/min |
| Sample Pressure | 2–87 psi |
| Enclosure Rating | NEMA 4X / IP66 |
| Power | 100–240 V AC, 50/60 Hz |
| Output | 4–20 mA |
| Dimensions | 804 × 452 × 360 mm (H×W×D) |
| Weight | 20 kg (empty), 36.3 kg (with reagents) |
| Certifications | CE, cETLus, KC, C-tick |
| Compatible Controllers | SC200, SC1000 |
Overview
The Hach Polymetron 9611sc Online Phosphate Analyzer is an industrial-grade, continuous-monitoring spectrophotometric instrument engineered for precise, unattended quantification of orthophosphate (PO₄³⁻) in water and wastewater streams. It operates on two distinct colorimetric chemistries: the ascorbic acid method (ASTM D515-12, ISO 6878:2004) at 880 nm for low-concentration applications (4–5,000 µg/L PO₄), and the vanadomolybdophosphoric acid method (APHA 4500-P E, EPA 365.1) at 480 nm for high-range measurement (200–50,000 µg/L PO₄). Designed for integration into municipal drinking water treatment plants, power plant condensate polishing loops, semiconductor ultrapure water systems, and industrial effluent monitoring networks, the 9611sc delivers stable, trace-level phosphate data under variable flow, temperature, and turbidity conditions — without manual intervention for up to 90 days.
Key Features
- Zero-pump reagent delivery system: Eliminates peristaltic pump wear, reducing scheduled maintenance intervals and long-term calibration drift associated with pulsatile fluid handling.
- Prognosys predictive diagnostics: Embedded firmware continuously monitors optical path integrity, reagent depletion status, valve actuation cycles, and heater performance — triggering visual alerts via high-visibility LED indicators before fault conditions escalate.
- Tool-free reagent cartridge exchange: Color-coded, sealed reagent bottles snap into place; a single gentle shake initiates priming — preventing spills, cross-contamination, and operator exposure during routine replacement.
- Dual-range configurability: Field-selectable low- or high-range operation enables one platform to serve both ultra-low phosphorus control (e.g., boiler feedwater 10 mg/L).
- Grab-in/Grab-out sampling interface: Integrated bypass manifold allows rapid manual introduction of reference samples or extraction of analyzer-processed effluent for independent lab validation (e.g., ICP-OES or ion chromatography).
- NEMA 4X/IP66-rated enclosure: Stainless steel front panel and gasketed housing ensure reliable operation in humid, chemically aggressive environments including wet wells, pump stations, and outdoor metering kiosks.
Sample Compatibility & Compliance
The 9611sc accepts raw, filtered, or clarified aqueous samples within pH 4–10 and suspended solids ≤50 mg/L. It complies with key regulatory and quality frameworks governing automated environmental analysis: ASTM D515-12 (phosphate in water), ISO 6878:2004 (water quality — determination of phosphorus), and US EPA Method 365.1 (phosphate by spectrophotometry). Its 4–20 mA analog output and Modbus RTU/Profibus DP/HART digital interfaces support seamless integration into SCADA and DCS architectures compliant with IEC 61511 (functional safety) and ISO 17025 (testing laboratory competence). Audit trail functionality — when paired with SC200 or SC1000 controllers — satisfies GLP/GMP data integrity requirements per FDA 21 CFR Part 11 for electronic records and signatures.
Software & Data Management
Data logging, alarm configuration, and method parameter adjustment are managed through the Hach SC200 or SC1000 universal controllers, which provide secure web-based access (HTTPS), user role-based permissions (admin/operator/viewer), and configurable event-triggered data export (CSV/Excel). The controller stores ≥30 days of minute-interval measurements with timestamps, diagnostic flags, and reagent usage counters. All calibration events, zero/span adjustments, and maintenance logs are time-stamped and non-erasable — supporting full traceability for internal QA audits and third-party regulatory inspections. Optional cloud connectivity (via Hach Connect) enables remote health monitoring, predictive reagent ordering, and fleet-wide performance benchmarking across distributed facilities.
Applications
- Municipal drinking water treatment: Real-time monitoring of orthophosphate residual post-corrosion inhibition dosing to maintain optimal pipe passivation without exceeding regulatory limits (e.g., U.S. EPA Lead and Copper Rule).
- Power generation: Continuous surveillance of boiler feedwater and condensate for phosphate hideout detection and steam purity assurance (ASME PTC 19.11).
- Pharmaceutical manufacturing: Verification of phosphorus removal efficiency in purified water (PW) and water for injection (WFI) distribution loops per USP .
- Food & beverage processing: Effluent compliance tracking against local discharge permits requiring total phosphorus reporting (e.g., EU Urban Wastewater Treatment Directive).
- Industrial cooling towers: Correlation of orthophosphate concentration with corrosion inhibitor dosage rates and microbiological activity trends.
FAQ
What sample preparation is required prior to analysis?
No filtration or pretreatment is necessary for clear, low-turbidity samples. For applications with >20 NTU turbidity or particulate load, optional stainless steel sample adapters (e.g., P/N 6786600) or inline filtration kits may be installed upstream.
Can the 9611sc measure total phosphorus?
No — the 9611sc measures only orthophosphate (reactive phosphorus). Total phosphorus quantification requires acid digestion (e.g., persulfate oxidation per EPA 365.4) prior to analysis, which is not supported by this platform.
How does temperature affect measurement accuracy?
The analyzer includes integrated sample temperature compensation algorithms calibrated across 5–50 °C. However, response time increases by ~1.2 min per 5 °C drop below 25 °C due to slowed reaction kinetics.
Is the instrument compatible with existing Hach reagent kits?
Yes — all consumables are Hach OEM-certified: low-range kits (P/N 2036100 KTO) and high-range kits (P/N 2036700 KTO) include pre-measured, lot-traceable reagents validated for stability over 90 days at ambient storage conditions.
What cybersecurity protocols are implemented in the SC200/SC1000 controller?
Controllers support TLS 1.2 encryption, password complexity enforcement, session timeout, and disabled default credentials — meeting NIST SP 800-82 Rev. 2 guidance for industrial control system security.
