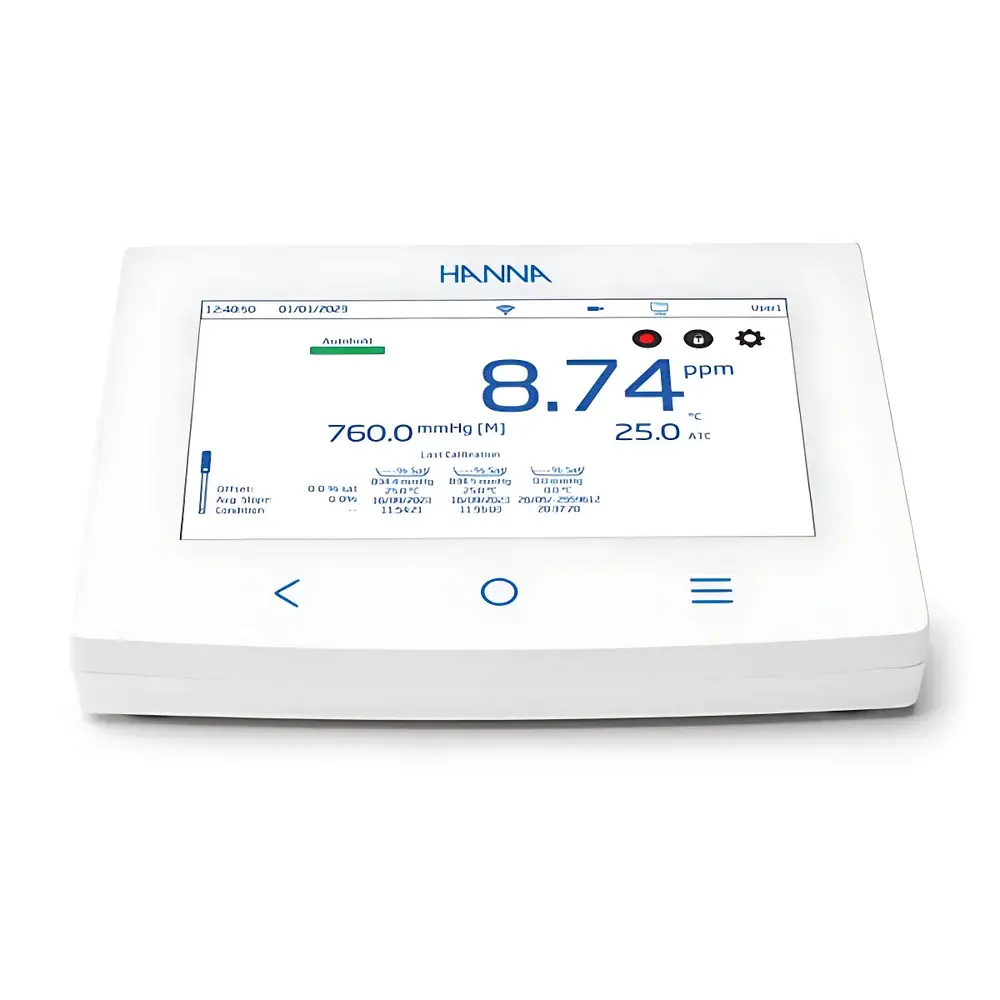

Hanna HI6421 & HI6421P Advanced Benchtop Optical and Polarographic Dissolved Oxygen Meters

Overview

The Hanna HI6421 and HI6421P are advanced benchtop dissolved oxygen (DO) analyzers engineered for high-reproducibility, traceable measurements in environmental monitoring, wastewater treatment, aquaculture, bioprocessing, and research laboratories. Both instruments implement dual-sensor architecture: the HI6421 integrates the HI7641133 optical DO probe (opdo®), while the HI6421P employs the HI764833 Clark-type polarographic sensor. The optical variant operates on fluorescence quenching—where a Pt-based luminophore immobilized on a black, gas-permeable polymer layer is excited by blue LED light and emits red luminescence; molecular oxygen dynamically quenches both intensity and lifetime of this emission. A photodetector precisely measures decay time, enabling calculation of DO concentration independent of flow rate or stirring. The polarographic variant uses electrochemical reduction of O₂ at a platinum cathode in an electrolyte-filled cell with Ag/AgCl reference—an established method compliant with ASTM D888 and ISO 5814 for aqueous DO quantification. Both platforms incorporate automatic temperature, atmospheric pressure, and salinity compensation—critical for regulatory-grade data integrity under variable field or lab conditions.

Key Features

• 7-inch capacitive multi-touch display with five configurable views: Basic Measurement, Simple GLP, Full GLP (including electrode status and calibration history), real-time interactive graphing, and timestamped tabular logging
• Dual-sensor flexibility: HI6421 ships with HI7641133 optical probe featuring Smart Cap™ technology—preloaded calibration coefficients auto-transferred upon cap installation; HI6421P includes HI764833 polarographic probe with integrated thermistor and PTFE membrane for rapid, flow-independent response
• Comprehensive compensation algorithms: automatic barometric pressure measurement (via built-in barometer), temperature sensing (−20.0 to 120.0 °C), and user-defined salinity input (0–70 g/L) for accurate DO conversion per USP , ASTM D1293, and ISO 5815
• Regulatory-ready data management: non-volatile memory stores ≥1,000,000 logged points with date/time stamp; supports CSV export via USB-A drive, FTP, email, or direct PC connection via USB-C
• GLP-compliant operation: full audit trail including calibration date, operator ID, electrode offset, stability metrics, and user-defined sample IDs; supports multi-user accounts (up to 9) with administrator privileges
• Embedded application-specific protocols for BOD₅ (5-day biochemical oxygen demand), OUR (oxygen uptake rate), and SOUR (specific oxygen uptake rate)—calculations conform to Standard Methods 5210 B and EPA Method 405.1

Sample Compatibility & Compliance

The HI6421 and HI6421P are validated for freshwater, seawater, wastewater effluents, fermentation broths, and pharmaceutical process streams. Optical probe (HI7641133) eliminates membrane fouling and electrolyte depletion issues inherent in electrochemical sensors—ideal for long-term unattended monitoring in activated sludge tanks or recirculating aquaculture systems. Polarographic probe (HI764833) offers rapid stabilization in low-flow environments such as BOD bottles and microcosms. Both configurations comply with ISO/IEC 17025 documentation requirements when used with traceable calibration standards (e.g., Winkler titration reference or certified zero-oxygen solution). Instrument firmware adheres to FDA 21 CFR Part 11 principles for electronic records and signatures, supporting audit-ready workflows in GMP and GLP environments.

Software & Data Management

Data acquisition and reporting are governed by Hanna’s proprietary firmware with embedded logging engine supporting manual, timed (1 s–500 d intervals), and stability-triggered capture modes. Each log file contains DO concentration, % saturation, temperature, pressure, salinity, electrode status, and user annotations—all exported as comma-separated values (.csv) compatible with LIMS, Excel, and statistical analysis tools. Ethernet and Wi-Fi interfaces enable remote configuration, real-time data streaming, and scheduled FTP transfers to centralized servers. USB-A ports support keyboard input, printer output, or mass storage; USB-C enables high-speed PC synchronization and firmware updates. All settings—including alarm thresholds, pressure units (mmHg, kPa, psi, atm), and GLP view preferences—are retained across power cycles via EEPROM.

Applications

• Environmental labs performing routine DO profiling per EPA Method 360.1 and ISO 5815-1
• Wastewater treatment plants conducting BOD₅ assays and nitrification/denitrification monitoring
• Aquaculture facilities maintaining optimal oxygen levels in hatcheries and raceways
• Biopharmaceutical R&D tracking OUR/SOUR kinetics during microbial fermentation
• Academic research requiring traceable, temperature-compensated DO data under variable salinity or altitude conditions
• Drinking water utilities verifying compliance with WHO and EU Directive 2020/2184 dissolved oxygen specifications

FAQ

What is the difference between the HI6421 and HI6421P models?
The HI6421 includes the HI7641133 optical DO probe based on fluorescence lifetime quenching, offering maintenance-free operation and immunity to flow effects. The HI6421P includes the HI764833 polarographic probe, which requires periodic membrane replacement and electrolyte refills but delivers fast response in low-conductivity samples.
Does the instrument automatically compensate for altitude or barometric pressure changes?
Yes—the built-in barometer continuously measures ambient pressure and applies real-time compensation to DO readings. Users may also manually enter pressure values if preferred.
Can the HI6421/HI6421P be used for saline or seawater applications?
Yes—salinity is manually entered (0–70 g/L), and the instrument applies the Garcia-McLeod equation to correct DO solubility per ISO 5814 Annex B.
Is GLP data export compliant with FDA 21 CFR Part 11?
While the instrument itself does not provide digital signature capability, its audit-trail features—including operator ID, calibration timestamps, and immutable log files—support Part 11 compliance when deployed within a validated laboratory information management system (LIMS) framework.
How often does the optical probe require recalibration?
Under normal use, the HI7641133 probe maintains calibration for ≥6 months; Hanna recommends verification against air-saturated water or zero-oxygen standard every 30 days for critical applications.
