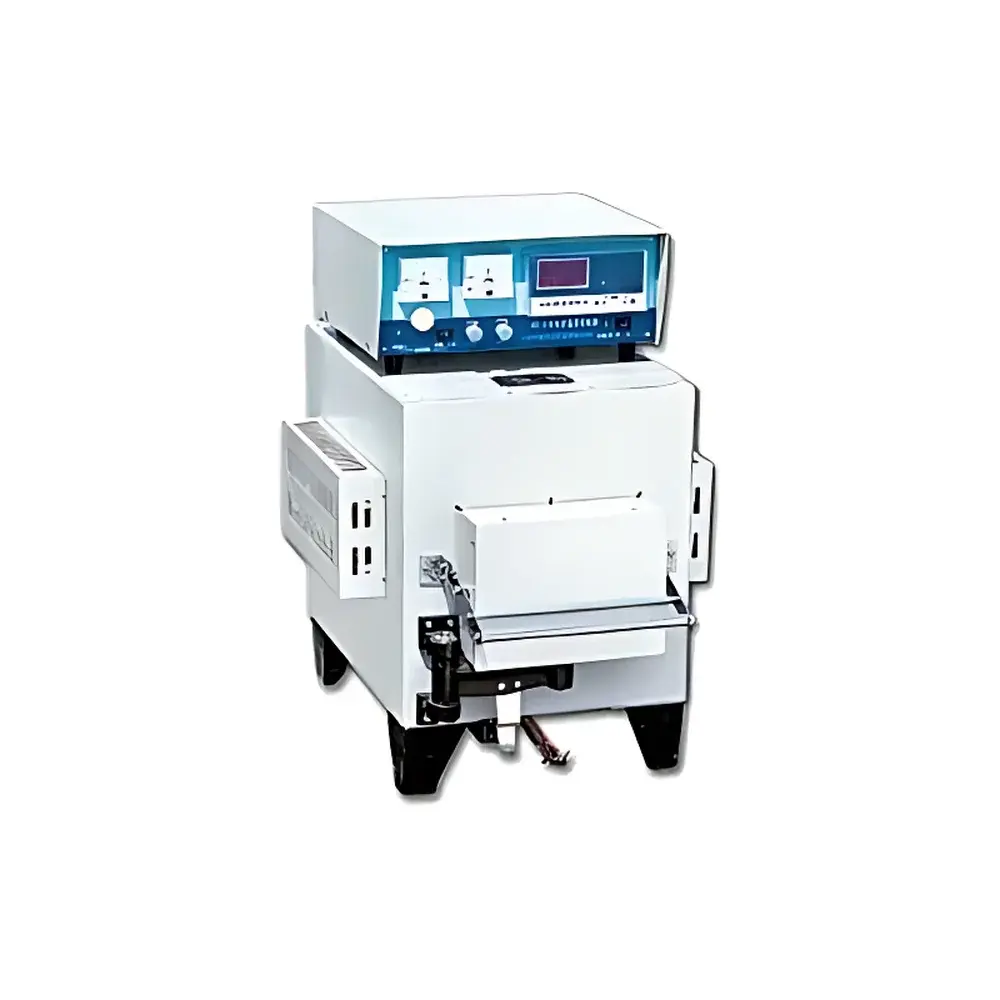

Hanuo SX-4-10 Benchtop Muffle Furnace

Overview

The Hanuo SX-4-10 is a benchtop box-type muffle furnace engineered for precise, repeatable high-temperature thermal processing in laboratory and quality control environments. Designed around resistive heating elements embedded within refractory ceramic insulation, it delivers uniform temperature distribution across its insulated chamber—enabling reliable operation up to 1000 °C. As a periodic (batch) operation furnace, the SX-4-10 supports controlled heating cycles essential for metallurgical heat treatments—including annealing, tempering, and quenching of small steel components—as well as elemental analysis sample preparation (e.g., ashing, gravimetric analysis), ceramic sintering, and catalyst calcination. Its muffle construction isolates the heating chamber from combustion byproducts and external atmosphere, ensuring sample purity and minimizing cross-contamination during thermal decomposition or oxidation studies.

Key Features

• Robust ceramic fiber insulation with high thermal retention and low energy consumption—optimized for stable 1000 °C operation over extended dwell periods.

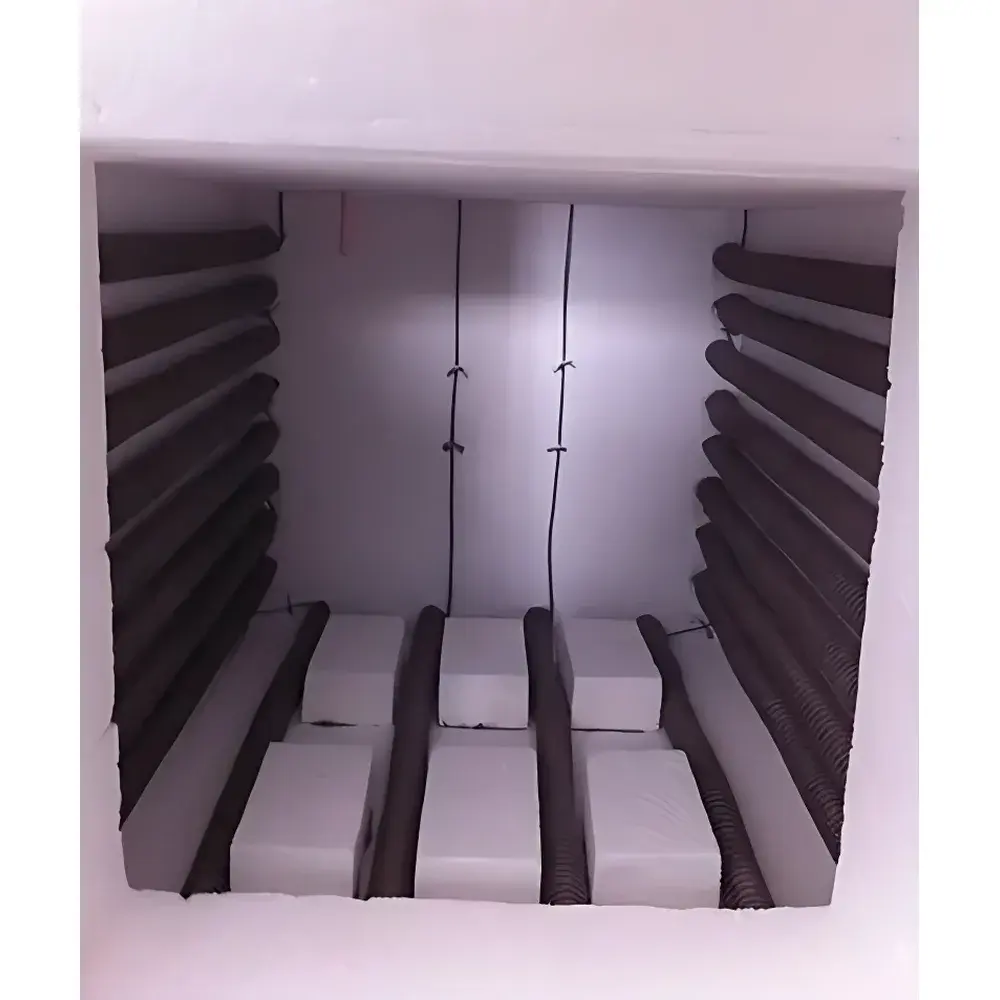

• Alloy-sheathed resistance heating elements positioned on all six internal surfaces for enhanced temperature homogeneity (±5 °C typical across working zone at 900 °C).
• Digital PID temperature controller with programmable ramp-soak profiles, real-time setpoint tracking, and over-temperature cut-off protection (adjustable limit switch).
• Reinforced aluminosilicate firebrick lining and stainless-steel outer casing ensure mechanical durability and long-term dimensional stability under thermal cycling.
• Built-in ventilation slots and passive cooling design facilitate safe cooldown post-cycle without forced-air intervention—critical for preserving sample integrity in ash residue analysis.
• Front-loading door with high-temperature silicone gasket and dual-latch mechanism ensures consistent chamber sealing and operator safety during high-temp operation.

Sample Compatibility & Compliance

The SX-4-10 accommodates standard crucibles (alumina, quartz, nickel, and stainless-steel), porcelain boats, and ceramic setters—compatible with ASTM E1509 (ash content determination), ISO 1171 (determination of ash in coal and coke), and USP <281> (residue on ignition). Its sealed muffle architecture meets basic GLP requirements for traceable thermal exposure when paired with external data loggers. While not certified for Class I Div 1 hazardous locations, the furnace complies with IEC 61000-6-3 (EMC emission standards) and GB/T 10066.1–2004 (Chinese national standard for industrial resistance furnaces). No integrated gas purge capability is provided; inert-atmosphere applications require external nitrogen/argon supply lines and optional flange-mounted inlet/outlet ports (available as field-installable accessory).

Software & Data Management

The SX-4-10 operates via an embedded microprocessor-based controller with local keypad interface and LED display. It does not include built-in USB/Ethernet connectivity or proprietary software. However, analog output (0–5 V or 4–20 mA) is available for integration with third-party data acquisition systems (e.g., LabVIEW, WinCC, or custom SCADA platforms) to record time-stamped temperature profiles, ramp rates, and dwell durations. When used in regulated environments (e.g., pharmaceutical QC labs), users may implement external audit-trail-capable logging solutions compliant with FDA 21 CFR Part 11 requirements—provided timestamp synchronization, user authentication, and electronic signature protocols are managed at the host system level.

Applications

• Thermal pre-treatment of geological, environmental, and biological samples prior to ICP-OES or AAS analysis.
• Controlled oxidation of metal alloys to assess scale formation kinetics and oxide layer adhesion.
• Heat treatment qualification of tool steels and bearing components per AMS 2750E pyrometry requirements (when calibrated with NIST-traceable thermocouples).
• Sintering of ferrite cores, ZnO varistors, and low-fire ceramics where precise soak control at ≤1000 °C is required.
• Residue-on-ignition testing in pharmacopeial monographs (USP, EP, JP) for excipient purity verification.
• Calibration of thermocouples and RTDs using fixed-point reference materials (e.g., Al, Zn, Sn ITS-90 points) within operational range.

FAQ

What is the maximum continuous operating temperature of the SX-4-10?
The furnace is rated for continuous operation at 1000 °C. Prolonged use above this temperature may accelerate element degradation and compromise insulation integrity.
Is the chamber atmosphere controllable?
No—the SX-4-10 is a static-air muffle furnace. For reducing, inert, or vacuum atmospheres, external gas manifolds or vacuum pump interfaces must be added separately.
Can this furnace be used for ashing organic tissue samples?
Yes—its uniform heating profile and muffle isolation make it suitable for AOAC 942.05 and EPA Method 3050B-compliant ashing, provided appropriate crucible material (e.g., platinum or high-purity alumina) is selected.
Does the unit include temperature calibration certification?
Factory calibration is performed using reference thermocouples; however, no NIST-traceable certificate is supplied by default. Users must perform periodic verification per ISO/IEC 17025 or internal SOPs.
What maintenance is recommended for long-term reliability?
Inspect door gasket compression annually; replace if cracked or compressed >30%. Clean interior residue after each ashing cycle. Verify thermocouple junction integrity every 6 months in high-use settings.
