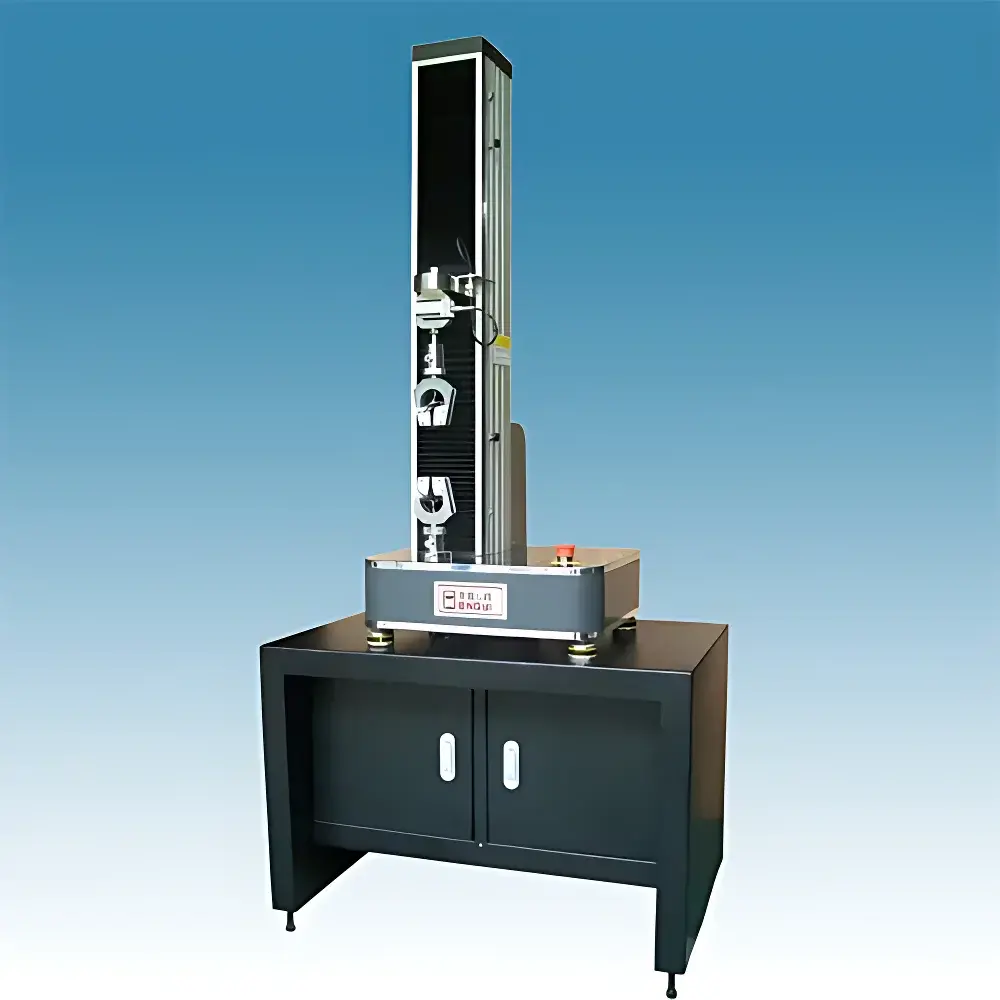

Hengyi HY-0580POJ Single-Column Electronic Tensile Testing Machine

Overview

The Hengyi HY-0580POJ is a single-column electronic tensile testing machine engineered for precision mechanical property evaluation of polymeric and composite materials—particularly polyester fiber-reinforced composites, short-cut synthetic fibers, textiles, plastics, elastomers, and thin metallic specimens. It operates on the principle of controlled uniaxial force application via a servo-controlled electromechanical actuator, with real-time acquisition of load, displacement, and strain data. The system complies with fundamental metrological requirements defined in ISO 7500-1 (static calibration of force-proving instruments), ASTM E4 (load verification of testing machines), and ISO 5893 (tensile testing apparatus specifications). Designed for laboratory environments where repeatability, traceability, and regulatory readiness are essential, the HY-0580POJ supports both manual operation and automated test sequences under programmable control protocols.

Key Features

• Single-column rigid frame architecture with high-stiffness aluminum alloy crosshead and precision-ground lead screws, minimizing deflection during high-force testing.
• Interchangeable load cells spanning 1 N to 5 kN, enabling seamless transition between micro-scale fiber filament testing and macro-scale composite laminate evaluation without recalibration.
• High-resolution displacement measurement system with 0.001 mm resolution and ±0.5% accuracy across full stroke (800 mm), ensuring fidelity in elongation and modulus calculations per ISO 527 and ASTM D638.
• Dual-speed motorized crosshead drive (fast positioning + fine adjustment), integrated electronic limit switches, and emergency stop circuitry compliant with IEC 60204-1 safety standards.
• Real-time stress/strain rate control modes supporting closed-loop feedback at rates from 0.002% to 6% FS/s—critical for viscoelastic characterization of thermoplastic matrix composites and textile yarns.
• Automatic test termination triggers: preset load, displacement, strain, or time thresholds; overload protection at 110% of selected capacity; self-diagnostic routines for drive, sensor, and power subsystems.

Sample Compatibility & Compliance

The HY-0580POJ accommodates standard and non-standard specimens up to 120 mm wide and 800 mm gauge length, including ASTM D3822 (single-filament tensile testing), ISO 1184 (polymer filament strength), GB/T 3923 (woven fabric tensile), and GB/T 1040 (plastics tensile properties). Its modular gripping system accepts pneumatic, wedge, roller, and custom fixtures—enabling secure clamping of low-modulus fibers, brittle carbon/polyester hybrids, and coated multifilament strands without slippage or premature failure. All hardware and firmware meet CE marking requirements (2014/30/EU EMC Directive, 2006/42/EC Machinery Directive) and support audit-ready documentation per GLP and GMP frameworks. Calibration certificates are traceable to CNAS-accredited national standards.

Software & Data Management

The instrument integrates with Hengyi’s proprietary TestMaster Pro software, a Windows-based platform supporting multi-channel synchronized data acquisition at ≥1 kHz sampling rate. Users define test methods per ISO 179-1, ASTM D790 (flexural), or custom protocols—including cyclic loading, creep, and relaxation sequences. Raw data exports in CSV, XML, and universal .tdms formats; graphical overlays allow comparative analysis across batches or material grades. Audit trail functionality logs all user actions, parameter changes, and calibration events—meeting FDA 21 CFR Part 11 requirements when configured with electronic signatures and role-based access controls. Software permits export of compliance reports aligned with GB/T 2611, GB/T 16491, and ISO 7500-1 verification templates.

Applications

• Tensile strength, elongation at break, and Young’s modulus determination of polyester staple fibers, PET nonwovens, and fiber-matrix interfacial bond evaluation in thermoset composites.
• Mechanical screening of biodegradable polymer blends used in geotextiles and filtration media.
• Quality assurance testing for automotive interior trim components, medical textile scaffolds, and protective apparel laminates.
• Research-grade deformation behavior analysis under variable strain rates—supporting constitutive modeling of anisotropic fiber architectures.
• Educational use in materials science laboratories for hands-on instruction on stress–strain fundamentals, fracture mechanics, and standardization principles.

FAQ

Does the HY-0580POJ support ASTM D3822-compliant single-filament testing?
Yes—the system achieves sub-gram force resolution and <0.01 mm displacement repeatability required for filament-level tensile characterization when equipped with a 1 N or 5 N load cell and micro-grip fixture.
Can test methods be exported and shared across multiple instruments?
Yes—TestMaster Pro saves method files (.tmx) containing all control parameters, calculation formulas, and pass/fail criteria, ensuring inter-laboratory consistency and method transfer validation.
Is third-party calibration certification available?
Yes—Hengyi provides optional CNAS-traceable calibration certificates with uncertainty budgets, valid for 12 months, covering force, displacement, and speed channels.
What environmental conditions are recommended for optimal performance?
Operate within 10–35 °C ambient temperature, ≤80% RH non-condensing, on a vibration-isolated bench; avoid direct sunlight or HVAC drafts near the column assembly.
How is software validation handled for regulated environments?
A full IQ/OQ/PQ validation package—including risk assessment, protocol templates, and summary reports—is available upon request for pharmaceutical, aerospace, or medical device QA/QC deployment.
