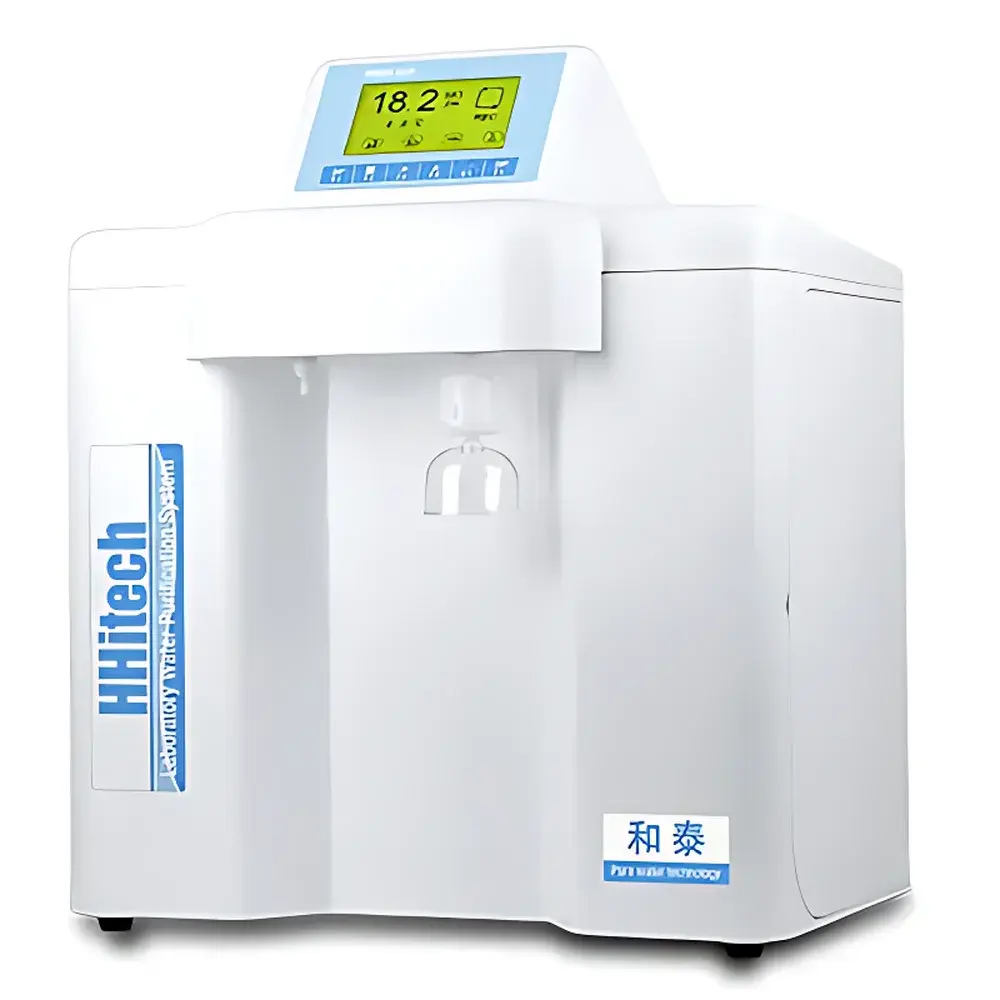

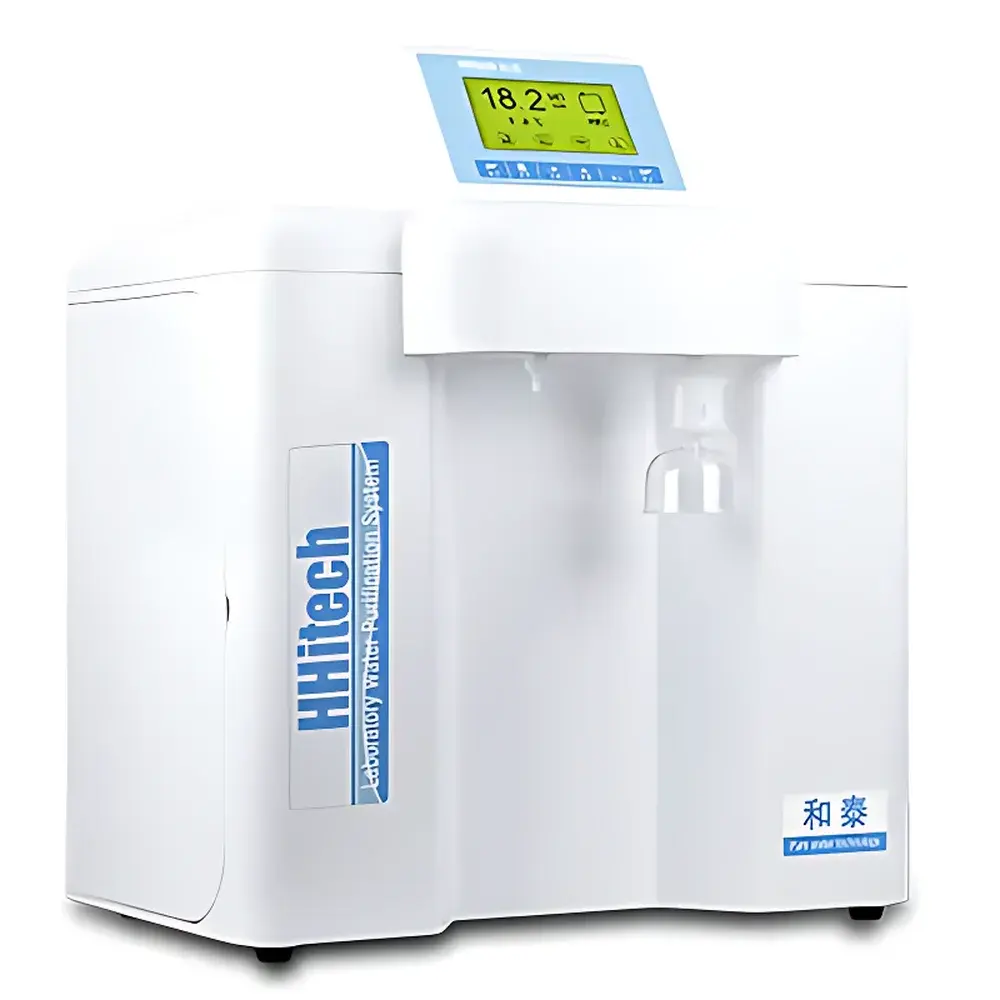

HHitech Master-S Ultra Pure Water System (Municipal Tap Water Feed)

Overview

The HHitech Master-S Ultra Pure Water System is a fully integrated, laboratory-grade water purification platform engineered to generate Type I ultrapure water directly from municipal tap feed water. Utilizing a multi-stage purification architecture—comprising prefiltration, KDF-accelerated carbon adsorption, high-rejection reverse osmosis (RO), dual-wavelength UV photo-oxidation (185/254 nm), electrodeionization (EDI)-enhanced deionization, and optional ultrafiltration (UF) and terminal sterile filtration—the system consistently delivers water meeting or exceeding the most stringent international standards: ASTM D1193-20, ISO 3696:1987 Class 1, CLSI A1-2023, EP 10.0 Chapter 2.2.43, USP , and GB/T 6682–2008 and GB/T 33087–2016. Designed for continuous operation in QC, analytical chemistry, molecular biology, and cell culture laboratories, the Master-S operates with a nominal output of 15 L/h (S15) or 30 L/h (S30), supporting both pressure-tank and level-sensing reservoir configurations.

Key Features

• Intelligent microprocessor control with 240×128-pixel backlit LCD display (106×57 mm), enabling real-time animated visualization of system status, flow rates, pressure differentials, and three-point conductivity/resistivity monitoring (feed, RO, UP)
• Triple-stage water quality monitoring with programmable alarm thresholds for resistivity, TOC, endotoxin, and microbial load—triggering visual, audible, and relay-based alerts upon deviation
• Configurable timed and quality-triggered dispensing: time range 1–99 min; resistivity setpoint 0.1–18.2 MΩ·cm
• Comprehensive consumables lifecycle management: service timers for prefilter, RO membrane, UV lamp, and integrated 4-cartridge ultra-purification column—with remaining life estimation, auto-replacement prompts, and log-tracked usage history
• Full-system sanitization protocol: NSF-certified chemical disinfection cycle activated via single-button command; compatible with peracetic acid or hydrogen peroxide-based tablets
• RO membrane anti-scaling maintenance: automated flush routines at startup and on scheduled intervals (configurable 2–24 h), extending membrane service life beyond 24 months under typical municipal feed conditions (TDS <200 ppm)
• Modular, NSF-certified fluid path: quick-connect fittings, tool-free cartridge replacement, and fully segregated pre-treatment, RO, and polishing modules—designed for GLP-compliant maintenance traceability
• Ergonomic, corrosion-resistant engineering plastic chassis (UL94 V-0 rated), compliant with IEC 61010-1 safety requirements and suitable for ISO Class 5–7 cleanroom-adjacent placement

Sample Compatibility & Compliance

The Master-S supports critical applications requiring endotoxin-free, nuclease-free, and low-TOC water—including HPLC mobile phase preparation, ICP-MS calibration, ELISA assay buffers, mammalian cell culture media formulation, and IVF embryo handling. Its UF-equipped variants (Master-S15UF/S30UF) achieve <0.001 EU/mL endotoxin levels and <1 pg/mL RNase/DNase activity, fulfilling USP and specifications. All wetted materials—including PES terminal filters (0.45 + 0.1 µm), DOW Filmtec™ RO membranes, and nuclear-grade mixed-bed resin—are certified to NSF/ANSI Standard 61 and FDA 21 CFR 177.2600. The system’s data logging capability (via RS232/USB interface) maintains full audit trails compliant with 21 CFR Part 11 requirements when paired with validated software.

Software & Data Management

Equipped with optional RS232 or USB connectivity, the Master-S logs timestamped resistivity, TOC, UV intensity, pressure, and temperature data continuously for up to 12 months. Exportable CSV files support integration into LIMS or electronic lab notebooks (ELN). Password-protected dual-access control (factory-level and user-level) ensures configuration integrity. System event logs—including alarm triggers, consumable replacements, and sanitization cycles—are retained with immutable timestamps, satisfying GLP documentation mandates for instrument qualification (IQ/OQ/PQ) and routine operational verification.

Applications

• Analytical instrumentation: GC, HPLC, LC-MS, ICP-OES, and ICP-MS solvent and standard preparation
• Molecular biology: PCR, qRT-PCR, NGS library prep, and CRISPR reagent formulation
• Cell culture & regenerative medicine: Stem cell expansion, monoclonal antibody production, and assisted reproductive technology (ART)
• Pharmaceutical QA/QC: USP Water for Injection (WFI) pre-polishing, stability testing buffers, and dissolution media
• Trace metal analysis: Elimination of background contamination in environmental and clinical toxicology workflows

FAQ

What feed water quality is required for optimal performance?
Municipal tap water with TDS ≤200 ppm, temperature 5–45 °C, and inlet pressure 1.0–4.0 kgf/cm² is recommended. For TDS >200 ppm, an external softener is advised to prevent premature RO scaling.
Is the system compliant with 21 CFR Part 11 for electronic records?
Yes—when used with validated data export software and password-protected user access, the Master-S meets ALCOA+ principles for attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available records.
How often must consumables be replaced under typical lab use?
Pre-filter: ~12 months; RO membrane: 24–36 months; UV lamp: 9,000 hours; ultra-purification column: 6–12 months depending on feed water load and daily usage volume.
Can the system be integrated with a central water distribution loop?
Yes—via optional recirculation pump and loop-compatible UV chamber (not included), supporting closed-loop circulation with <0.1 CFU/mL bioburden control.
Does the Master-S support IQ/OQ/PQ documentation packages?
HHitech provides standardized qualification templates aligned with ISO/IEC 17025 and ASTM E2500, including test protocols, acceptance criteria, and blank execution records for full regulatory readiness.
