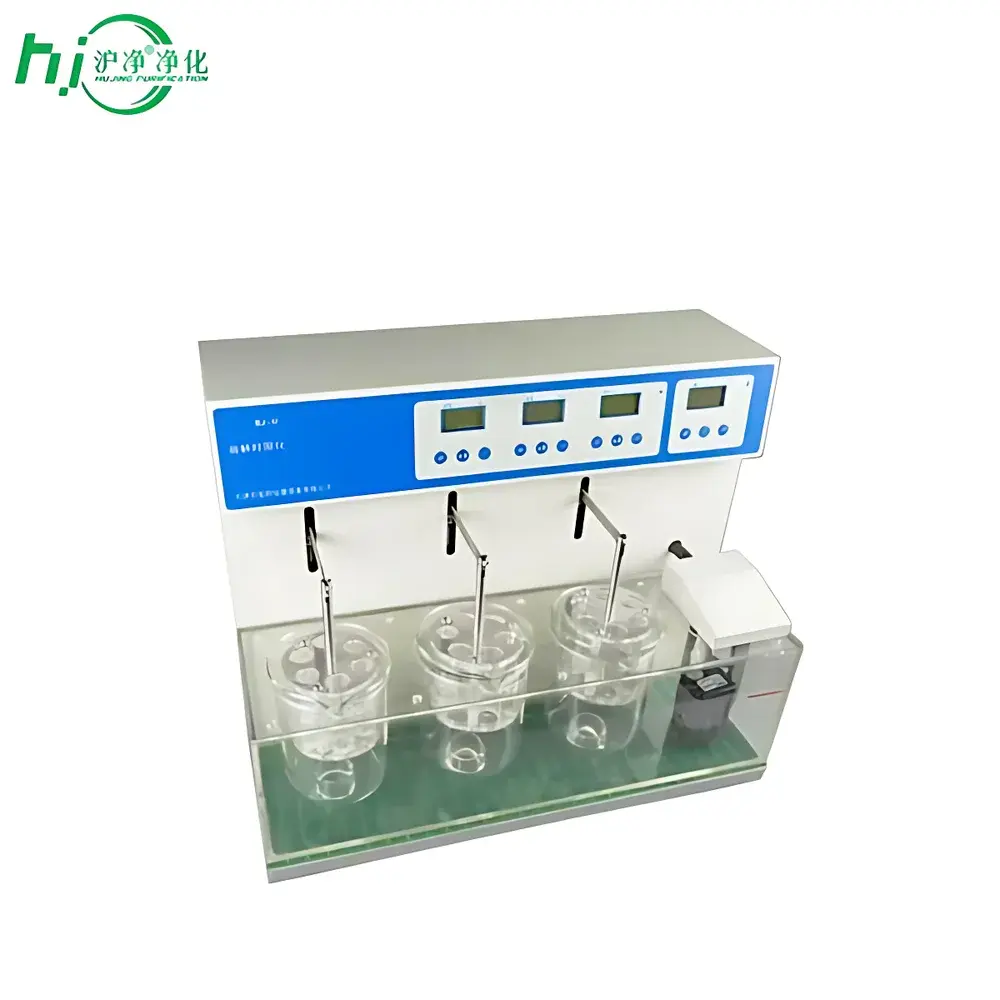

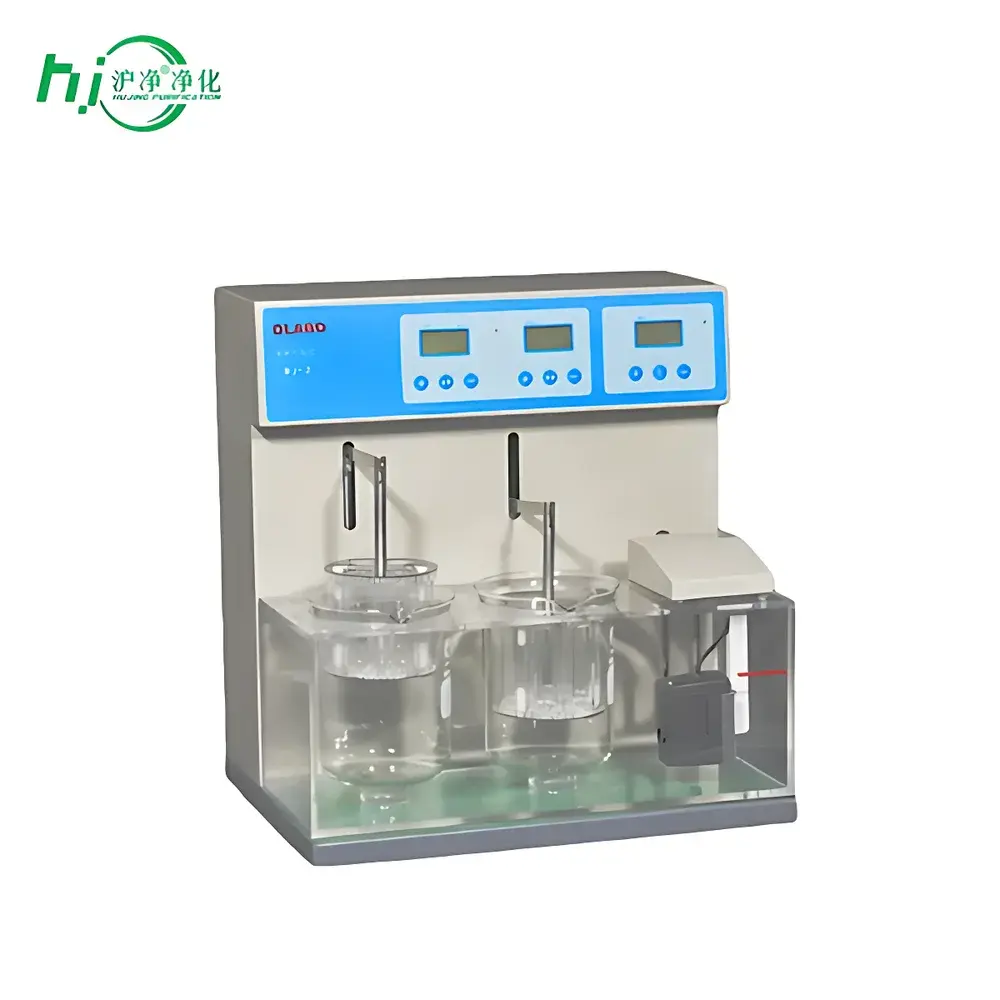

HJ BJ-1/2/3 Series Disintegration Tester

Overview

The HJ BJ-1/2/3 Series Disintegration Tester is a precision pharmaceutical testing instrument engineered for compliance with the Chinese Pharmacopoeia (ChP) General Chapter 0921 “Disintegration Time Limit Test”. It operates on the principle of mechanical agitation in a thermostatically controlled aqueous medium—mimicking physiological conditions—to assess the disintegration behavior of solid oral dosage forms including tablets, capsules, and pills. The device employs a vertically reciprocating basket assembly immersed in a water bath maintained at a user-defined temperature (typically 37.0 °C per ChP requirements), while the sample undergoes repeated immersion and withdrawal through a standardized sieve. This hydrodynamic process quantifies the time required for complete disintegration into fragments that pass through the specified mesh aperture—a critical quality attribute directly linked to drug dissolution, bioavailability, and batch consistency.

Key Features

• Modular platform architecture supporting single (BJ-1), dual (BJ-2), or triple (BJ-3) independent test stations—enabling parallel evaluation of multiple samples or comparative studies under identical environmental conditions.
• High-stability digital temperature control system with ±0.3 °C accuracy across the full 20–50 °C range; resolution of 0.1 °C ensures reproducible thermal conditioning aligned with pharmacopoeial specifications.
• Precision electromechanical drive mechanism delivering consistent basket stroke frequency (30–31 cycles/min) and stroke distance (55 ±1 mm), both validated per ChP mechanical tolerance requirements.
• Microcontroller-based embedded system providing intelligent, real-time management of temperature setpoint, timer duration, and safety interlocks—including overtemperature alarm and automatic power cutoff to prevent thermal excursion beyond operational limits.
• Standardized sieve configuration with 2.0 mm aperture (conforming to ChP default specification); optional interchangeable sieves (0.425 mm, 0.71 mm, 1.0 mm) support method development for specialized formulations such as enteric-coated or sustained-release products.
• Low-noise operation (<60 dB[A]) suitable for shared laboratory environments; compact footprint optimized for benchtop deployment in QC labs, R&D facilities, and contract testing organizations.

Sample Compatibility & Compliance

The HJ BJ-Series accommodates standard USP/ChP-compliant disintegration baskets and beakers. Each station maintains strict adherence to the geometric and dimensional tolerances defined in ChP 0921: minimum 25 ±2 mm clearance between sieve base and beaker bottom, uniform basket immersion depth, and calibrated vertical travel path. The instrument supports regulatory submissions requiring documented conformance to pharmacopoeial methods—including validation protocols for temperature uniformity mapping, timing accuracy verification, and mechanical performance qualification. While designed primarily for ChP compliance, its operational parameters are compatible with equivalent sections of USP General Chapter <701> Disintegration and EP 2.9.1, facilitating multi-regional method transfer and audit readiness.

Software & Data Management

The BJ-Series utilizes an embedded microcontroller interface with LED display and tactile keypad navigation—eliminating reliance on external PCs or proprietary software. All critical parameters (set temperature, elapsed time, active station status) are displayed in real time with non-volatile memory retention of last-used settings. Though not equipped with network connectivity or electronic record generation, the system’s deterministic behavior, manual logbook compatibility, and traceable calibration-free temperature sensing support GLP-aligned documentation practices. For laboratories operating under FDA 21 CFR Part 11 or EU Annex 11 requirements, supplementary procedural controls—such as operator login logs, printed test reports, and periodic instrument verification records—can be integrated into existing QMS frameworks without hardware modification.

Applications

• Routine QC release testing of immediate-release and modified-release oral solids against ChP/USP disintegration criteria.
• Formulation development studies evaluating excipient effects (e.g., disintegrants, binders) on tablet breakup kinetics.
• Stability program monitoring to detect time-dependent changes in disintegration profile under accelerated or long-term storage conditions.
• Comparative assessment of generic versus reference listed drug products during bioequivalence support studies.
• Method suitability verification prior to dissolution method development, as disintegration is often a prerequisite step in biopharmaceutical classification system (BCS) assessments.
• Educational use in pharmaceutical sciences curricula for hands-on instruction in pharmacopoeial testing principles and solid dosage form performance evaluation.

FAQ

Does the BJ-Series comply with USP <701> requirements?
Yes—the mechanical parameters (basket stroke frequency, distance, temperature control range, and sieve dimensions) meet the operational tolerances specified in USP <701>, enabling cross-pharmacopoeial method execution.
Can different temperature setpoints be applied simultaneously across multiple baskets?
No—BJ-2 and BJ-3 models share a common water bath; all baskets operate at the same controlled temperature. Independent thermal control per station is not supported.
Is calibration certification included with shipment?
The unit ships with factory verification of temperature sensor linearity and timer accuracy. Formal metrological calibration certificates (e.g., ISO/IEC 17025) are available upon request as an optional service.
What maintenance is required for long-term reliability?
Routine cleaning of baskets, beakers, and water bath chamber; periodic inspection of drive belt tension and electrical connections; annual verification of temperature uniformity using NIST-traceable probes.
Are replacement sieves and baskets supplied by HJ?
Yes—HJ provides certified replacement components including stainless steel baskets, brass sieves (2.0 mm standard), and optional aperture variants, all manufactured to ChP dimensional specifications.
