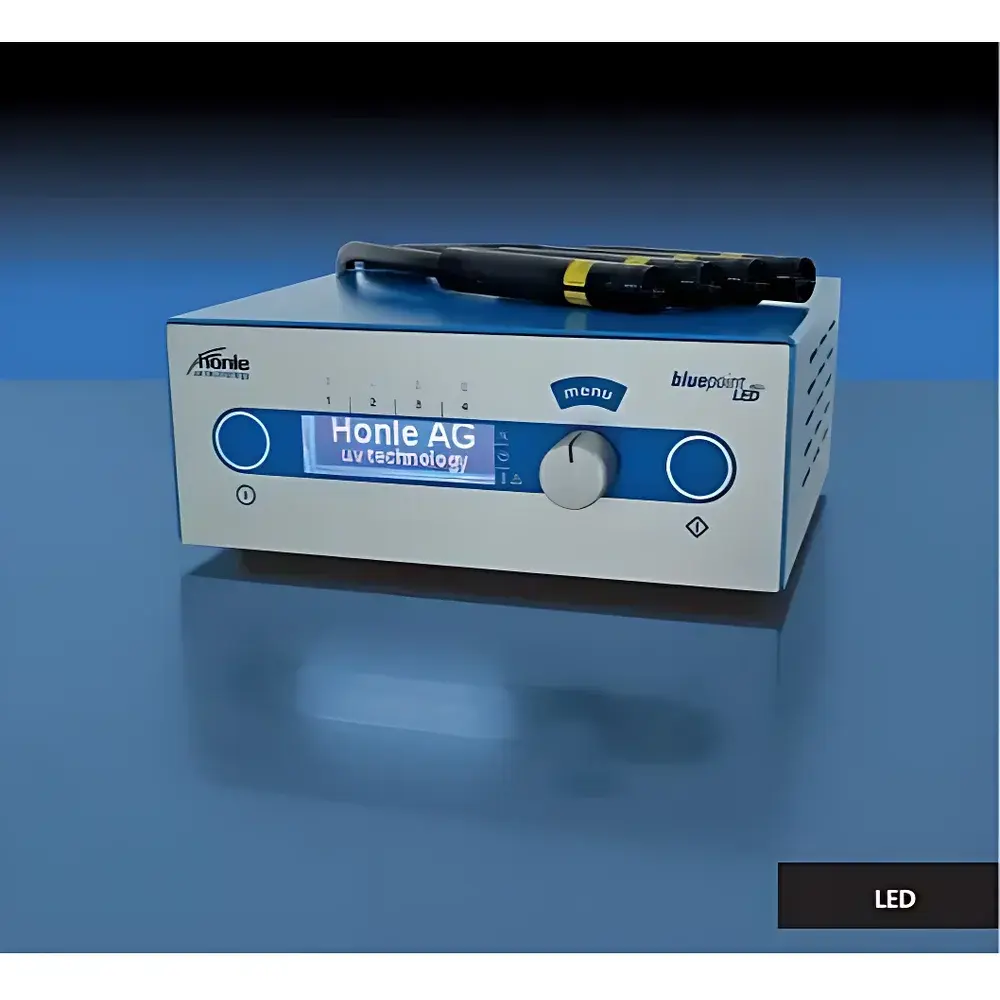

Hoenle Bluepoint LED ECO UV Curing System

Overview

The Hoenle Bluepoint LED ECO is an industrial-grade, modular UV irradiation system engineered for precision photopolymerization, fluorescence excitation, and accelerated material testing in regulated laboratory and high-throughput manufacturing environments. Based on solid-state LED technology, it delivers narrow-band ultraviolet output at three standard wavelengths—365 nm, 385 nm, and 405 nm—with ±10 nm spectral tolerance—enabling selective activation of photoinitiators across diverse resin chemistries and biological fluorophores. Unlike mercury-vapor or arc-lamp sources, the Bluepoint LED ECO emits negligible infrared radiation, minimizing thermal load on substrates and enabling safe irradiation of temperature-sensitive components such as optical sensors, microfluidic devices, and biopolymer films. Its instantaneous on/off capability eliminates warm-up and cool-down delays, supporting true cycle-time optimization in fully automated production lines—including those compliant with ISO 14644-1 Class 5 cleanroom requirements.

Key Features

• Modular architecture supporting up to four independently addressable LED heads per controller unit—each automatically recognized and configured upon connection
• Three factory-calibrated wavelength options (365 nm, 385 nm, 405 nm), selectable per head to match application-specific absorption profiles
• Precision irradiation control: exposure time adjustable from 0.01 s to 9999 s; continuous operation mode available with optional passive or forced-air cooling
• Four programmable power modes: Standard (10–100% fixed setpoint), ConstPower (intensity stabilized across ambient temperature fluctuations), PeakPower (maximized short-pulse output), and StepMode (up to four sequential time/power steps per program)
• Real-time operational monitoring: LED head temperature, cumulative operating hours, and active exposure status displayed locally and accessible via RS-232
• Integrated safety infrastructure: dual-channel safety circuit, emergency stop input per IEC 61508, and configurable 24 V digital I/O for integration into SIL2-capable machine control systems

Sample Compatibility & Compliance

The Bluepoint LED ECO is validated for use with a broad spectrum of UV-curable materials—including acrylate-, epoxy-, and silicone-based adhesives, conformal coatings, and encapsulants—commonly employed in electronics assembly, medical device bonding, and optoelectronic packaging. Its low-heat, narrow-spectrum output ensures minimal substrate warpage and avoids degradation of thermally labile polymers or biological samples during fluorescence stimulation assays. The system conforms to CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), RoHS 2011/65/EU, and supports GLP/GMP-aligned process documentation when operated with external audit-trail software. Cleanroom compatibility is certified per ISO 14644-1 Class 5 (≤3,520 particles/m³ ≥0.5 µm), with non-shedding housings and static-dissipative surfaces.

Software & Data Management

Process sequences are programmable either directly via the front-panel interface or remotely using ASCII-based text files transmitted over RS-232. Each sequence may include multiple exposure steps, conditional triggers (e.g., PLC input signals), dwell times, and external device synchronization commands (e.g., conveyor start/stop, valve actuation). The controller logs timestamped operational data—including total LED runtime, thermal history, and fault events—for traceability. While the base firmware does not include FDA 21 CFR Part 11-compliant electronic signatures, full audit trail export (CSV/TSV) enables integration with validated third-party LIMS or MES platforms supporting ALCOA+ data integrity principles.

Applications

• High-speed adhesive curing in SMT and microelectronics assembly lines
• Fluorescence excitation for automated image-based quality inspection (e.g., defect detection in OLED displays)
• Accelerated aging and photostability testing per ISO 4892-3 and ASTM G154 for pharmaceutical packaging and medical polymers
• UV-triggered crosslinking in hydrogel fabrication and biofabrication workflows
• Cleanroom-compatible surface disinfection validation studies (when paired with calibrated radiometers and dosimetry protocols)

FAQ

Can the Bluepoint LED ECO operate in a Class 5 cleanroom environment?

Yes—the system meets ISO 14644-1 Class 5 particulate requirements and features non-outgassing materials, sealed optics, and static-dissipative enclosures.

Is calibration traceable to national standards?

Hoenle provides factory calibration certificates (traceable to PTB, Germany) for irradiance output at each wavelength; field recalibration requires NIST-traceable handheld radiometers.

Does the controller support Ethernet or USB connectivity?

No—communication is exclusively via RS-232 serial interface; Ethernet gateways may be added externally via industrial protocol converters.

What safety certifications apply to the integrated safety circuit?

The dual-channel safety loop complies with EN ISO 13849-1 PL e / Category 4 and supports integration into machinery meeting EN 62061 SIL2 requirements.

How is thermal management handled during prolonged continuous operation?

Passive heatsinking suffices for duty cycles ≤60%; for >60% duty or ambient temperatures >35°C, Hoenle recommends optional fan-cooled head mounts or pulsed operation in PeakPower mode.
