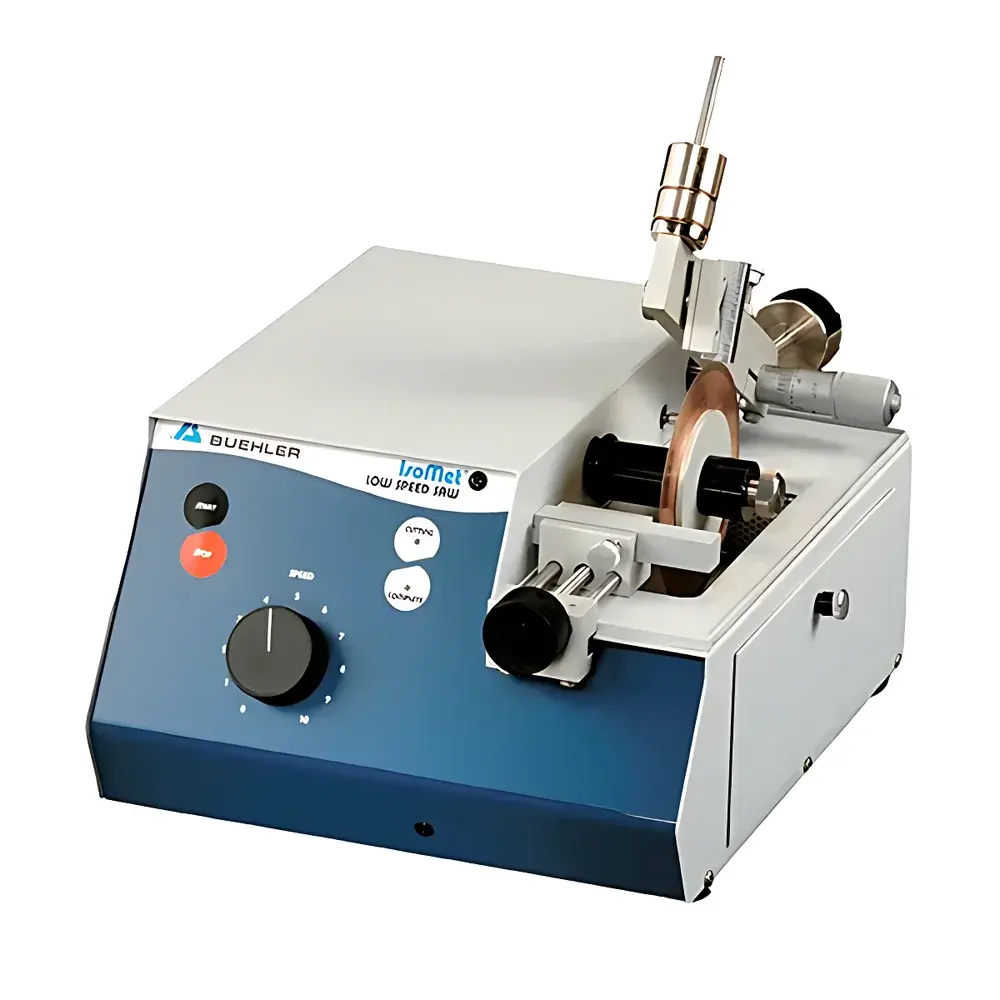

ISOMET Low-Speed Precision Cutting Machine

Overview

The ISOMET Low-Speed Precision Cutting Machine, engineered by BUEHLER (USA), is a laboratory-grade automated sectioning system designed for minimally invasive material preparation. It operates on the principle of controlled low-speed abrasive cutting—typically at rotational speeds between 0 and 300 rpm—to suppress thermal and mechanical distortion during sample sectioning. Unlike high-speed saws that induce microcracking, plastic deformation, or phase transformation near the cut interface, the ISOMET leverages optimized wheel kinematics, precise feed-force regulation, and synchronized coolant delivery to preserve structural and microstructural integrity. This makes it especially suitable for applications demanding high-fidelity cross-sections—such as metallurgical analysis, failure investigation, semiconductor packaging evaluation, and histological specimen preparation—where artifacts introduced during cutting would compromise downstream imaging (e.g., SEM, EBSD) or mechanical testing.

Key Features

• Automated cutting cycle with programmable feed rate and load control (0–300 g), ensuring repeatable sectioning depth and surface finish across diverse material classes.

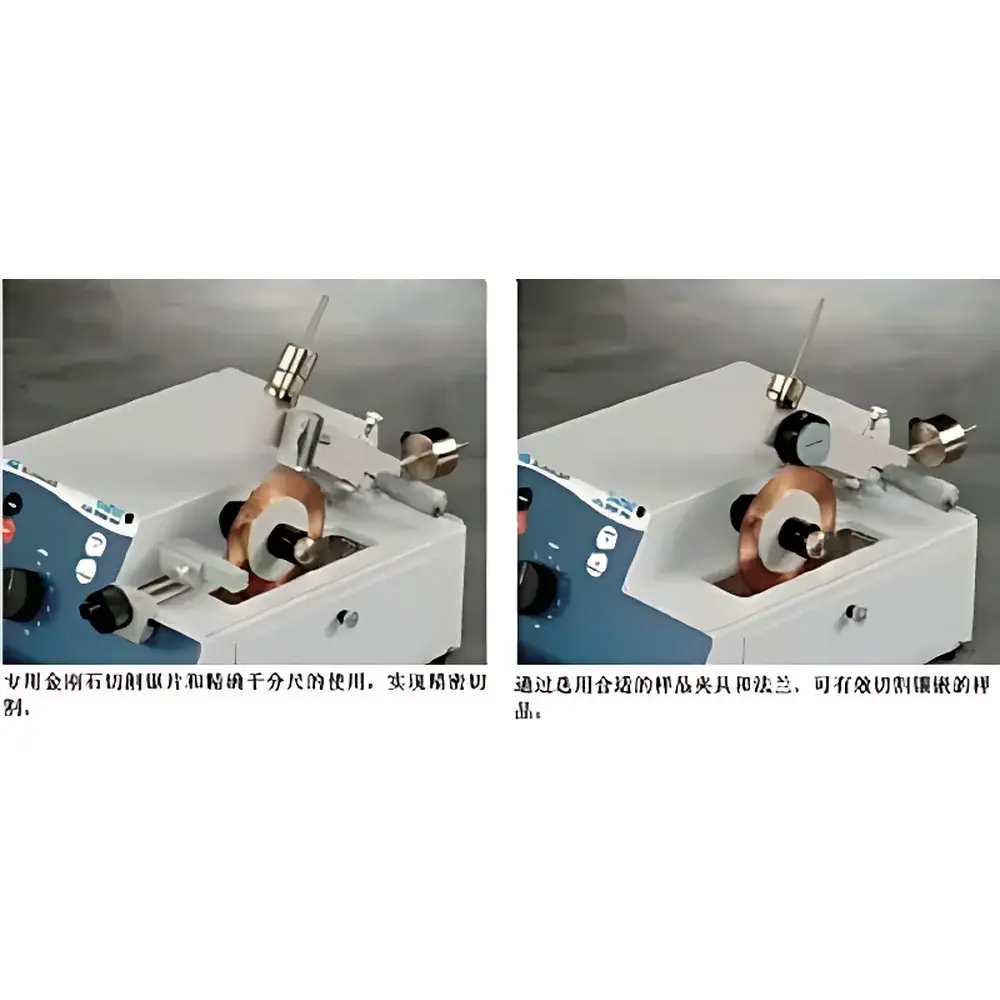

• Micrometer-adjustable X-Y sample stage enables sub-10 µm positional accuracy prior to cutting—critical for targeting specific microstructural features or device layers.

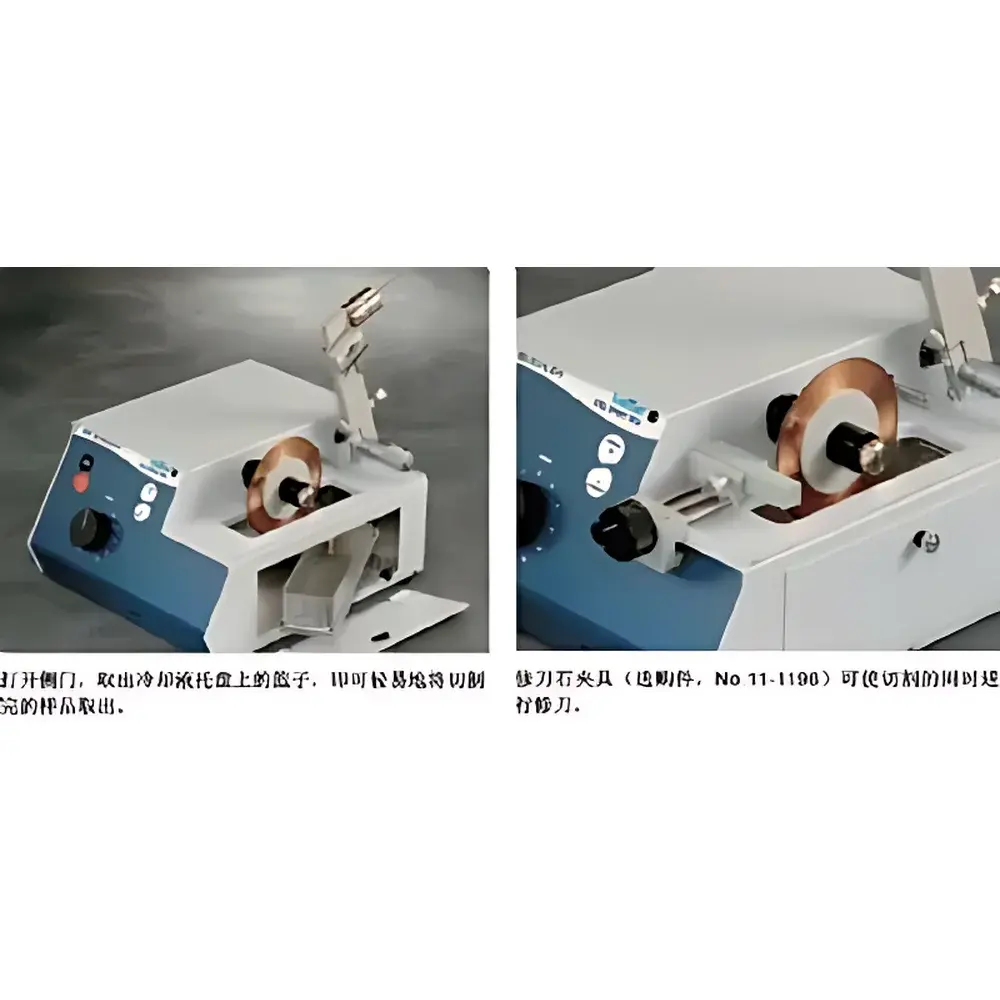

• Integrated blade dressing station allows in-situ truing and conditioning of diamond-impregnated or resin-bonded wheels, maintaining consistent wheel geometry and cutting efficiency over extended service life.

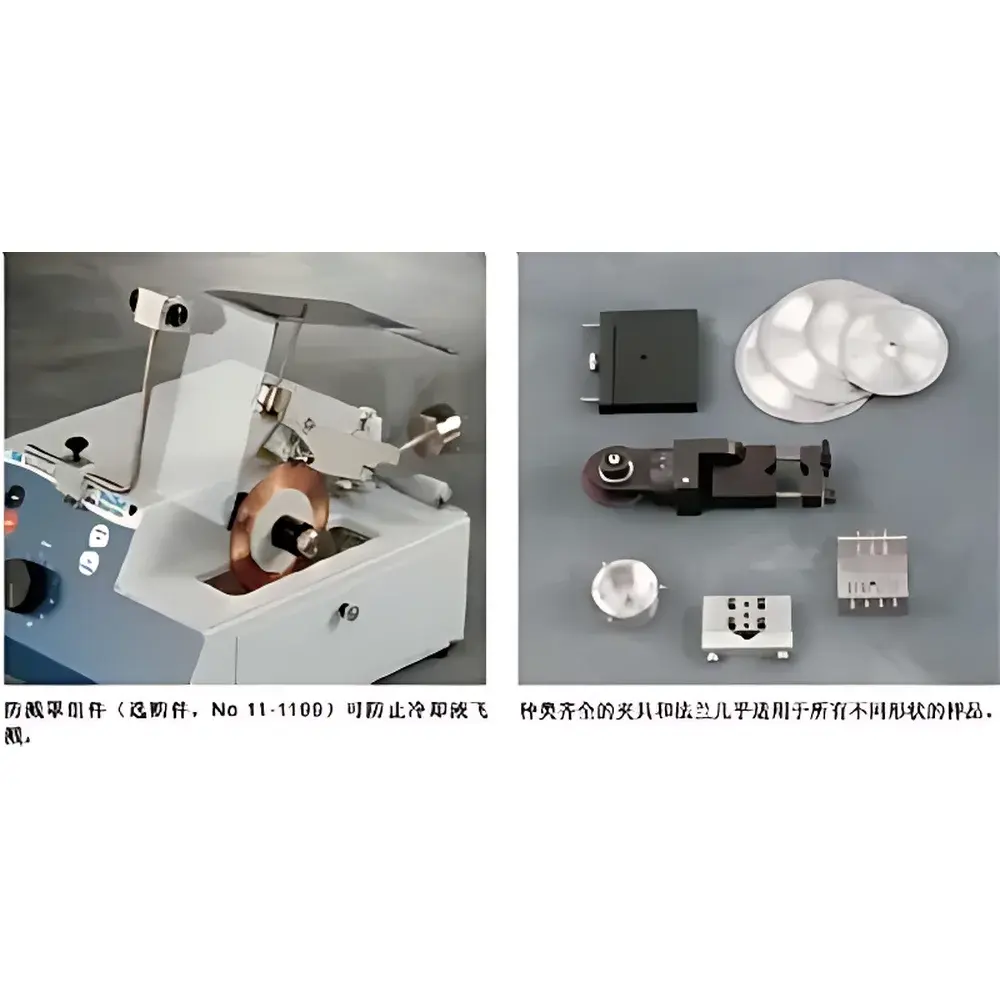

• Modular chuck and fixture system accommodates irregular geometries—including cylindrical, irregularly shaped, and multi-component assemblies—without requiring custom tooling.
• Robust cast-iron frame and vibration-damped base minimize operational drift and enhance long-term dimensional stability during extended runs.
• Compliant with ANSI Z535 and IEC 61000-6-2 electromagnetic compatibility standards; CE-marked for use in EU-based research and industrial labs.

Sample Compatibility & Compliance

The ISOMET supports sectioning of brittle, ductile, anisotropic, and heterogeneous materials—including sintered ceramics, fiber-reinforced composites, additive-manufactured alloys, PCB substrates, polymer laminates, and hydrated biological tissues (when embedded). Its low-speed architecture mitigates heat accumulation, eliminating recast layers in aluminum alloys and preventing delamination in carbon-fiber prepregs. All cutting protocols adhere to ASTM E3-22 (Standard Guide for Preparation of Metallographic Specimens) and ISO 14577-1 (Metallic materials — Instrumented indentation test), supporting GLP-compliant documentation workflows when integrated with validated LIMS environments.

Software & Data Management

While the ISOMET operates via intuitive front-panel controls, optional BUEHLER OmniMet™ software enables full traceability: users can store method parameters (speed, load, duration, coolant flow), timestamped operator ID, and cycle logs compliant with FDA 21 CFR Part 11 requirements. Audit trails are exportable in CSV or PDF format, and system calibration records—including micrometer zero-offset verification and load-cell linearity checks—are retained per ISO/IEC 17025 guidelines. Remote diagnostics and firmware updates are supported via Ethernet connection.

Applications

• Preparation of transmission electron microscopy (TEM) lift-out specimens from IC packages and thin-film devices.
• Cross-sectional analysis of thermal barrier coatings and turbine blade bond coats under ASTM C1739.
• Sectioning of additively manufactured Ti-6Al-4V parts for porosity quantification per ASTM F2924.
• Controlled dissection of battery electrode stacks to assess interfacial degradation without electrolyte leakage.
• Routine metallographic sectioning of weld joints, heat-affected zones (HAZ), and corrosion coupons per ASTM E407.
• Biomedical research: precision slicing of calcified tissue blocks or dental implant interfaces for histomorphometric analysis.

FAQ

What types of cutting wheels are compatible with the ISOMET?
Standard mounting accepts 75 mm to 125 mm diameter wheels with ISO 40 or ISO 50 arbors; recommended wheels include BUEHLER’s IsoMet™ series (diamond, silicon carbide, and cubic boron nitride variants) optimized for specific material families.
Is coolant delivery integrated and adjustable?
Yes—the machine features a dual-channel peristaltic pump system delivering variable-flow aqueous or oil-based coolants directly to the cut zone; flow rate and timing are programmable within each method.
Can the ISOMET be validated for regulated QA/QC environments?
Absolutely—its mechanical repeatability (<±2 µm positional deviation over 100 cycles), documented calibration procedures, and audit-trail-capable software support IQ/OQ/PQ validation per GMP Annex 15 and ISO 13485 requirements.
Does it support unattended overnight operation?
Yes—automated cycle termination, emergency stop interlocks, and real-time motor current monitoring enable safe extended-run protocols with minimal supervision.
