HOGON AKF-V6 Calcium Tablet-Specific Volumetric Karl Fischer Moisture Titrator

Overview

The HOGON AKF-V6 Calcium Tablet-Specific Volumetric Karl Fischer Moisture Titrator is a purpose-engineered analytical system designed for high-reproducibility water content determination in pharmaceutical solid dosage forms—particularly calcium tablets—and other challenging biomedical matrices. It operates on the classical volumetric Karl Fischer (KF) titration principle, where iodine generated electrochemically or delivered via standardized KF reagent reacts stoichiometrically with water in the sample solution. The endpoint is detected potentiometrically using a dual-platinum electrode system, with advanced adaptive algorithm-based endpoint recognition that minimizes over-titration and improves repeatability across heterogeneous, low-solubility, or hygroscopic samples. Unlike generic KF titrators, the AKF-V6 integrates hardware and software optimizations specifically validated for tablet excipients (e.g., lactose, starch, povidone K30), active pharmaceutical ingredients (APIs) such as amoxicillin and ibuprofen, and moisture-sensitive biologics including lyophilized proteins, serum derivatives, and gadobutrol formulations. Its architecture supports both open-cell and closed-cell titration configurations, enabling reliable analysis of volatile solvents (acetonitrile, chloroform, glacial acetic acid) and thermally labile solids without pre-drying artifacts.

Key Features

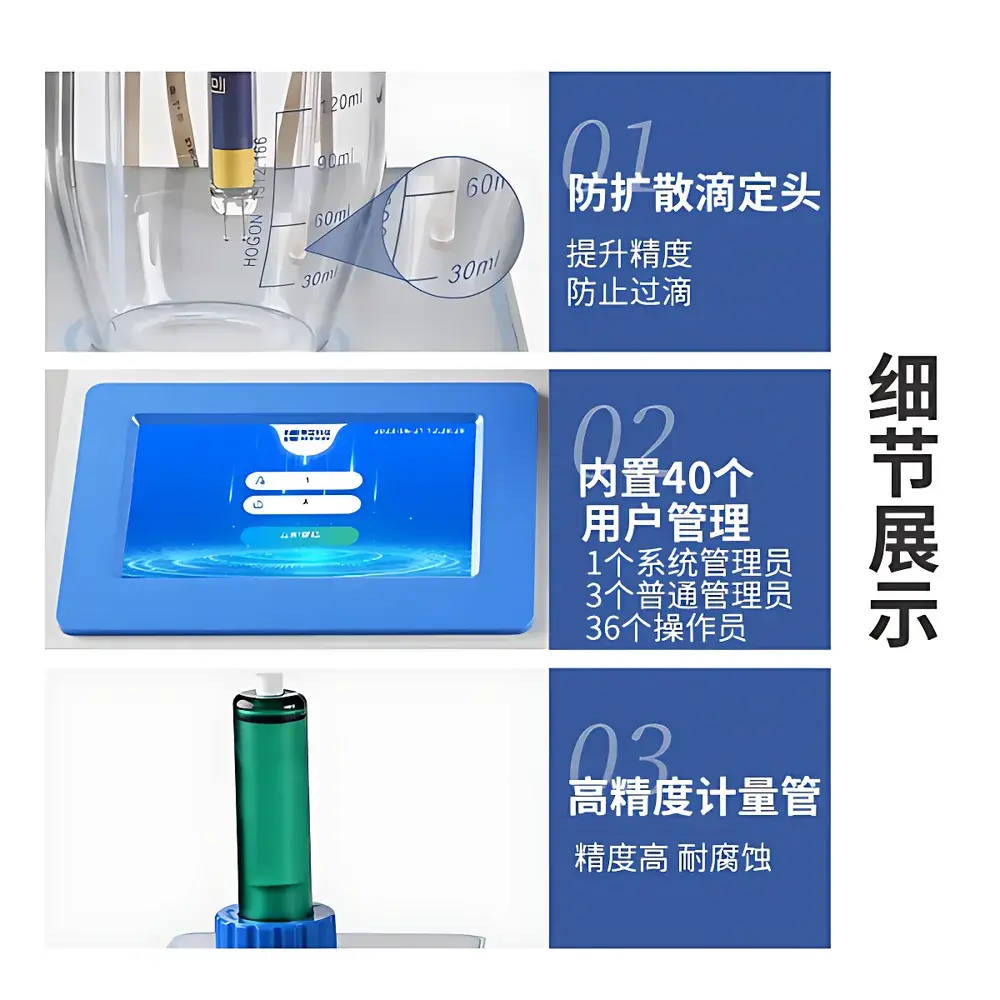

• 7-inch full-color capacitive touchscreen with intuitive bilingual (English/Chinese) GUI, real-time display of titration curve, current drift, reagent consumption, and calculated water content
• Fully enclosed, corrosion-resistant titration cell assembly with integrated desiccant drying tube and vapor barrier—minimizing ambient moisture ingress and ensuring long-term electrode stability
• HOGON proprietary high-precision burette drive mechanism delivering ±0.5 µL accuracy at 20 mL capacity, coupled with 0.5 µL minimum dispensing increment for ultra-low moisture quantification (down to 10 ppm)
• Automated fluid handling: auto-sampling, reagent aspiration, waste expulsion, cell rinsing, and electrode de-passivation—all programmable per method
• Multi-mode endpoint detection: fixed potential, dynamic drift compensation, and slope-based adaptive termination—configurable per sample class to optimize precision for insoluble tablets or viscous diagnostics reagents
• Built-in method library with pre-validated protocols for USP , EP 2.5.12, and JP 2.05 compliant moisture testing of calcium carbonate tablets, hard/soft gelatin capsules, and lyophilized biologics

Sample Compatibility & Compliance

The AKF-V6 demonstrates robust performance across solid, semi-solid, liquid, and gaseous samples relevant to pharmaceutical quality control and R&D laboratories. Validated applications include direct analysis of intact calcium tablets (with optional heating headspace sampler), powdered APIs, sterile ophthalmic solutions (e.g., diquafosol sodium), diagnostic reagent kits, and polymer excipients such as PLA, PGA, and PVA. All hardware components contacting reagents or samples are chemically inert (PTFE, borosilicate glass, platinum electrodes), ensuring compatibility with aggressive solvents including pyridine-free KF reagents. The system complies with Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) requirements through mandatory features: time-stamped audit trails covering all user actions, electronic signatures, 3-level role-based access control (Administrator / Supervisor / Analyst), and immutable data storage with SHA-256 hash verification. Data export meets FDA 21 CFR Part 11 readiness standards—including electronic record retention, operator authentication, and change history logging.

Software & Data Management

The embedded firmware supports ISO/IEC 17025-aligned data integrity workflows. Up to 1,000 complete test records—including raw titration curves, electrode potential logs, reagent batch IDs, environmental temperature/humidity metadata, and operator credentials—are stored locally with automatic timestamping. Export options include CSV, PDF (with embedded digital signature), and XML formats compatible with LIMS integration. Customizable report templates allow inclusion of pharmacopoeial compliance statements (e.g., “Conforms to USP Method I”), uncertainty budgets, and calibration certificate references. Firmware updates are delivered via secure HTTPS with cryptographic signature validation. Remote diagnostics and method synchronization are supported via optional Ethernet/Wi-Fi module (IEEE 802.11n), enabling centralized instrument fleet management in multi-site QC environments.

Applications

• Quantitative moisture assessment of calcium carbonate tablets per USP and Ph. Eur. 2.5.12
• Stability-indicating release testing of lyophilized protein therapeutics (e.g., albumin, monoclonal antibody formulations)
• Residual solvent monitoring in API synthesis intermediates (toluene, acetonitrile, chloroform)
• Quality control of medical-grade polymers: absorbable sutures (PGA), hydrogels (PVA), and implant coatings
• Moisture mapping in diagnostic kit manufacturing—especially for enzyme-linked immunoassay (ELISA) substrates and lateral flow reagents
• Verification of desiccant efficacy in blister packaging integrity studies

FAQ

Does the AKF-V6 support coulometric KF titration?
No—the AKF-V6 is optimized exclusively for volumetric KF titration. For coulometric applications requiring sub-ppm detection (e.g., ultrapure solvents), HOGON recommends the AKF-Coulometer series.
Can it analyze moisture in non-dissolving tablets without grinding?
Yes—when paired with the optional heated headspace sampler (HSS-60), the AKF-V6 enables indirect moisture quantification via thermal extraction, eliminating manual pulverization and associated hydration errors.
Is method validation documentation provided?
Yes—each shipment includes a Factory Acceptance Test (FAT) report, IQ/OQ documentation templates, and a pre-validated method package for calcium tablet analysis aligned with ICH Q5C and USP .
How is reagent consumption tracked and calibrated?
The system logs every microliter dispensed, cross-referenced with certified reagent titer values entered during setup; automated titer verification routines can be scheduled weekly or per batch.
What cybersecurity measures are implemented?
All network interfaces enforce TLS 1.2+ encryption; local storage uses AES-256 encryption; firmware updates require signed certificates; no cloud telemetry or remote vendor access is enabled by default.
