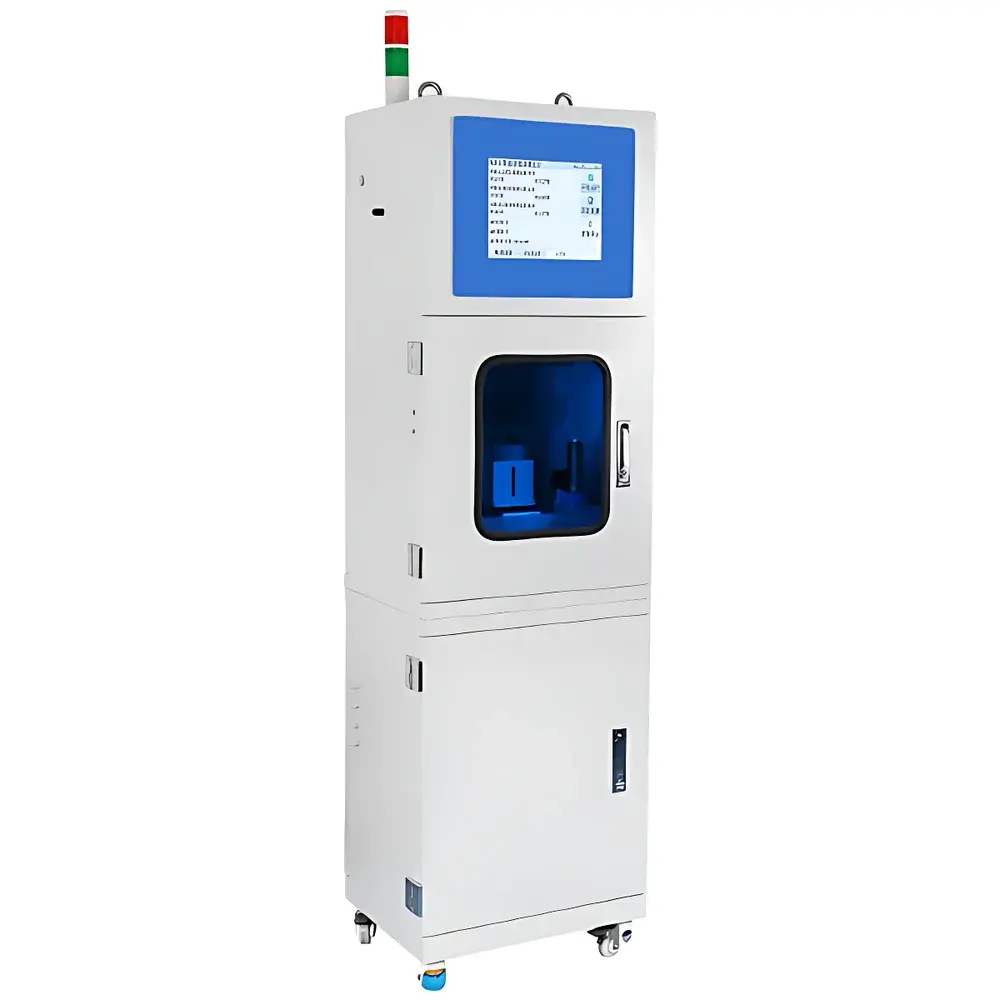

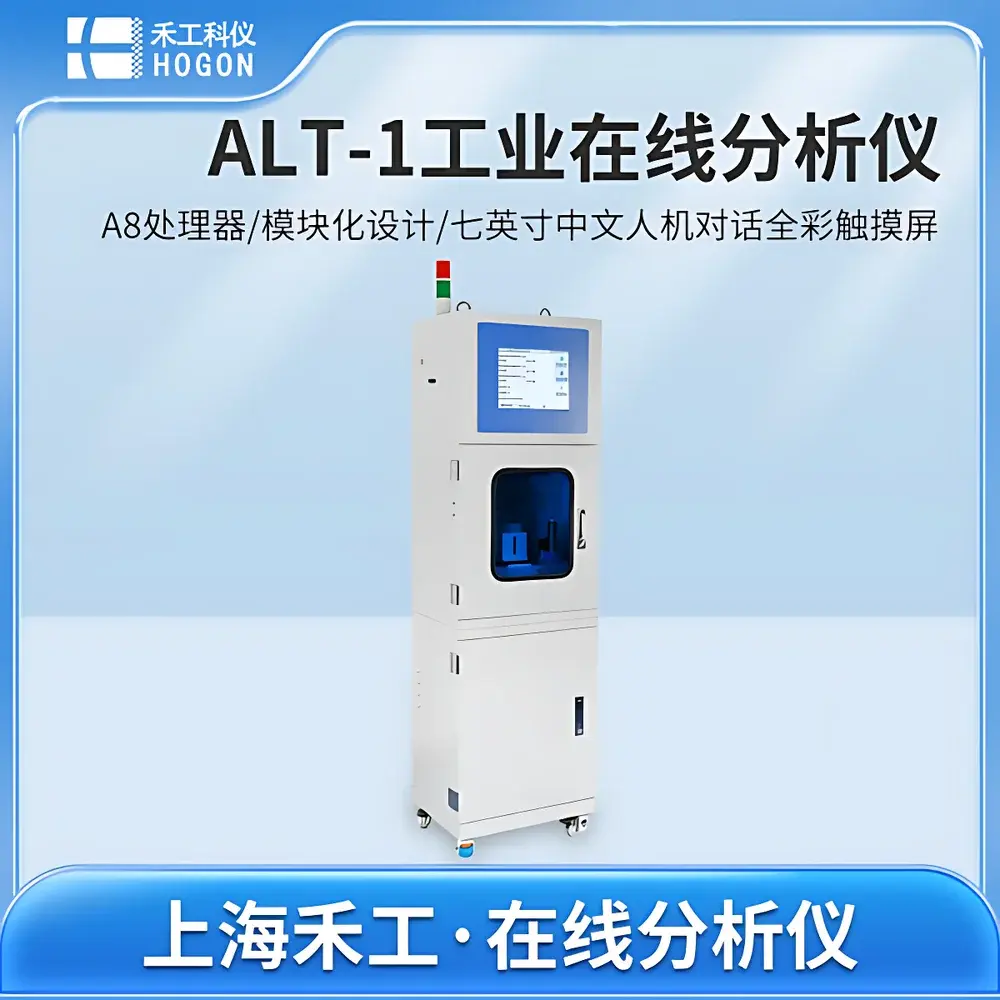

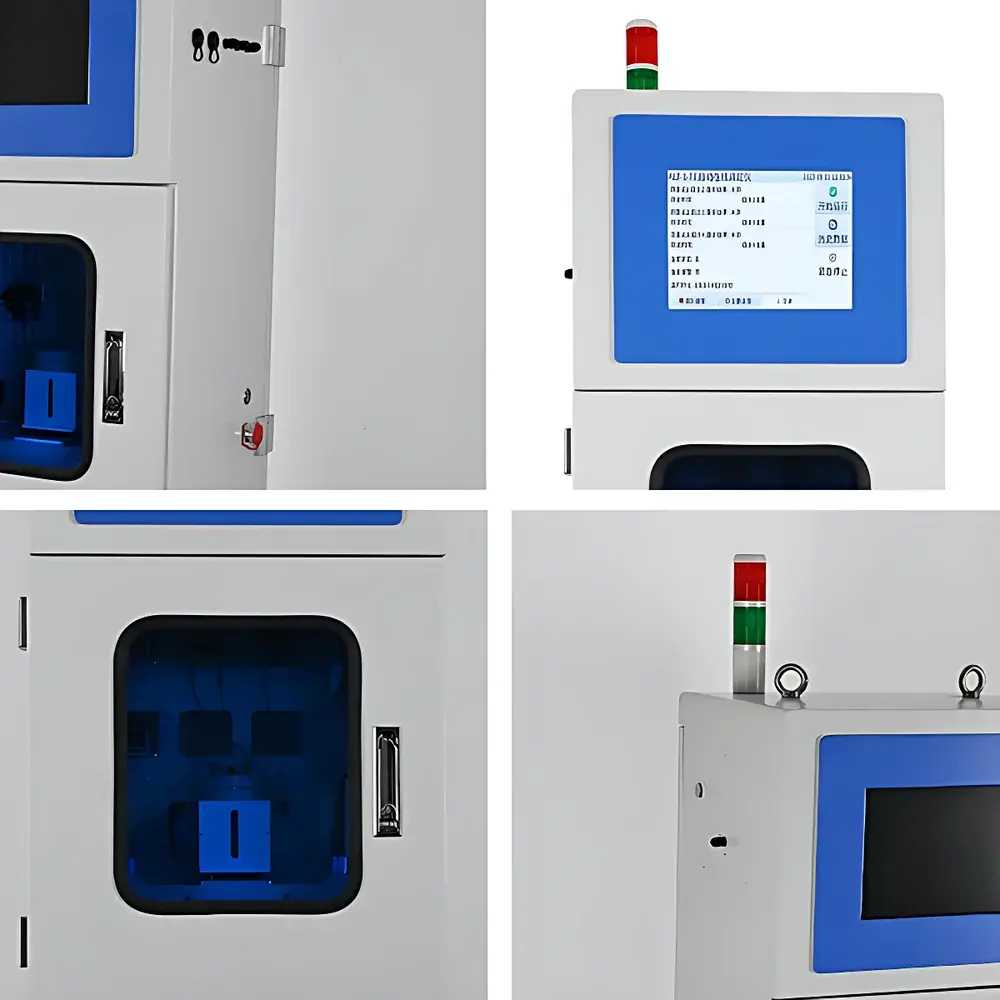

HOGON ALT-1-TZ Online Process Analyzer for Automotive Coating Pretreatment Lines

Overview

The HOGON ALT-1-TZ Online Process Analyzer is an integrated, fully automated analytical system engineered specifically for real-time monitoring and control of chemical parameters in automotive coating pretreatment lines. It operates on a dual-mode analytical architecture: (1) precision potentiometric and acid-base titration for quantitative determination of free/total acid (FA/TA) and free/total alkali (FBA/TBA), and (2) continuous electrochemical monitoring via three fixed-position pH electrodes installed in the acid cleaning, neutralization, and surface conditioning tanks. The system implements closed-loop feedback control—using titration-derived concentration values and pH-derived deviation signals—to drive peristaltic dosing pumps that maintain process chemistry within defined operational windows. Its design adheres to the fundamental principles of industrial wet chemistry automation: sample integrity preservation, reagent stability management, electrode drift compensation, and traceable calibration protocols.

Key Features

• Fully automated 3-channel sequential analysis: simultaneous monitoring of two alkaline degreasing tanks (pre-degreasing and main degreasing) and one phosphating bath
• Integrated titration module with dual-burette configuration for parallel FA/TA and FBA/TBA determination using standardized endpoint detection algorithms
• Three permanently installed, temperature-compensated pH electrodes with automatic drift diagnostics and scheduled recalibration prompts
• Chemical-resistant fluid path constructed entirely from PTFE, PVDF, and EPDM—rated for continuous exposure to caustic soda (up to 10% w/w), phosphoric acid (up to 15% v/v), and nitric acid-based accelerators
• Onboard data logging with timestamped records for all titration curves, pH readings, dosing events, and maintenance logs—retained for ≥18 months
• Modular hardware architecture supporting field-upgradable I/O modules for future integration of optional sensors (conductivity, fluoride ion-selective electrode, Fe²⁺ redox probe)

Sample Compatibility & Compliance

The ALT-1-TZ is validated for use with standard industrial pretreatment chemistries including sodium hydroxide-based cleaners, zinc phosphate conversion coatings, and nitrate/nitrite-accelerated acidic activators. All wetted materials comply with ISO 15223-1 for medical device labeling equivalency and meet FDA CFR Title 21 Part 11 requirements for electronic record integrity when configured with audit-trail-enabled firmware. System validation documentation supports IQ/OQ protocols aligned with ISO/IEC 17025:2017 Annex A.2 for in-process analytical instrumentation. Calibration procedures follow ASTM D1126 (hardness titration) and ASTM E70 (pH measurement) methodology where applicable.

Software & Data Management

The embedded HOGON ProcessLink™ software provides a browser-accessible interface (HTTPS, TLS 1.2+) for remote configuration, real-time dashboard visualization, and historical trend analysis. All analytical results are stored in a relational SQLite database with SHA-256 hashed audit trails. Data export supports CSV, PDF (with digital signature), and OPC UA server integration for MES/SCADA connectivity. Role-based access control (RBAC) enforces operator, supervisor, and administrator privilege tiers. Electronic signatures conform to 21 CFR Part 11 Subpart B requirements, including biometric or token-based authentication for critical actions such as method modification or calibration override.

Applications

• Automotive OEM and Tier-1 supplier paint shop pretreatment line optimization
• Real-time control of alkalinity in multi-stage degreasing systems to prevent substrate etching or residue formation
• Phosphating bath stabilization through continuous total acid/free acid ratio tracking and replenishment feedback
• Preventive maintenance alerting based on cumulative electrode usage hours and titrant consumption trends
• Regulatory reporting support for ISO/TS 16949 clause 8.2.4 (monitoring and measurement resources)
• Integration into Industry 4.0 frameworks via MQTT/REST API endpoints for predictive analytics model ingestion

FAQ

What standards does the ALT-1-TZ comply with for pharmaceutical or food-grade applications?

The system meets material compatibility requirements per USP for polymeric components but is not certified for direct contact with GMP-grade final products; it is intended for industrial metal surface treatment only.
Can the system operate without network connectivity?

Yes—local control, titration execution, pH logging, and dosing logic function autonomously; network connection is required only for remote monitoring and advanced reporting.
How often must the titration burettes be recalibrated?

Burette volume verification is recommended every 500 cycles or quarterly, whichever occurs first, using gravimetric NIST-traceable standards.
Is third-party sensor integration supported?

Yes—via 4–20 mA analog input channels and Modbus RTU over RS-485; custom drivers available under NDA for select OEM sensor platforms.
What is the mean time between failures (MTBF) for the fluid handling module?

Based on accelerated life testing at 40 °C ambient and 85% relative humidity, MTBF exceeds 12,000 operating hours under typical duty cycles (6 analyses/hour).
