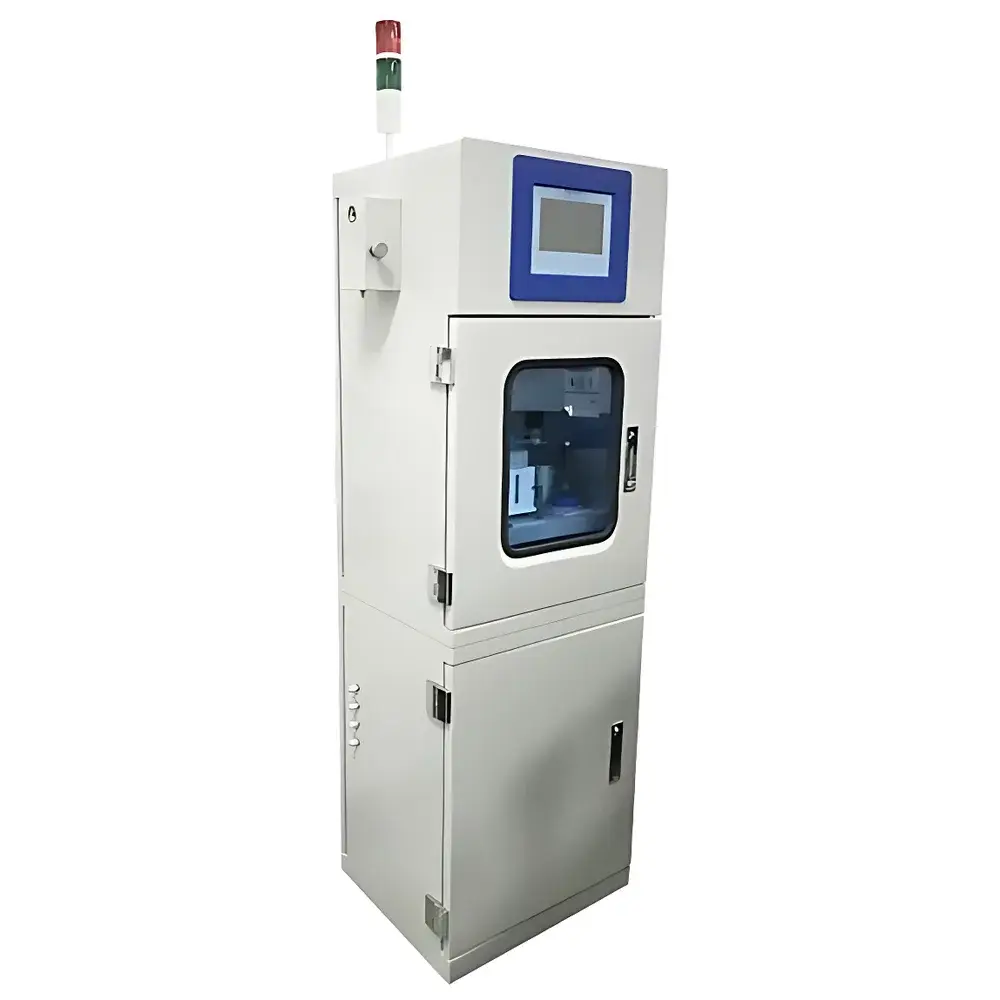

HOGON ALT Hydrogen Peroxide Online Concentration Analyzer

Overview

The HOGON ALT Hydrogen Peroxide Online Concentration Analyzer is a fully automated, unattended process analytical instrument engineered for continuous, real-time monitoring and control of hydrogen peroxide (H₂O₂) concentration in industrial aqueous process streams. Based on potentiometric and colorimetric endpoint detection principles, the system performs standardized titration analyses—primarily redox titration using potassium permanganate or ceric sulfate—but also supports pH, complexometric, precipitation, non-aqueous, and photometric titrations via configurable sensor modules. Designed for integration into 24/7 production environments, it replaces manual grab sampling and offline lab analysis with deterministic, reproducible measurements directly at the point of use. Its core function is closed-loop process control: upon result acquisition, the analyzer triggers proportional dosing commands to chemical metering pumps, maintaining target H₂O₂ concentration within user-defined tolerance bands. This ensures consistent reaction kinetics in oxidation-sensitive processes such as pulp bleaching, semiconductor wafer cleaning, wastewater disinfection, and pharmaceutical intermediate synthesis.

Key Features

• Embedded ARM-based A8 processor with deterministic real-time task scheduling for synchronized sampling, titration, and actuation
• Modular architecture supporting field-reconfigurable detection modes: dual platinum indicator electrode (redox), glass pH electrode, high-resolution RGB color sensor (±0.5 CIE L*a*b* units), and optional ion-selective electrodes
• High-precision burette (±0.1% volumetric accuracy, 0.01 mL resolution) coupled with electromagnetic multi-port valves and solvent-resistant precision peristaltic pumps (rated >10,000 hours MTBF)
• 7-inch full-color capacitive touchscreen HMI with intuitive Chinese/English bilingual interface; all operational sequences—including sampling interval, titrant strength, endpoint criteria, and alarm thresholds—are programmable and password-protected
• Integrated process control module enabling remote supervision of multiple analyzers via TCP/IP, RS-232, or Modbus RTU/ASCII protocols; supports OPC UA server configuration for MES/SCADA integration
• Self-diagnostic routines for liquid path integrity, electrode response drift, reagent depletion, and power stability; configurable multi-level alarms (visual, audible, email/SMS via optional gateway)

Sample Compatibility & Compliance

The ALT analyzer accommodates aqueous samples with H₂O₂ concentrations ranging from 0.1–30% w/w, turbidity ≤50 NTU, suspended solids <50 mg/L, and temperature 5–40 °C. It complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emission) standards. All wetted materials—including PTFE tubing, ceramic valve seats, and borosilicate glass titration vessels—meet USP Class VI and FDA CFR 21 Part 177 requirements for contact with pharmaceutical and food-grade process fluids. Data handling conforms to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available); audit trails, electronic signatures, and data integrity controls align with FDA 21 CFR Part 11 and EU Annex 11 expectations for regulated environments.

Software & Data Management

The embedded titration control software provides full lifecycle management: method creation (including custom calculation formulas), sequence automation (auto-sampling → auto-dilution → titration → rinse → calibration), and result validation per ASTM D1892 (standard test method for hydrogen peroxide in aqueous solutions). Raw sensor data, titration curves, endpoint logs, and dosing events are timestamped and stored locally (8 GB internal eMMC) with automatic synchronization to external SQL databases or cloud platforms via configurable ODBC/JDBC drivers. All data exports include ISO/IEC 17025-compliant metadata (operator ID, instrument ID, environmental conditions, uncertainty estimates). Firmware updates are performed over secure HTTPS with SHA-256 signature verification.

Applications

• Pulp and paper: Continuous monitoring of H₂O₂ concentration in alkaline peroxide mechanical pulping (APMP) and bleaching stages
• Electronics manufacturing: Real-time control of H₂O₂/NH₄OH mixtures in SC-1 cleaning baths for silicon wafer processing
• Wastewater treatment: Feedback control of H₂O₂ dosing in Fenton oxidation reactors targeting COD/NH₃-N removal
• Pharmaceutical synthesis: In-process quantification of residual oxidant in API crystallization and purification steps
• Textile dyeing: Maintaining optimal peroxide levels during oxidative desizing and bleaching of cotton fabrics
• Surface finishing: Closed-loop management of peroxide-based passivation baths in aluminum anodizing lines

FAQ

What titration methods does the ALT analyzer support for hydrogen peroxide quantification?
It primarily uses standardized redox titration with KMnO₄ or Ce(SO₄)₂, but also supports iodometric back-titration and spectrophotometric determination via catalytic decomposition pathways.
Can the system integrate with existing DCS or PLC infrastructure?
Yes—it provides native Modbus TCP/RTU, OPC UA, and analog 4–20 mA output options for seamless interoperability with major industrial control systems.
How frequently does the system require maintenance or recalibration?
Electrode calibration is recommended daily or per batch; full system verification (including pipetting accuracy and endpoint detection) is advised weekly. Preventive maintenance intervals are configurable based on usage logs.
Is remote access and troubleshooting supported?
The unit includes embedded VNC-compatible remote desktop functionality with role-based access control; diagnostic logs and live sensor traces can be streamed securely to authorized service engineers.
Does the analyzer meet GMP/GLP documentation requirements?
Yes—its software implements electronic records with immutable audit trails, user authentication, and 21 CFR Part 11-compliant electronic signatures for regulated quality systems.
