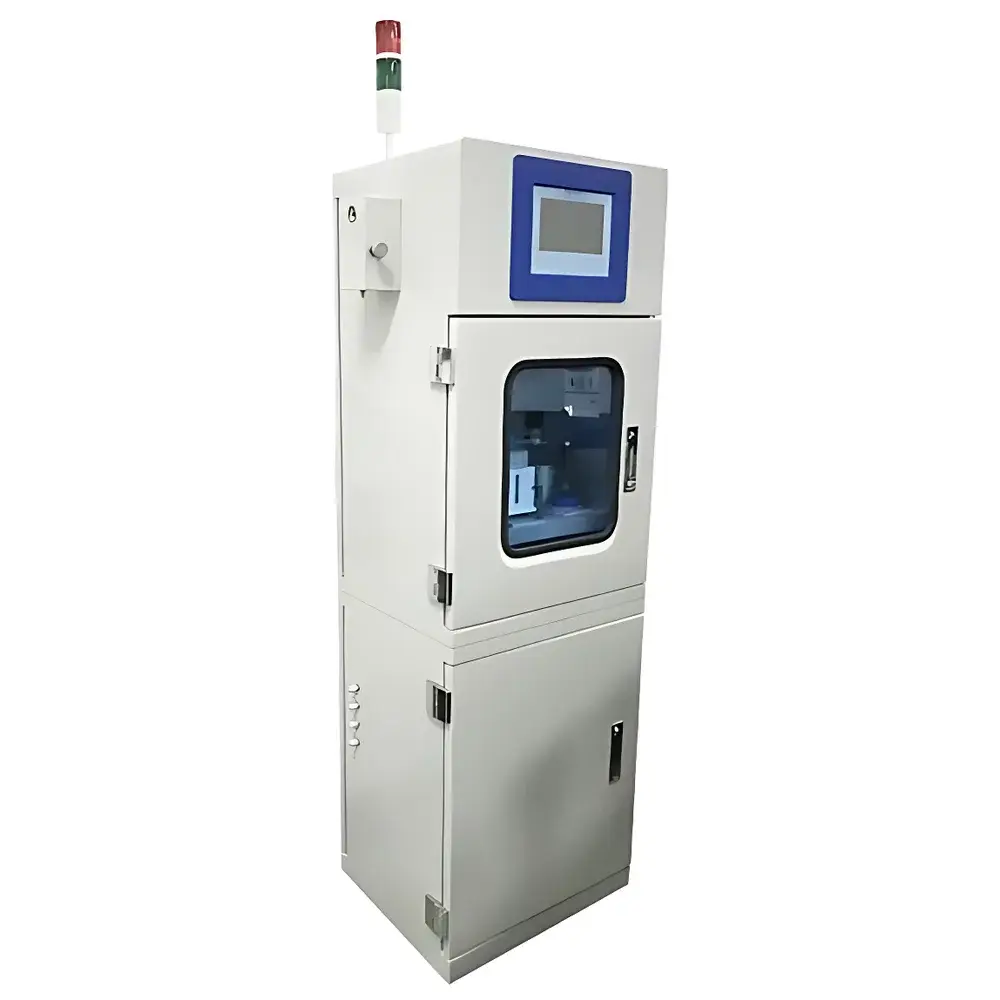

HOGON ALT-PCB Online Sodium Persulfate Concentration Analyzer (for NPS, SPS, and APS)

Overview

The HOGON ALT-PCB Online Sodium Persulfate Concentration Analyzer is a fully automated,无人值守 (unattended) process analytical instrument engineered for continuous, real-time monitoring of sodium persulfate species—specifically sodium peroxydisulfate (SPS), ammonium peroxydisulfate (APS), and potassium peroxydisulfate (NPS)—in printed circuit board (PCB) electroplating and etching bath solutions. It operates on potentiometric and colorimetric endpoint detection principles, integrating precise burette-driven titration with high-resolution optical sensing and multi-mode electrode-based measurement. Unlike manual or semi-automated lab titrators, this system is purpose-built for 24/7 industrial deployment in aggressive chemical environments typical of PCB manufacturing lines—where bath stability, oxidation potential control, and stoichiometric reagent dosing directly impact copper etch uniformity, micro-roughness, and via reliability. The analyzer replaces labor-intensive offline sampling and wet chemistry analysis, reducing human error, analytical delay, and process drift while enabling closed-loop feedback control of dosing pumps to maintain target persulfate concentration within ±0.1 g/L tolerance bands.

Key Features

• Modular architecture with ARM Cortex-A8 embedded processor and industrial-grade Linux OS for deterministic real-time operation
• 7-inch full-color capacitive touchscreen HMI with intuitive Chinese/English bilingual interface and configurable workflow scripting
• Dual high-precision glass syringe burettes (±0.02 mL accuracy, 0.001 mL resolution) with PTFE-coated plungers and integrated temperature compensation
• Electromagnetic multi-port valve manifold (12-way) for robust reagent routing, minimizing carryover and cross-contamination
• Triple-sensor endpoint detection: potentiometric (dE/dV), photometric (RGB chromaticity shift at 520 nm & 620 nm), and pH-based threshold logic—adaptive selection per titration type
• Long-life peristaltic solvent pumps (≥20,000 h MTBF) with pulse-width modulation flow control for precise sample aspiration and rinse cycles
• Integrated alarm subsystem with configurable thresholds for liquid level, power supply voltage, electrode impedance, titration timeout, and result deviation from historical mean
• IP65-rated stainless-steel enclosure with chemical-resistant coating, designed for Class C cleanroom and wet-process line integration

Sample Compatibility & Compliance

The ALT-PCB analyzer supports direct inline analysis of acidic, oxidizing, and high-ionic-strength plating baths containing SPS, APS, or NPS at concentrations ranging from 10–120 g/L. It accommodates variable matrix interferences including Cu²⁺, Ni²⁺, Fe³⁺, Cl⁻, SO₄²⁻, and organic accelerators (e.g., benzotriazole derivatives). All wetted materials—including tubing, valves, electrodes, and flow cells—are chemically inert (EPDM, PTFE, borosilicate glass, platinum-iridium alloy) to ensure long-term stability under repeated exposure to ≥10% H₂SO₄ and ≥5% persulfate solutions. The system complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emission) standards. Data integrity meets FDA 21 CFR Part 11 requirements through audit-trail-enabled software, electronic signatures, and role-based access control—supporting GLP/GMP-aligned validation protocols for PCB fabrication facilities.

Software & Data Management

The embedded HOGON Titration Control Suite provides ISO/IEC 17025-aligned method development tools, including customizable titration curves, multi-point calibration templates, and dynamic equivalence point algorithms (first-derivative, inflection, Gran plot). All analysis logs—including raw sensor signals, intermediate calculations, endpoint timestamps, and dosing actuation records—are timestamped, digitally signed, and exported via TCP/IP (Modbus TCP, OPC UA), RS-232, or Ethernet to MES/SCADA systems or SQL databases. Historical trend visualization, statistical process control (SPC) charts (X̄/R, Cpk), and automated report generation (PDF/CSV) are supported. Firmware updates are performed remotely over secure SSH/TLS channels, with rollback capability and checksum verification.

Applications

• Real-time SPS/APS/NPS concentration control in PCB acid copper etch and micro-etch processes
• Automated replenishment dosing in electroless nickel immersion gold (ENIG) activation baths
• Monitoring persulfate decay kinetics during plasma pre-treatment solution aging
• Multi-parameter validation of bath health alongside conductivity, temperature, and ORP measurements
• Integration into Industry 4.0-ready production lines for predictive maintenance of chemical delivery systems
• Cross-industry adaptation for persulfate-based advanced oxidation processes (AOPs) in wastewater treatment and semiconductor wafer cleaning

FAQ

What titration modes does the ALT-PCB support?
Potentiometric redox titration (primary mode for persulfate), pH-stat titration, photometric endpoint titration, and mixed-mode adaptive titration combining electrode and optical signals.
Can the system integrate with existing PLC-based dosing controllers?
Yes—it provides native Modbus RTU/TCP and OPC UA server functionality, enabling seamless handshake with Allen-Bradley, Siemens S7, and Mitsubishi Q-series PLCs for closed-loop proportional-integral (PI) dosing control.
How often does the system require maintenance or recalibration?
Under standard PCB line conditions, electrode cleaning is recommended every 72 hours; full calibration (using certified reference standards) is required weekly, and syringe burette recalibration biweekly—automated self-diagnostics flag deviations exceeding ±0.5% of full scale.
Is remote troubleshooting supported?
Yes—the unit includes embedded VNC server and secure SSH access; HOGON’s engineering team can perform firmware diagnostics, log analysis, and method validation remotely with customer authorization.
Does the analyzer meet RoHS and REACH compliance?
All components conform to EU Directive 2011/65/EU (RoHS 2) and Regulation (EC) No 1907/2006 (REACH), with full material declarations available upon request.
