Horiba U-52G Portable Multiparameter Water Quality Meter

Overview

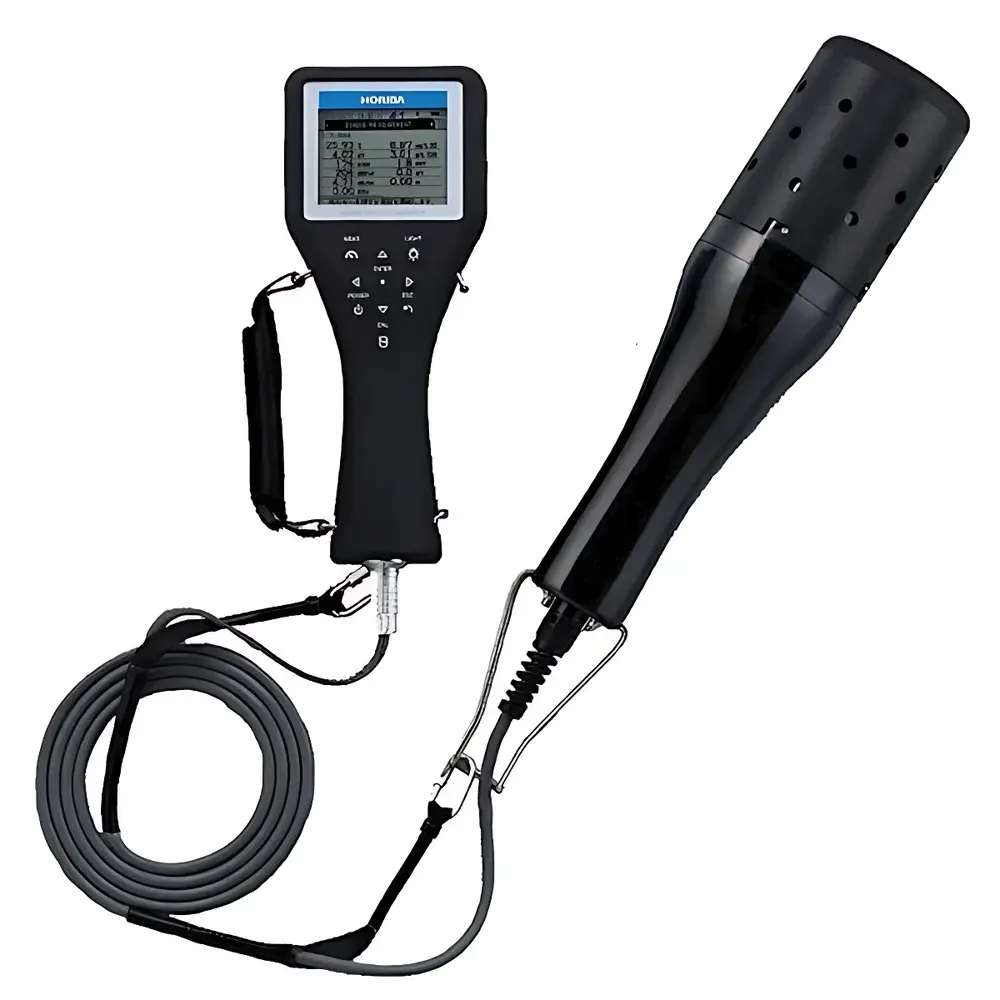

The HORIBA U-52G Portable Multiparameter Water Quality Meter is an integrated field-deployable instrument engineered for high-reliability environmental monitoring in freshwater, estuarine, marine, and wastewater applications. It employs multiple electrochemical and optical sensing principles: a glass electrode with temperature compensation for pH measurement per ISO 3696 and ASTM D1293; a polarographic membrane-covered DO sensor adhering to ASTM D3222–22 for stable, low-drift oxygen quantification; a four-electrode conductivity cell compliant with ASTM D1125 and USP , enabling accurate salinity and TDS derivation; and a 90° scattered-light turbidity sensor calibrated to ISO 7027 using formazin standards. The unit integrates a barometric pressure-compensated depth transducer and a thermistor-based temperature probe (±0.1 °C accuracy), all synchronized via a real-time clock and embedded GPS module (WAAS-enabled, ±3 m CEP). Designed for single-hand operation under variable ambient lighting, its ruggedized IP67 housing meets MIL-STD-810G shock and immersion requirements.

Key Features

• Simultaneous real-time measurement and on-screen display of up to 10 parameters: pH, mV, conductivity, TDS, salinity, dissolved oxygen (ppm or % saturation), turbidity (NTU), seawater specific gravity, depth (m), and temperature (°C/°F)
• Intelligent auto-calibration routines for pH (DIN/NIST/USA buffer recognition), DO (air-saturation or zero-point), conductivity (KCl standard), turbidity (formazin or StablCal), and depth (zero-offset)
• Backlit 3.5-inch LCD with user-adjustable contrast—optimized for readability in direct sunlight or subaquatic twilight conditions
• Quick-connect waterproof probe interface enabling tool-free sensor exchange and minimizing cross-contamination risk during multi-site surveys
• GLP-compliant internal data logger storing 10,000 timestamped records with full metadata: GPS coordinates (latitude/longitude/altitude), operator ID, calibration history, sensor serial numbers, and environmental conditions
• Built-in USB 2.0 interface supporting direct PC connection for CSV export, firmware updates, and configuration backup without external adapters

Sample Compatibility & Compliance

The U-52G is validated for use with natural waters (rivers, lakes, groundwater), coastal and open-ocean seawater, treated effluents, and aquaculture systems. Its turbidity sensor utilizes dual-wavelength LED excitation (850 nm) and 90° detection geometry per ISO 7027, eliminating color interference errors common in single-beam designs. The DO sensor features a replaceable Teflon membrane and long-life silver/silver chloride cathode, delivering >12-month operational stability between recalibrations when maintained per HORIBA Technical Bulletin TB-U52-DO-01. All electrical measurements comply with IEC 61000-4 immunity standards. Data integrity meets FDA 21 CFR Part 11 requirements for electronic records when used with HORIBA’s optional LabSolutions software (v3.2+), which provides role-based access control, electronic signatures, and immutable audit trails.

Software & Data Management

Data retrieval and reporting are supported via HORIBA’s LabSolutions Desktop Suite (Windows 10/11), which imports native .U52 binary files and converts them into ISO/IEC 17025–compliant PDF reports with embedded calibration certificates, uncertainty budgets, and georeferenced map overlays. The software enables batch processing of multi-station datasets, statistical trend analysis (e.g., Spearman rank correlation between DO and temperature), and automated compliance flagging against EPA Method 160.1 (pH), APHA 2540C (turbidity), and ISO 5815-1 (DO). Raw data exports include UTC timestamps, GPS-derived positional accuracy metrics, and sensor-specific diagnostic flags (e.g., membrane dryness warning, conductivity cell fouling index).

Applications

• Regulatory field monitoring per EPA Clean Water Act Section 304(h) and EU WFD (2000/60/EC) requiring multi-parameter baseline characterization
• Marine ecological surveys assessing hypoxia zones, stratification dynamics, and sediment resuspension events using synchronized DO-depth-temperature profiles
• Drinking water source protection programs tracking turbidity spikes during storm events and correlating them with watershed land-use GIS layers
• Ballast water management verification per IMO BWM Convention Annexes, where simultaneous salinity, temperature, and turbidity data validate treatment efficacy
• Academic limnology and oceanography research requiring traceable, GPS-geotagged measurements across transects or time-series buoys

FAQ

Does the U-52G support NIST-traceable calibration verification?
Yes — each factory calibration certificate includes NIST-traceable reference values for pH (4.01, 7.00, 10.01), conductivity (1413 µS/cm), and turbidity (10, 100 NTU StablCal standards), with uncertainty budgets stated per ISO/IEC 17025.

Can the instrument log data autonomously without GPS signal?
Yes — internal real-time clock maintains timestamp accuracy within ±2 seconds/month; GPS coordinates default to “N/A” but all other parameters continue logging at user-defined intervals (1 sec to 24 hr).

Is the DO sensor compatible with sulfide-rich anaerobic samples?
The polarographic sensor requires periodic membrane cleaning and electrolyte replacement in reducing environments; HORIBA recommends the optional U-52G-DO-SULFIDE kit containing sulfide-resistant cathodes and modified membranes.

How is depth measurement compensated for temperature and salinity effects?
The hydrostatic pressure transducer applies real-time correction using the UNESCO International Equation of State of Seawater (EOS-80), dynamically adjusting for local temperature and conductivity-derived salinity to compute true water column height.

What file formats are generated during USB data export?
Native .U52 binary files (for LabSolutions import) and optionally CSV/Excel (.xlsx) with configurable column headers, including GPS metadata, sensor diagnostics, and derived parameters such as % saturation and conductivity-corrected TDS.
