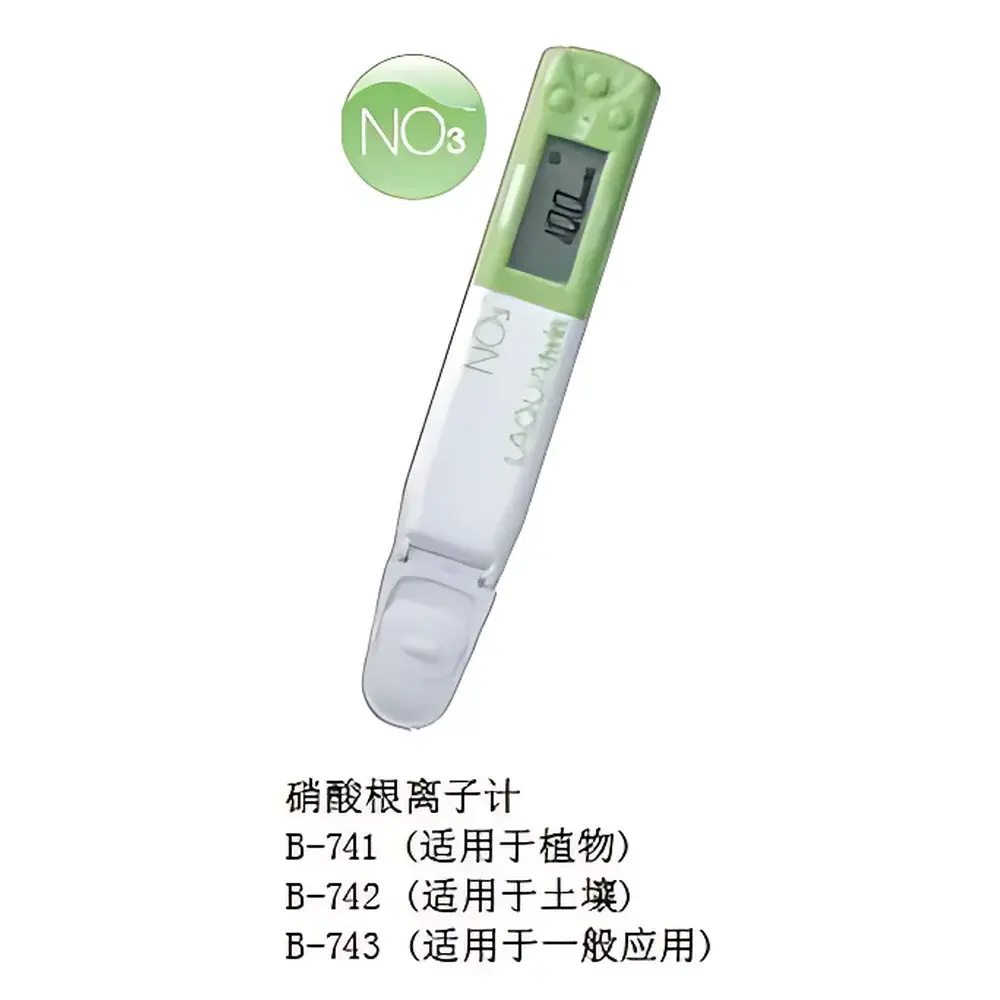

HORIBA B-741/B-742/B-743 Compact Nitrate Ion Meter
| Brand | HORIBA |
|---|---|
| Origin | Japan |
| Model | B-741 / B-742 / B-743 |
| Ion Measured | Nitrate (NO₃⁻) |
| Measurement Principle | Solid-state ion-selective electrode (ISE) method |
| Sample Volume | 0.05 mL × 2 or ≥0.3 mL |
| NO₃⁻ Range | 62–6200 ppm (mg/L), equivalent to 10⁻³–10⁻¹ mol/L |
| NO₃⁻-N Range | 14–1400 ppm (mg/L) |
| Accuracy | ±10% of reading |
| Temperature Compensation | Automatic, 2%/°C fixed coefficient |
| IP Rating | IP67 |
| Operating Environment | 5–40°C, <85% RH (non-condensing) |
| Power | Two CR2032 batteries |
| Dimensions | 164 × 29 × 20 mm (excl. protrusions) |
| Weight | ~50 g (instrument only) |
Overview
The HORIBA B-741, B-742, and B-743 are compact, handheld nitrate ion meters engineered for field-deployable and routine laboratory quantification of nitrate (NO₃⁻) in aqueous environmental samples. These instruments employ a solid-state ion-selective electrode (ISE) principle—specifically optimized for selective detection of nitrate anions without interference from common co-ions such as chloride or sulfate under typical freshwater and wastewater matrices. Unlike optical or colorimetric methods requiring reagents and calibration curves, the B-74x series delivers direct potentiometric measurement based on Nernstian response, enabling rapid, reagent-free analysis with minimal sample preparation. Designed for compliance with standard water quality monitoring workflows, the meters support both total nitrate (as NO₃⁻) and nitrate-nitrogen (NO₃⁻-N) reporting—critical for regulatory reporting under EPA Method 300.0, ISO 10304-1, and national drinking water guidelines.
Key Features
- True portable architecture: Ultra-compact form factor (164 × 29 × 20 mm) and lightweight design (~50 g) enable single-hand operation during field surveys, stream monitoring, or farm runoff assessments.
- IP67-rated enclosure: Fully protected against dust ingress and immersion in water up to 1 m for 30 minutes—validated for use in humid, rainy, or splash-prone environments including irrigation ditches, wetlands, and treatment plant effluent channels.
- Low-volume sampling capability: Accurate measurement from as little as 0.05 mL per electrode pair (dual-electrode configuration), minimizing waste and enabling analysis of limited-volume samples such as porewater extracts or microcosm leachates.
- Integrated temperature compensation: Fixed 2%/°C coefficient applied automatically across the full operating range (5–40°C), ensuring consistent mV-to-concentration conversion without manual correction.
- Dual-unit display: Simultaneous readout of nitrate concentration in both mg/L (as NO₃⁻) and mg/L (as NO₃⁻-N), eliminating post-measurement unit conversion errors.
- Auto-hold functionality: Stabilized readings are automatically locked upon signal convergence, improving repeatability during high-throughput sampling campaigns.
Sample Compatibility & Compliance
The B-74x series is validated for use with natural waters (surface water, groundwater, rainwater), treated effluents, agricultural runoff, and aquaculture systems. Electrode performance remains stable across pH 2–12 and conductivity ranges up to 19.9 mS/cm—covering most non-industrial freshwater applications. While not intended for highly turbid or viscous media without filtration, the meters comply with GLP-aligned operational practices: all measurements include timestamped data logging (via optional PC interface), and electrode calibration records—including date, standard concentration, and slope (%/decade)—are retained internally. The instrument supports two-point calibration using certified nitrate standards traceable to NIST SRM 3189, satisfying audit requirements under ISO/IEC 17025 and EPA-approved field methods.
Software & Data Management
Data export is supported via optional USB-to-serial adapter and HORIBA’s proprietary LabStations software (Windows-compatible). This platform enables batch calibration verification, trend analysis across sampling events, and generation of PDF reports compliant with internal QA/QC documentation protocols. All stored measurements retain embedded metadata: date/time stamp, temperature, electrode ID, and calibration status. While the standalone meter does not implement FDA 21 CFR Part 11 electronic signature controls, its data structure and audit trail capabilities align with GLP principles for non-regulated environmental monitoring programs.
Applications
- Regulatory surface water monitoring (e.g., EU WFD, US Clean Water Act Section 303(d) listing support)
- Nutrient loading assessment in watershed management and agricultural best management practice (BMP) evaluation
- Drinking water source surveillance at intake points and distribution reservoirs
- Wastewater treatment plant effluent compliance verification (e.g., discharge permits requiring ≤10 mg/L NO₃⁻-N)
- Soil leaching studies and fertilizer efficiency trials in agronomic research
- Educational laboratory exercises in environmental chemistry and hydrology curricula
FAQ
What sample pretreatment is required prior to measurement?
Minimal pretreatment is needed: samples should be filtered through a 0.45 µm membrane if visibly turbid or particulate-laden. No acidification, dilution, or reagent addition is necessary for standard freshwater matrices.
Can the B-741/B-742/B-743 measure nitrate in seawater or high-salinity brines?
No. Elevated chloride concentrations (>5000 mg/L Cl⁻) cause measurable interference due to cross-sensitivity of the solid-state ISE. For saline or estuarine waters, use of a chloride-compensated nitrate electrode or alternative methods (e.g., ion chromatography) is recommended.
How often must the electrode be calibrated?
Calibration is required before each measurement session and after every 10–15 samples in continuous use. A two-point calibration using 100 mg/L and 1000 mg/L NO₃⁻ standards is recommended to verify linearity and electrode slope stability.
Is electrode replacement user-serviceable?
Yes. The nitrate ISE module is a field-replaceable cartridge with standardized threading. HORIBA supplies OEM-certified replacements (Part No. 9531-10D) with pre-conditioning instructions and shelf-life validation data.
Does the instrument meet international metrological standards for field instrumentation?
The B-74x series conforms to IEC 61000-4 electromagnetic compatibility requirements and carries CE marking for environmental monitoring equipment. While not certified to OIML R 99 for legal metrology, it satisfies technical criteria for Class 2 field instruments per ISO 5667-3 for water sampling and analysis.
