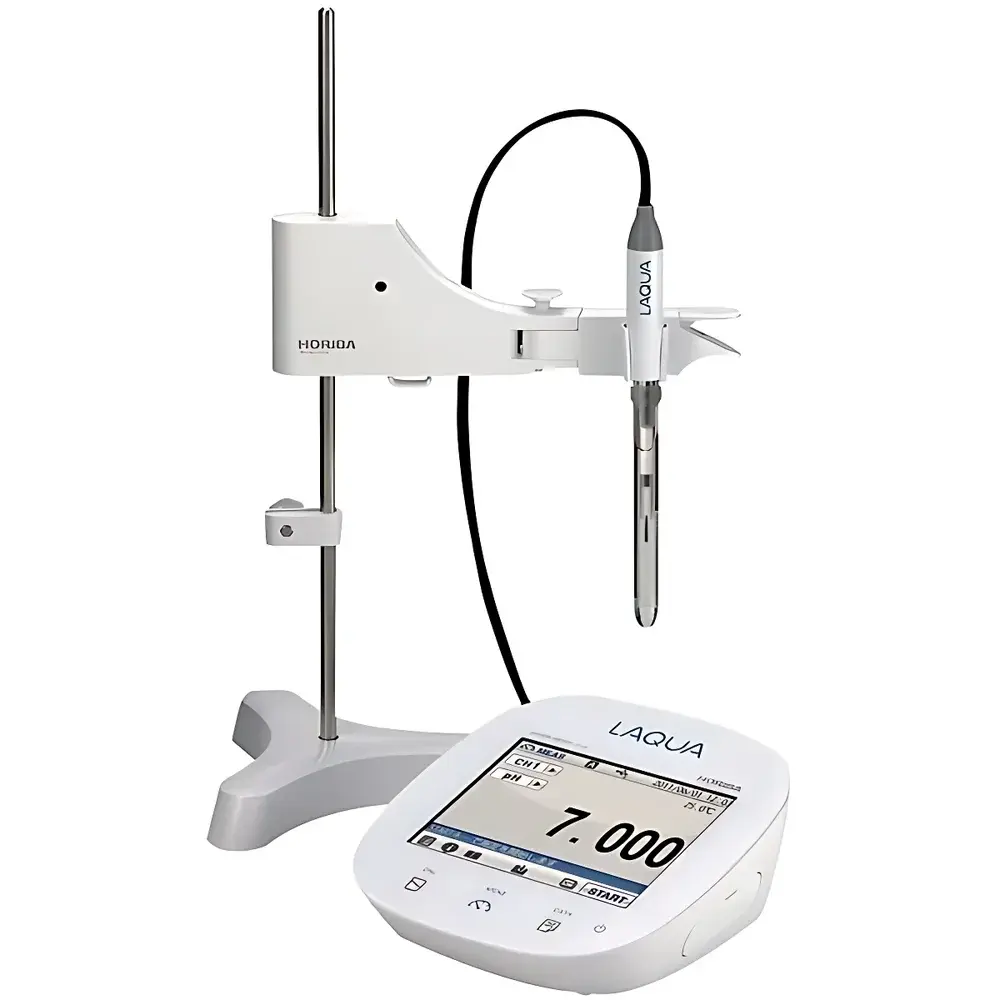

HORIBA LAQUA F-74 Dual-Channel Benchtop pH / Ion / Conductivity / Resistivity / Salinity / TDS / Temperature Analyzer

Overview

The HORIBA LAQUA F-74 is a high-integrity, dual-channel benchtop analyzer engineered for comprehensive water quality assessment in regulated laboratory environments. It implements potentiometric measurement principles for pH and ion-selective analysis, four-electrode conductivity measurement for enhanced accuracy across wide EC ranges (from ultra-pure water resistivity to high-salinity brines), and temperature-compensated algorithms compliant with ISO 7888, ASTM D1125, and USP . Designed for daily use in environmental testing labs, municipal water facilities, pharmaceutical QC, and academic research, the F-74 delivers traceable, audit-ready data without requiring external computing hardware. Its dual-input architecture enables real-time co-monitoring of interdependent parameters—e.g., pH and conductivity during titration validation, or salinity and temperature in estuarine studies—minimizing analytical cycle time and cross-contamination risk.

Key Features

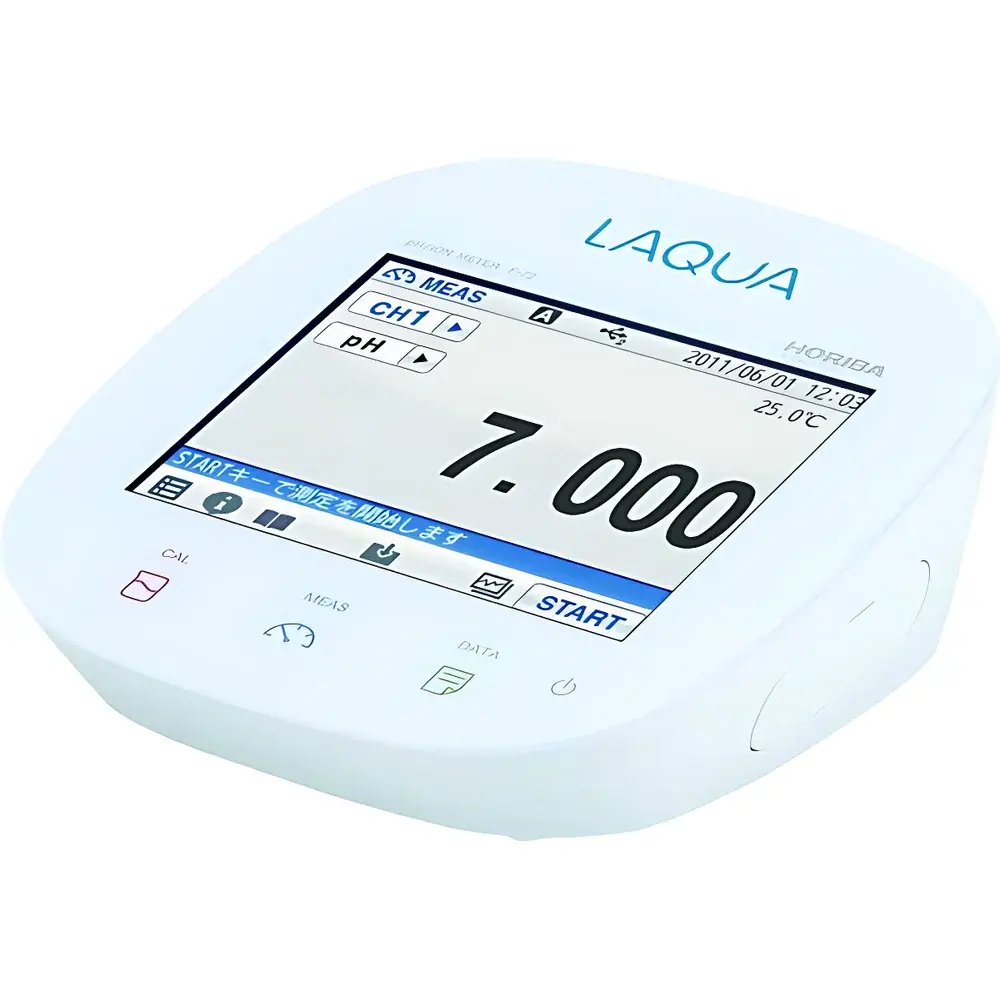

• 7-inch full-color TFT touchscreen with intuitive gesture interface (tap, swipe, drag) and context-sensitive navigation guided by embedded graphical prompts
• Dual independent analog input channels supporting simultaneous measurement and display of two distinct parameters—including cross-parameter correlation (e.g., pH vs. conductivity drift)
• GLP/GMP-compliant operation with full 21 CFR Part 11 functionality when paired with LAQUA software: electronic signatures, audit trails, user-level access control, and immutable data archiving
• Automated data logging with timestamp, operator ID, sample ID, and environmental metadata; configurable intervals from 1 second to 24 hours
• Built-in memory stores up to 2,000 measurement records; searchable by date range, parameter type, sample ID, or user tag
• Flexible output options: direct USB export to flash drive or PC, RS-232C serial output to legacy printers or SCADA systems, and optional LAQUA Link Ethernet module for networked lab integration
• Multi-language UI (English, Japanese, Chinese, Korean, Vietnamese) and hierarchical password protection for up to 25 unique users with role-specific permissions

Sample Compatibility & Compliance

The F-74 accommodates aqueous samples across the full spectrum of water quality applications—from ultrapure water (resistivity >18.2 MΩ·cm) to seawater (salinity up to 42 ppt) and industrial process streams. It supports standardized electrodes including refillable glass-body pH electrodes (e.g., 9615S-10D), platinum black conductivity cells (k = 1.0, e.g., 3552-10D), and ISEs for nitrate, fluoride, ammonium, and other monovalent ions. All calibration routines follow NIST-traceable standards (e.g., NIST pH buffers 4.01, 7.00, 10.01; conductivity standards at 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, and 111.8 mS/cm). Device firmware and data handling workflows are validated against ISO/IEC 17025 requirements for testing laboratories and align with FDA expectations for electronic records under 21 CFR Part 11.

Software & Data Management

Data acquisition, reporting, and system configuration are managed through HORIBA’s LAQUA software suite—designed for Windows-based laboratory networks. The software provides automated report generation (PDF/CSV/XLSX), statistical process control (SPC) charts, calibration certificate printing, and batch-level trend analysis. Audit trails record every action—including method changes, calibration events, user logins, and data exports—with immutable timestamps and digital signatures. Raw instrument data files (.lqd) retain full metadata (electrode IDs, calibration history, environmental conditions) and are compatible with LIMS integration via HL7 or custom API extensions. USB flash drives serve as portable archives, enabling offline review and regulatory submission preparation without network dependency.

Applications

• Environmental monitoring: compliance testing of surface water, groundwater, wastewater effluents per EPA Method 150.1 (conductivity), 150.2 (pH), and ISO 10523
• Pharmaceutical water systems: PW, WFI, and purified water qualification per USP , EP 2.2.38, and JP 2.05
• Food & beverage QC: salt content verification in sauces, conductivity-based sugar concentration estimation, and rinse water pH validation
• Academic research: kinetic studies of ion exchange resins, corrosion monitoring in cooling towers, and estuarine salinity profiling
• Industrial process control: boiler feedwater resistivity tracking, electroplating bath composition management, and semiconductor rinse tank monitoring

FAQ

Does the F-74 support automatic temperature compensation (ATC) for all measured parameters?

Yes—integrated Pt1000 or thermistor-based temperature sensors in all compatible electrodes enable real-time ATC for pH, conductivity, resistivity, salinity, and TDS calculations per ISO 7888 and ASTM D1125.
Can the F-74 perform simultaneous pH and conductivity measurements on the same sample without manual switching?

Yes—the dual-channel architecture allows concurrent connection and real-time display of both parameters using dedicated electrodes, eliminating sequential measurement delays and minimizing sample exposure time.
Is electrode calibration data stored with each measurement record?

Yes—each saved reading includes embedded calibration metadata: date/time of last calibration, buffer values used, electrode slope/mV/pH, and conductivity cell constant verification status.
What level of cybersecurity does the F-74 provide for regulated environments?

The device supports password-protected user roles, encrypted USB data export, and full 21 CFR Part 11 audit trail capability when used with LAQUA software—meeting baseline requirements for FDA-regulated labs and ISO 17025-accredited facilities.
Are replacement electrodes and calibration standards supplied with the instrument?

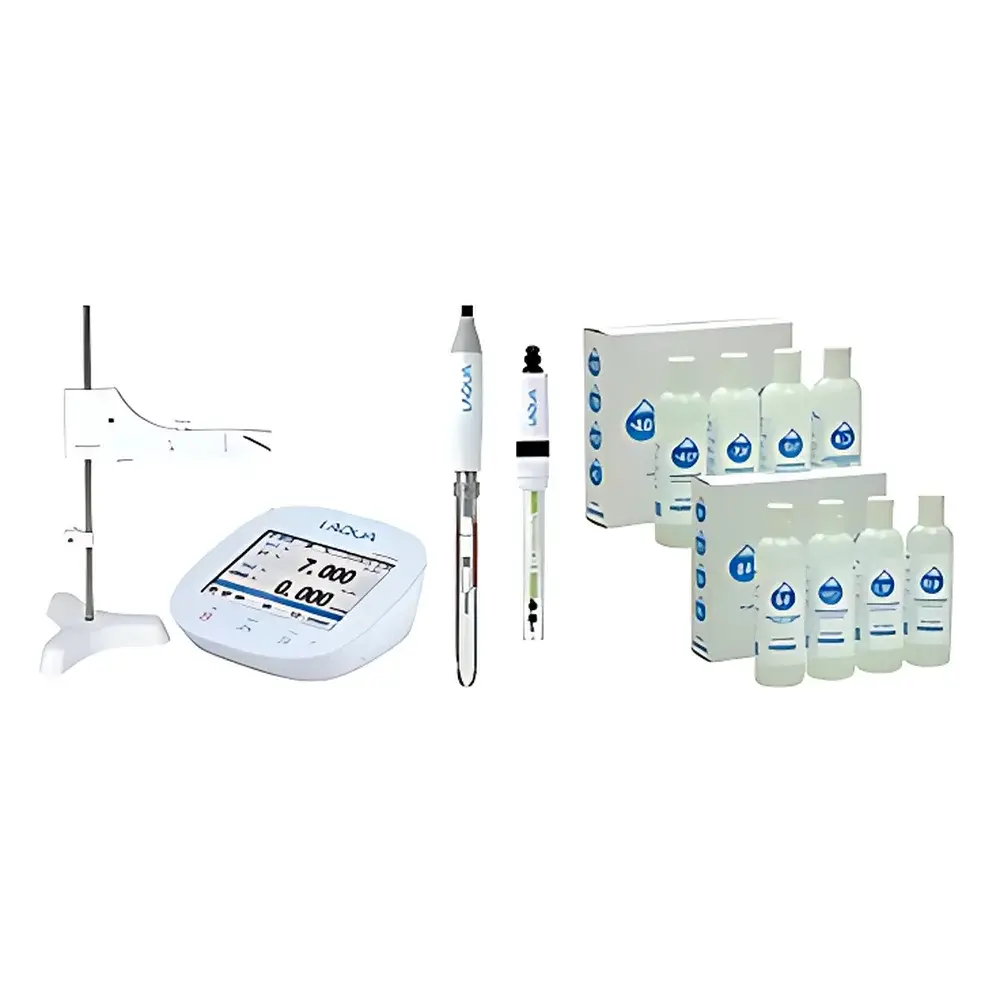

The standard configuration includes the 9615S-10D pH electrode, 3552-10D conductivity cell, NIST-certified pH and conductivity standards (250 mL each), and a universal AC adapter kit—covering immediate operational readiness.
