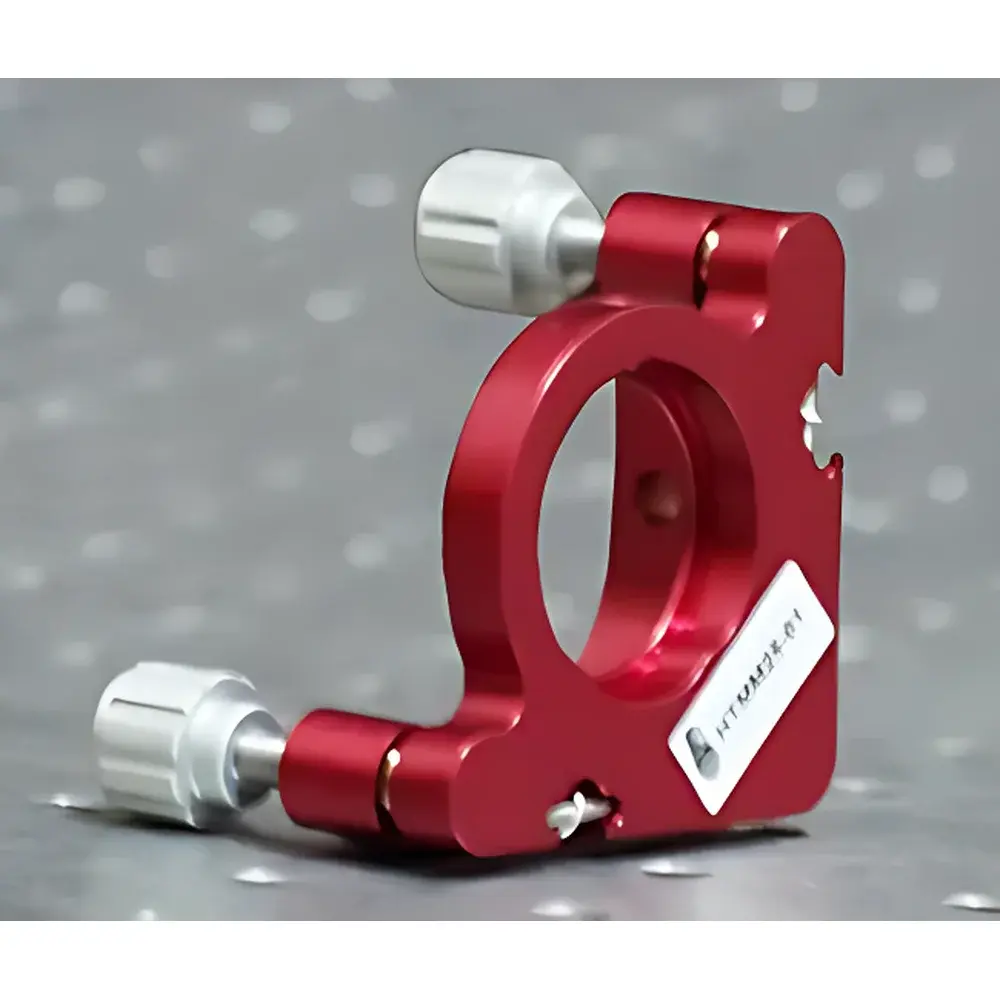

HTMM25-01 Closed-Loop Two-Axis High-Stability Kinematic Mirror Mount

Overview

The HTMM25-01 is a closed-loop, two-axis kinematic mirror mount engineered for ultra-stable angular positioning and long-term alignment retention in demanding optical laboratory environments. Designed around a monolithic base architecture with integrated differential micrometer actuators, it enables precise, decoupled tip-tilt adjustment of optical components—primarily mirrors with 25 mm or 25.4 mm clear apertures—without introducing parasitic translation or mechanical hysteresis. Its operation relies on high-ratio (e.g., 100:1) geared micrometer drives coupled to hardened stainless steel push rods, ensuring sub-arcsecond resolution and repeatable positioning under static load conditions. The mount’s closed-loop mechanical design eliminates play between adjustment threads and contact surfaces, significantly reducing drift induced by thermal cycling, vibration, or gravitational sag—critical for interferometric setups, cavity alignment in narrow-linewidth lasers, and beam steering in quantum optics experiments.

Key Features

• Precision dual-axis kinematic design with orthogonal X/Y tip-tilt adjustment, fully decoupled via independent differential micrometers
• Dual aperture compatibility: accommodates standard Ø25 mm and imperial Ø25.4 mm optics without adapter rings or shim compensation
• Monolithic aluminum alloy base (6061-T6) with black anodized non-reflective finish to minimize stray light and improve thermal mass stability
• Stainless steel micrometer screws with 0.5 µm pitch and engraved 10-division vernier scales for manual angular readout ≤ 1.5 arcsec/division
• Integrated locking mechanism for each axis—mechanical clamping without distortion of the kinematic interface
• Optimized for low thermal expansion behavior: validated angular drift < 3 µrad/°C across 20–30 °C ambient range
• No internal springs or elastomeric elements—ensures long-term dimensional stability and immunity to creep under sustained load (≤300 g)

Sample Compatibility & Compliance

The HTMM25-01 is optimized for rigid, front-surface dielectric mirrors, laser cavity end mirrors, and beam-steering optics with thicknesses between 3 mm and 12 mm. It supports both kinematic and semi-kinematic mounting configurations depending on baseplate interface (M4 or M6 tapped holes). All materials comply with RoHS Directive 2011/65/EU. Manufacturing adheres to ISO 9001:2015 quality management standards, with traceable metrology records for critical dimensions (base flatness ≤ λ/10 @ 633 nm; actuator runout < 2 µm). While not certified to specific laser safety standards (e.g., IEC 60825), its mechanical integrity meets typical requirements for Class 3B/4 laser alignment systems when used within manufacturer-recommended load and environmental limits.

Software & Data Management

As a purely mechanical, manually operated mount, the HTMM25-01 does not incorporate electronic sensors, encoders, or digital interfaces. It is therefore fully compatible with legacy and modern optical benches—including those operating under GLP or GMP-aligned workflows where audit-trail-free passive hardware is preferred. Position settings are recorded manually using engraved scale readings; for integration into automated alignment routines, it may be paired with external position-sensing systems such as quadrant photodiodes or imaging-based beam centroid trackers. Documentation includes calibration certificates for angular repeatability (per ISO 10110-7) and dimensional inspection reports available upon request.

Applications

• High-fidelity alignment of resonator mirrors in diode-pumped solid-state (DPSS) and fiber laser cavities
• Beam pointing stabilization in heterodyne interferometry and gravitational wave detector prototype testbeds
• Kinematic referencing in multi-element collimation systems for UV–NIR broadband sources
• Long-duration optical path tuning in vacuum-compatible spectroscopic setups (with optional vacuum-rated variants)
• Education and training platforms for undergraduate optics labs requiring robust, tactile understanding of angular degrees of freedom
• Integration into OEM subsystems where EMI immunity, zero power consumption, and deterministic mechanical response are mandatory

FAQ

Is the HTMM25-01 compatible with vacuum environments?

Standard units are rated for ambient air use only; vacuum-compatible versions with vented bases and dry-lubricated adjusters are available under custom order (lead time: 8–10 weeks).
What is the maximum recommended mirror weight for optimal stability?

300 g is the verified upper limit for ≤2 arcsec repeatability over 24-hour thermal cycles; heavier optics require structural reinforcement or alternative mounts.
Can this mount be motorized retrofitted?

Yes—M4 threaded ports on both micrometer housings accept standard 12 mm diameter stepper motor couplers (e.g., Thorlabs K10CR1-compatible); full integration requires external motion controller and homing routine.
Does the mount include mounting hardware?

It ships with four M4 × 8 mm socket head cap screws for base attachment; optical retaining rings and washers are sold separately.
How is angular calibration verified during production?

Each unit undergoes interferometric angular repeatability testing using a Zygo GPI interferometer, with results documented in the individual certificate of conformance.
