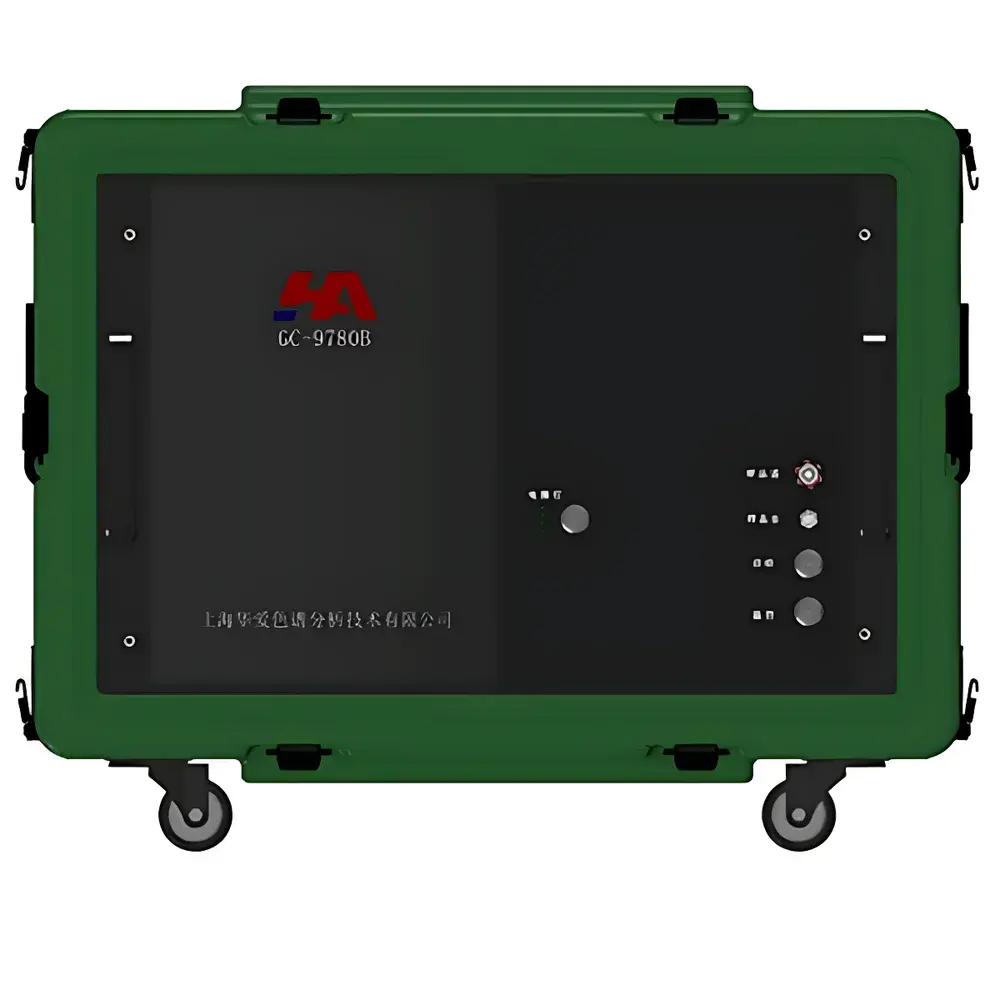

HuaiAi GC-9780B Portable Helium Ionization Gas Chromatograph for SF₆ Decomposition Product Analysis

Overview

The HuaiAi GC-9780B is a field-deployable, helium ionization gas chromatograph engineered specifically for on-site analysis of SF₆ decomposition products in high-voltage gas-insulated switchgear (GIS), circuit breakers, and other SF₆-filled electrical equipment. It implements pulsed discharge helium ionization detection (PDD), a highly sensitive, universal detection technique capable of quantifying trace-level impurities and arc-induced byproducts—including H₂, O₂, N₂, CH₄, CF₄, CO, CO₂, NF₃, N₂O, C₂F₆, C₃F₈, SO₂F₂, SOF₂, SO₂, H₂S, COS, and CS₂—across a dynamic range of 0.05–1000 ppm (v/v), with simultaneous real-time water vapor (H₂O) monitoring down to 0.1 ppm dew point equivalent. Unlike conventional flame ionization or thermal conductivity detectors, the PDD operates without hydrogen or air, eliminating combustion hazards and enabling safe deployment inside substations and confined switchyard environments. Its analytical output directly supports condition-based maintenance strategies defined in IEC 60480, DL/T 941, Q/GDW 1168, and GB/T 28726, correlating specific decomposition profiles (e.g., elevated SOF₂/SO₂ ratios or H₂S presence) with incipient fault modes such as partial discharge, corona, surface tracking, or thermal decomposition.

Key Features

• Integrated helium purification system: Removes H₂, O₂, N₂, CO, CO₂, CH₄, H₂O, NO, NH₃, and CF₄ from He carrier gas to ≤10 ppb residual concentration—ensuring baseline stability and detector longevity.
• Triple-channel detection architecture: Simultaneous parallel analysis via three independent PDDs optimized for non-polar, polar, and moisture-sensitive compound classes—reducing total cycle time to under 20 minutes per sample.
• Auto-center-cutting flow modulation: Enables precise heart-cutting of co-eluting peaks (e.g., SO₂F₂ and SOF₂) without manual valve intervention, improving resolution and reproducibility across temperature gradients.
• Field-optimized thermal management: Precision oven and injector temperature control (±0.1 °C) over 8 °C above ambient to 400 °C, with rapid cool-down (350 °C → 50 °C in ≤7 min) and auto-shutdown on carrier gas interruption.
• Self-contained power architecture: 21,000 mAh lithium-ion battery pack delivers ≥10 hours of continuous operation at full analytical duty cycle; compatible with 24 V DC vehicle supply or optional solar charging.
• Onboard moisture sensing: Integrated chilled-mirror dew point sensor (–60 °C to +20 °C range) with RS485 digital output provides real-time H₂O concentration data synchronized with chromatographic acquisition.

Sample Compatibility & Compliance

The GC-9780B is validated for direct injection of SF₆ gas samples collected via standardized stainless-steel sampling cylinders or online gas extraction manifolds compliant with IEC 60480 Annex B and DL/T 920. It meets metrological requirements for routine testing under GLP-aligned laboratory practices and supports audit-ready documentation per FDA 21 CFR Part 11 when paired with optional secure software licensing. All calibration protocols align with GB/T 12022–2014 (industrial SF₆ purity), GB/T 18867–2014 (electronic-grade SF₆), and IEC 376B (new SF₆ acceptance). The instrument’s detection limits and repeatability meet or exceed thresholds specified in Q/GDW 1168–2013 for diagnostic sensitivity in GIS health assessment.

Software & Data Management

Built-in embedded Linux OS runs HuaiAi ChromoView™ v3.2 firmware, supporting method-driven acquisition, automated peak integration using retention time locking (RTL), and customizable reporting templates aligned with utility-specific asset management systems. Raw chromatograms and quantitative results are stored in vendor-neutral .cdf format (compatible with OpenChrom and Chromeleon), with optional encrypted cloud sync via TLS 1.2. Audit trails record all user actions—including method edits, calibration events, and detector parameter changes—with timestamped digital signatures. Optional 21 CFR Part 11 compliance package includes electronic signature workflows, role-based access control, and immutable archive export for regulatory submission.

Applications

• Diagnostic screening of GIS compartments during scheduled maintenance outages or emergency response scenarios.
• Verification of SF₆ re-use eligibility after recovery and purification per IEC 60480 guidelines.
• Commissioning verification of new SF₆-insulated equipment prior to energization.
• Long-term trend analysis of decomposition product accumulation to inform remaining useful life (RUL) models.
• Correlation of SO₂/H₂S ratios with internal arcing severity in circuit breakers per DL/T 941–2005.
• Monitoring moisture ingress pathways via longitudinal H₂O tracking across multiple gas compartments.

FAQ

Does the GC-9780B require external helium supply or compressed air?
No. It incorporates an integrated helium purifier and operates exclusively on ultra-high-purity helium (≥99.999%) supplied from standard 10-L aluminum cylinders. No auxiliary gases, hydrogen sources, or air compressors are needed.
Can it be operated inside an energized substation without electromagnetic interference?
Yes. The instrument features EMI-hardened electronics, shielded detector housings, and conformal-coated PCBs certified to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) for industrial environments.
How is calibration traceability maintained in field use?
Calibration is performed using NIST-traceable multi-component SF₆ standard gases (certified by CNAS-accredited labs). The system stores calibration curves with expiration dates, and firmware enforces recalibration alerts based on run count or elapsed time.
Is remote diagnostics and firmware update supported?
Yes—via optional 4G LTE module with secure SSH tunneling. Field engineers can initiate diagnostic self-tests, download logs, and apply verified firmware patches without physical access.
What safety certifications does the unit hold for hazardous location use?
It carries CE marking (EMC & LVD directives), RoHS 3 compliance, and IP54 ingress protection rating. While not ATEX-certified, its intrinsic safety design (no ignition sources, <1 W detector power) permits use in Zone 2/22 per IEC 60079-0 when installed per manufacturer instructions.
