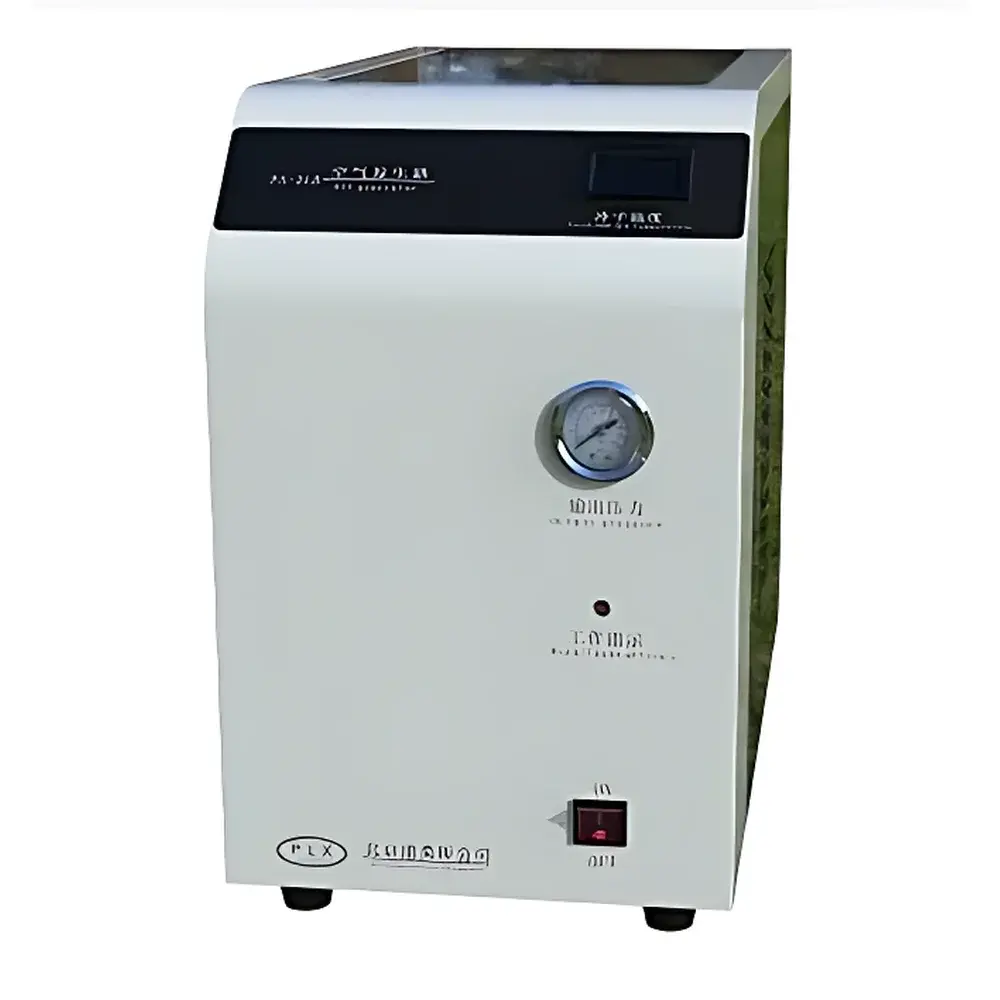

Huayisanpu PGA-2LB/5LB Air Generator

Overview

The Huayisanpu PGA-2LB and PGA-5LB Air Generators are engineered laboratory-grade gas supply systems designed to replace high-pressure compressed air cylinders in analytical laboratories. These instruments utilize a low-noise, oil-free scroll compressor as the primary air source, coupled with a fully integrated, maintenance-optimized purification architecture. The core operational principle relies on positive displacement compression followed by sequential physical and adsorptive removal of contaminants—including particulates, hydrocarbons, moisture, and trace volatile organic compounds—ensuring consistent delivery of instrument-grade air compliant with GC detector (FID, NPD, FPD), flame photometry, and elemental analysis requirements. Unlike conventional cylinder-based supply, these generators operate under ambient pressure start-up and deliver stable output across variable demand cycles, supporting both intermittent and continuous operation without performance drift or pressure surging.

Key Features

• Oil-free scroll compressor with low-vibration design and noise emission ≤42 dB(A), suitable for shared lab environments
• Triple-stage purification system: (1) High-efficiency particulate filter (≥0.3 µm retention), (2) Activated carbon column for hydrocarbon adsorption, (3) Visual indicator silica gel column for moisture removal
• Integrated semiconductor cooling module combined with overlapped condensation tubing for deep dew point suppression—eliminating need for frequent desiccant replacement
• Dual-stage mechanical pressure regulation ensuring stable output pressure at 0.4 MPa (±0.02 MPa) across full flow range
• Stainless steel air storage tank with internal passivation for corrosion resistance and long-term gas integrity
• Comprehensive safety architecture: thermal cut-off protection, overpressure relief valve, automatic electromagnetic drain valve, and soft-start circuitry extending compressor service life beyond 8,000 operating hours
• Front-panel pressure gauge and manual exhaust valve for system depressurization during extended idle periods

Sample Compatibility & Compliance

The PGA-2LB/5LB series is validated for use with all major gas chromatography platforms requiring clean, dry, oil-free air—including flame ionization detectors (FID), nitrogen-phosphorus detectors (NPD), flame photometric detectors (FPD), and atomic absorption spectrometers with air-acetylene combustion systems. Its output meets ASTM D6299 and ISO 8573-1 Class 2:2:2 specifications for compressed air quality (solid particles ≤0.1 µm, water dew point ≤−40 °C, oil content <0.01 mg/m³). The unit complies with IEC 61010-1 for electrical safety and operates within GLP/GMP-aligned workflows when integrated into documented instrument qualification protocols. While not inherently 21 CFR Part 11 compliant, its analog pressure monitoring and manual controls support audit-ready logbook documentation practices.

Software & Data Management

These models operate as standalone hardware units without embedded microprocessor control or digital connectivity. All operational parameters—including pressure, flow, and temperature—are monitored via analog instrumentation (mechanical pressure gauge, visual silica gel indicators, and thermal cutoff status LEDs). No firmware, USB ports, or remote interface capabilities are included; this design prioritizes reliability, electromagnetic compatibility, and minimal failure points in regulated environments where deterministic behavior is required over data logging functionality. For labs requiring electronic recordkeeping, integration with external PLCs or building management systems is achievable via optional 4–20 mA pressure transducer outputs (available upon request).

Applications

• Primary air supply for gas chromatography flame detectors requiring consistent stoichiometric combustion air
• Carrier gas auxiliary supply in multi-detector GC configurations
• Air source for flame photometers in clinical and environmental metal analysis
• Support gas for atomic absorption spectroscopy (AAS) air-acetylene burners
• Instrument air for pneumatic sample introduction systems, autosamplers, and valve actuators
• General-purpose clean air for laboratory benchtop tools requiring filtered, dry airflow (e.g., particle counters, optical alignment stations)

FAQ

What is the maximum allowable ambient temperature for continuous operation?
The unit is rated for continuous duty at ambient temperatures between 15 °C and 40 °C, with relative humidity ≤70% and no exposure to corrosive or particulate-laden atmospheres.
Does the generator require periodic desiccant replacement?
The semiconductor cold-drying system significantly reduces moisture load on the silica gel column; typical replacement intervals exceed 6–12 months under standard lab conditions, depending on ambient humidity and daily runtime.
Can the output pressure be adjusted above 0.4 MPa?
No—the internal pressure regulator is factory-set to 0.4 MPa and is not user-adjustable; exceeding this limit voids warranty and compromises safety certification.
Is the air output certified for use in USP or EP 2.6.27 applications?
While the purity profile satisfies many pharmacopeial air quality thresholds, formal compliance requires site-specific validation per USP or Ph. Eur. 2.6.27; users must perform in-house testing for total hydrocarbons, microbiological content, and particulate count.
What maintenance schedule is recommended?
Annual inspection of compressor oil level (if applicable), filter element replacement, silica gel regeneration/replacement, and verification of pressure relief valve function per manufacturer’s maintenance checklist.
