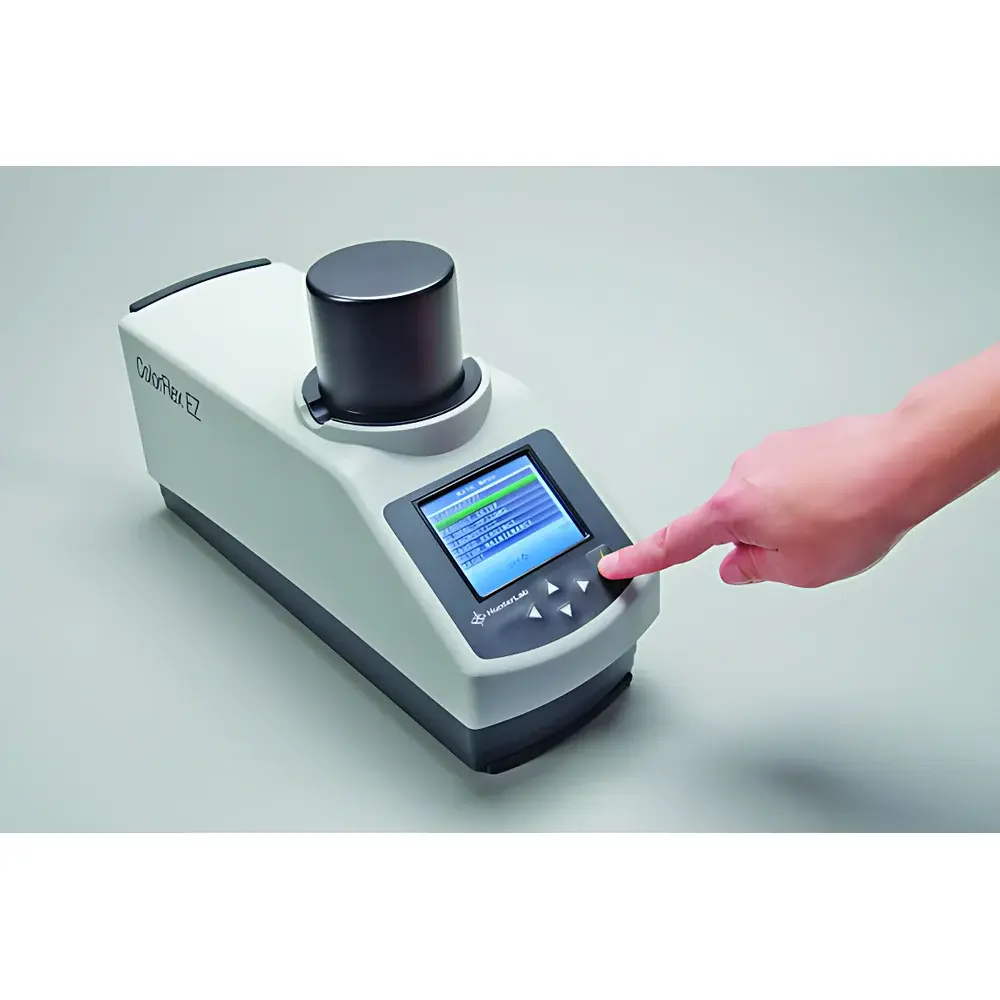

HunterLab ColorFlex EZ Meat Colorimeter

Overview

The HunterLab ColorFlex EZ Meat Colorimeter is a benchtop spectrophotometric color measurement instrument engineered for high-precision, repeatable color evaluation of meat and other food-grade solid, semi-solid, and liquid samples. It employs a rigorously validated 45°/0° annular illumination geometry—compliant with CIE 51:2019 and ASTM D2244—where light is delivered at 45° from the sample surface in a ring configuration, and reflected light is collected perpendicularly (0°) through a central port. This optical architecture replicates human visual perception more closely than diffuse/8° or d/0° geometries, especially for textured, anisotropic, or directionally sensitive surfaces such as fresh or cured meat cuts, ground patties, sausages, and processed deli products. The pulsed xenon lamp provides stable, full-spectrum illumination across the visible range (400–700 nm) without thermal drift or spectral aging, ensuring metrological consistency across shifts and over instrument lifetime. Designed for routine QC laboratories, slaughterhouse quality control stations, and R&D facilities, the ColorFlex EZ delivers traceable, GLP-compliant color data aligned with USDA, ISO 11664, and CIE standards.

Key Features

• Benchtop form factor with minimal footprint (28 × 23 × 20 cm), optimized for space-constrained lab benches or production-floor deployment.
• 45°/0° optical geometry with integrated calibration validation via built-in ceramic white and black tiles; automatic verification before each measurement sequence.
• Pulsed xenon light source delivering uniform spectral irradiance with <0.1% intensity variation over 10⁶ flashes—eliminating lamp warm-up time and photometric decay concerns.
• High-resolution 10-nm spectral bandwidth detector array enabling accurate calculation of CIE L*a*b*, L*C*h°, ΔE*ab, ΔE00, YI (ASTM E313), Whiteness (CIE/ISO), and custom indices (e.g., Meat Redness Index, Hue Angle).
• Onboard memory supporting up to 250 standard references—including user-defined product specifications, tolerance limits (±ΔL*, ±Δa*, ±Δb*, elliptical or rectangular pass/fail zones), and 2000 sample measurements.
• Three USB 2.0 ports: one for direct connection to PC (virtual COM port mode), one for USB flash drive data export/import (CSV, XML, .qcp), and one for peripheral integration (barcode scanner, alphanumeric keyboard, or thermal printer).

Sample Compatibility & Compliance

The ColorFlex EZ accommodates a broad spectrum of meat-related physical forms without requiring reconfiguration: intact muscle cuts (beef loin, pork belly), ground formulations (80/20 beef, turkey blends), emulsified products (bologna, frankfurters), cured items (ham slices, salami), viscous liquids (marinades, brines), and powdered seasonings. Optional accessories—including large-area viewports, liquid cells with temperature-controlled jackets (±0.1°C), and textured sample holders—extend reproducibility for non-flat or heterogeneous surfaces. All firmware and measurement algorithms are validated against NIST-traceable standards and comply with FDA 21 CFR Part 11 requirements when used with optional EasyMatch QC software (audit trail, electronic signatures, role-based access). Instrument design conforms to IEC 61000-4 electromagnetic compatibility standards and UL/CSA safety certification for Class I laboratory equipment.

Software & Data Management

The ColorFlex EZ operates natively with embedded firmware supporting real-time pass/fail assessment, statistical process control (SPC) charting (X̄–R, Cp/Cpk), and batch averaging for spatially variable samples. When paired with HunterLab’s EasyMatch QC software (v5.0+), users gain full GMP/GLP functionality: secure database logging, revision-controlled method templates, automated report generation (PDF/Excel), multi-instrument network synchronization, and raw spectral data export for multivariate analysis (PCA, PLS regression). Data integrity is preserved via timestamped, user-annotated records with immutable audit trails—including calibration events, tolerance modifications, and result overrides—all compliant with ISO/IEC 17025 clause 7.7 and internal quality system requirements.

Applications

This instrument is routinely deployed in meat processing for objective assessment of critical quality attributes: redness (a* value) in fresh beef (USDA grading support), discoloration kinetics during refrigerated storage (metmyoglobin formation), curing agent efficacy (nitrite-induced color stabilization), thermal processing consistency (roast color development), and formulation matching across batches of ground sausage or plant-based analogs. Beyond meat, it supports color release testing for spices (paprika, turmeric), pigment dispersion in marinades, whiteness evaluation of dairy-derived ingredients, and browning index quantification in roasted nuts or coffee extracts—each traceable to standardized observer conditions (CIE 1931 2° or 10° standard observer, illuminants A, C, D65, F2).

FAQ

What does “45°/0°” mean in practice for meat color measurement?
It refers to annular 45° illumination with 0° viewing—minimizing specular reflectance and directional bias, which is essential for accurately capturing surface chromaticity of fibrous, wet, or glossy meat tissues.
Can the ColorFlex EZ measure ground or minced meat consistently?

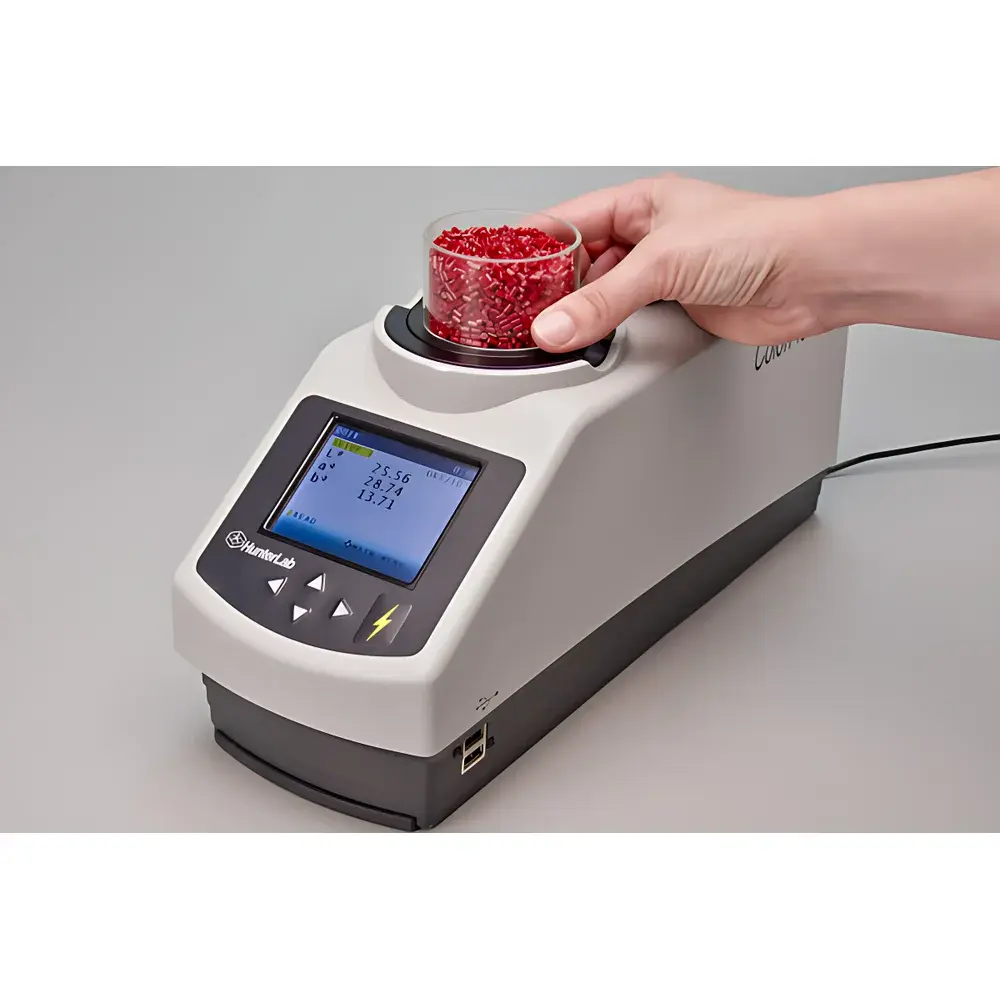

Yes—using the included sample cup with defined fill height and pressure plate, combined with onboard multi-point averaging (up to 10 readings per sample), to mitigate heterogeneity effects.
Is spectral data export supported for advanced analysis?
Yes—raw 10-nm interval reflectance spectra (31 points from 400–700 nm) are exportable via USB or Ethernet for chemometric modeling or spectral library development.
How is calibration maintained across shifts?
The instrument performs automatic self-checks using internal reference tiles before each session; optional NIST-traceable calibration kits (SRM 2036, SRM 2037) enable quarterly verification per ISO 17025.
Does it support USDA or AMS color grading protocols?
Yes—preconfigured methods include USDA Beef Color Standards (Slight, Slightly Dark Cutting, etc.) and AMS poultry skin color scales, with configurable tolerance bands aligned to regulatory guidance documents.
