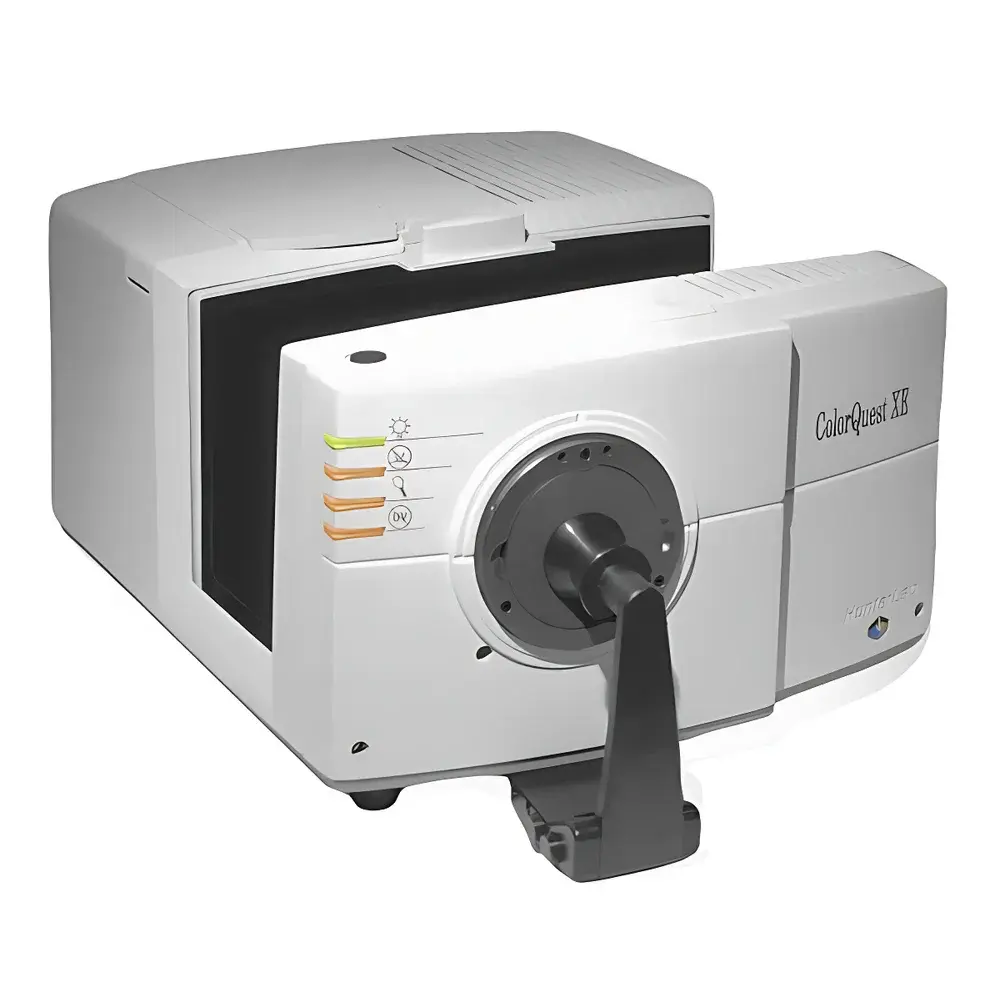

HunterLab ColorQuest XE Spectrophotometer
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | HunterLab CQXE |
| Product Type | Spectrophotometric Colorimeter |
| Instrument Type | Benchtop |
| Optical Geometry | d/8° integrating sphere |
| Light Source | Pulsed Xenon Lamp |
| Spectral Range | 400–700 nm |
| Repeatability | ΔE* ≤ 0.03 |
Overview
The HunterLab ColorQuest XE is a high-precision benchtop spectrophotometer engineered for quantitative color measurement of transparent, translucent, and opaque materials—particularly critical in polymer quality control. Designed around the CIE standard observer (1931 and 1964) and compliant with ISO/CIE 11664, ASTM D6290, ASTM E308, and ISO 22197-2, the instrument employs a d/8° optical geometry with a calibrated pulsed xenon lamp and a 400–700 nm spectral range to deliver stable, traceable, and reproducible reflectance and transmittance data. For epoxy resin manufacturers, the ColorQuest XE provides rigorous quantification of yellowness index (YI, ASTM E313 or ASTM D1925), a key indicator of oxidative degradation, residual catalysts, or impurity accumulation during synthesis and storage. Unlike visual assessment or tristimulus meters, this spectrophotometer captures full spectral response—enabling discrimination between subtle chromatic shifts that correlate directly with molecular aging pathways in bisphenol-A-based epoxies.
Key Features
- Optical architecture conforming to CIE d/8° geometry with integrated sphere coating optimized for low stray light and high diffuse uniformity
- Pulsed xenon lamp delivering consistent spectral output without thermal drift—ideal for high-throughput QC labs requiring zero warm-up time
- UV-filtered optical path to eliminate fluorescence interference from common epoxy additives (e.g., amine accelerators, photoinitiators)
- Automated aperture selection (10 mm, 19 mm, 25 mm) supporting both bulk liquid cuvettes and solid plaques per ASTM D6290
- Integrated NIST-traceable calibration validation using certified ceramic tiles and liquid standards (e.g., NIST SRM 2034)
- Robust mechanical design rated for continuous operation in ISO Class 8 cleanrooms and industrial QC environments
Sample Compatibility & Compliance
The ColorQuest XE accommodates epoxy resin samples in multiple physical states: uncured liquids (in 10-mm or 50-mm pathlength quartz cuvettes), cured films (cast on glass substrates), and molded pellets (per ASTM D5386). Its software enforces standardized measurement protocols aligned with ASTM D5386 (transmission color of clear liquids), ASTM D6290 (color of plastics), and USP (color of pharmaceutical excipients). The system supports GLP-compliant audit trails—including user authentication, parameter lockout, and timestamped spectral data export—with optional 21 CFR Part 11 compliance modules available via HunterLab Vision software. All YI calculations default to ASTM E313 (CIE XYZ) unless configured for ASTM D1925 (CIE YZ), ensuring regulatory alignment across global supply chains including Dow Chemical’s internal specifications.
Software & Data Management
Vision software (v5.2+) provides validated method templates for epoxy resin YI analysis, including automatic baseline correction for solvent blank subtraction, spectral smoothing (Savitzky-Golay, 5-point), and batch reporting with statistical process control (SPC) charts. Raw spectral data (.qtx files) are stored with embedded metadata (operator ID, instrument serial, calibration date, sample ID), enabling full traceability. Export formats include CSV (for L*a*b*, YI, APHA), PDF certificates (with digital signature), and XML for integration into LIMS platforms such as LabWare or Thermo Fisher SampleManager. Optional IQ/OQ/PQ documentation packages support GMP facility qualification per ISO 17025 requirements.
Applications
- Quantitative tracking of yellowing kinetics during accelerated aging studies (ASTM D5894, ISO 4892-3)
- In-process verification of post-distillation purity in BPA-epichlorohydrin synthesis lines
- Release testing of aerospace-grade encapsulants where YI > 2.5 disqualifies material per Boeing BMS 8-261
- Comparative analysis of UV stabilizer efficacy (e.g., hindered amine light stabilizers—HALS) in casting resins
- Raw material acceptance testing against supplier certificates of analysis (CoA) per ISO 9001 Clause 8.4.2
FAQ
Does the ColorQuest XE meet ASTM D1925 for yellow index measurement?
Yes—the instrument calculates YI using both ASTM D1925 (tristimulus Y and Z values) and ASTM E313 (CIE XYZ-derived), with user-selectable method assignment per test protocol.
Can it measure highly viscous epoxy prepolymers without dilution?
Yes—using temperature-controlled liquid cells (optional Peltier accessory) and extended integration times to compensate for low transmittance; viscosity up to 10,000 cP is supported with proper cell sealing.
Is spectral data export compatible with third-party chemometric tools like MATLAB or Unscrambler?
Yes—raw .qtx files contain ASCII-formatted wavelength/intensity arrays, fully importable into MATLAB, Python (NumPy/Pandas), and commercial multivariate analysis suites.
How often does the instrument require recalibration?
Annual NIST-traceable recalibration is recommended; however, daily verification with white tile and air blank ensures ongoing metrological integrity per ISO/IEC 17025 Clause 6.5.2.
