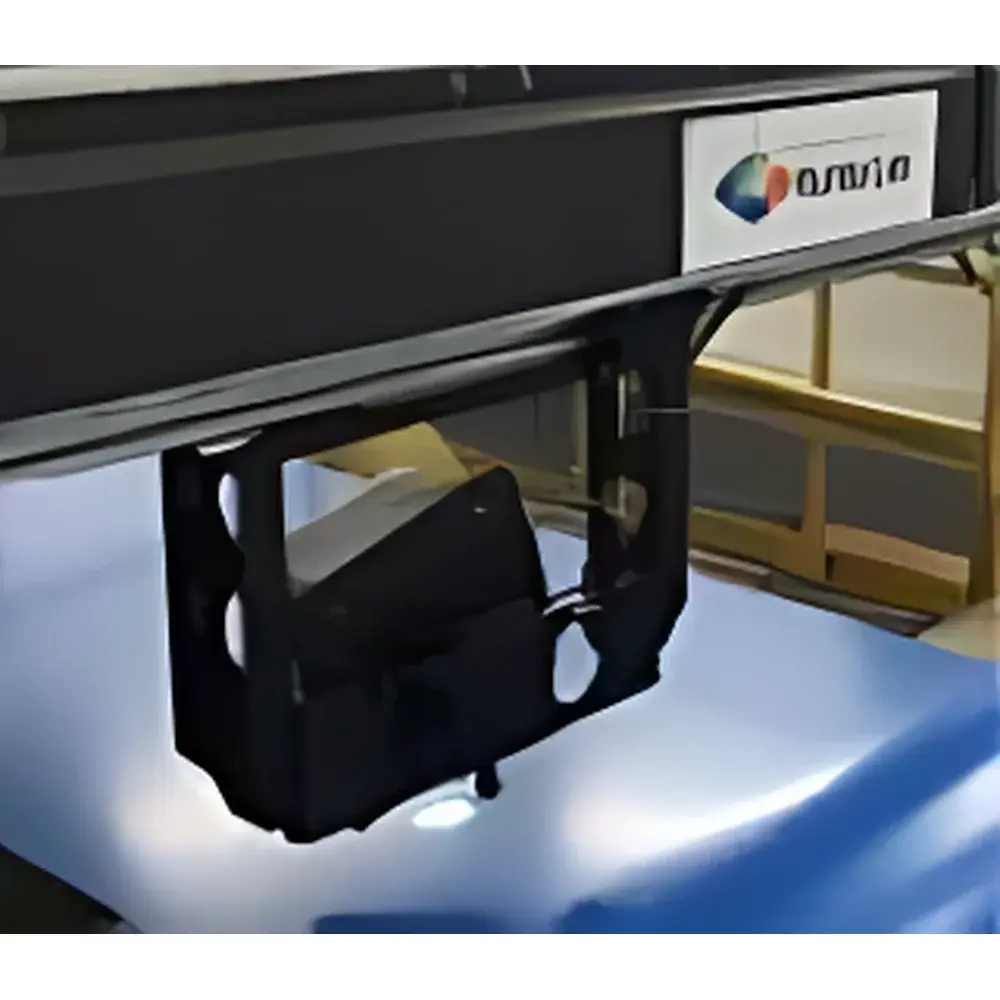

HunterLab SpectraTrend HT In-Line Color Measurement System

Overview

The HunterLab SpectraTrend HT is an industrial-grade, in-line spectrophotometric color measurement system engineered for continuous, non-contact color monitoring of plastic pellets, sheets, extrudates, and molded parts during high-speed manufacturing processes. Operating on the principle of 0/45° geometry with an integrating sphere detector, it delivers laboratory-grade colorimetric accuracy under dynamic production conditions. Unlike portable or benchtop colorimeters, the SpectraTrend HT is designed for permanent integration into process lines—mounted above conveyors, chutes, or extrusion dies—to provide real-time spectral reflectance data (31-point spectrum at 10 nm intervals) and CIE-compliant color values (L*a*b*, L*C*h*, ΔE*ab, YI, whiteness, yellowness, etc.). Its solid-state LED illumination ensures spectral stability over >50,000 hours of operation, eliminating lamp drift and warm-up delays common in xenon-based systems. The 100 mm (4-inch) standoff distance enables robust deployment in harsh environments while maintaining optical alignment integrity across varying sample heights—a critical requirement for heterogeneous plastic streams.

Key Features

• Non-contact, real-time measurement without physical sampling or operator intervention
• 0/45° optical geometry compliant with ASTM E308, ISO/CIE 15, and CIE 116 standards for specular-included reflectance
• Full-spectrum solid-state LED source delivering uniform irradiance across 400–700 nm with <±0.5 nm wavelength stability
• Automated height compensation algorithm corrects for vertical displacement up to ±25 mm, ensuring consistent aperture illumination regardless of pellet pile height or sheet thickness variation
• Background suppression logic isolates target color by dynamically subtracting conveyor belt or tray spectral contribution—enabling accurate measurement even on moving, low-contrast substrates
• Integrated Ethernet interface (10/100BASE-T) supporting Modbus TCP, EtherNet/IP, and HTTP APIs for direct PLC and SCADA integration
• IP65-rated enclosure with optional purge fitting for dust- and moisture-prone extrusion or compounding environments

Sample Compatibility & Compliance

The SpectraTrend HT is validated for opaque, translucent, and semi-crystalline thermoplastics including polyethylene (PE), polypropylene (PP), polycarbonate (PC), ABS, PET, and PVC—regardless of surface texture (glossy, matte, granular, or textured). It meets functional requirements for ISO 9001-certified quality control workflows and supports audit-ready data traceability per FDA 21 CFR Part 11 when deployed with HunterLab EasyMatch QC software configured with electronic signatures and audit trail logging. All color calculations adhere to CIE 1976 L*a*b* color space definitions and are traceable to NIST-traceable standards via factory calibration certificates (certified per ISO/IEC 17025).

Software & Data Management

HunterLab EasyMatch QC v5.x serves as the central configuration, visualization, and reporting platform. It provides synchronized multi-sensor network management, enabling simultaneous monitoring of up to 32 SpectraTrend HT units from a single workstation. Real-time dashboards display pass/fail status against user-defined tolerances (ellipsoidal or rectangular ΔE*ab, ΔL*, Δa*, Δb*), trend charts with SPC control limits (X-bar/R, Cp/Cpk), and full spectral overlays for batch-to-batch comparison. Data export options include CSV, XML, and native Excel (.xlsx) formats with customizable templates—supporting automated report generation for shift logs, certificate of conformance (CoC), or internal QA documentation. Role-based access control allows administrators to assign permissions for calibration, tolerance editing, report generation, and raw data export.

Applications

• Real-time color consistency verification in plastic compounding lines prior to pelletizing
• In-process monitoring of masterbatch dispersion homogeneity during extrusion
• End-of-line quality gate for injection-molded automotive interior components
• Color deviation detection in film casting operations (e.g., packaging laminates)
• Batch release validation in medical-grade polymer manufacturing under ISO 13485 and GMP guidelines
• Root-cause analysis of pigment migration or thermal degradation through spectral shift tracking

FAQ

What is the maximum allowable sample height variation the SpectraTrend HT can compensate for?
The system automatically compensates for vertical displacements between 50 mm and 150 mm from the sensor face—covering typical variations in pellet bed depth, sheet thickness, or extrudate sag.
Does the SpectraTrend HT require annual recalibration?
No scheduled recalibration is required; however, users must perform daily verification using a supplied ceramic tile standard. Factory recalibration is recommended every 24 months or after physical impact or environmental exposure exceeding IP65 specifications.
Can the SpectraTrend HT measure transparent or colored liquids?
No—it is optimized exclusively for solid and semi-solid plastic materials. Transparent media require transmission-mode instrumentation (e.g., HunterLab UltraScan VIS) with appropriate cell holders and path-length control.
Is OPC UA support available?
Yes—via optional EasyMatch QC OPC UA Server add-on license, enabling seamless integration with modern MES and digital twin platforms.
How is data security managed when connecting multiple sensors over Ethernet?
All network communications use TLS 1.2 encryption; device authentication is enforced via MAC address whitelisting and configurable firewall rules within the embedded Linux OS.
