HunterLab STOL-M1 Online Paper Color Measurement System

Overview

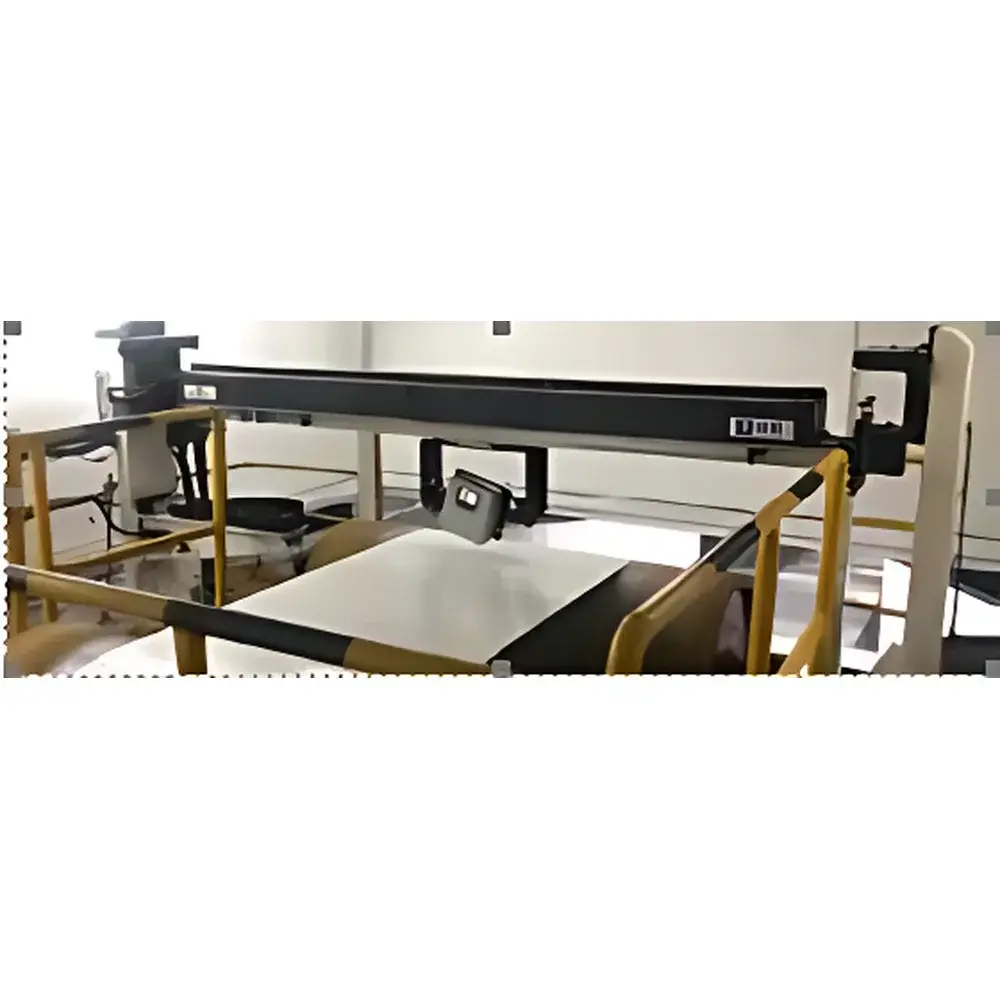

The HunterLab STOL-M1 Online Paper Color Measurement System is a purpose-engineered, in-line spectrophotometric colorimeter designed exclusively for continuous, real-time color monitoring on paper and board production lines. Unlike laboratory-based or handheld instruments, the STOL-M1 integrates directly into the web path—mounted above or beside the moving sheet—to deliver non-contact, high-frequency spectral reflectance measurements at production speed. Its optical architecture employs a rigorously calibrated 0/45° integrating sphere geometry, compliant with CIE 15:2018 and ISO 13655:2017 standards for spectral measurement of planar, diffusely reflecting materials. The full-spectrum LED illumination ensures stable, flicker-free output across the visible range (400–700 nm), eliminating spectral drift associated with xenon or tungsten sources and enabling robust inter-instrument agreement with benchtop HunterLab systems such as the UltraScan VIS and ColorFlex EZ.

Key Features

• In-line, non-contact measurement: Mounted directly on the paper machine frame, capturing data at line speeds up to 1,200 m/min without mechanical contact or web disturbance.

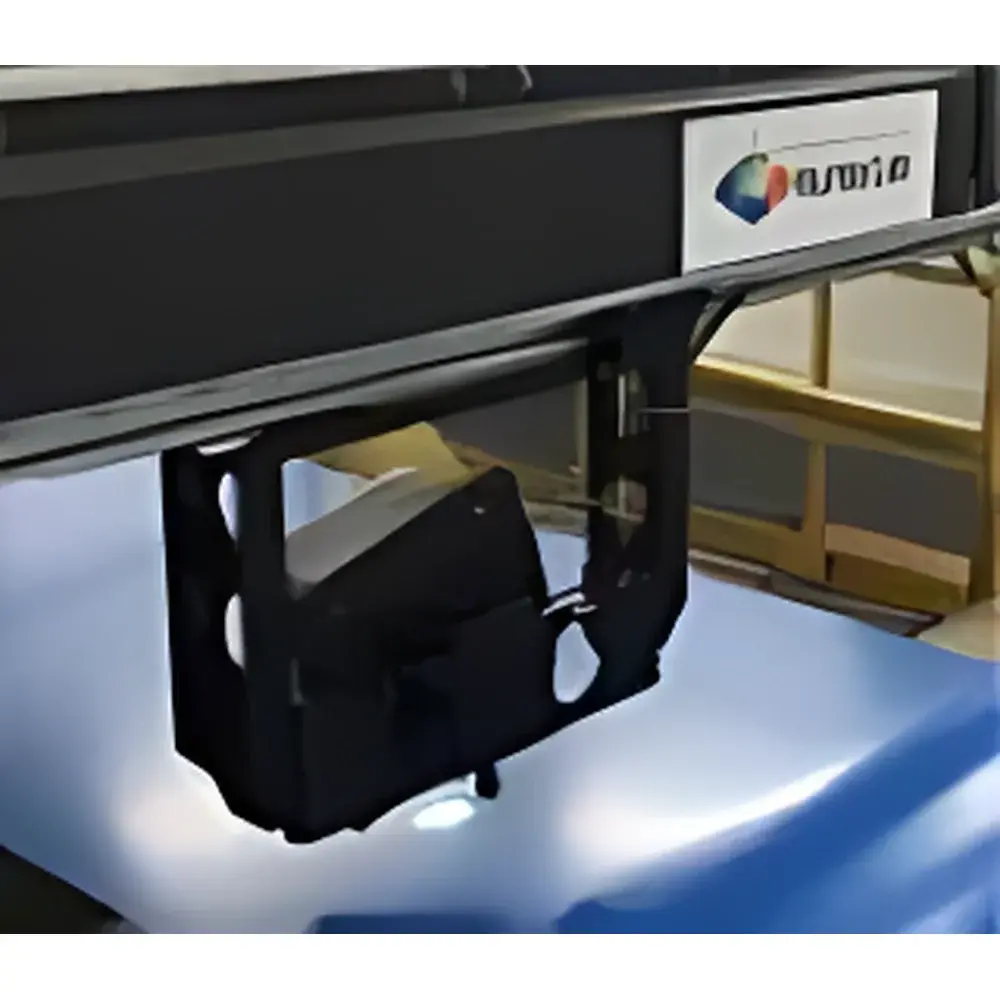

• Full-width automated traverse system: Motorized cross-web scanning carriage enables programmable sampling density (e.g., 5–20 mm intervals) across the entire sheet width, supporting profile analysis and edge-to-edge uniformity assessment.
• Auto-probe retraction & safety interlock: Integrated proximity sensing triggers automatic probe retraction when personnel or maintenance equipment approach the measurement zone, accompanied by dual-channel audible and visual alarms per ANSI/ISA-84.01 requirements.
• Self-calibrating optics: Onboard ceramic tile reference and motorized shutter enable scheduled or event-triggered recalibration—configurable via HMI or remote SCADA—eliminating manual intervention and reducing calibration-related downtime.
• High repeatability performance: Achieves ΔE*ab repeatability ≤ 0.03 under controlled environmental conditions (23 ± 1°C, 50 ± 5% RH), verified per ASTM E308-22 Annex A2 protocols.
• Industrial-grade enclosure: IP65-rated aluminum housing with thermal management system ensures reliable operation in hot, humid, and dusty mill environments.

Sample Compatibility & Compliance

The STOL-M1 is validated for use with uncoated and coated papers, kraft board, tissue, and lightweight carton grades ranging from 40–400 g/m². Its 0/45° geometry inherently minimizes texture-induced metamerism and suppresses specular component exclusion artifacts common in glossy or calendered surfaces. All measurement algorithms conform to CIE 1976 L*a*b*, CMC(l:c), and ΔE00 color difference metrics. Data traceability supports GLP/GMP-aligned workflows: each measurement timestamp includes instrument ID, calibration status flag, ambient temperature/humidity (via optional sensor input), and raw spectral reflectance (31-point, 10 nm intervals). System design complies with CE electromagnetic compatibility (EMC) directives and meets UL 61010-1 safety requirements for industrial control equipment.

Software & Data Management

The STOL-M1 operates under HunterLab’s proprietary VisionLink™ Industrial Software Suite, deployed on an embedded Linux platform with OPC UA server support for seamless integration into DCS, MES, or IIoT platforms (e.g., Siemens SIMATIC, Rockwell FactoryTalk, PTC ThingWorx). Real-time color deviation alerts (L*, a*, b*, ΔE) are published via MQTT or Modbus TCP; historical spectra and statistical process control (SPC) charts—including X-bar/R and Cp/Cpk—are exportable in CSV, PDF, or XML formats. Audit trails record all configuration changes, calibration events, and user logins in accordance with FDA 21 CFR Part 11 requirements, including electronic signatures and immutable timestamps.

Applications

• Real-time color consistency control during base stock blending and pigment dosing adjustments.
• Web-wide color profiling to detect streaks, shade bands, or coating non-uniformity pre-winding.
• Correlation validation between online measurements and QC lab results using HunterLab benchtop instruments—ensuring <±0.15 ΔE*ab mean bias per ISO/TR 11664-7.
• Automated rejection triggering based on configurable tolerance windows (e.g., L* ±0.5, a* ±0.2) linked to downstream slitter or rewinder controls.
• Long-term trend analysis of optical brightener degradation or fiber aging effects across production campaigns.

FAQ

How does the STOL-M1 ensure measurement consistency with lab-based HunterLab instruments?
It shares identical spectral response functions, calibration algorithms, and CIE observer/illuminant definitions with HunterLab’s UltraScan VIS and ColorFlex EZ platforms—validated through inter-instrument agreement studies per ASTM D2244-22.
Can the system operate in high-humidity paper mill environments?
Yes—the IP65-rated enclosure, condensation-resistant optics, and internal thermal stabilization maintain measurement integrity at up to 95% RH and ambient temperatures from 5–45°C.
Is remote diagnostics and firmware updates supported?
Yes—VisionLink™ Industrial supports secure SSH-based remote access, over-the-air firmware deployment, and predictive health monitoring of LED lifetime and sphere coating integrity.
What data export formats are available for SPC integration?
Raw spectra (.csv), color values (.csv/.xml), SPC charts (.pdf/.png), and alarm logs (.json)—all configurable via RESTful API or OPC UA information model.
Does the system meet regulatory requirements for pharmaceutical or food-grade packaging production?
Yes—it supports 21 CFR Part 11-compliant audit trails, role-based access control, and electronic signature workflows required for regulated packaging lines operating under ICH Q5, ISO 15378, or USP .
