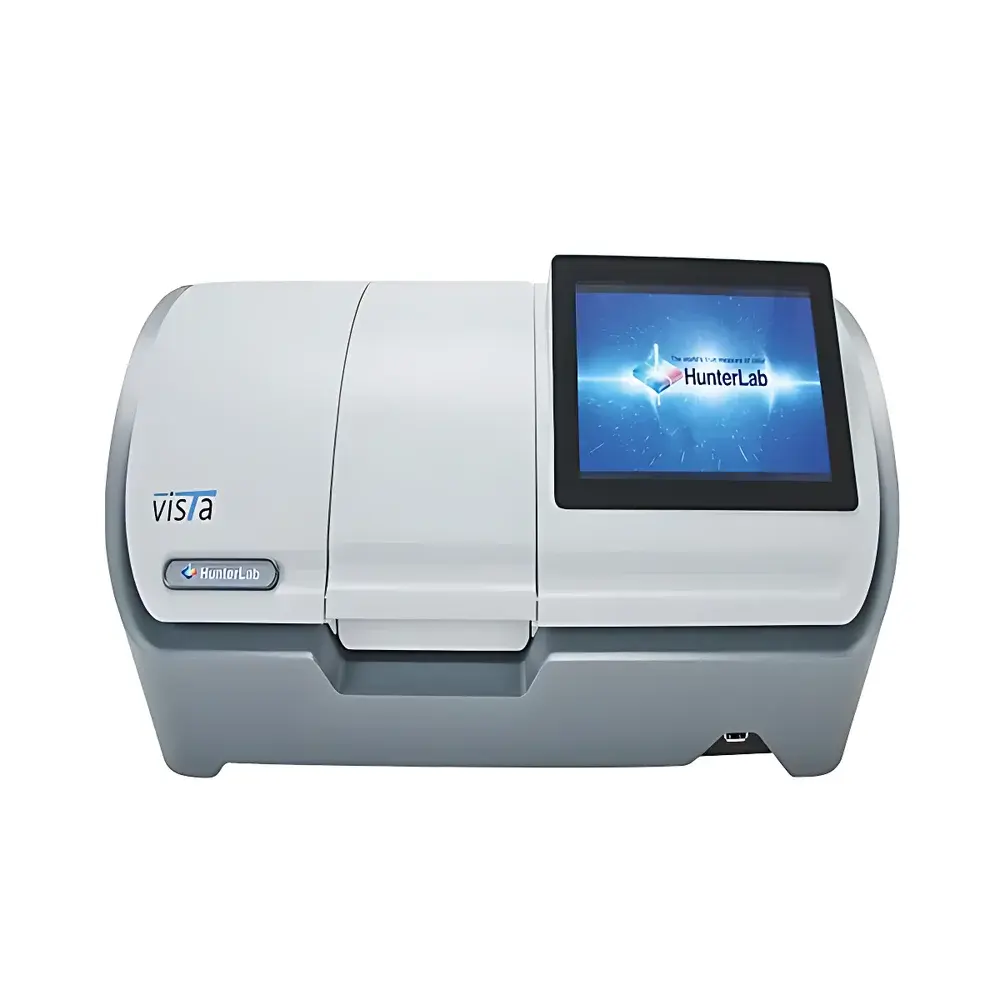

HunterLab Vista Liquid Colorimeter
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Model | Vista Liquid Colorimeter |
| Instrument Type | Benchtop |
| Optical Geometry | d/8° Integrating Sphere |
| Light Source | Full-Spectrum LED Array |
| Spectral Range | 400 nm – 700 nm |
| Repeatability | < 0.02 ΔE* |
Overview
The HunterLab Vista Liquid Colorimeter is a high-precision, dual-function benchtop spectrophotometer engineered for comprehensive color and haze characterization of transparent and translucent liquid samples. Operating on the principle of double-beam spectral photometry with a 76 mm integrating sphere, the Vista employs a 256-element diode array detector coupled with a high-resolution concave holographic grating to deliver stable, traceable spectral data across the visible spectrum (400–700 nm). Its optical architecture supports both Tt/0° (total transmission) and Td/0° (diffuse transmission) measurement modes—enabling simultaneous quantification of CIE-compliant color coordinates (L*a*b*, LCh, Yxy, XYZ), color differences (ΔE*, ΔE₀₀, ΔE CMC), and physical optical properties including haze (per ASTM D1003), transmittance (%T), and clarity-related indices. Designed for regulatory-compliant quality control in pharmaceuticals, chemicals, food & beverage, and petrochemical laboratories, the Vista delivers metrological rigor aligned with ISO/CIE foundational standards and industry-specific test protocols.
Key Features
- Full-spectrum LED illumination with >5-year operational lifetime and stable spectral output—eliminating lamp replacement and intensity drift over time
- Dual-mode optical path: configurable for total transmission (Tt), directional transmission (Rt), and haze-corrected diffuse transmission (Td), all validated per ASTM D1003 Section 8
- High-fidelity spectral acquisition: 10 nm effective bandwidth, <3 nm wavelength resolution, and 0.003% photometric resolution across 0–150% transmittance range
- Integrated 1280×800 high-resolution capacitive touchscreen interface with intuitive workflow navigation and real-time spectral visualization
- Standardized illuminant/observer combinations: D65/10° (CIE 15:2004), C/2° (DIN 5033 Teil 7), and JIS Z 8722 Condition E support
- Robust mechanical design: 100 mm fixed-pathlength cuvette holder compatible with standard 10 mm, 20 mm, 50 mm, and custom-length cells; 18.5 mm illumination / 9.1 mm measurement area ensures precise spatial sampling
Sample Compatibility & Compliance
The Vista accommodates a broad range of liquid matrices—including aqueous solutions, organic solvents, oils, syrups, and polymer melts—without requiring dilution or filtration when within optical path limits. Its compliance framework integrates multiple international standards: color measurements conform to CIE 15:2004, ASTM E1164, DIN 5033 Teil 7, and JIS Z 8722 Condition E; haze and clarity metrics are certified to ASTM D1003 (Method A, 2022 edition); and spectral data integrity meets GLP/GMP documentation requirements through built-in audit trail functionality. Instrument consistency is verified using NIST-traceable liquid calibration standards, with inter-unit agreement maintained at ΔE* (D65/10°) < 0.15 (average) and < 0.25 (maximum) across transmission filters.
Software & Data Management
Vista operates on HunterLab’s proprietary EasyMatch QC software platform, supporting FDA 21 CFR Part 11-compliant user access controls, electronic signatures, and immutable audit trails for all measurement events, method changes, and calibration logs. The software enables automated calculation of 20+ standardized color and appearance indices—including APHA/PtCo, ASTM D1500, Saybolt ASTM D156, Gardner D1209, YI E313/D1925, ADMI, Lovibond Red/Yellow (LovR/LovY), and Haze %—with customizable report templates exportable to PDF, CSV, or XML. Data synchronization with LIMS and ERP systems is supported via secure ODBC and REST API interfaces, ensuring full traceability from raw spectra to final release decision.
Applications
- Pharmaceutical excipient and active ingredient purity assessment via APHA/Hazen color grading per USP and EP 2.2.47
- Chemical manufacturing QC for batch-to-batch consistency of dyes, resins, and catalysts using ΔE* and spectral deviation analysis
- Fuel and lubricant specification testing against ASTM D1500 (Saybolt) and ASTM D156 (Saybolt Color)
- Food-grade oil and syrup evaluation per AOAC 972.30 (Gardner scale) and ISO 17268 (transmission haze)
- Regulatory submission support for FDA IND/NDA filings requiring instrument qualification (IQ/OQ/PQ) and 3Q documentation packages
FAQ
Does the Vista comply with FDA 21 CFR Part 11 for electronic records and signatures?
Yes—the system enforces role-based permissions, electronic signature capture, and tamper-evident audit logs for all critical operations.
Can the Vista measure samples in non-standard cuvettes (e.g., 50 mm pathlength)?
Yes—pathlength is user-defined in software; the instrument automatically scales spectral integration to maintain photometric accuracy.
Is haze measurement traceable to NIST standards?
Haze calibration uses NIST SRM 1979 (polycarbonate haze standards), and validation follows ASTM D1003 Annex A2 verification protocol.
What is the minimum sample volume required for reliable measurement?
For 10 mm pathlength cells, ≥2 mL is recommended; for 50 mm cells, ≥5 mL ensures full beam coverage and signal stability.
Does the Vista support IQ/OQ/PQ documentation for GMP environments?
HunterLab provides complete 3Q qualification kits—including test protocols, acceptance criteria, and executed reports—aligned with ASTM E2500 and ISPE GAMP 5 guidelines.
