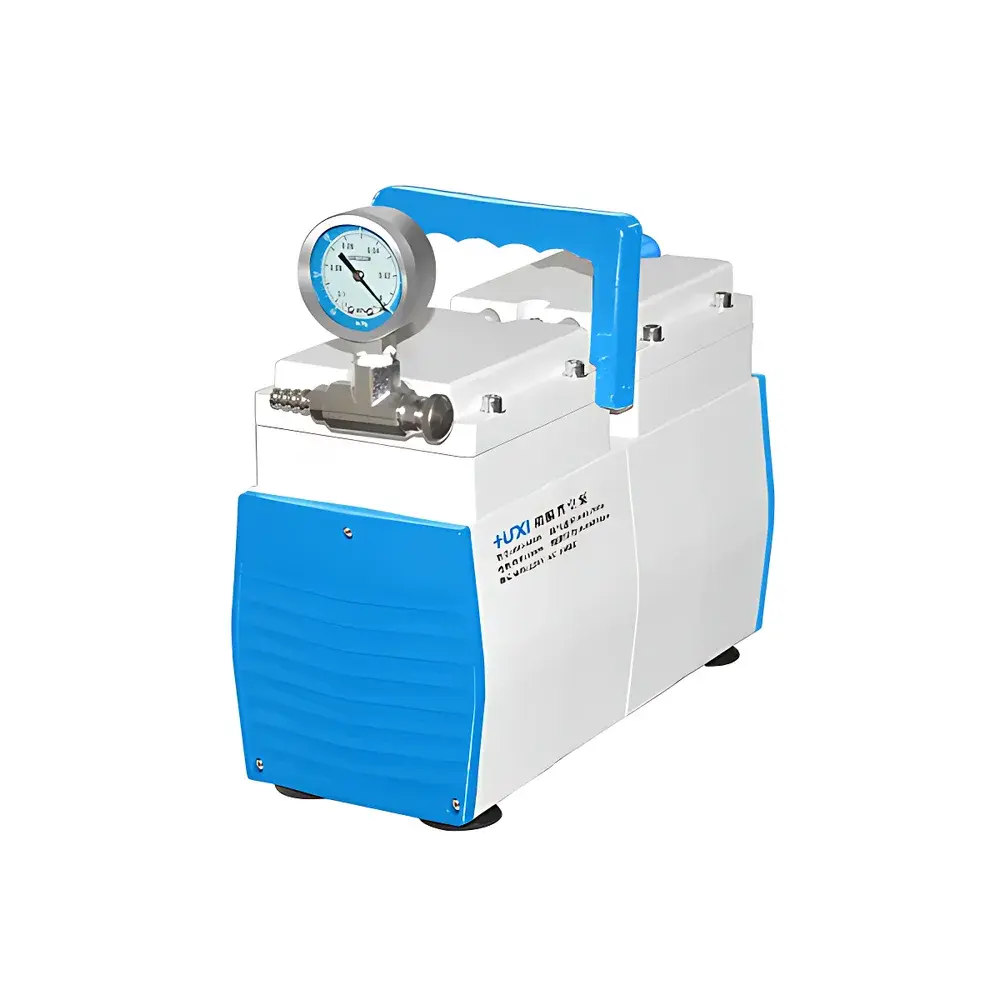

HUXI HG-30 Corrosion-Resistant Diaphragm Vacuum Pump

Overview

The HUXI HG-30 Corrosion-Resistant Diaphragm Vacuum Pump is an oil-free, single-stage positive displacement pump engineered for reliable, contamination-free vacuum generation in analytical, preparative, and quality control laboratory environments. Utilizing a PTFE-coated elastomeric diaphragm and chemically inert internal wetted path components—including tapered brass inlet/outlet ports—the HG-30 delivers stable vacuum performance while resisting degradation from organic solvents, acidic vapors, and mildly corrosive process gases. Its operating principle relies on reciprocating diaphragm motion driven by a 180 W brushless motor, enabling continuous duty cycle operation (24/7) without lubrication or oil carryover—critical for applications requiring clean vacuum such as solvent filtration, rotary evaporation, vacuum drying, and degassing of sensitive samples. With an ultimate vacuum of −0.085 MPa (150 mbar abs) and a nominal pumping speed of 30 L/min at atmospheric inlet pressure, the HG-30 balances compact footprint (250 × 135 × 210 mm) with sufficient capacity for benchtop instrumentation integration.

Key Features

• Chemically resistant fluid path: PTFE-coated diaphragm and tapered brass ports minimize chemical attack during exposure to alcohols, acetone, ethyl acetate, dilute acids, and halogenated solvents.
• Oil-free operation ensures zero hydrocarbon contamination—essential for GC sample preparation, mass spectrometry support, and pharmaceutical filtration under GLP-compliant workflows.

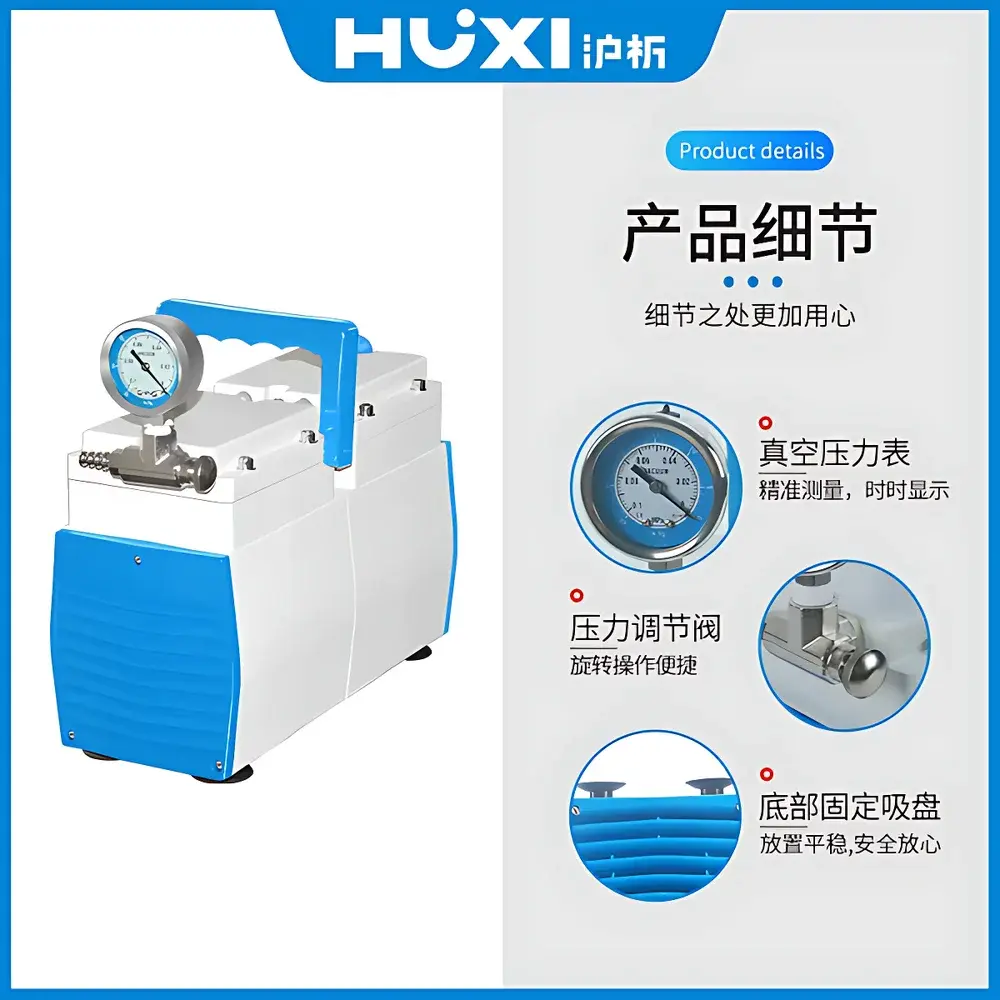

• Adjustable vacuum regulation via integrated throttle valve enables precise control over suction pressure across diverse application requirements—from gentle membrane filtration to aggressive solvent removal.
• Low-noise design (<50 dB[A] at 1 m) supports use in shared laboratory spaces without acoustic interference to adjacent instrumentation or personnel.
• Robust mechanical architecture with modular diaphragm assembly allows field-replaceable wear components; no specialized tools required for routine maintenance.
• Dual-mode capability: configurable as both vacuum source and low-pressure air mover (0 psi gauge positive pressure), reducing need for separate compression equipment in multi-step workflows.

Sample Compatibility & Compliance

The HG-30 is compatible with standard laboratory vacuum accessories including Büchner funnels, filter flasks (up to 5 L), rotary evaporator condensers (e.g., R-100/R-200 series), and vacuum desiccators. Its corrosion-resistant construction aligns with ASTM D2670 and ISO 8502-9 for handling chemically aggressive media. While not certified to UL/CSA or CE for hazardous location use, the pump meets IEC 61000-6-3 (EMC emissions) and IEC 60068-2-6 (vibration resistance) standards. It supports audit-ready documentation practices per FDA 21 CFR Part 11 when paired with validated data logging systems, and its maintenance log structure conforms to ISO/IEC 17025 clause 6.4.7 for equipment traceability.

Software & Data Management

The HG-30 operates as a standalone analog device with manual vacuum adjustment; it does not include embedded firmware, digital displays, or USB/RS-232 interfaces. However, its stable pressure output and repeatable flow characteristics make it suitable for integration into automated systems via external pressure transducers (e.g., Honeywell ASDX series) and programmable logic controllers (PLCs). Lab managers may record operational parameters—including runtime hours, service intervals, and pressure setpoints—in paper-based or electronic lab notebooks (ELN) compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Solvent filtration of HPLC mobile phases and biological buffers using 0.22 µm or 0.45 µm membrane filters.
• Vacuum-assisted concentration of thermolabile compounds during natural product isolation.
• Rotary evaporation of low-boiling-point solvents (e.g., dichloromethane, diethyl ether) under controlled vacuum to prevent bumping or foaming.
• Deaeration of resin mixtures prior to casting or coating processes in materials science labs.
• Support vacuum ovens and freeze dryers requiring intermittent or sustained sub-atmospheric conditions.
• Positive-pressure purging of glove boxes or reaction vessels where inert gas supply is unavailable.

FAQ

Is the HG-30 suitable for pumping hydrogen chloride (HCl) gas?
No. While the PTFE-coated diaphragm resists mild acidity, concentrated HCl vapor causes rapid elastomer swelling and port corrosion. Use only with vapors having pH > 3 and vapor pressure < 20 kPa at 25°C.
Can this pump be mounted vertically?
Yes—its balanced diaphragm mechanism and sealed motor allow orientation flexibility. Ensure unobstructed ventilation around the rear cooling vents regardless of mounting position.
What is the expected service life of the diaphragm under continuous operation?
At ambient temperature (20–25°C) and moderate load (≤70% of max vacuum), the diaphragm typically lasts ≥6,000 operating hours before replacement is recommended.
Does the HG-30 meet ISO 8573-1 Class 0 air purity requirements?
No—it is not rated for compressed air purity classification. As a vacuum-only or low-pressure mover, it is not evaluated against compressed air standards.
Is calibration required before first use?
No factory calibration is performed, as the HG-30 lacks internal pressure sensors. Users should verify ultimate vacuum with an independent calibrated manometer (e.g., MKS Baratron 627B) prior to critical applications.
