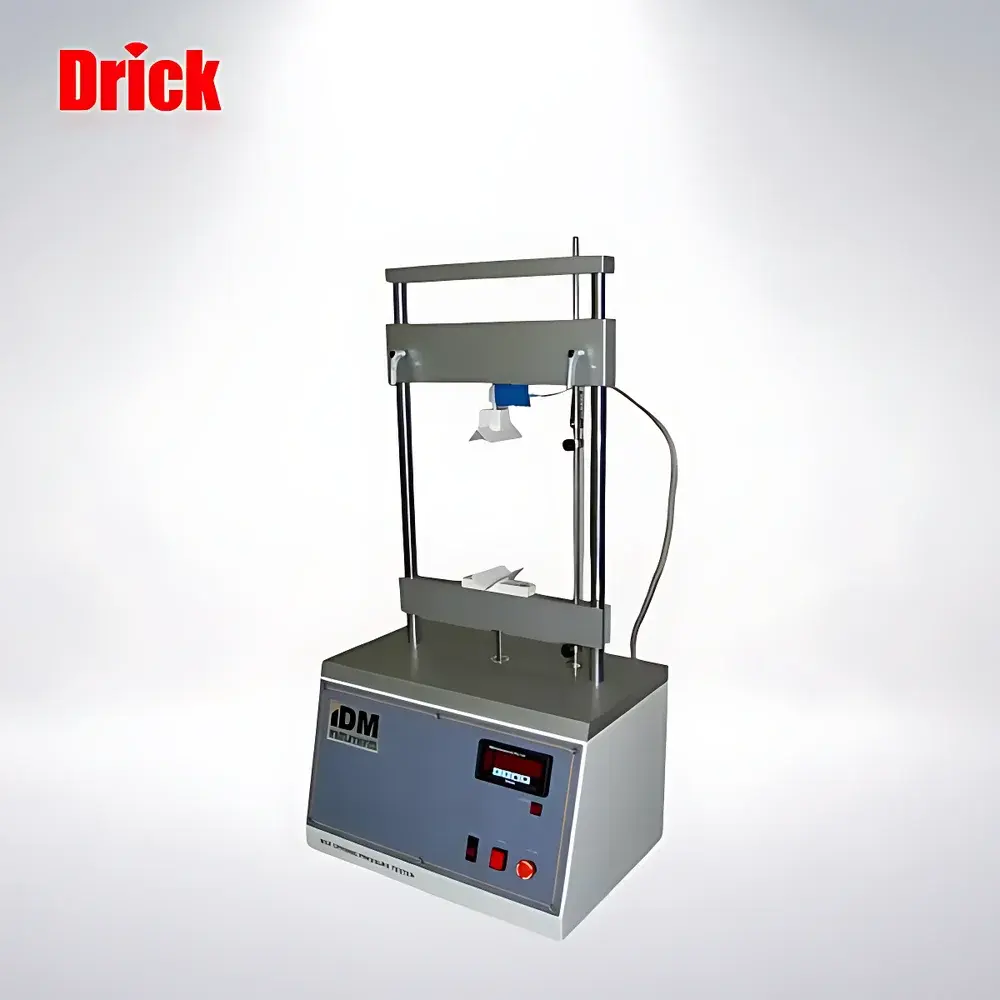

IDM B0007 Box Opening Force Tester

Overview

The IDM B0007 Box Opening Force Tester is an electromechanical compression testing instrument engineered for quantitative measurement of the initial opening force required to separate the flaps of corrugated fiberboard shipping containers under standardized flat-stacked conditions. It operates on a controlled vertical displacement principle: a motor-driven crosshead applies increasing compressive load via a precision-machined platen onto the top flap assembly of a stationary box specimen, while a calibrated load cell continuously monitors the force response. The system captures the peak force—defined as the maximum resistance encountered during the first 5–10 mm of flap separation—before mechanical yielding occurs. This parameter correlates directly with box integrity, closure reliability, and downstream packaging line efficiency, making it essential for quality control in carton manufacturing, logistics validation, and R&D of new board grades or adhesive formulations. Unlike general-purpose universal testers, the B0007 is purpose-built for ASTM D642 and ISO 12048-compliant box opening assessments, featuring fixed geometry constraints and repeatable actuation profiles that eliminate operator-dependent variables.

Key Features

• Integrated high-resolution load cell with 1 g resolution and ±1% full-scale accuracy, traceable to national metrological standards
• Digital LED display with real-time force readout and automatic peak-hold retention upon test completion
• Programmable return-to-idle function: after each test cycle, the crosshead retracts to a preset home position (e.g., 50 mm above sample height), minimizing manual intervention and ensuring consistent setup between samples
• One-touch zero calibration button for rapid tare adjustment prior to specimen loading
• Robust steel frame construction with anti-vibration base and adjustable leveling feet for stable operation in production-floor environments
• RS232 serial port for direct data export to LIMS or Excel-compatible spreadsheets; supports ASCII command protocol for integration into automated QA workflows

Sample Compatibility & Compliance

The B0007 accommodates standard RSC (Regular Slotted Container) and HSC (Half Slotted Container) configurations with maximum specimen dimensions of 250 mm (width) × 40 mm (depth). Flap thickness must fall within 1.5–6.0 mm to ensure reliable contact with the actuator platen. The instrument complies with mechanical requirements outlined in ASTM D642 “Standard Test Method for Determining Compressive Resistance of Shipping Containers” for opening force sub-procedures, and aligns with ISO 12048 “Packaging — Corrugated fibreboard boxes — Specification for performance requirements” regarding test fixture geometry and loading rate consistency. While not certified to GLP or GMP standards by default, its digital audit trail (via RS232 timestamped output), operator ID logging capability (when paired with external software), and mechanical repeatability support compliance with internal QA protocols and ISO 9001:2015 clause 7.1.5.2 (Measurement traceability).

Software & Data Management

The B0007 operates as a standalone hardware platform with embedded firmware—no proprietary PC software is required for basic operation. However, its RS232 interface enables seamless connection to third-party data acquisition systems using standard terminal emulation (e.g., PuTTY, Tera Term) or custom Python/Excel VBA scripts. Each test record includes: date/time stamp, peak force value (g or N), operator ID (if entered manually), and cycle counter. For regulated environments, users may implement 21 CFR Part 11-compliant electronic records by pairing the device with validated laboratory information management systems (LIMS) that enforce user authentication, audit trails, and electronic signatures. Firmware updates are performed via USB-to-serial adapter and provided free-of-charge through IDM’s technical support portal.

Applications

• Quality assurance of finished cartons in corrugated board converting plants
• Comparative evaluation of hot-melt vs. cold-glue flap adhesion strength
• Validation of box performance after humidity conditioning (e.g., 65% RH / 23°C per ASTM D685)
• Process optimization of folding-gluing machine parameters (pressure, dwell time, temperature)
• Supplier qualification testing for incoming board stock and adhesive batches
• Root cause analysis of field failures related to premature box opening during palletized transport

FAQ

What standards does the B0007 directly support?
It is configured to meet the geometric and procedural constraints of ASTM D642 Annex A3 (Opening Force Measurement) and ISO 12048 Clause 6.3 (Flap Separation Test).
Can the instrument measure opening force in Newtons (N) instead of grams-force (gf)?
Yes—the display unit can be toggled between g, kg, and N via front-panel menu navigation; conversion uses standard gravitational acceleration (9.80665 m/s²).
Is calibration certification included with purchase?
A factory calibration certificate (traceable to CNAS-accredited reference standards) is supplied with each unit; annual recalibration is recommended per ISO/IEC 17025 guidelines.
Are custom fixtures available for non-standard box geometries?
IDM offers OEM-designed interchangeable platens and guided alignment jigs for specialty containers (e.g., die-cut displays, telescoping boxes), subject to minimum order quantity.
Does the B0007 require compressed air or external pneumatics?
No—it is fully electrically driven with no auxiliary utilities required beyond standard AC power.
