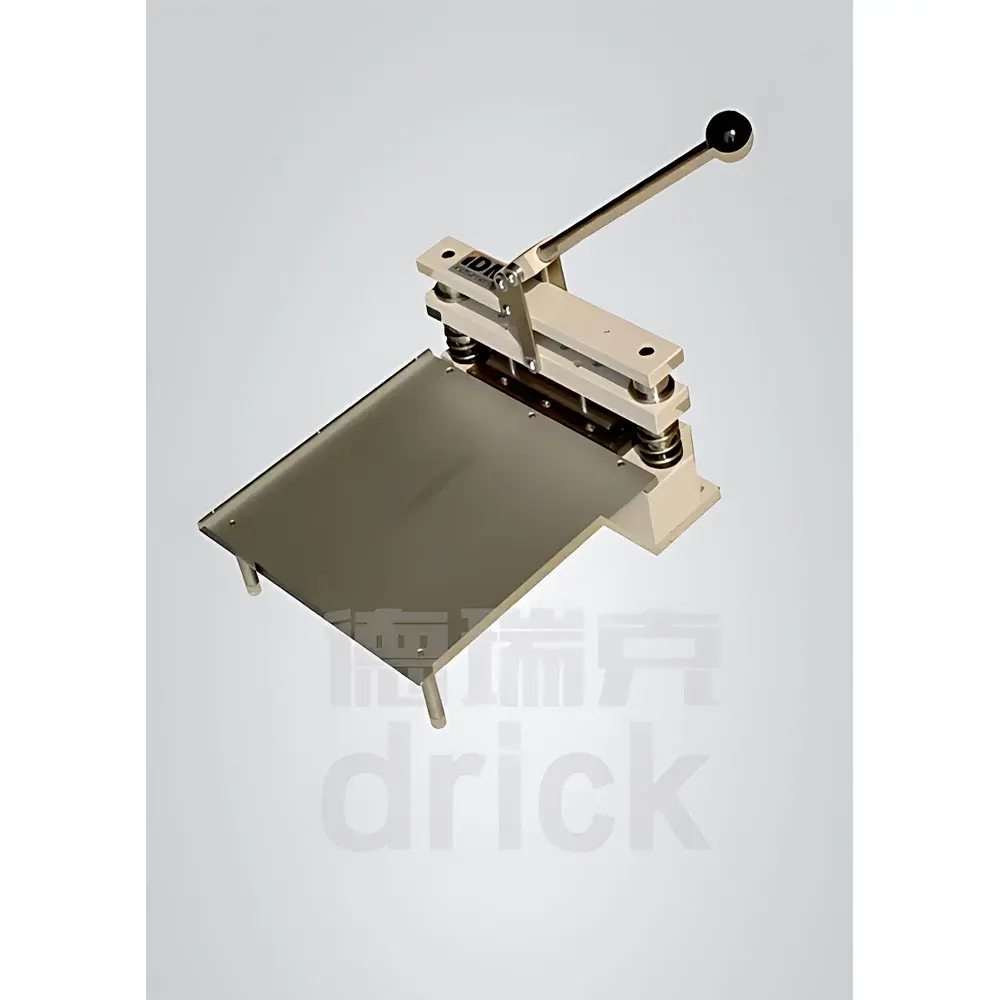

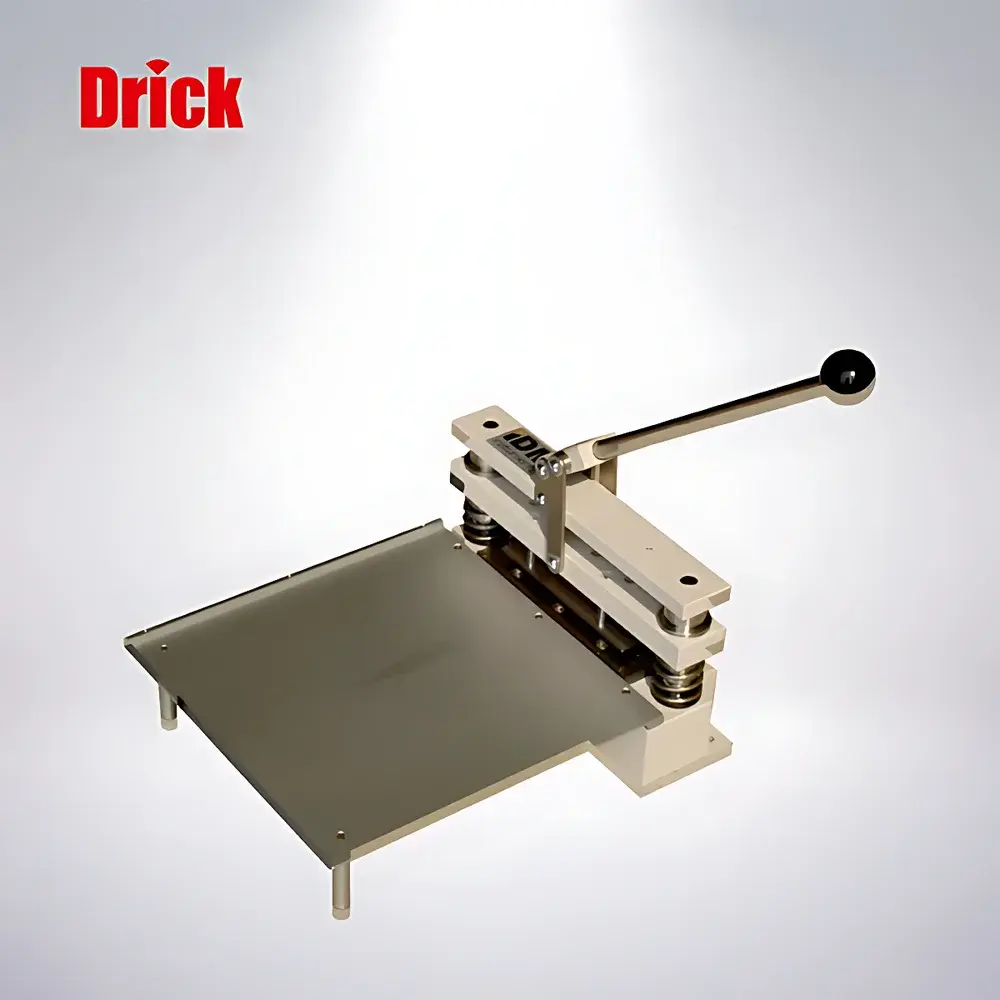

IDM C0028 Precision Paper Cutting Device

Overview

The IDM C0028 Precision Paper Cutting Device is a manually operated, benchtop sample preparation instrument engineered for high-reproducibility cutting of paper and board specimens in accordance with internationally recognized standard test methods. Designed specifically for quality control laboratories in pulp and paper manufacturing, packaging R&D, and certification testing facilities, the C0028 employs a hardened steel guillotine blade system mounted on a rigid aluminum frame to ensure dimensional accuracy, edge squareness, and minimal fiber distortion during specimen preparation. Its operation relies on mechanical shear force under controlled downward pressure—eliminating thermal degradation, burring, or micro-tearing common in rotary or motorized cutters. The device conforms to the fundamental principle of standardized specimen geometry as defined in physical testing protocols: consistent sample dimensions are prerequisite for reliable tensile, compression, and ring crush measurements. As such, the C0028 serves not as an endpoint measurement tool, but as a critical upstream enabler of metrological traceability in paper physical property analysis.

Key Features

• Rigid anodized aluminum base and vertical guide rails ensure long-term structural stability and alignment retention across repeated use cycles.
• Interchangeable precision-ground stainless-steel cutting blades with replaceable edge inserts minimize downtime and maintain cutting fidelity over extended service life.
• Adjustable specimen stop gauge with vernier scale (0.1 mm resolution) enables rapid, repeatable positioning for batch processing of identical specimens.
• Integrated safety guard with spring-loaded return mechanism prevents accidental blade contact and complies with ISO 13857 ergonomic clearance requirements.
• Calibration certificate traceable to NATA-accredited reference standards is supplied with each unit, documenting blade parallelism (±0.02 mm/m) and cut-edge perpendicularity (±0.1°).
• Tool-free blade replacement and modular die plate design support future adaptability to additional specimen geometries beyond C0028 specifications.

Sample Compatibility & Compliance

The IDM C0028 is validated for cutting paper, corrugated board, kraft liner, and coated duplex substrates ranging from 30 g/m² to 600 g/m² basis weight. It produces specimens measuring exactly 12.7 mm in width and 152 mm in length—dimensions specified in AS 1301.407 for ring crush test (RCT) sample preparation. This configuration ensures full compatibility with TAPPI T 826, ISO 12192, and SCAN P 21:02 test procedures requiring identical specimen geometry. While the C0028 is optimized for this single format, its mechanical architecture permits retrofitting with optional die plates (e.g., C0029 for tensile testing per AS 1301.448; C0031 for tear testing per AS 1301.400), subject to factory calibration and documentation. All configurations comply with GLP documentation requirements for instrument qualification (IQ/OQ) and support audit-ready records per ISO/IEC 17025 clause 6.4.10.

Software & Data Management

The C0028 operates as a standalone mechanical instrument with no embedded electronics or firmware. Consequently, it requires no software installation, network connectivity, or cybersecurity validation—making it inherently compliant with FDA 21 CFR Part 11 Annex 11 restrictions on legacy equipment used in regulated environments. All operational parameters (blade sharpening interval, calibration date, operator ID, and batch number) are recorded manually in a designated logbook per laboratory SOPs. For laboratories implementing electronic lab notebooks (ELN), specimen preparation metadata—including cut date, substrate lot, and technician signature—is entered directly into validated systems such as LabVantage or Thermo Fisher SampleManager. Calibration certificates and maintenance logs are archived digitally with version control and access restriction aligned with ISO 9001:2015 clause 7.5.

Applications

• Preparation of RCT specimens for corrugated box compression strength prediction in packaging validation studies.
• Generation of uniform strips for tensile index determination per ISO 1924-2 and TAPPI T 494.
• Cutting of test coupons for burst strength (ISO 2758) and folding endurance (TAPPI T 513) analyses.
• Production of standardized blanks for caliper measurement verification and thickness distribution profiling.
• Support of interlaboratory comparison programs where geometric consistency across participating labs is mandatory.
• Use in accredited testing laboratories maintaining scope under NATA, UKAS, or A2LA for ISO/IEC 17025:2017.

FAQ

Is the C0028 compatible with non-AS standard specimen sizes?
Yes—custom die plates can be fabricated upon request, provided dimensional tolerances remain within ±0.05 mm and edge perpendicularity is verified via coordinate measuring machine (CMM) report.
Does the device require annual recalibration?
Per ISO/IEC 17025, recalibration is recommended every 12 months or after 5,000 cuts—whichever occurs first—using certified reference gauges and documented uncertainty budgets.
Can the C0028 cut synthetic papers or plastic laminates?
It is validated only for cellulose-based substrates; polymeric films or metallized papers may cause premature blade wear and are not covered under warranty.
What documentation accompanies shipment?
Each unit ships with a calibration certificate, user manual (EN/DE/FR), conformity declaration (CE), and NATA-traceable blade parallelism report.
Is operator training included?
Yes—a 90-minute virtual competency assessment session is provided free of charge with purchase, covering safe operation, alignment verification, and logbook entry protocol.
