IDM D0009 Dynamic Load Compression Tester for Carpet Thickness Retention

Overview

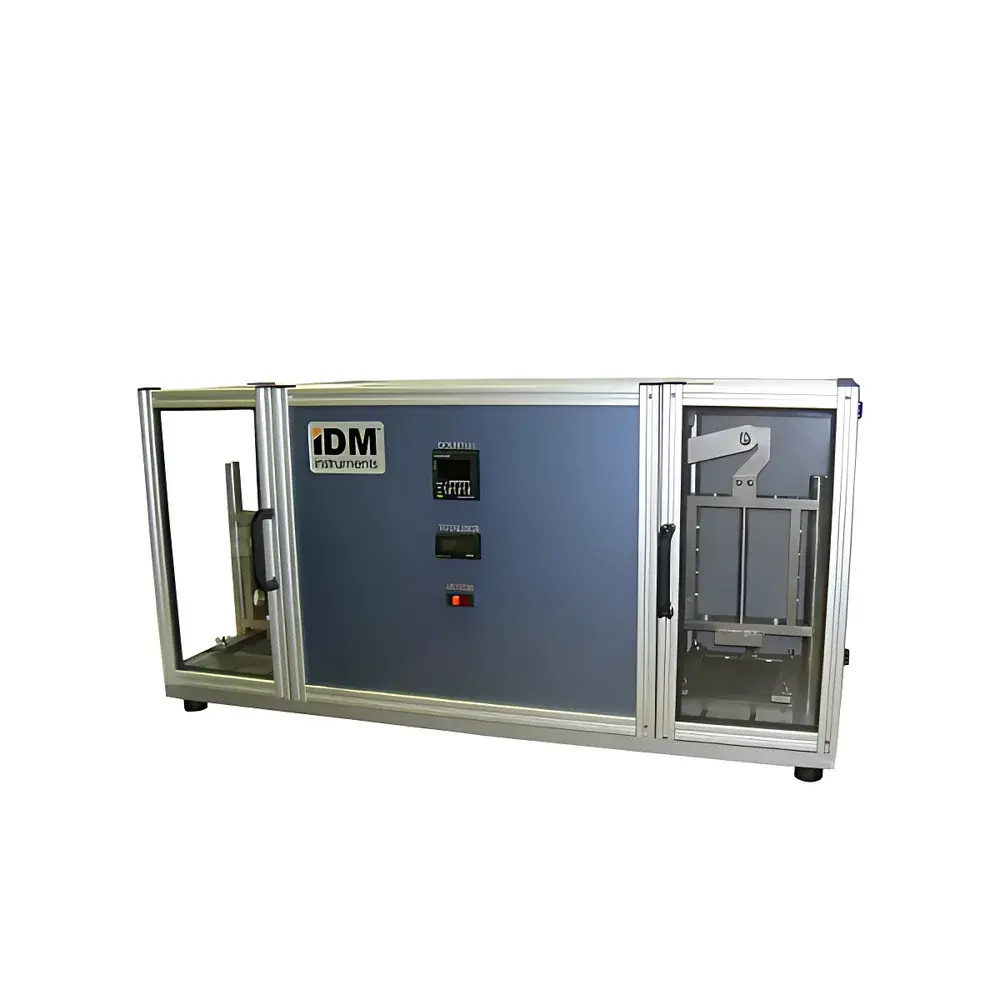

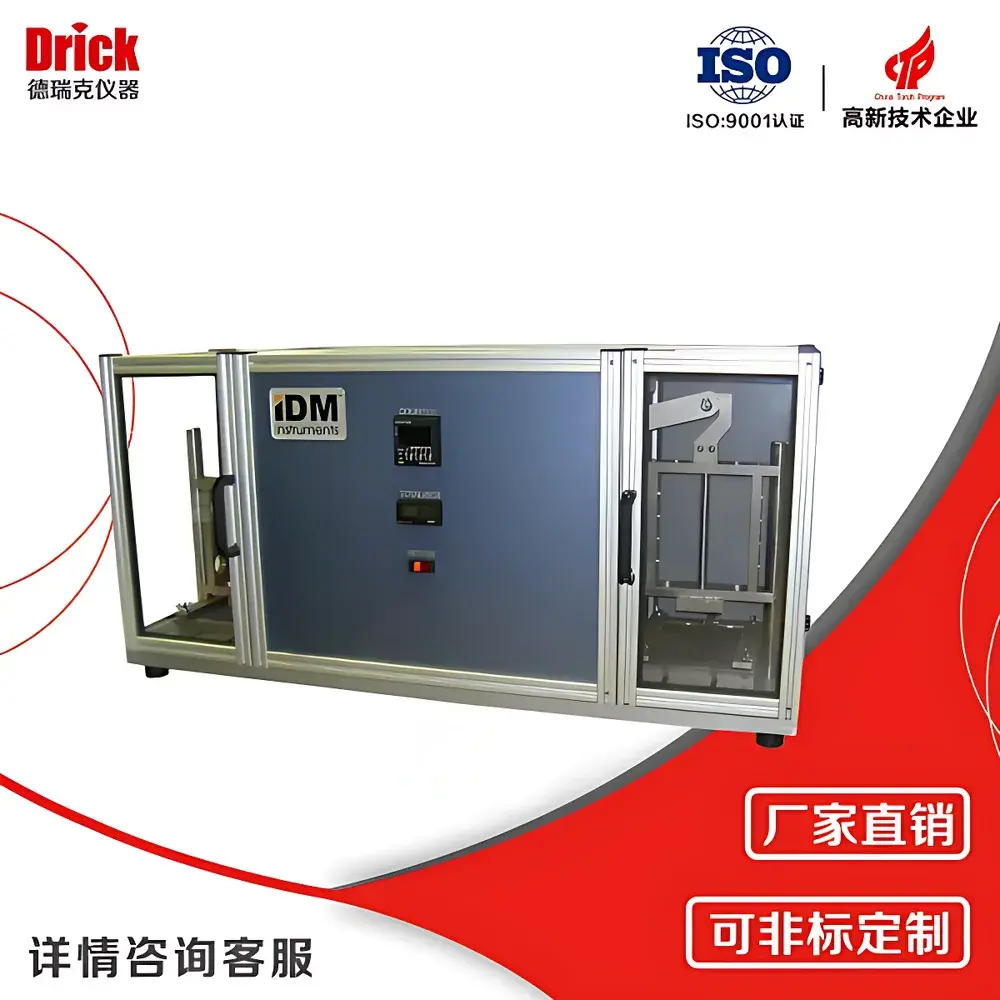

The IDM D0009 Dynamic Load Compression Tester is an electromechanical benchtop instrument engineered to quantify thickness retention performance of tufted and woven floor coverings under repeated compressive loading—simulating real-world foot traffic conditions. It operates on a controlled cyclic compression principle: two vertically actuated, pneumatically driven compression feet apply defined force profiles at fixed frequency and dwell time onto standardized carpet specimens mounted on a rigid, level test platform. The device measures the cumulative reduction in specimen thickness after a predetermined number of compression cycles, providing objective, repeatable data essential for quality assurance, product development, and specification compliance in carpet manufacturing and third-party testing laboratories.

Key Features

• Dual independent compression feet with synchronized vertical motion, ensuring uniform load distribution across the test area per AS/NZS 2111.2:1996 requirements
• Integrated digital cycle counter with reset function, enabling precise tracking of compression repetitions (0–999,999 cycles)
• Modular safety enclosure constructed from impact-resistant polycarbonate, fully enclosing the compression zone while permitting visual monitoring during operation
• Adjustable stroke height and dwell time settings to accommodate varying pile heights and density profiles across residential, commercial, and contract-grade carpets
• Benchtop footprint optimized for integration into ISO 17025-accredited laboratory environments; no external air supply required (self-contained pneumatic system)
• Universal voltage input (110 VAC @ 60 Hz / 220–240 VAC @ 50 Hz) with internal regulation, supporting global deployment without hardware modification
• Rigid aluminum-alloy frame and precision-machined test platform minimizing mechanical drift and ensuring long-term dimensional stability

Sample Compatibility & Compliance

The IDM D0009 is validated for use with homogeneous carpet constructions—including cut-pile, loop-pile, and level-loop variants—where thickness uniformity and structural consistency permit representative sampling per ASTM D1777 and ISO 8503-2 guidelines. For heterogeneous specimens (e.g., multi-level Berber, sculptured frieze, or patterned broadloom), localized testing at discrete zones—defined by pile height, density, or backing composition—is recommended and supported via manual repositioning of the specimen under the compression feet. All test procedures align with the thickness measurement methodology specified in AS/NZS 2111.2:1996 Clause 6.3, requiring pre-conditioning at 23 ± 2 °C and 50 ± 5 % RH for minimum 24 hours prior to initial thickness measurement. The instrument itself does not perform thickness measurement; users must employ a calibrated thickness gauge (e.g., ASTM D1777-compliant dial micrometer with 0.01 mm resolution) before and after cycling to determine thickness loss.

Software & Data Management

The IDM D0009 operates as a standalone hardware system with no embedded microprocessor or proprietary software interface. Cycle count data is displayed locally on an LED counter and retained upon power-down. For traceable quality records, laboratories integrate the instrument into broader data management workflows: cycle parameters (total cycles, dwell time, foot pressure if externally monitored) and pre/post-thickness measurements are manually entered into LIMS or electronic lab notebooks compliant with GLP and ISO/IEC 17025 documentation requirements. Audit trails, calibration logs, and environmental monitoring data (temperature/humidity) must be maintained separately per regulatory expectations—particularly where test reports support FDA-regulated facility flooring validation or LEED-certified interior material submissions.

Applications

• Quality control of residential and commercial carpet batches against thickness retention specifications (e.g., ≥90 % retention after 10,000 cycles)
• Comparative evaluation of backing systems (polypropylene vs. latex vs. PVC) under dynamic compression stress
• Development testing of high-resilience fibers (e.g., nylon 6,6, solution-dyed PET) for contract applications
• Third-party certification testing for Green Label Plus or CRI Seal of Approval programs requiring mechanical durability evidence
• Root-cause analysis of premature pile collapse or backing delamination in field-failure investigations
• Validation of carpet installation methods (e.g., stretch-in vs. tackless strip) through controlled post-installation compression simulation

FAQ

Does the IDM D0009 include a built-in thickness measurement system?
No. Thickness must be measured externally using a calibrated mechanical or digital thickness gauge meeting ASTM D1777 tolerance requirements.
Can the compression force be adjusted or calibrated?
Force is determined by regulated pneumatic pressure and foot geometry; calibration is performed via certified dead-weight verification of applied load per cycle, traceable to NIST standards.
Is the instrument suitable for testing carpet tiles?
Yes—provided individual tiles are rigidly secured to the test platform to prevent lateral movement during compression; edge effects should be minimized by centering the tile under both feet.
What maintenance is required for long-term accuracy?
Monthly inspection of pneumatic seals, quarterly verification of cycle counter accuracy, and annual recalibration of foot alignment and platform flatness per manufacturer’s technical bulletin TB-D0009-REV3.
Does the unit meet CE or UKCA marking requirements?
The IDM D0009 complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions); CE marking requires end-user responsibility for full conformity assessment under Machinery Directive 2006/42/EC, including risk analysis and technical file compilation.
