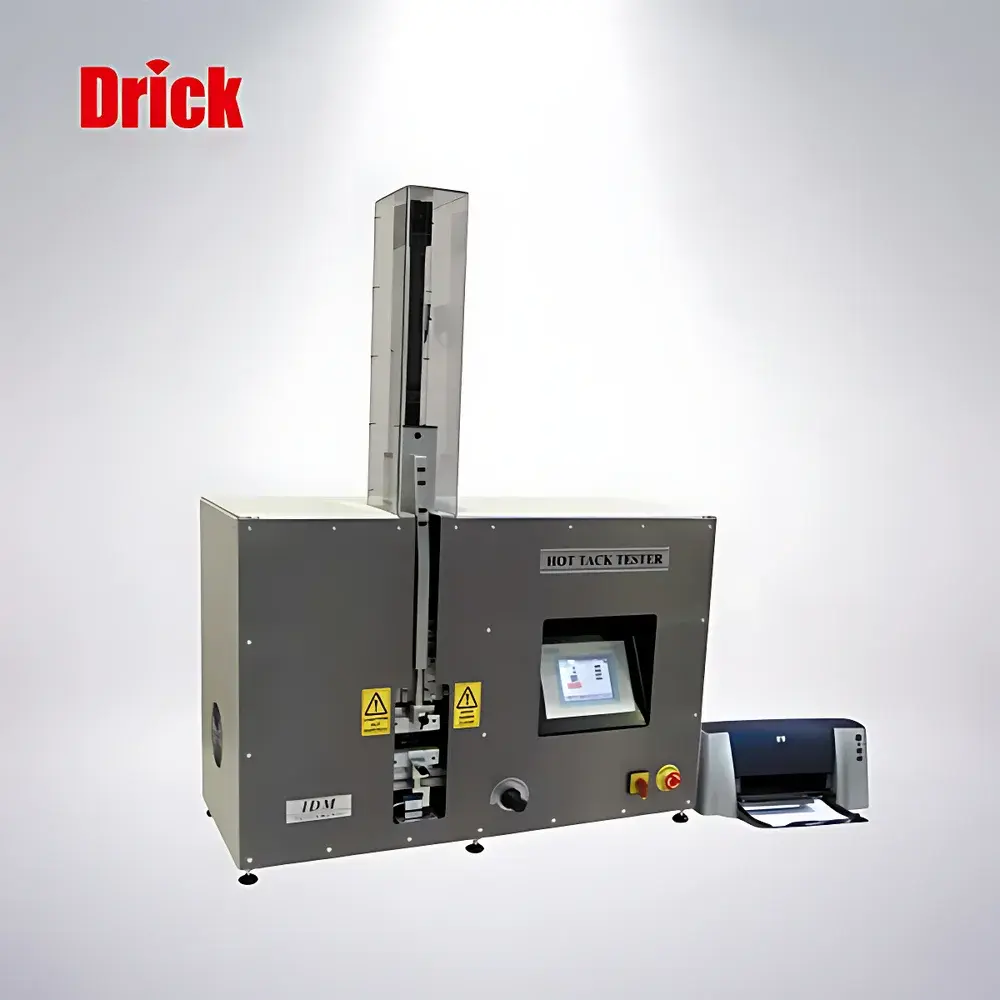

IDM H0005 Thermal Seal & Hot Tack Tester

Overview

The IDM H0005 Thermal Seal & Hot Tack Tester is an engineered instrumentation platform designed for quantitative evaluation of seal integrity and hot tack strength in flexible packaging materials under controlled thermal, mechanical, and temporal conditions. It operates on the fundamental principle of thermomechanical adhesion assessment: a sample is subjected to precisely defined sealing temperature, pressure, and dwell time to form an initial heat seal; immediately thereafter—within milliseconds—the freshly sealed interface is subjected to peel separation at a programmable rate while force is continuously measured. This methodology directly reflects real-world packaging line dynamics where seals must retain structural integrity during high-speed filling, handling, and downstream processing before full cooling and polymer chain relaxation occur. The system complies with internationally recognized test standards—including ASTM F1921 (hot tack strength of thermoplastic films) and ASTM F2029 (seal strength of flexible barrier materials)—ensuring data comparability across global R&D, QC, and regulatory validation workflows.

Key Features

• High-resolution thermal control: PID-regulated sealing jaws with ±0.2 °C setpoint accuracy and 0.1 °C digital resolution across a 20–200 °C range
• Programmable pneumatic actuation: Sealing pressure adjustable from 115.0 to 530.0 kPa with calibrated feedback; dwell time configurable in 1-ms increments (100–32,000 ms)
• Dynamic peel measurement: Dual-range load cell (up to 222 N / 50 lbf) synchronized with motor-driven peel stage operating at 4–800 mm/s
• Full environmental monitoring: Integrated sensors log ambient temperature and relative humidity prior to each test cycle—critical for ISO/IEC 17025-compliant reporting
• Windows CE-based embedded OS with 7-inch color capacitive touchscreen: Supports password-protected calibration access, user-defined test templates, and real-time graphical display of force vs. time profiles
• Fail-safe architecture: Dual mechanical interlocks, thermal cut-off at 220 °C, automatic shutdown after 10 minutes of inactivity, and emergency stop circuit meeting IEC 60204-1 requirements
• Seven standardized failure mode classification: Operators select from cohesive, adhesive, seal creep, edge lift, substrate tear, seal split, or mixed-mode failure—enabling root-cause analysis per ASTM F88 Annex A3

Sample Compatibility & Compliance

The H0005 accommodates a broad spectrum of soft-packaging substrates including laminated films (e.g., PET/AL/PE, OPP/CPP), monolayer thermoplastics (LDPE, HDPE, PP), coated papers, foil composites, pressure-sensitive label stocks, and adhesive tapes. Its 100 × 5 mm PTFE-coated sealing jaw ensures uniform thermal transfer and minimizes sticking during high-temperature testing. All test protocols align with ASTM F1921 (for hot tack) and ASTM F2029 (for seal strength), supporting GLP/GMP documentation needs. Environmental parameters (temperature, humidity) are automatically timestamped and stored with each result, satisfying FDA 21 CFR Part 11 audit-trail requirements when paired with validated software configuration. Optional RS232 serial output enables integration into LIMS or MES platforms for automated data ingestion.

Software & Data Management

The embedded Windows CE interface provides full test parameter definition—including operator ID, sample thickness, seal width, cooling delay, and peel geometry—prior to execution. Each test generates a force–displacement curve with peak hot tack value, average seal strength, and energy-to-failure metrics. Historical results are browsable by date, operator, or batch ID via the “Cycle History” screen. Reports can be exported in CSV format or printed directly via optional inkjet module. All system settings—including calibration coefficients, sensor offsets, and alarm thresholds—are protected behind multi-level password authentication. Audit logs record every calibration event, parameter change, and user login—meeting ISO/IEC 17025 clause 7.7 traceability mandates.

Applications

• Optimization of heat seal parameters (T, P, t) for vertical/horizontal form-fill-seal (VFFS/HFFS) packaging lines
• Comparative evaluation of sealant layer formulations (e.g., EVA vs. ionomer vs. metallocene PE)
• Validation of shelf-life stability under accelerated aging conditions (e.g., post-heat seal strength retention at elevated RH)
• Adhesive compatibility screening for multi-material laminates subject to thermal stress
• Supplier qualification testing against internal specifications or customer-facing standards (e.g., Nestlé Packaging Guidelines, Unilever Global Packaging Standards)
• Root-cause investigation of seal failures observed during distribution simulation (ISTA 3A/3E)

FAQ

What standards does the H0005 comply with?
ASTM F1921 (Hot Tack Strength of Thermoplastic Films) and ASTM F2029 (Seal Strength of Flexible Barrier Materials) are fully supported. Optional firmware upgrades may extend compliance to ISO 11607-2 and DIN 55440-2 upon request.
Can the instrument operate on 220 V / 60 Hz power?
Yes—custom voltage and frequency configurations (including 220 V AC @ 60 Hz) are available as factory-installed options; standard configuration is 415 V AC, 3-phase, 50 Hz.
Is environmental data (temperature/humidity) logged with each test result?
Yes—integrated sensors capture ambient temperature and relative humidity immediately before test initiation; values are embedded in raw data files and exported reports.
How is calibration traceability maintained?
Load cell and temperature sensors are calibrated using NIST-traceable reference standards. Calibration certificates include uncertainty budgets and are valid for 12 months under normal use conditions.
Does the system support 21 CFR Part 11 compliance?
When deployed with validated software configuration, electronic signatures, and audit-trail-enabled reporting modules, the H0005 meets core technical requirements for Part 11 compliance in regulated pharmaceutical and medical device packaging environments.
