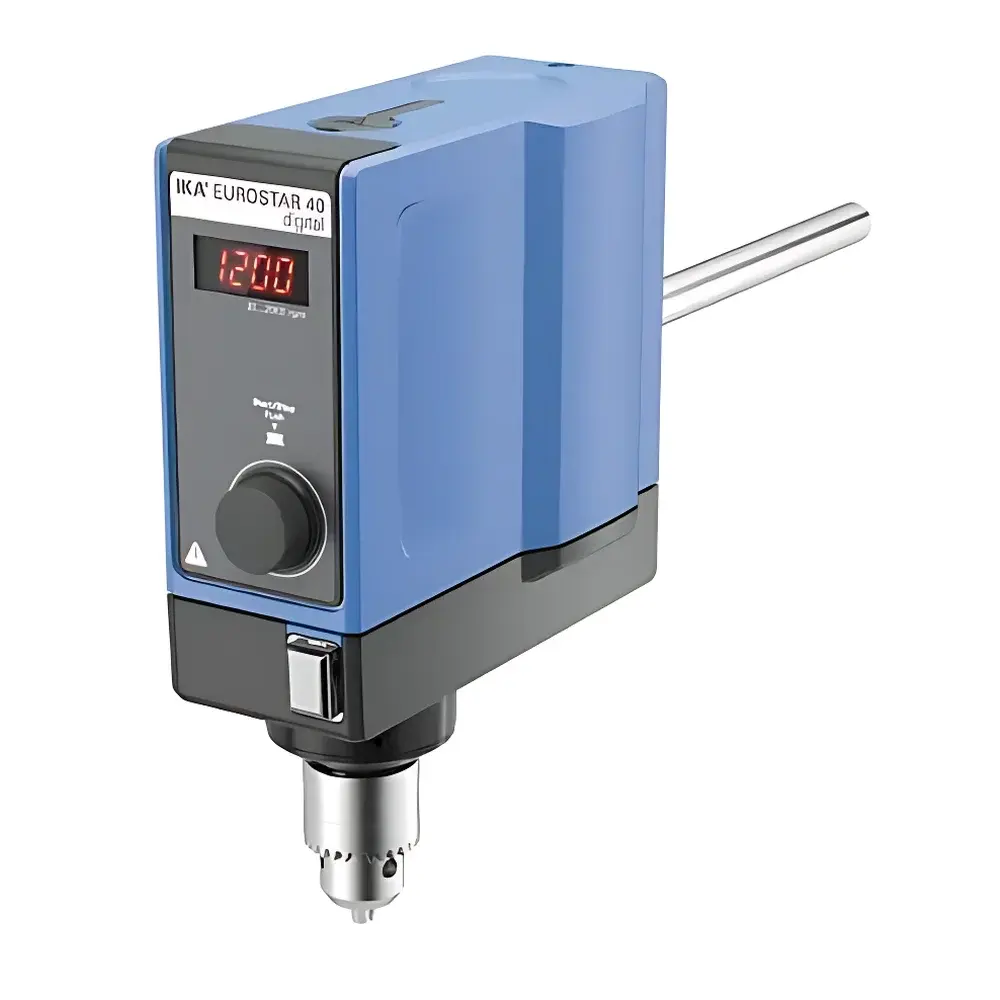

IKA Eurostar 40 Digital Overhead Stirrer

Overview

The IKA Eurostar 40 Digital is a precision-engineered overhead stirrer designed for consistent, reliable mixing in academic, pharmaceutical, and industrial laboratory environments. Based on brushless DC motor technology, it delivers high torque stability and long-term operational integrity without carbon brush wear or associated maintenance. Its core operating principle relies on closed-loop speed control: an integrated microprocessor continuously compares actual shaft rotation (measured via back-EMF sensing) against the user-defined setpoint and dynamically adjusts power delivery to maintain target speed—regardless of viscosity fluctuations or load variations. This ensures reproducible shear conditions critical for formulation development, suspension homogenization, and reaction kinetics studies. With a maximum torque output of 40 N·cm and capability to handle viscosities up to 30,000 mPa·s, the Eurostar 40 Digital supports demanding applications involving non-Newtonian fluids, pastes, and particle-laden suspensions.

Key Features

• Brushless DC motor architecture enabling 100% continuous duty cycle operation with minimal thermal drift and zero brush replacement requirements
• Microprocessor-based closed-loop speed regulation with real-time deviation correction—ensuring ±1 rpm accuracy above 300 rpm and ±1% below
• Hollow stainless-steel stirring shaft (11 mm internal diameter) allowing integration of temperature probes, pH electrodes, or dosing lines during active mixing
• Integrated safety circuitry that automatically halts operation upon motor stall, thermal overload, or electrical fault—compliant with EN 61000-6-2 and EN 61000-6-4 EMC standards
• LED 7-segment digital display providing clear, glare-resistant readout of actual speed under ambient lab lighting conditions
• Ergonomic cast aluminum housing with thermoplastic polymer overmold—offering mechanical robustness, chemical resistance, and low-noise operation (<55 dB(A) at 1 m)
• Universal chuck system accommodating stirring elements from 0.5 mm to 10 mm diameter, compatible with standard IKA and third-party impellers and anchors

Sample Compatibility & Compliance

The Eurostar 40 Digital is validated for use with aqueous, organic, and semi-solid media across ISO 8573-1 clean air classifications and meets general laboratory safety requirements per DIN EN 61010-1. While not certified for explosion-proof (ATEX) or cleanroom (ISO 14644-1 Class 5+) environments, its sealed motor housing and IP40 ingress protection provide adequate dust resistance for standard analytical and QC labs. It supports GLP-compliant workflows when paired with calibrated torque sensors or external data loggers, though native audit trail functionality requires integration via optional analog output modules (not included). The device conforms to RoHS Directive 2011/65/EU and WEEE Directive 2012/19/EU for material content and end-of-life handling.

Software & Data Management

This standalone unit operates without proprietary software or driver dependencies. All parameters—including speed setpoint, real-time RPM, error codes (e.g., E01 = overload, E02 = sensor fault), and operational status—are accessible directly via front-panel interface. For traceable documentation, users may connect external USB data loggers or RS-232-enabled chart recorders (via optional IKA Labworldsoft-compatible adapters). While the Eurostar 40 Digital does not support FDA 21 CFR Part 11 electronic signature or built-in audit trails, its deterministic behavior and repeatable speed response make it suitable for SOP-driven processes where manual logging or LIMS-integrated capture is employed.

Applications

• Homogenization of polymer solutions, colloidal dispersions, and ceramic slurries in R&D scale-up studies
• Controlled agitation during titration, crystallization, and enzymatic reaction monitoring
• Preparation of calibration standards and reference materials requiring precise shear history
• Mixing of viscous pharmaceutical excipients (e.g., hydroxypropyl methylcellulose gels) prior to lyophilization or tablet compression trials
• Sustained stirring of microbial culture media in bioprocess development workflows
• Integration into automated reactor systems via mechanical mounting on IKA RH basic or LR 1000 control stands

FAQ

Is the Eurostar 40 Digital compatible with glass reactor vessels?

Yes—it is routinely used with jacketed glass reactors (up to 5 L nominal volume) when mounted on IKA’s standard extension arms or custom clamping fixtures. Ensure shaft alignment and avoid lateral loading exceeding 5 N.
Can it be operated in inert atmospheres (e.g., nitrogen gloveboxes)?

The unit is not rated for inert gas environments; its ventilation design assumes ambient air cooling. Operation inside sealed gloveboxes requires external motor placement and magnetic coupling—consult IKA Application Engineering for retrofit options.
Does it support bidirectional rotation?

No—this model operates in fixed clockwise rotation only, as defined by IEC 60034-1 rotational direction conventions for laboratory stirrers.
What maintenance intervals are recommended?

No scheduled maintenance is required beyond periodic visual inspection of chuck integrity and cleaning of heat sinks. Brushless motor lifetime exceeds 20,000 hours under typical lab usage profiles.
How is overload recovery handled after automatic shutdown?

After thermal or stall-induced shutdown, the unit enters a 60-second cooldown lockout before accepting new speed commands—preventing thermal cycling damage to power electronics.
