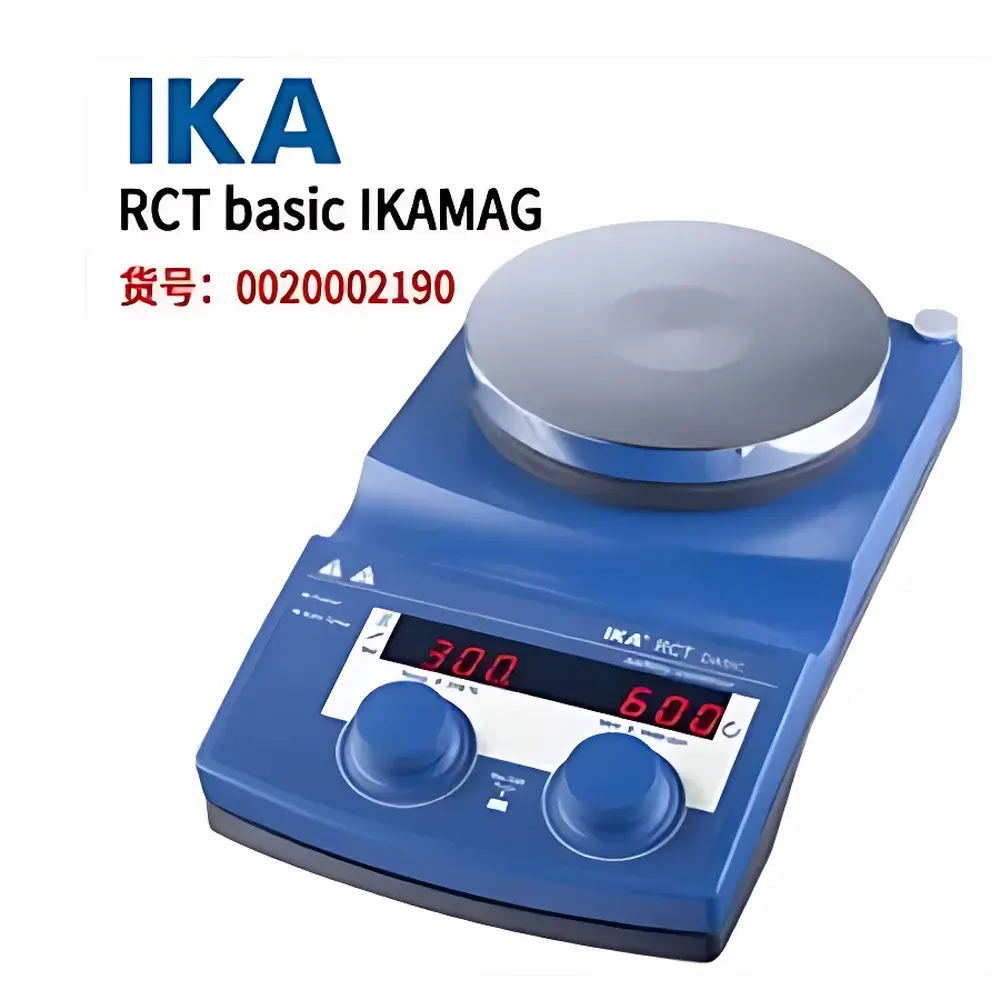

IKA RCT basic Magnetic Stirrer

Overview

The IKA RCT basic Magnetic Stirrer is an engineered solution for reliable, temperature-controlled magnetic stirring in academic, industrial, and quality control laboratories. Based on IKA’s globally recognized 48-year design heritage, this model implements a robust permanent magnet drive system coupled with a precision-heating ceramic plate. It operates on the principle of rotating magnetic field induction: a motor-driven internal magnet array generates a time-varying magnetic field that couples with ferromagnetic or PTFE-coated stir bars placed inside reaction vessels, enabling contactless torque transmission. This configuration eliminates mechanical shaft seals, minimizes contamination risk, and ensures high reproducibility across batch-to-batch mixing operations—particularly critical in applications requiring strict thermal homogeneity and shear-sensitive sample handling.

Key Features

• Stable ceramic heating plate with uniform heat distribution and rapid thermal response, rated for continuous operation up to 310 °C surface temperature
• Digital speed control with real-time RPM feedback and adjustable acceleration ramping to prevent vortex instability during startup
• Integrated Pt1000 resistance temperature detector (RTD) input port supporting external probe-based closed-loop temperature regulation (±0.5 °C accuracy typical)
• Intuitive rotary encoder interface with LED display showing simultaneous speed and temperature values
• Overheat protection circuitry compliant with IEC 61000-6-3 and EN 61326-1 electromagnetic compatibility standards
• Robust aluminum housing with chemical-resistant powder coating and non-slip rubber feet for stable placement on benchtops

Sample Compatibility & Compliance

The RCT basic accommodates standard laboratory glassware including round-bottom flasks (up to 5 L), beakers (up to 20 L), and jacketed reactors. Its open-platform design allows unrestricted access for pH electrodes, condensers, or gas inlets. The unit meets essential safety and performance requirements for general-purpose lab use under ISO/IEC 17025-accredited environments. While not certified for explosion-proof or Class I Div 1 hazardous locations, it complies with CE marking directives (2014/30/EU EMC Directive and 2014/35/EU Low Voltage Directive). For GLP/GMP workflows, audit trails can be maintained manually via logbook entries; optional RS232 output enables connection to external data loggers compatible with FDA 21 CFR Part 11–compliant systems when paired with validated third-party software.

Software & Data Management

The RCT basic operates as a standalone analog-digital hybrid instrument without embedded firmware-based data logging. All operational parameters—including setpoints, actual RPM, and measured temperature—are displayed locally but not stored internally. For traceable process documentation, users may connect the device’s RS232 serial interface (via optional IKA LabWorld Software or generic terminal emulators) to capture time-stamped parameter streams. Exported ASCII-formatted logs support integration into LIMS platforms or Excel-based QA/QC reporting templates. No cloud connectivity or proprietary drivers are required; communication follows standard ASCII command protocol (e.g., “SPEED?” returns current RPM as integer value).

Applications

• Preparation of homogeneous buffer solutions and reagent stocks in molecular biology and clinical diagnostics labs
• Controlled dissolution testing of pharmaceutical excipients and active ingredients per USP guidelines
• Viscosity stabilization of polymer emulsions and nanoparticle suspensions in materials science R&D
• Heating-assisted extraction of plant metabolites in natural product chemistry workflows
• Standardized mixing protocols in ISO 17025-certified environmental testing laboratories performing soil leachate analysis

FAQ

Is the RCT basic suitable for viscous samples such as glycerol or silicone oil?
Yes—its high-torque motor delivers consistent rotation up to 1500 rpm even at elevated temperatures, though optimal performance requires appropriate stir bar geometry (e.g., cross-shaped or fleur-de-lis designs) and vessel geometry matching.
Can the unit maintain ±1 °C temperature stability during extended runs?
With a calibrated Pt1000 probe immersed in the medium and proper insulation, typical thermal stability is ±0.8 °C over 4-hour intervals under static load conditions.
Does IKA provide calibration certificates for this model?
No factory-issued NIST-traceable calibration certificate is included; however, the device supports third-party calibration using standard thermocouple simulators and tachometer verification tools.
What is the expected service life under daily 8-hour operation?
Based on IKA’s MTBF data for legacy RCT platforms, mean time between failures exceeds 25,000 operating hours when used within specified ambient conditions (15–30 °C, <80% RH, non-corrosive atmosphere).
Are replacement parts like heating plates or control boards available globally?
Yes—genuine IKA spare parts (e.g., ceramic plate assembly 0003547900, control board 0003548000) are distributed through authorized service centers in North America, EMEA, and APAC regions.
