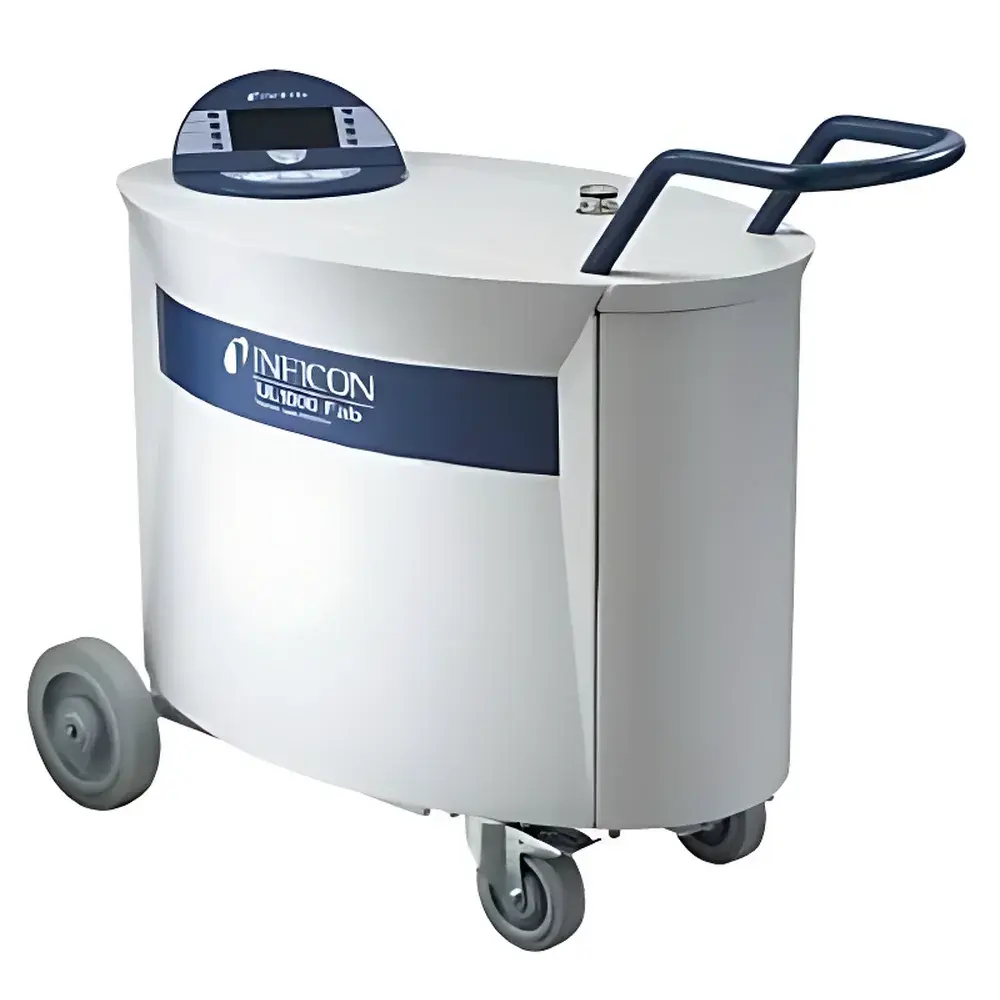

Inficon UL1000FAB Helium Leak Detector
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | UL1000 FAB |
| Pricing | Upon Request |
Overview
The Inficon UL1000FAB Helium Leak Detector is a high-performance, mobile mass spectrometer-based leak detection system engineered for ultra-high-sensitivity quantitative leak measurement in demanding semiconductor manufacturing and precision vacuum environments. Utilizing quadrupole mass spectrometry with helium (4He) as the tracer gas, the UL1000FAB operates on the principle of ion separation by mass-to-charge ratio under controlled vacuum conditions. Its optimized vacuum architecture—integrating a robust dry scroll pump and a multi-inlet turbomolecular pump—enables rapid helium throughput and exceptional compression ratios across the full operational pressure range. This configuration delivers a verified minimum detectable leak rate of < 5 × 10−12 mbar·L/s, establishing it among the most sensitive portable helium leak detectors commercially available for cleanroom-integrated process validation and preventive maintenance.
Key Features
- 15-decade wide dynamic measurement range (from 10−12 to 10−1 mbar·L/s), enabling seamless transition from ultra-fine leak screening to gross leak verification
- I-CAL (Intelligent Calibration Algorithm) software — dynamically adjusts integration time and signal processing parameters in real time to eliminate traditional response lag at low-leak-rate thresholds
- Integrated dual-filament ion source with 3-year warranty — ensures extended mean time between failures (MTBF) and reduced scheduled maintenance intervals
- Self-protective inlet design with automatic particle filtration and helium purge cycle — prevents contamination of the mass filter and ion optics during high-helium-background operation
- 3.5-inch full-color capacitive touchscreen with rotatable UI — supports ergonomic operation in confined tooling spaces and inverted mounting orientations
- Smart vacuum architecture featuring active pressure regulation and adaptive pump speed control — maintains optimal ion source pressure regardless of external backpressure fluctuations
- Built-in calibrated leak standard (1 × 10−9 mbar·L/s He) for on-site performance verification per ISO 9001 and ISO/IEC 17025 internal audit requirements
Sample Compatibility & Compliance
The UL1000FAB is designed for compatibility with sealed microelectronic packages, MEMS devices, vacuum feedthroughs, gas delivery manifolds, and process chamber components commonly encountered in front-end semiconductor fabrication. It meets functional requirements specified in MIL-STD-883 Method 1014 (Fine and Gross Leak Testing) and supports test protocols aligned with SEMI E10 (Specification for Definition and Measurement of Equipment Reliability, Availability, and Maintainability). Its all-metal, non-outgassing housing and helium-compatible internal surfaces comply with Class 100 cleanroom handling standards. The system’s firmware architecture supports audit trail logging and user-access-level controls required for GLP and GMP-regulated environments under FDA 21 CFR Part 11 compliance when integrated with validated networked data management systems.
Software & Data Management
The UL1000FAB runs on Inficon’s proprietary embedded operating system with menu-driven navigation and context-sensitive help. Core software functions include “Auto-Leak Test” mode for repeatable TC1000 test chamber integration, zero suppression with auto-compensation for background drift, and programmable integration time adaptation based on real-time signal-to-noise ratio estimation. Firmware updates are delivered via encrypted email attachment and installed through the onboard USB port or optional Ethernet interface. All measurement records—including timestamp, operator ID, test parameters, raw ion current values, and pass/fail flags—are stored internally with configurable export to CSV or XML formats. Optional PC-based Inficon LeakWare software enables centralized fleet monitoring, statistical process control (SPC) charting, and report generation compliant with ISO/IEC 17025 documentation requirements.
Applications
- Preventive maintenance and fault isolation on semiconductor process tools (e.g., CVD, PECVD, etch, and implant systems)
- Qualification and acceptance testing of gas distribution panels, abatement systems, and ultra-high-purity (UHP) piping networks
- In-line leak verification of hermetically sealed optoelectronic components (laser diodes, photodetectors, quartz resonators)
- Final QA screening of wafer-level packaging (WLP) and fan-out wafer-level packaging (FOWLP) assemblies
- Leak integrity validation of vacuum load locks, transfer chambers, and robotic end-effectors in cluster tool configurations
- Support for ASTM E493 (Standard Practice for Leaks Using the Mass Spectrometer Leak Detector in the Probe Mode) and ASTM E1514 (Standard Test Method for Determining Sensitivity of Helium Mass Spectrometer Leak Detectors)
FAQ
What is the minimum detectable leak rate (MDLR) of the UL1000FAB under standard operating conditions?
The UL1000FAB achieves a verified MDLR of < 5 × 10−12 mbar·L/s when operated with optimal helium introduction and stabilized vacuum conditions per Inficon Technical Note TN-UL1000-002.
Does the UL1000FAB support remote operation in Class 100 cleanrooms?
Yes — the optional RC1000WL wireless remote controller provides secure bidirectional communication up to 100 meters line-of-sight, with IP54-rated enclosure and 8+ hours of continuous battery life.
How frequently must the built-in calibration leak be verified?
Per ISO/IEC 17025 Clause 6.6, internal calibration verification is recommended before each shift or after any maintenance affecting vacuum integrity; full recalibration by an accredited service lab is advised annually.
Is the UL1000FAB compatible with automated test fixtures such as the TC1000?
Yes — the “Auto-Leak Test” software module provides deterministic trigger sequencing, pressure ramp control, and pass/fail logic execution when interfaced with the TC1000 test chamber via digital I/O or RS-232.
What vacuum pump maintenance is required for sustained sensitivity?
The dry scroll pump requires oil-free operation with periodic inlet filter replacement (every 6 months under typical use); the turbomolecular pump has no scheduled maintenance but benefits from annual vibration analysis and bearing health assessment.
