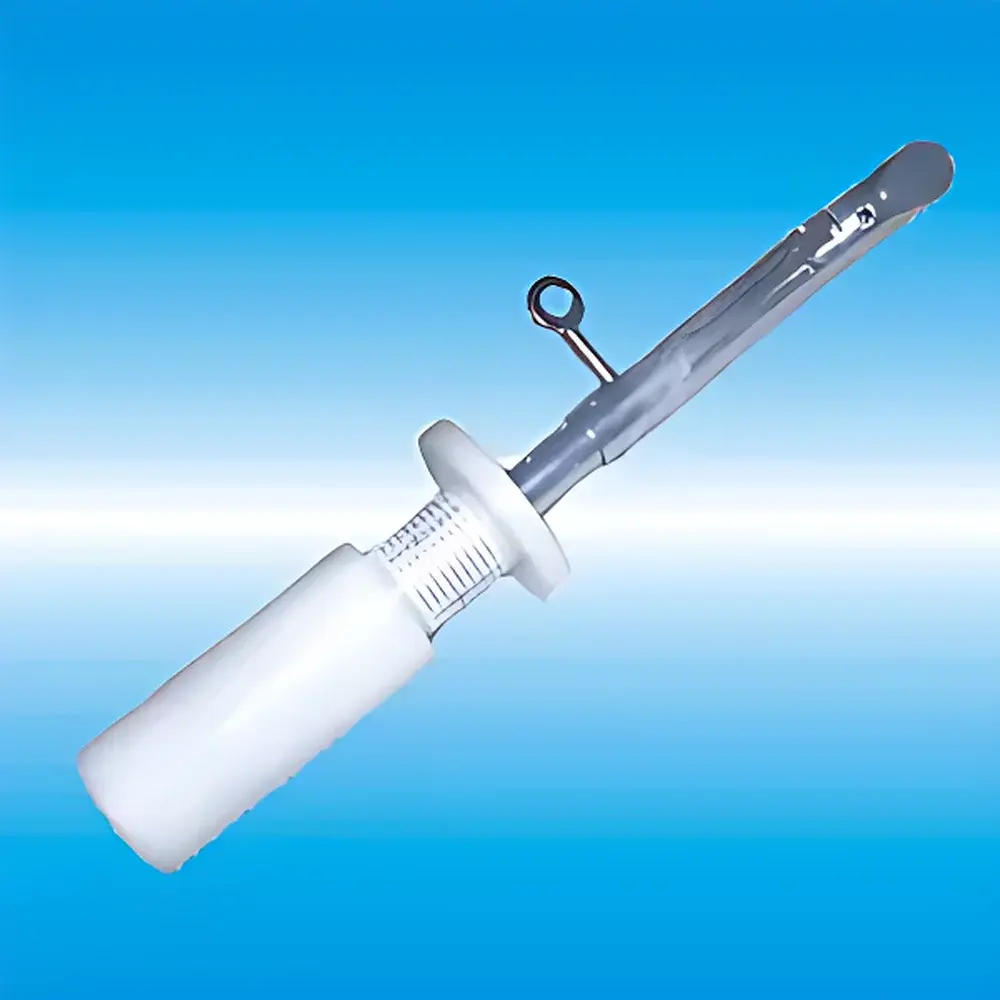

Insment KS-A15 IEC/UL Standard Test Finger Probe

Overview

The Insment KS-A15 IEC/UL Standard Test Finger Probe is a precision-engineered mechanical access simulator designed to verify compliance with the minimum ingress protection requirements defined in international safety standards for electrical equipment. Based on the dimensional and mechanical specifications outlined in IEC 61032 Figure 4 (Test Finger), this probe replicates the dimensions, flexibility, and force application characteristics of an adult human finger — specifically intended to assess whether hazardous parts (e.g., live conductors, moving components, or uninsulated terminals) are adequately guarded against inadvertent contact during normal use. The device operates under controlled static loading conditions at discrete force levels (10 N, 20 N, and 30 N), enabling standardized evaluation of enclosure integrity, clearance distances, and barrier effectiveness in accordance with GB 4706.1, GB 2099.1, IEC 60335-1, UL 60335-1, IEC 62368-1, and related regulatory frameworks. Its function is strictly mechanical and non-electrical; no power supply or data output is required. It serves as a fundamental physical verification tool within safety laboratories, third-party certification bodies, and in-house QA/QC departments conducting pre-compliance and type-testing of household appliances, industrial control panels, lighting fixtures, and power distribution units.

Key Features

• Three-segment articulated construction (tip, middle phalanx, base mount) replicating anatomical joint articulation per IEC 61032 Fig. 4, ensuring realistic angular deflection during probing.
• Calibrated spring-loaded force application mechanism enabling repeatable and traceable application of 10 N, 20 N, or 30 N — compliant with IEC 60335-1 Clause 8.1 and UL 60335-1 Section 8.
• High-strength engineering polymer body with abrasion-resistant surface finish, maintaining dimensional stability across repeated thermal and mechanical cycling (operating temperature range: −10 °C to +40 °C).
• Modular assembly allows for individual component replacement and periodic calibration verification without full unit replacement.
• Supplied with ISO/IEC 17025–traceable calibration certificate (optional upon request), documenting dimensional conformity and force accuracy against national metrology standards.

Sample Compatibility & Compliance

The KS-A15 probe is compatible with all enclosures, housings, grilles, and barriers intended for Class I and Class II electrical equipment rated up to 1000 V AC/1500 V DC. It is routinely deployed in testing scenarios involving appliance control panels, socket-outlet assemblies, junction boxes, motor terminal covers, and HVAC system access doors. Compliance verification includes IP2X (protection against finger access) and IPXXB (protection against access with a hinged test finger), as defined in IEC 60529. The probe satisfies mandatory requirements under China’s CCC certification scheme, EU CE marking directives (Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU), and North American NRTL recognition pathways (UL, CSA, MET). All testing procedures conducted using the KS-A15 align with documented GLP practices and support audit readiness for ISO/IEC 17025-accredited laboratories.

Software & Data Management

As a purely mechanical, non-instrumented test probe, the KS-A15 does not incorporate embedded electronics, sensors, or software interfaces. However, its use is fully integrated into digital test management workflows via compatibility with industry-standard laboratory information management systems (LIMS) such as LabWare LIMS, Thermo Fisher SampleManager, and Siemens STARLIMS. Test operators record probe application parameters (force level, dwell time, entry angle, pass/fail outcome) directly into structured test reports aligned with ASTM E1447, ISO/IEC 17025 Clause 7.8, and FDA 21 CFR Part 11–compliant electronic signature protocols. Calibration history, usage logs, and maintenance records can be maintained in accordance with ISO 9001:2015 Clause 7.1.5 and IEC 61000-4-2 test documentation requirements.

Applications

• Verification of enclosure protection levels for household and similar electrical appliances (e.g., refrigerators, washing machines, microwaves).
• Pre-compliance screening of industrial control cabinets prior to third-party certification (TUV Rheinland, SGS, UL, Intertek).
• Design validation of child-resistant mechanisms and tamper-proof access panels in medical devices (IEC 60601-1 Annex D).
• Quality assurance audits for OEMs supplying to global electronics manufacturers requiring adherence to multiple regional safety standards (GB, IEC, UL, EN).
• Training and competency assessment for safety engineers and laboratory technicians in accredited testing facilities.

FAQ

Is the KS-A15 probe certified to any international calibration standard?
Yes — optional calibration is performed in accordance with ISO/IEC 17025 by an accredited metrology laboratory, with traceability to NIM (National Institute of Metrology, China) or NIST (USA) primary standards.
Can the probe be used for IP4X or higher-level ingress testing?
No — the KS-A15 is dimensionally and functionally specific to IP2X/IPXXB evaluation. IP4X requires use of a 1.0 mm diameter test wire (IEC 61032 Fig. 6), which is not supported by this device.
What is the recommended recalibration interval?
Insment recommends annual calibration or after 5,000 actuation cycles, whichever occurs first, to ensure continued dimensional fidelity and force accuracy.
Does the probe include documentation for regulatory submissions?
Yes — standard delivery includes a Declaration of Conformity, dimensional inspection report, and material certification. Additional technical files (DoC, EU Type Examination Report templates) are available upon request for CE/UKCA submission support.
Is the KS-A15 suitable for high-humidity or saline environments?
The probe housing is resistant to incidental moisture exposure but is not rated for continuous immersion or corrosive atmospheres; storage in climate-controlled laboratory conditions (≤60% RH) is advised to preserve long-term dimensional stability.
