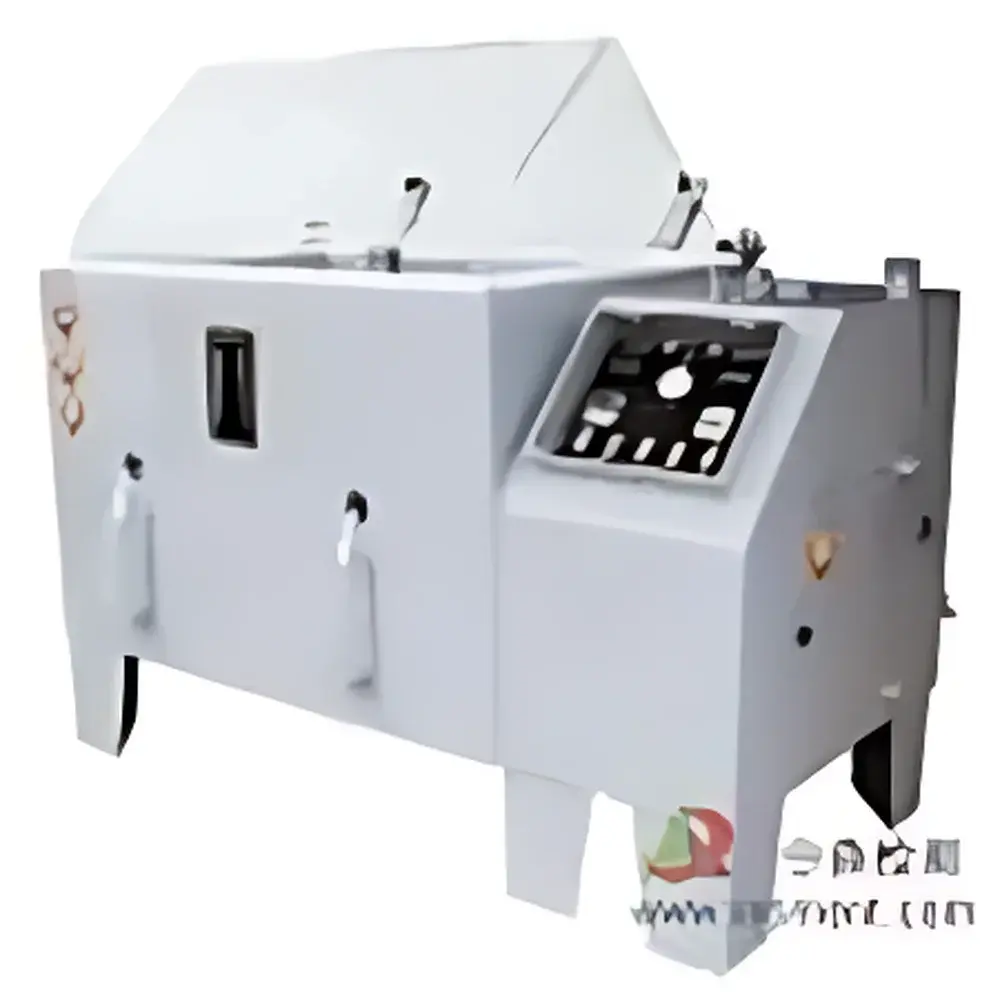

Insment KS-YW160 Advanced Salt Spray Test Chamber

Overview

The Insment KS-YW160 Advanced Salt Spray Test Chamber is a large-capacity, precision-engineered environmental test system designed for accelerated corrosion evaluation of metallic and coated materials under controlled saline atmospheric conditions. Based on the fundamental principle of electrochemical corrosion acceleration—where chloride ion exposure in a humid, elevated-temperature environment promotes anodic dissolution and cathodic oxygen reduction—the KS-YW160 replicates aggressive service environments to assess coating integrity, material passivation, galvanic compatibility, and long-term durability. It supports standardized neutral salt spray (NSS), acetic acid salt spray (AASS), and copper-accelerated acetic acid salt spray (CASS) testing protocols per internationally recognized specifications including ASTM B117, ISO 9227, JIS Z2371, GB/T 2423.17, and GJB 150.11A. Its chamber volume (96 L) and robust thermal-spray coupling architecture enable reproducible, statistically valid corrosion data generation for R&D validation, QC release testing, and supplier qualification across aerospace, automotive, electronics, marine, and defense sectors.

Key Features

• High-stability dual-zone temperature control: independent regulation of test chamber (±1°C tolerance) and saturated air tank ensures precise thermodynamic equilibrium required for compliant salt fog generation.
• Pyrex® precision glass nozzles combined with conical dispersion technology deliver uniform, non-crystallizing mist distribution—critical for eliminating localized over-saturation and ensuring consistent corrosion morphology across sample surfaces.
• Corrosion-resistant chamber construction using imported high-grade PVC, PP, and polycarbonate panels guarantees structural longevity and optical clarity for real-time visual monitoring without degradation.
• Microprocessor-based PID controller with LED interface offers ±0.1°C temperature accuracy, programmable test duration (1 sec to 999 hours), and cycle timing functionality for multi-phase corrosion protocols.
• Integrated salt solution pre-heating circuit maintains thermal parity between brine feed and chamber ambient—preventing condensation-induced temperature lag and ensuring immediate steady-state operation upon test initiation.
• Comprehensive safety suite includes dry-run detection, over-temperature cutoff, leakage current protection, over-current relay, and non-volatile controller memory to preserve test parameters during unexpected power interruption.

Sample Compatibility & Compliance

The KS-YW160 accommodates diverse specimen geometries—including flat panels, fasteners, electronic enclosures, printed circuit boards, and assembled subassemblies—via adjustable V-shaped and cylindrical sample racks (standard configuration). All internal fixtures are fabricated from stainless steel, brass, or high-temperature polymer to eliminate cross-contamination. The system meets the physical and operational requirements of ISO/IEC 17025-accredited laboratories and supports full traceability for GLP/GMP-regulated testing. It is fully compatible with ASTM B117’s mandated 1–2 mL/80 cm²/h salt deposition rate verification using standardized funnels and graduated cylinders. Optional accessories include humidity calibration kits, pH-controlled brine dispensers, and automated solution replenishment modules for unattended extended-duration tests.

Software & Data Management

While the base KS-YW160 operates via standalone microcontroller interface, optional RS485/Modbus RTU communication enables integration with laboratory information management systems (LIMS) or SCADA platforms. Real-time temperature and runtime data can be logged externally for audit-ready reporting. The system architecture complies with FDA 21 CFR Part 11 principles when paired with validated third-party data acquisition software—supporting electronic signatures, audit trails, and user access controls. All calibration records, maintenance logs, and test reports adhere to ISO 17025 documentation hierarchy requirements.

Applications

• Validation of electroplated, anodized, and organic-coated metal substrates per automotive OEM specifications (e.g., GMW14872, Ford CETP).
• Comparative evaluation of corrosion inhibitors and surface conversion coatings in industrial fastener manufacturing.
• Reliability screening of printed wiring assemblies (PWAs) and conformal-coated electronics prior to field deployment.
• Accelerated aging assessment of marine-grade alloys (e.g., 316 stainless, aluminum 5052) under simulated coastal exposure.
• Supporting MIL-STD-810H Method 509.6 and DEF STAN 00-35 Part 3 corrosion resistance verification for defense procurement.

FAQ

What international standards does the KS-YW160 support out-of-the-box?
ASTM B117, ISO 9227, JIS Z2371, GB/T 2423.17, and GJB 150.11A—all verified via factory-installed calibration certificates and operational validation reports.
Can the chamber perform cyclic salt spray testing?
Yes—programmable timer allows sequential execution of salt spray, drying, and humidification phases when integrated with optional external climate modules.
Is the PYREX® nozzle supplied as standard equipment?
Yes, two calibrated PYREX® glass nozzles are included in the standard configuration, along with two calibrated collection funnels and measuring cylinders.
What is the maximum continuous operating time without manual intervention?
Up to 999 hours (≈41 days) with uninterrupted power and adequate brine supply; automatic low-level detection triggers audible/visual alerts.
Does the system require water purification for brine preparation?
Deionized or distilled water (conductivity ≤5 µS/cm) is mandatory to prevent nozzle clogging and ensure compliance with ASTM B117 purity requirements.
