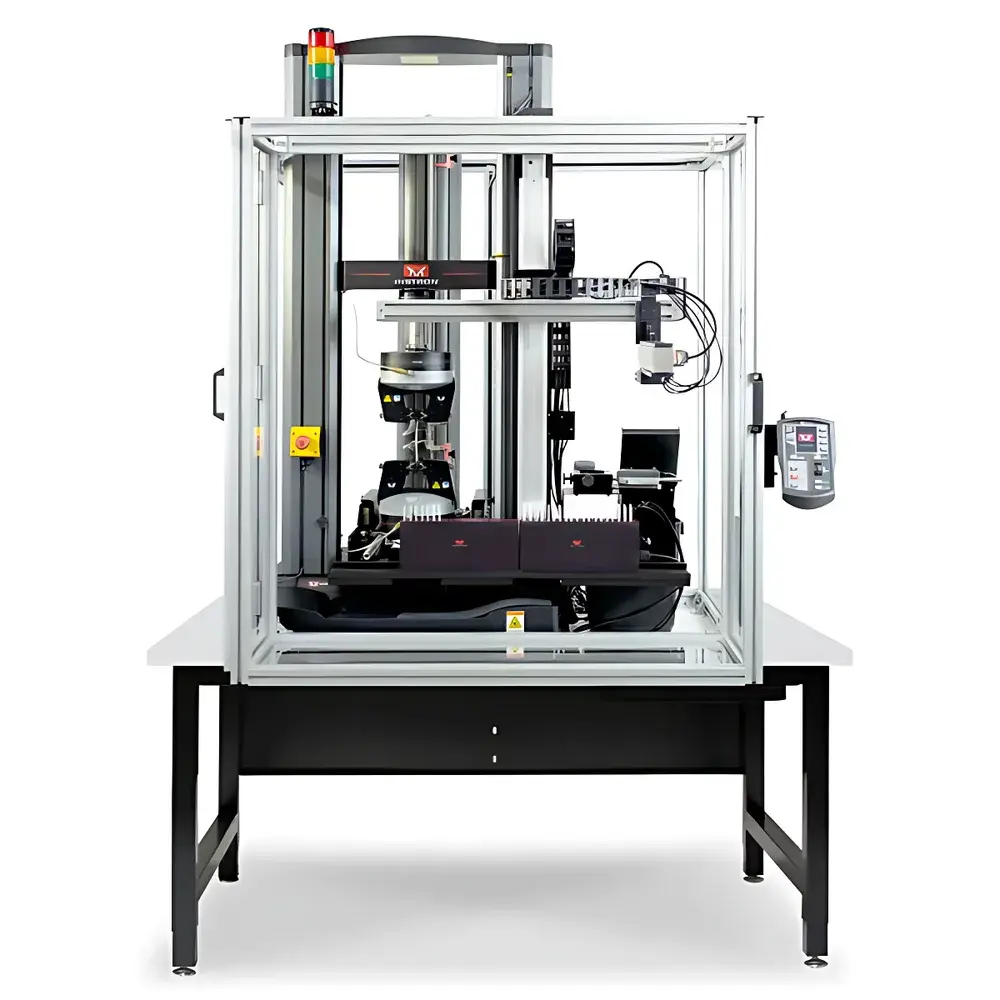

INSTRON AT3 Triaxial Fully Automated Testing System

Overview

The INSTRON AT3 Triaxial Fully Automated Testing System is an electromechanical universal testing platform engineered for high-throughput, high-reproducibility mechanical characterization of polymeric and lightweight composite materials. Unlike conventional manual or semi-automated systems, the AT3 employs a proprietary triaxial motion architecture—comprising independent X-, Y-, and Z-axis actuators—to execute specimen handling, dimensional verification, gripping, loading, and post-test removal without operator intervention. Its core measurement principle adheres to standardized uniaxial tensile and flexural mechanics as defined by ASTM D638 (tensile properties of plastics), ASTM D790 (flexural properties), ISO 527, and ISO 178. The system operates within a fully interlocked safety enclosure, eliminating direct human interaction with the test zone during operation and thereby satisfying OSHA 1910.212 and ISO 13857 requirements for hazardous motion zones.

Key Features

• Triaxial robotic motion system enabling autonomous specimen positioning, clamping, and removal—eliminating manual handling variability
• Integrated dual-axis optical dimensioning module for pre-test measurement of specimen width, thickness, and gauge length; data directly fed into test method parameters
• Modular design supports seamless upgrade to AT3+ configuration with fourth-axis capability for automated flexure–tensile hybrid protocols
• Removable specimen magazine accommodating up to 80 specimens (size- and geometry-dependent); pre-loading permitted during active test cycles
• Enhanced specimen ejection subsystem for rapid post-test removal, minimizing cycle time between consecutive tests
• Interlocked polycarbonate safety enclosure with light-curtain redundancy and emergency stop integration compliant with IEC 61508 SIL2
• Load frame optimized for precision force control (±0.5% of reading, full scale) and displacement resolution down to 0.1 µm

Sample Compatibility & Compliance

The AT3 system is validated for use with ASTM-standardized dog-bone, straight-bar, and rectangular-section specimens fabricated from thermoplastics (e.g., ABS, PC, PP), thermosets, elastomers, thin films, and fiber-reinforced composites (≤5 mm thickness). It supports standard grip types including pneumatic wedge, hydraulic, and low-force serrated jaws. All firmware and motion logic are traceable and audit-ready for GLP and GMP environments. System software maintains full 21 CFR Part 11 compliance—including electronic signatures, audit trails, and role-based access control—when deployed with INSTRON Bluehill Universal v4.x or later. Calibration certificates conform to ISO/IEC 17025-accredited procedures, and mechanical validation follows ISO 7500-1 Class 0.5.

Software & Data Management

Control and analysis are executed via INSTRON Bluehill Universal software, which provides method-driven test sequencing, real-time data visualization, and automated report generation in PDF, Excel, and XML formats. The software embeds ASTM- and ISO-compliant calculation engines for modulus, yield strength, elongation at break, flexural modulus, and deflection. All test metadata—including specimen ID, dimensional inputs, environmental conditions (if integrated with optional temperature chamber), and operator credentials—are time-stamped and stored in a relational database with configurable retention policies. Raw force-displacement data is saved in INSTRON’s native .iqw format (lossless, 32-bit floating point), ensuring full traceability for regulatory audits or third-party reanalysis.

Applications

• High-volume quality control of injection-molded plastic components in automotive and medical device manufacturing
• Material qualification per ASTM D638/D790 for polymer suppliers supporting ISO 9001-certified supply chains
• Comparative mechanical screening of bio-based polymers and recycled resin blends
• Long-term creep and stress-relaxation studies under controlled ambient conditions (with optional environmental chamber)
• Validation of additive manufacturing material behavior across build orientations and layer thicknesses
• Supporting ISO 10360-2 geometric accuracy verification for coordinate measuring machine (CMM) correlation studies

FAQ

Does the AT3 system support ASTM D638 Type I and Type IV specimen geometries?
Yes—the AT3’s programmable gripping sequence and dual-axis measurement module accommodate both Type I (dog-bone) and Type IV (straight-bar) configurations per ASTM D638-23.
Can test methods be exported and shared across multiple AT3 installations?
Yes—Bluehill Universal test methods (.bhm files) are portable and version-controlled; they retain all dimensional tolerances, control loops, and pass/fail criteria.
Is the system compatible with external environmental chambers?
Yes—it integrates natively with INSTRON’s 3119-600 series environmental chambers via Ethernet/IP, enabling synchronized temperature control and data logging.
What maintenance intervals are recommended for the triaxial motion system?
Linear guides and belt drives require inspection every 1,000 operational hours; lubrication and tension verification are documented in the preventive maintenance log per ISO 13374.
How is operator training delivered for AT3 system deployment?
INSTRON provides on-site commissioning, SOP development support, and certified operator training aligned with ISO/IEC 17025 competency requirements.
