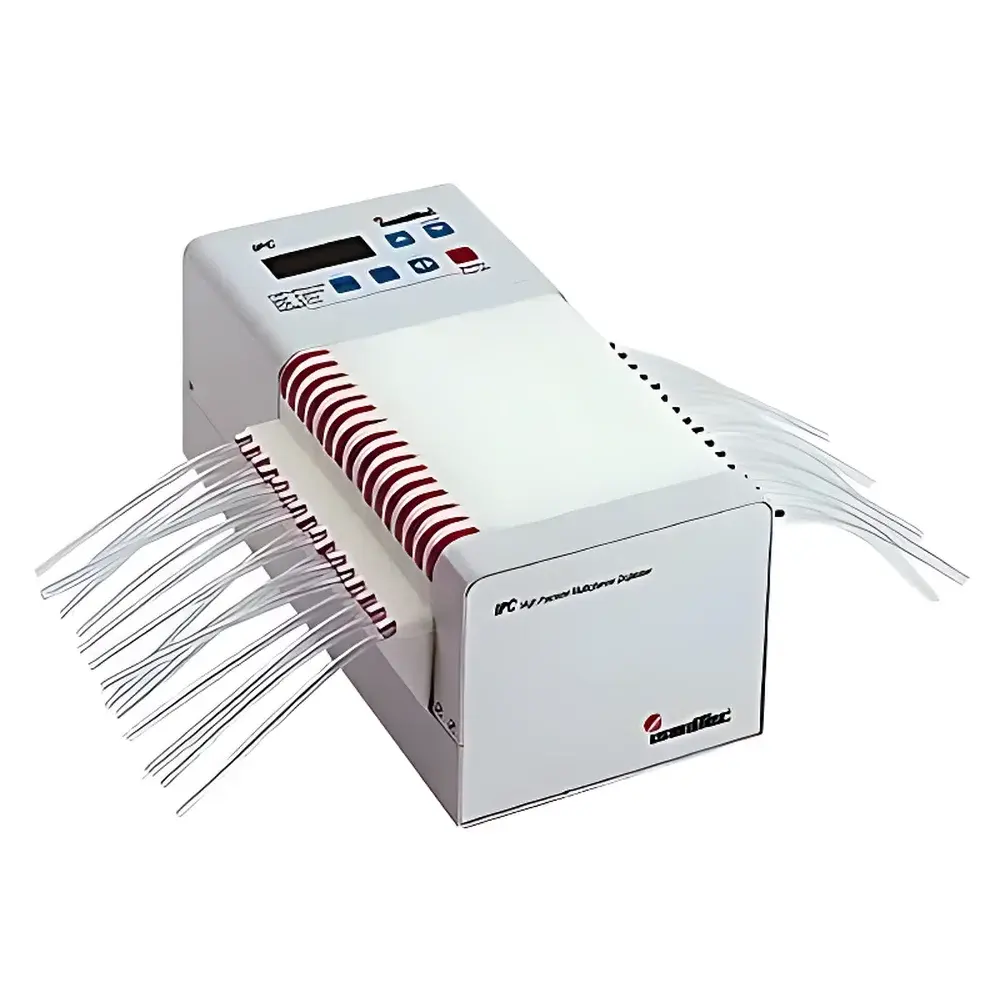

ISMATEC IPC Series Precision Peristaltic Pump (Official Authorized Distributor)
| Brand | ISMATEC |
|---|---|
| Origin | Switzerland |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Laboratory Equipment |
| Model Series | IPC |
| Pricing | Available Upon Request |
Overview
The ISMATEC IPC Series precision peristaltic pump is a high-accuracy fluid handling solution engineered for continuous, pulse-free, and contamination-free liquid transfer in analytical, bioprocessing, and quality control laboratories. Based on the proven principle of peristalsis—where rollers compress flexible tubing to propel fluid without contact between the pump mechanism and the medium—the IPC series delivers exceptional volumetric reproducibility and long-term stability. Designed and manufactured in Switzerland, each unit integrates German-engineered planetary gear reduction systems with ultra-precise stepper motor control, enabling flow rate resolution down to 0.001 mL/min (1 µL/min) across its operational range. Unlike diaphragm or piston-based alternatives, the IPC’s tube-only wetted path eliminates risk of cross-contamination, chemical incompatibility, or valve wear—making it ideal for sensitive reagents, cell culture media, buffers, and hazardous solvents.
Key Features
- Swiss-engineered peristaltic architecture with ISO 9001-certified manufacturing traceability
- Tool-free pump head exchange system—compatible with multiple tube sizes (ID 0.5–6.4 mm) and chemically resistant tubing materials (e.g., PharMed® BPT, Viton®, silicone)
- Integrated planetary gear train delivering high torque at low speed, minimizing pulsation (< ±1.5% peak-to-peak) and extending tubing service life
- High-resolution microstepping motor control supporting flow rates from 0.001 to 320 mL/min (dependent on tube ID and backpressure)
- Front-panel digital interface with real-time RPM and flow rate display, programmable start/stop, direction reversal, and ramp-up/down profiles
- Standard RS-232 and optional USB/Ethernet interfaces compliant with Modbus RTU and ASCII protocols for seamless integration into LIMS, SCADA, or custom automation frameworks
Sample Compatibility & Compliance
The IPC Series accommodates a broad spectrum of sample types—including aqueous buffers, organic solvents, viscous glycerol solutions (up to 5000 mPa·s), and shear-sensitive biological suspensions—without degradation or foaming. Tubing selection adheres to USP Class VI and FDA 21 CFR Part 11 guidelines for pharmaceutical applications. All units meet CE marking requirements under the EU Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU. For regulated environments, optional audit trail logging, user access levels, and electronic signature support are available via ISMATEC’s IPC-Link software suite—fully aligned with GLP and GMP documentation standards.
Software & Data Management
ISMATEC IPC-Link software provides full remote configuration, real-time monitoring, and data export in CSV or Excel-compatible formats. The application supports multi-pump synchronization, time-based dosing sequences, and event-triggered operations (e.g., start upon sensor input). All parameter changes, runtime logs, and operator actions are timestamped and stored with immutable records—enabling compliance with 21 CFR Part 11 requirements for electronic records and signatures. Firmware updates are delivered through validated release channels and include version-controlled changelogs for audit readiness.
Applications
- Automated reagent dispensing in ICP-MS, HPLC, and IC sample introduction systems
- Continuous feed control in bioreactors and perfusion culture platforms
- Calibration standard delivery in environmental water analysis (EPA Method 200.8, ISO 17294-2)
- Low-shear transfer of stem cells, exosomes, and protein formulations
- In-line dilution and blending in pharmaceutical formulation development (ICH Q5C, Q5D)
- Waste stream management and titrant delivery in automated titration systems
FAQ
Is the IPC Series suitable for sterile or aseptic applications?
Yes—when paired with gamma-sterilizable tubing (e.g., C-Flex® or Tygon® S-50HL) and operated within validated parameters, the IPC meets ISO 13485-compliant device assembly requirements.
Can the pump be integrated into a PLC-controlled production line?
Absolutely—the RS-232/Modbus interface enables direct communication with Siemens S7, Allen-Bradley ControlLogix, and Beckhoff TwinCAT systems using standard function codes.
What is the maximum allowable backpressure for continuous operation?
Up to 2 bar (29 psi) at rated flow; pressure tolerance scales inversely with tube wall thickness and roller compression setting—detailed derating curves are provided in the technical manual.
Does ISMATEC offer validation documentation (IQ/OQ/PQ) support?
Yes—authorized distributors provide pre-validated templates, calibration certificates traceable to NIST standards, and on-site OQ execution support upon request.
How often does tubing require replacement under typical lab usage?
With standard PharMed® BPT tubing at 60 rpm and aqueous media, mean service life exceeds 1,200 hours; lifetime increases significantly at lower speeds and reduced compression settings.
