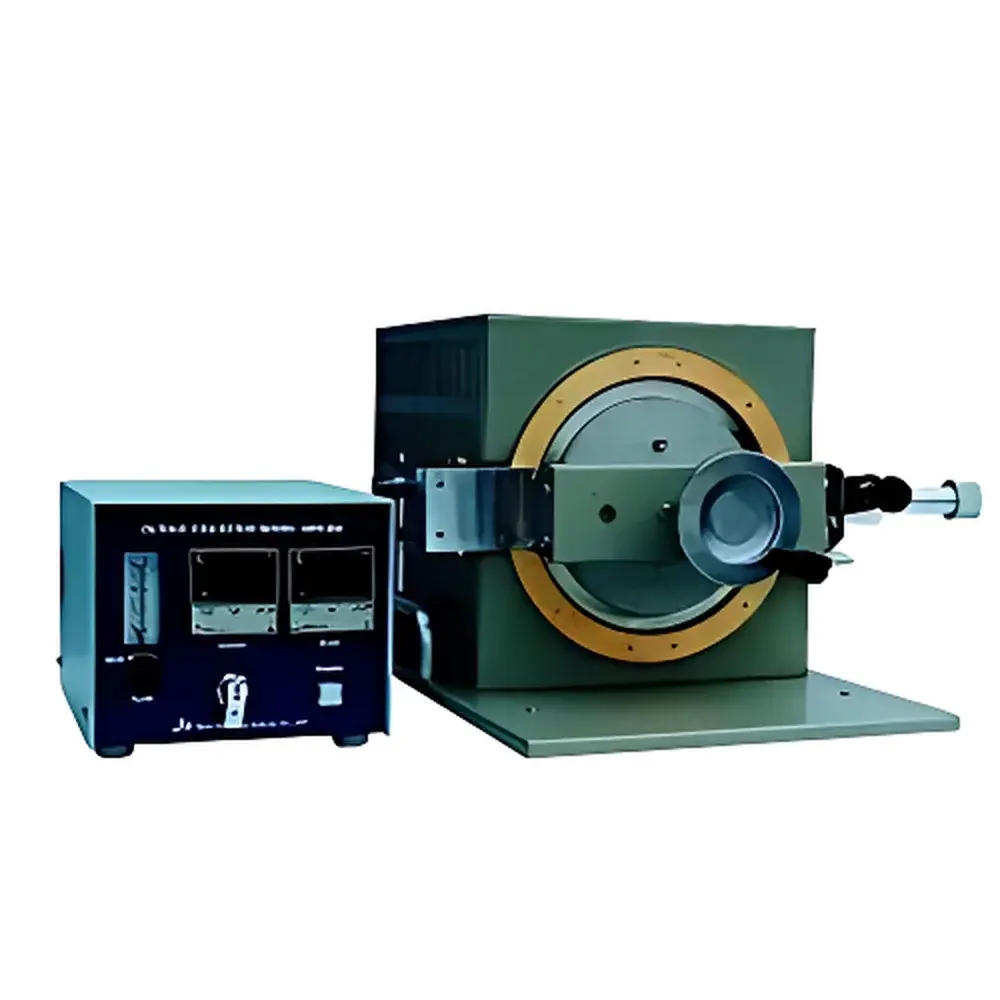

JAI HD-2.5″/HD-3.5″ Hard Disk Gas Purge and Thermal Desorption Unit

Overview

The JAI HD-2.5″/HD-3.5″ Hard Disk Gas Purge and Thermal Desorption Unit is a purpose-engineered laboratory system designed for inert gas purging, thermal conditioning, and controlled off-gas extraction from sealed hard disk drive (HDD) assemblies during failure analysis, material outgassing studies, and contamination diagnostics. Unlike generic purge ovens, this instrument integrates precision thermal management with gas-phase sample handling architecture optimized specifically for 2.5-inch and 3.5-inch HDD form factors. It operates on the principle of dynamic thermal desorption under inert sweep gas flow—enabling quantitative release and capture of volatile organic compounds (VOCs), moisture, residual solvents, and process gases trapped within hermetically sealed drive enclosures. The unit supports both ambient and elevated temperature operation (up to 150 °C typical, dependent on configuration), with dual-zone resistive heating ensuring uniform thermal distribution across the HDD stack. Its design addresses critical requirements in semiconductor reliability labs, HDD manufacturing QA/QC facilities, and forensic electronics laboratories where trace-level volatile emission profiling must be performed without compromising drive integrity.

Key Features

• Dual-form-factor compatibility: Dedicated configurations for 2.5″ (3-drive capacity) and 3.5″ (10-drive capacity) HDDs, with mechanically indexed mounting fixtures ensuring repeatable positioning and thermal contact.
• Surface engineering options: Standard stainless-steel heating chamber (HD-2.5″/HD-3.5″); gold-plated interior (G-series) for enhanced inertness and reduced catalytic surface activity during high-temperature VOC release; gold-plated + integrated recirculating water cooling (GW-series) for rapid thermal stabilization and suppression of thermal drift during extended desorption cycles.
• Dual-zone resistive heating: Independent top and bottom heater control enables gradient-free thermal profiles and minimizes thermal stress on sensitive actuator assemblies and platter substrates.
• Controlled inert gas purging: Mass-flow regulated nitrogen or helium sweep (0–200 mL/min) with calibrated inlet/outlet ports, compatible with downstream trapping (e.g., Tenax TA, Carbopack™) or real-time GC/MS coupling via heated transfer lines.
• Modular accessory interface: Includes standardized first-stage adsorption tube (JAI-spec), U-shaped sealing ring, insulated transfer tubing, and controller-integrated power/data harness—fully compliant with ASTM E260 and ISO 16000-6 for sorbent tube-based VOC sampling.

Sample Compatibility & Compliance

The HD series accommodates standard SATA and SAS 2.5″ and 3.5″ HDDs—including enterprise-grade drives with multi-platter stacks and helium-filled enclosures. Mounting fixtures maintain mechanical stability during thermal cycling while preserving seal integrity. All models comply with IEC 61000-4 electromagnetic compatibility standards and meet UL/CSA Class I, Division 2 electrical safety requirements for laboratory environments. When operated with JAI-certified adsorption tubes and validated purge protocols, the system supports GLP-compliant data generation per FDA 21 CFR Part 11 when paired with compliant chromatographic data systems. Optional traceable calibration certificates are available for temperature uniformity (±1.5 °C across chamber volume) and gas flow accuracy (±2% FS).

Software & Data Management

The dedicated controller features a 4.3″ color touchscreen HMI with embedded firmware supporting programmable temperature ramps (0.1–10 °C/min), dwell time scheduling, gas flow sequencing, and real-time logging of chamber temperature, purge flow rate, and cooling loop status. All operational parameters and timestamps are exportable as CSV files via USB port. Audit trail functionality records user logins, method changes, and alarm events—meeting minimum ALCOA+ data integrity criteria. Remote monitoring and control via Ethernet (Modbus TCP) enable integration into centralized lab automation platforms and LIMS workflows.

Applications

• Outgassing characterization of HDD internal materials (adhesives, lubricants, PCB laminates) per NASA ASTM E595 and ECSS-Q-ST-70-02C specifications.
• Root cause analysis of head crash failures linked to condensable vapor deposition or corrosion-inducing species.
• Qualification of new HDD enclosure coatings and sealants under accelerated thermal aging protocols.
• Verification of cleanroom assembly process efficacy through post-seal volatile residue screening.
• Supporting JEDEC JESD22-A108 humidity resistance testing by enabling controlled pre-conditioning and off-gas collection.

FAQ

Can the HD unit be used with third-party thermal desorption tubes?
Yes—when interfacing with non-JAI adsorption tubes (e.g., Markes, Gerstel), the system ships with configurable adapter fittings and tube-specific mounting hardware instead of the standard JAI first-stage tube.
What is the maximum allowable operating temperature for gold-plated chambers?
The gold-plated heating chamber (G and GW models) is rated for continuous operation up to 180 °C; derating is recommended above 150 °C for long-term coating stability.
Is the water cooling system self-contained?
Yes—the W and GW models include an integrated 4 kg closed-loop chiller with temperature regulation setpoint range of 10–30 °C, requiring only ambient air heat dissipation.
Does the controller support automated method recall and execution?
Yes—up to 32 user-defined methods can be stored, each with independent ramp/dwell/flow profiles, and executed with one-touch initiation and full parameter logging.
How is temperature uniformity verified across the HDD loading zone?
JAI provides optional NIST-traceable validation kits including multipoint thermocouple probes and mapping software for chamber qualification per ISO/IEC 17025 requirements.
