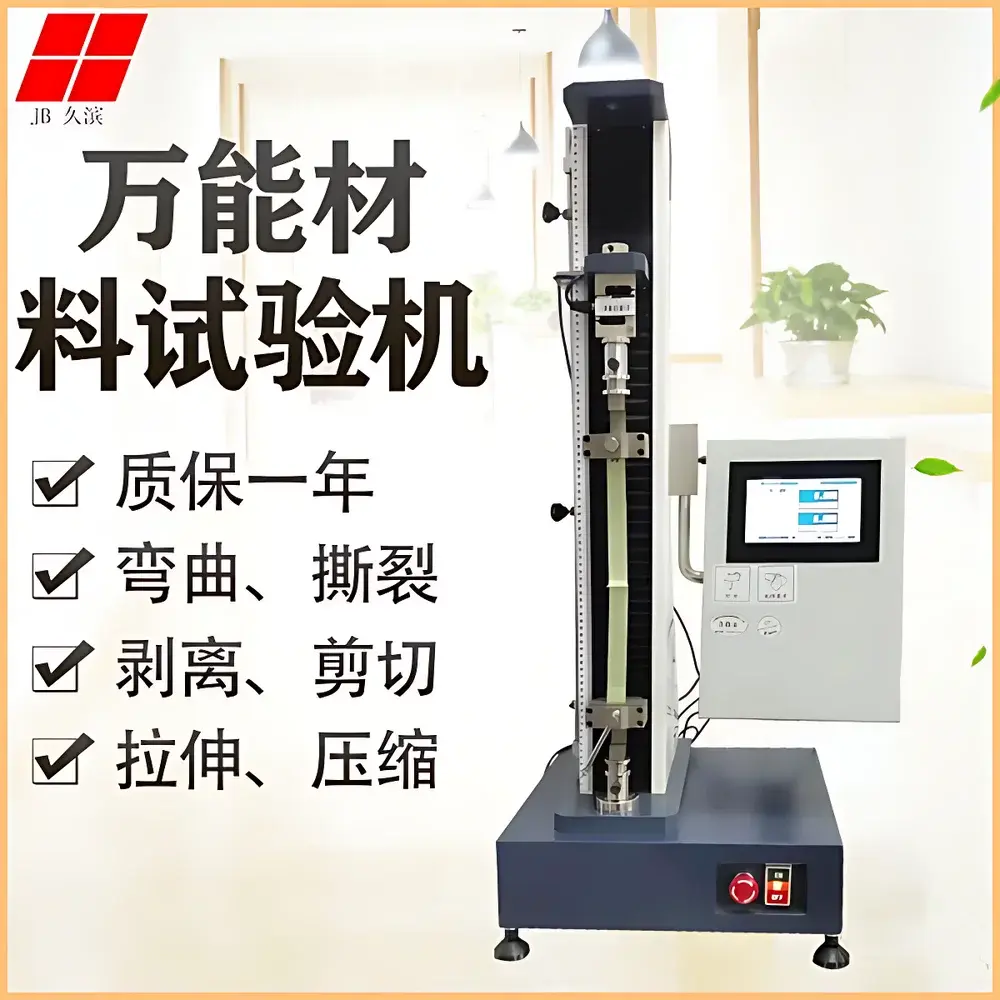

JB-Brookfield JB-126A Digital Tensile Testing Machine for Monofilament and Nylon Fishing Lines

Overview

The JB-Brookfield JB-126A Digital Tensile Testing Machine is an electromechanical universal testing system engineered for high-reproducibility mechanical characterization of low-diameter linear materials—including monofilament nylon fishing lines, synthetic fibers, polymer filaments, braided cords, and coated textile strands. It operates on a servo-controlled load frame architecture with real-time closed-loop displacement and force feedback, enabling precise execution of standardized tensile, peel, shear, and cyclic loading protocols. Unlike hydraulic or manual testers, the JB-126A employs a brushless DC motor coupled with a precision ball-screw transmission system, delivering consistent crosshead speeds from 0.01 to 500 mm/min with ±0.2% speed accuracy across the full range. Its design prioritizes repeatability in small-force regimes (sub-1 N to 5 kN), critical for evaluating line elongation at break, knot strength retention, creep behavior under sustained load, and modulus transitions in thermoplastic monofilaments.

Key Features

• Fuzzy logic-based motion control algorithm eliminates manual PID tuning—system auto-calibrates load cell response and crosshead positioning during initialization.
• Dual-mode gripping system: interchangeable pneumatic jaws (for smooth, high-grip monofilaments) and serrated mechanical clamps (for textured or coated lines), both equipped with self-aligning mechanisms to minimize bending moments.
• Integrated digital load cell with 1/100,000 resolution and <±0.5% FS accuracy (per ISO 7500-1 Class 0.5), traceable to NIM (National Institute of Metrology, China) standards.
• Real-time stress–strain curve generation with automatic yield point detection, breakpoint marking, and modulus calculation (secant, tangent, chord) per ASTM D882 and ISO 527-3.
• Modular software platform compliant with FDA 21 CFR Part 11 requirements: electronic signatures, audit trail logging, user role-based access control, and data immutability enforcement.

Sample Compatibility & Compliance

The JB-126A is validated for specimens with diameters from 0.1 mm to 3.0 mm and lengths up to 300 mm—ideal for ASTM D2256 (tensile properties of textile yarns), ISO 2062 (cotton and man-made fiber yarns), and JIS L1013 (fishing line strength testing). It meets mechanical and metrological requirements of GB/T 2790 (180° peel), GB/T 8808 (composite film peel), GB/T 13022 (plastic film tensile), and YY/T 0148 (medical adhesive tape testing). All test methods are preloaded as executable templates with parameter constraints aligned to standard tolerances (e.g., gauge length ±0.5 mm, preload ≤1% of expected break load). The system supports third-party calibration certificate import and generates ISO/IEC 17025-compliant calibration reports.

Software & Data Management

The JB-TestSuite v4.2 software provides a unified interface for method definition, test execution, real-time visualization, and post-test analysis. Each test session automatically records operator ID, environmental temperature/humidity (via optional external sensor input), machine configuration, and raw force–displacement data at ≥100 Hz sampling rate. Export formats include CSV (for MATLAB/Python analysis), XML (for LIMS integration), and password-protected PDF certificates containing signature fields, revision history, and deviation flags. Audit trails capture all user actions—including parameter edits, result deletions, and report approvals—with timestamped entries stored locally and optionally mirrored to network-attached storage for GLP audit readiness.

Applications

• Quantification of breaking strength, elongation at break, and initial modulus of nylon 6/6 and fluorocarbon monofilaments under controlled humidity (23°C / 50% RH).
• Evaluation of knot efficiency (e.g., Palomar, Albright, improved clinch) via dual-grip tensile testing with pre-tension stabilization.
• Creep and stress-relaxation profiling of braided PE lines over 1–10,000-second intervals at constant load levels.
• Peel adhesion testing of coated leader materials per ASTM D903 and ISO 8510-2 using 180° fixed-angle fixtures.
• Cyclic fatigue assessment of fly-fishing tippets using programmable load reversal sequences (e.g., 500 cycles at 70% of ultimate tensile strength).

FAQ

Can the JB-126A perform tests per ASTM D2256 for fishing line tensile strength?

Yes—the system includes a dedicated ASTM D2256 test template with configurable gauge length (500 mm default), crosshead speed (300 mm/min), and automatic break detection logic.
Is third-party calibration support available?

Yes—JB-Brookfield provides NIST-traceable calibration services and issues ISO/IEC 17025-certified certificates upon request.
Does the software meet FDA 21 CFR Part 11 requirements for regulated labs?

Yes—electronic signatures, audit trail integrity, and data encryption are enabled by default; validation documentation (IQ/OQ/PQ protocols) is supplied with each installation.
What is the minimum specimen diameter supported?

0.1 mm, achievable using micro-grip inserts with tungsten carbide facing and adjustable jaw pressure (0.5–10 N range).
Can custom test sequences be programmed for multi-step fatigue protocols?

Yes—scripting mode allows definition of time-dependent load profiles, conditional breakpoints, and automated pass/fail evaluation against user-defined thresholds.
