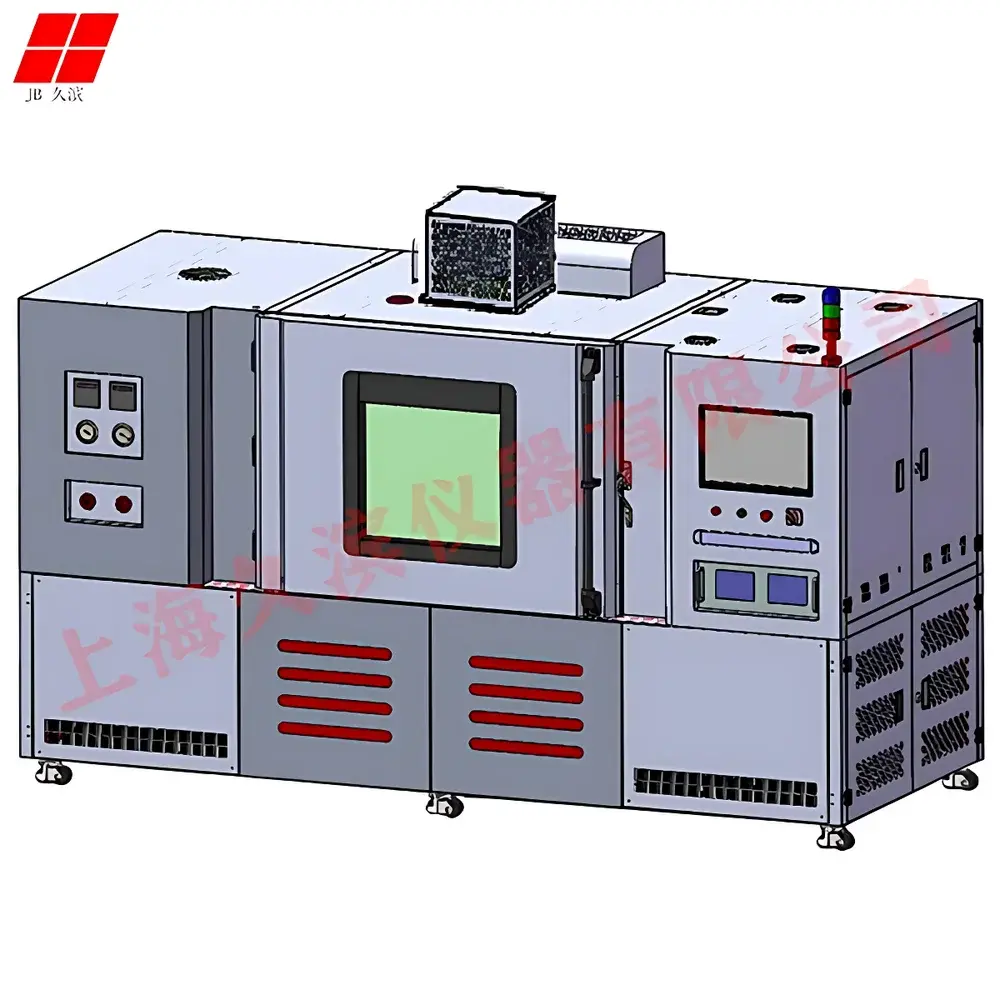

JB-JM8 Hot Water Heater Pulse Fatigue Testing Machine

Overview

The JB-JM8 Hot Water Heater Pulse Fatigue Testing Machine is an engineered hydraulic pressure cycling system designed to evaluate the structural integrity and service life of pressurized thermal storage components—specifically water heater tanks used in air-source heat pump, solar, and gas-fired domestic hot water systems. It operates on the principle of controlled cyclic pressure loading, subjecting test specimens to repeated pressure transients within defined upper and lower limits. This simulates real-world operational stress conditions—including thermal expansion, pressure surges from pump cycling, and intermittent flow demand—thereby enabling quantitative assessment of fatigue resistance, weld seam durability, and liner material performance under dynamic load. The system conforms to internationally recognized pulse endurance testing methodologies for flexible and rigid fluid-conveying components, adapted for high-strength metallic and composite tank assemblies.

Key Features

• Modular four-subsystem architecture: integrated hydraulic pulsation unit, climate-controlled test chamber, dual-zone temperature regulation (ambient cabinet + media loop), and centralized control console with industrial-grade PLC and PC-based data acquisition.
• High-fidelity waveform generation supporting square, trapezoidal, triangular, and sinusoidal pressure profiles—configurable via software interface to replicate transient events such as rapid valve closure or pump start/stop dynamics.
• Stainless-steel internal chamber construction with powder-coated exterior housing ensures long-term corrosion resistance and mechanical stability during extended duty cycles.
• Real-time monitoring of critical parameters including applied pressure (0–40 MPa range), pulse frequency (0–5 Hz, continuously adjustable), cumulative cycle count, media temperature (±0.5 °C accuracy), and system fault status.
• Robust safety interlocks: overpressure cutoff, thermal shutdown, leak detection alarm, and emergency stop circuit compliant with IEC 60204-1 requirements.

Sample Compatibility & Compliance

The JB-JM8 accommodates a broad range of tank geometries and mounting configurations through customizable fixture plates and clamping interfaces. Specimens may include welded stainless steel, enameled steel, or polymer-lined tanks with nominal diameters from 200 mm to 800 mm and wall thicknesses up to 5 mm. All test protocols are traceable to referenced standards: ISO 6802:1991 (reinforced rubber hose pulsation), SAE J2044 (hydraulic fitting fatigue), BS EN ISO 6803:2008 (flexible hose non-flexing pulse), and multiple Chinese national standards (GB/T series) governing hydraulic pulse endurance, burst resistance, and pressure hold behavior for both metallic and polymeric pressure vessels. The system supports audit-ready documentation required under GLP environments and aligns with mechanical testing prerequisites outlined in ASME BPVC Section VIII and EN 13445 for pressure equipment qualification.

Software & Data Management

The embedded Windows-based test management software provides full control over waveform definition, parameter scheduling, and pass/fail logic configuration. All acquired data—including time-stamped pressure waveforms, cycle counters, temperature logs, and event-triggered alarms—are stored in binary .tdms format with optional CSV export. Each test report includes metadata (operator ID, calibration date, sensor serial numbers), statistical summaries (mean pressure deviation, frequency drift, cycle-to-failure), and graphical overlays of actual vs. target waveforms. Audit trails comply with FDA 21 CFR Part 11 requirements when configured with electronic signatures and role-based access controls. Raw datasets are exportable for third-party analysis using MATLAB, Python (NumPy/Pandas), or LabVIEW.

Applications

• Accelerated lifetime validation of inner tank welds and coating adhesion in residential and commercial water heaters.
• Comparative evaluation of alternative liner materials (e.g., vitreous enamel vs. polymer composites) under simulated thermal-mechanical coupling.
• Verification of pressure relief valve integration reliability during cyclic overpressure excursions.
• Supporting R&D for next-generation tank designs incorporating multi-layer metallurgy or additive-manufactured reinforcement zones.
• Third-party certification testing per OEM specifications requiring compliance with GB/T 12722–2008 (semi-Ω bending-pulse protocol) or custom waveform definitions.

FAQ

What types of pressure media are supported?
Water (potable grade, particle-free), mineral oil, or ethylene glycol/water mixtures (up to 60% concentration) may be used. Viscosity and vapor pressure must remain within operational limits of the positive displacement pulsation pump.
Can the system perform simultaneous temperature and pressure cycling?
Yes—the JB-JM8 features independent ambient chamber heating/cooling and closed-loop media temperature control, enabling coupled thermo-mechanical fatigue protocols per ISO 13473 or custom thermal ramp profiles.
Is remote monitoring available?
Standard Ethernet connectivity allows secure remote access via VPN; optional OPC UA server module enables integration into factory MES or SCADA platforms.
What calibration documentation is provided?
NIST-traceable calibration certificates for pressure transducers (±0.25% FS), temperature sensors (±0.3 °C), and flow meters are included at delivery, with recommended recalibration intervals aligned to ISO/IEC 17025 guidelines.
Does the system meet CE or UKCA marking requirements?
The JB-JM8 meets essential health and safety requirements of the EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU; CE marking documentation is supplied upon request for EU-based installations.
