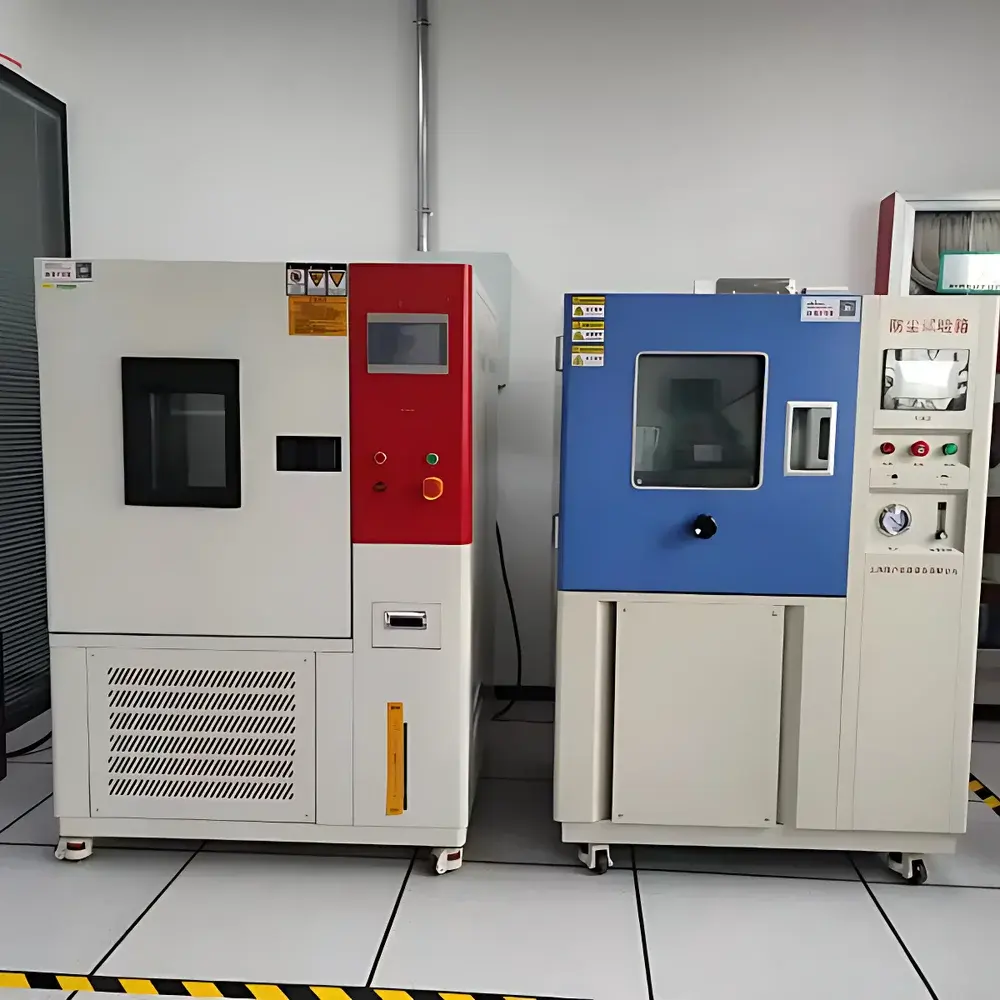

Jianhu JH-THC Series High-Low Temperature Cycling Test Chamber

Overview

The Jianhu JH-THC Series High-Low Temperature Cycling Test Chamber is an engineered environmental simulation system designed for rigorous reliability validation under controlled thermal stress conditions. Based on the fundamental principles of thermodynamic cycling and forced-air convection, the chamber delivers precise, repeatable transitions between extreme temperature extremes—critical for accelerated life testing, qualification of electronic assemblies, automotive ECUs, photovoltaic modules, and aerospace components. Its dual-stage cascade refrigeration architecture enables stable operation across the full -70 °C to +150 °C range, while intelligent airflow management ensures uniform thermal distribution throughout the test space. The system complies with core international standards governing environmental testing, including IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), and IEC 60068-2-30 (damp heat cyclic), and is pre-configured to meet the updated requirements of IEC 60068-2-30:2025—including mandatory 15-second transition time verification, ±1 °C spatial uniformity validation protocol, and 5-year audit-ready data retention.

Key Features

• Dual-stage cascade refrigeration system using R454B refrigerant—optimized for energy efficiency and global regulatory compliance amid evolving F-gas phase-down schedules
• Independent heating and cooling circuits with PID-controlled SSR power regulation, minimizing thermal overshoot and enabling rate stability within ±5 °C/min (calibrated per GB/T 2423.22–2012 and IEC 60068-3-11)
• Explosion-proof variants available with certified ATEX Zone 2 / IECEx nA IIC T4 classification for battery, fuel cell, and chemical process testing applications
• Touchscreen HMI with embedded real-time logging, configurable alarm thresholds, and password-protected user levels (Operator, Engineer, Administrator)
• Structural insulation using high-density polyurethane foam (≥30 mm thickness) and triple-sealed observation window with anti-fogging heated glass
• Modular chamber construction supporting non-standard internal dimensions—from compact 100 L benchtop units to walk-in 1000 L configurations—with reinforced stainless-steel interior and corrosion-resistant exterior finish

Sample Compatibility & Compliance

The JH-THC Series accommodates a broad spectrum of test specimens—from PCBAs and Li-ion pouch cells to automotive brake calipers and optical sensor housings—without compromising thermal fidelity. All standard configurations undergo factory calibration per ISO/IEC 17025-accredited procedures, with NIST-traceable temperature sensors (Pt100 Class A) mounted at nine standardized locations (per IEC 60068-3-5). The chamber supports GLP/GMP-aligned validation protocols, including IQ/OQ/PQ documentation packages, and meets FDA 21 CFR Part 11 requirements for electronic records and signatures when paired with optional validated software modules. It is routinely deployed in laboratories accredited to CNAS, UKAS, and DAkkS scopes for environmental testing of medical devices (ISO 13485), automotive electronics (AEC-Q200), and semiconductor packaging (JEDEC JESD22-A104).

Software & Data Management

Jianhu’s proprietary TEMPCONTROL v4.2 software provides comprehensive test orchestration, remote monitoring via Ethernet/Wi-Fi, and automated report generation compliant with ISO/IEC 17025 clause 7.8.2. Data logging resolution is configurable down to 1 second, with secure local storage (256 GB SSD) and optional cloud backup (AWS S3 encrypted). Audit trails record all parameter changes, user logins, calibration events, and alarm activations—retained for ≥5 years as mandated by IEC 60068-2-30:2025. Export formats include CSV, PDF, and XML for integration into LIMS (e.g., LabVantage, Thermo Fisher SampleManager) and enterprise MES platforms. Optional 21 CFR Part 11 module includes electronic signature workflows, role-based access control, and immutable log archiving.

Applications

• Thermal cycling qualification of EV battery modules per UN ECE R100 and GB/T 31467.3
• Reliability screening of 5G RF front-end components under rapid temperature ramping (≥10 °C/min variants)
• Environmental stress screening (ESS) of avionics hardware to DO-160 Section 4 and MIL-STD-810H Method 501.7
• Accelerated aging studies for OLED displays and flexible printed electronics
• Validation of conformal coating integrity on automotive control units exposed to combined thermal-humidity cycling
• Material compatibility testing for pharmaceutical primary packaging under ICH Q1A(R3) long-term and accelerated stability conditions

FAQ

Does the JH-THC Series support fully automated thermal cycling profiles with dwell times, ramps, and conditional branching?
Yes—TEMPCONTROL v4.2 allows creation of multi-segment profiles with up to 999 steps, programmable dwell durations, variable ramp rates, and logic-based transitions (e.g., “hold until internal sensor T ≥ 85 °C”).

Is third-party certification (e.g., TÜV, SGS) available for individual units prior to shipment?
Yes—factory acceptance testing (FAT) includes IEC 60068-3-5 uniformity mapping and IEC 60068-3-11 transition time verification; optional witnessed certification by TÜV Rheinland or SGS can be arranged at additional cost.

What maintenance intervals are recommended for compressor-based systems operating continuously at -70 °C?
Compressor oil analysis and filter replacement every 3,000 operational hours; full preventive maintenance (including refrigerant purity check and airflow calibration) annually or per 2,000 cycles—whichever occurs first.

Can the chamber interface with PLC-based factory automation systems?
Yes—standard Modbus TCP and optional Profibus DP/Profinet gateways enable seamless integration into industrial control networks for centralized environmental test fleet management.

Are spare parts and technical documentation available globally outside mainland China?
Yes—Jianhu maintains regional spares hubs in Singapore, Hamburg, and Detroit; English-language operation manuals, calibration certificates, and circuit diagrams are provided digitally and on request in printed form.
