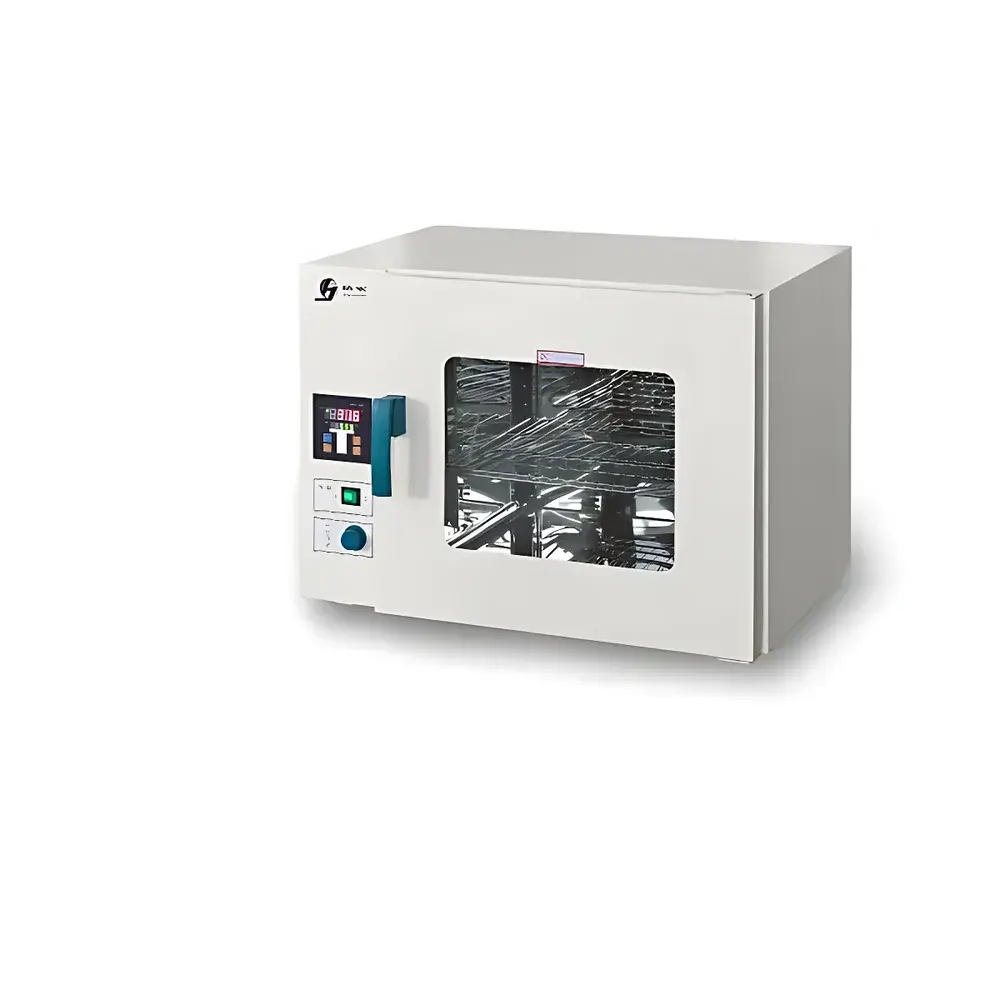

JingHong DHG-9053A Forced-Air Drying Oven

Overview

The JingHong DHG-9053A Forced-Air Drying Oven is an engineered solution for precise thermal processing in laboratory and industrial quality control environments. Designed around the principle of forced convection heating, this oven utilizes a low-noise centrifugal blower and optimized internal airflow channels to ensure uniform heat distribution across the stainless steel chamber—critical for reproducible drying, baking, sterilization, and pre-conditioning of samples. Its operational temperature range spans from ambient +10°C to 200°C, supporting applications such as moisture content determination (per ASTM D2231, ISO 293), polymer curing, pharmaceutical excipient drying (aligned with USP drying protocols), and microbiological media preparation. The unit complies with general electrical safety standards applicable to Class I, Group II laboratory equipment per IEC 61010-1 and meets structural requirements for stable operation under continuous load in controlled lab environments.

Key Features

• Stainless steel (SUS304) interior chamber offering corrosion resistance, ease of cleaning, and long-term dimensional stability under thermal cycling.
• Microprocessor-based PID temperature controller with dual digital display: real-time chamber temperature and user-setpoint, enabling accurate monitoring and adjustment.
• Auto-tuning function for adaptive PID parameter optimization—reducing overshoot and stabilizing temperature within ±1°C tolerance across the full operating range.
• Programmable timer (0–9999 minutes) with audible end-of-cycle alert and automatic power cutoff, supporting unattended operation for standardized thermal protocols.
• Forced-air circulation system featuring a rear-mounted, brushless centrifugal fan and symmetrically arranged air inlets/outlets—validated to achieve ≤±1.5°C spatial uniformity at 100°C (measured per ISO 17025-compliant mapping procedure).
• Robust insulation using high-density mineral fiber (≥50 mm thickness) minimizes external surface temperature rise and improves energy efficiency during prolonged operation.

Sample Compatibility & Compliance

The DHG-9053A accommodates standard laboratory glassware (e.g., weighing dishes, Petri dishes, crucibles) and metal sample trays up to 400 × 300 mm in footprint. Its chamber volume (0.051 L) supports batch processing of multiple small-to-medium specimens without cross-contamination risk. The oven is suitable for non-hazardous, non-volatile, and non-explosive materials only; it is not rated for solvent-based or flammable substance drying. While not intrinsically safe or explosion-proof, its design aligns with general laboratory good practice (GLP) for thermal validation tasks—including IQ/OQ documentation support. Users performing regulated work (e.g., pharmaceutical QC per FDA 21 CFR Part 11) may integrate optional data loggers for audit-trail-capable temperature recording.

Software & Data Management

The DHG-9053A operates via embedded firmware with no proprietary software dependency. All settings—including setpoint, timer, and auto-stop—are retained after power interruption (non-volatile memory). For traceable operation in regulated environments, third-party USB or RS485-compatible temperature data loggers (e.g., Omega OM-DAQPRO-5300 or Testo 176 T4) can be connected via the rear-mounted analog output port (0–5 V DC proportional to chamber temperature). Optional calibration certificates (NIST-traceable) are available upon request, supporting ISO/IEC 17025 accredited labs in maintaining metrological continuity.

Applications

• Drying of soil, sediment, and filter papers prior to gravimetric analysis (ASTM D2231, EPA Method 1684).
• Baking of ceramic substrates, metallurgical samples, and printed circuit boards during R&D prototyping.
• Pre-drying of hygroscopic reagents and reference standards before analytical weighing (USP ).
• Sterilization of glassware and stainless steel tools at ≥160°C for 90 minutes (validated per ISO 17665-1 for dry-heat microbial reduction).
• Curing of epoxy coatings, adhesives, and powder-coated components in material science laboratories.
• Conditioning of polymer films and composites prior to tensile or DMA testing (ASTM D618, ISO 291).

FAQ

Is the DHG-9053A suitable for drying solvents or volatile organic compounds?

No. This model lacks explosion-proof construction and solvent recovery capability. It must only be used with non-flammable, low-volatility materials.
Does the oven support GLP/GMP-compliant temperature validation?

Yes—when paired with external calibrated loggers and documented mapping procedures, it supports IQ/OQ execution and periodic requalification per Annex 15 and ISO 17025 requirements.
What is the maximum recommended continuous operating temperature?

200°C is the upper limit specified for sustained operation. Prolonged use above 180°C may accelerate insulation aging and require more frequent preventive maintenance.
Can the chamber be customized with additional shelving or perforated trays?

Standard configuration includes two adjustable stainless steel shelves. Optional accessories—such as reinforced wire mesh trays (load capacity: 15 kg/shelf) and silicone-coated sample racks—are available through authorized distributors.
Is technical support and spare parts availability guaranteed outside China?

JingHong maintains regional service partnerships in Southeast Asia, the Middle East, and Latin America. Critical spares—including fan assemblies, PID controllers, and door gaskets—are stocked by designated international agents with typical lead times under 4 weeks.
